51174 - ELF400/500/600/BUS
▶
3 - Brakes, Brake System
▶
3-31 - BRAKE MASTER VAC AND BRAKE BOOSTER
▶
3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER
(#75830) — 19 parça
Tümü
A - NPR7SN
B - NPR7SS
◀
[331A] ELF400 (11 parça)
[331A] ELF500,600 (8 parça)
▶
1
17
16
24
15
12
11
23
3
28
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
MASTER VAC ASM; BRK
8-97245-095-1
01
1
0807-
●
3
RETAINER; FRT SHELL,M/VAC
9-83315-319-0
01
1
0807-
●
11
FILTER; M/VAC
8-97205-576-0
01
1
0807-
●
12
SILENCER; M/VAC
8-97205-577-0
01
1
0807-
●
15
RETAINER; GUARD,M/VAC
8-94375-083-0
01
1
0807-
●
16
NUT; VLV ROD,M/VAC
M10
1-52139-008-0
01
1
0807-
●
17
CLEVIS; YOKE,M/VAC
8-97224-610-0
01
1
0807-
●
23
SEAL; M/VAC
8-97079-350-0
01
1
0807-
●
24
GUARD; VLV BODY,M/VAC
8-97205-578-0
01
1
0807-
●
28
GROMMET; CHECK VLV,M/VAC
8-97109-273-0
01
1
0807-
●
29
VALVE; CHECK,M/VAC
8-97105-918-0
01
1
0807-
●

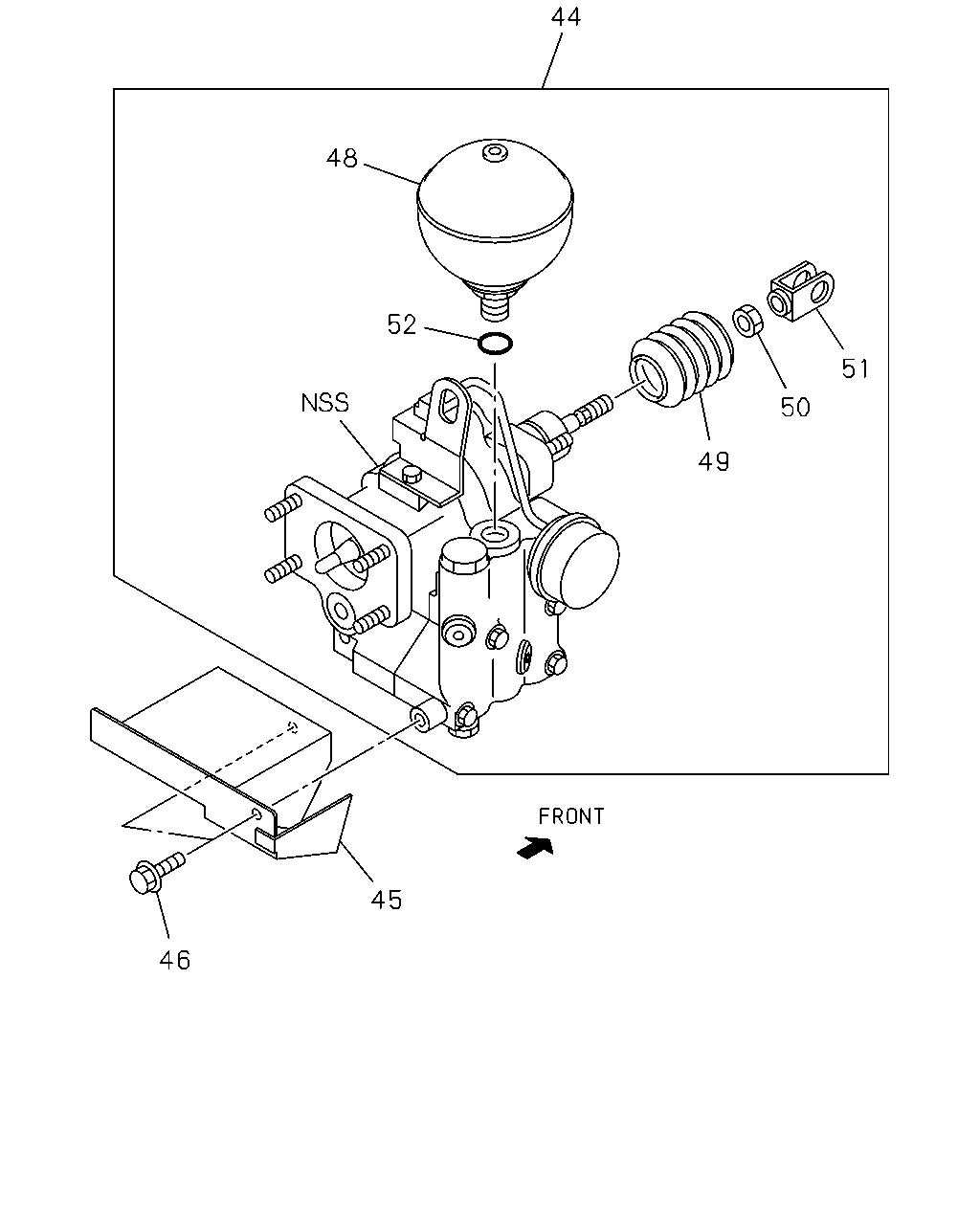

44
48
52
51
50
49
45
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
44
BOOSTER; HYDRAULIC BRK
8-98031-414-0
01
1
0807-
●
45
PROTECTOR; HEAT
8-98031-415-1
01
1
0807-
●
46
BOLT; HEAT PROTECTOR
M6X10 FLANGE
0-28050-610-0
02
1
0807-
●
48
ACCUMULATOR; HYDRO BOOSTER
8-98038-346-0
01
1
0807-
●
49
GUARD; HYDRO BRK BOOSTER
8-97191-043-0
01
1
0807-
●
50
NUT; HYDRO BRK BOOSTER
8-98038-349-0
01
1
0807-
●
51
CLEVIS; HYDRO BRK BOOSTER
8-98038-347-0
01
1
0807-
●
52
GASKET; HYDRO BRK BOOSTER
8-97191-038-0
01
1
0807-
●
