◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 3 - Brakes, Brake System ▶ 3-15 - ANTILOCK BRAKE SYSTEM(A.B.S.) ▶
3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#75827) — 77 parça

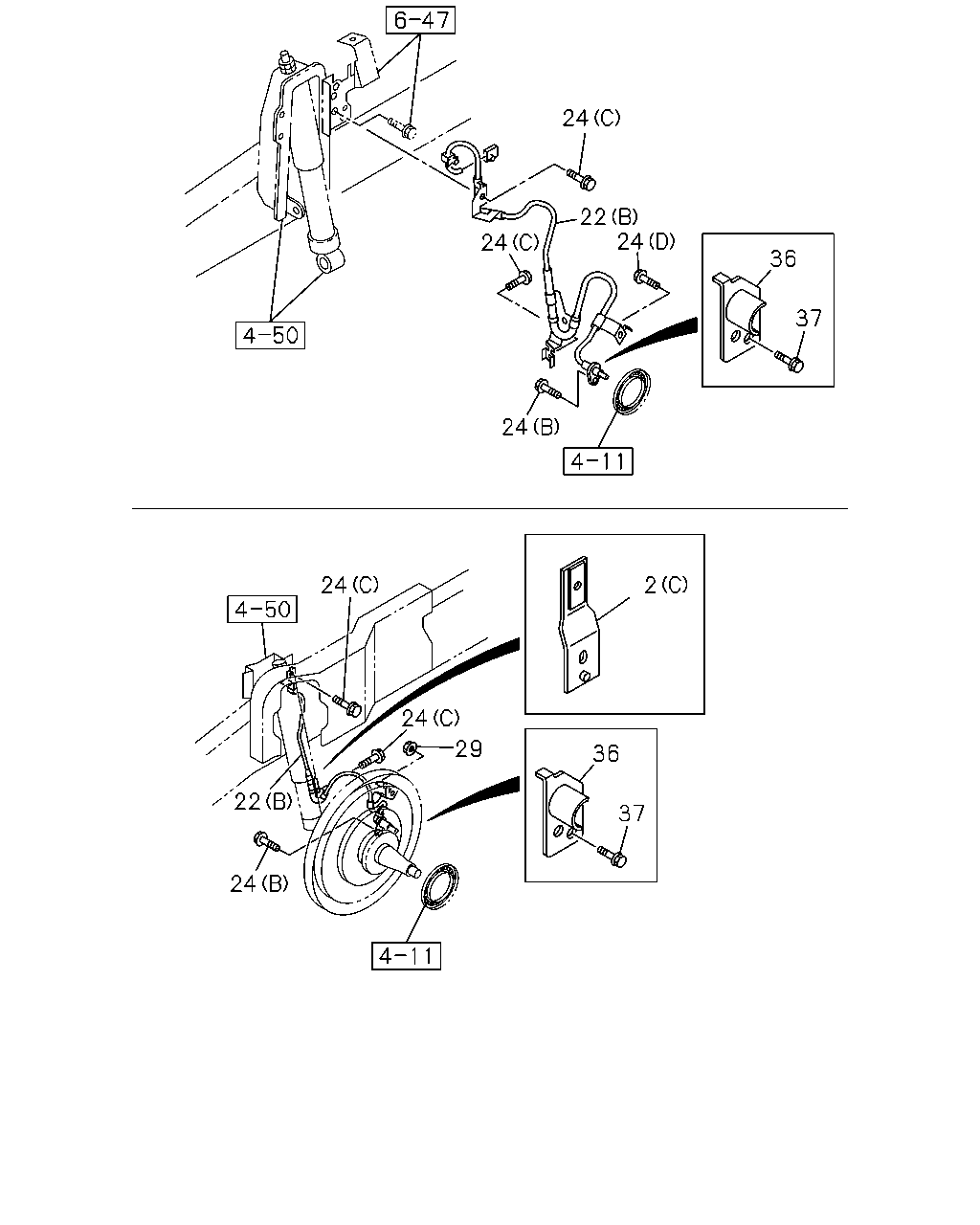

çizim 115621
24 22 24 24 36 37 24 24 2 24 29 36 22 37 24
BalonParca AdiParca NoAdetTipApplied Date A B
2 BRACKET; SENSOR
GVWR CLASS-5 18001-19500LBS(RQQ) (A) 		8-98002-441-1 02 1 0811- ●
2 BRACKET; SENSOR
(A) 		8-98000-019-2 02 1 0807- ●
2 BRACKET; SENSOR
(A) 		8-98002-440-1 02 1 0807-0810 ●
2 BRACKET; SENSOR
GVWR CLASS-5 16001-18000LBS(RQH) (A) 		8-98002-440-1 02 1 0811- ●
2 BRACKET; SENSOR
(B) 		8-97080-060-2 02 1 0807- ● ●
2 BRACKET; SENSOR
FRONT WIDE TREAD<7GV> (C) 		8-98141-581-0 02 1 1202- ●
22 SENSOR; SPEED
GVWR CLASS-5 18001-19500LBS(RQQ) (A) 		8-98002-216-1 02 1 0811-1401 ●
22 SENSOR; SPEED
GVWR CLASS-5 18001-19500LBS(RQQ) (A) 		8-98219-355-0 02 1 1402- ●
22 SENSOR; SPEED
(A) 		8-98002-215-1 02 1 0807-0810 ● ●
22 SENSOR; SPEED
(A) 		8-98002-215-1 02 1 0811-1401 ●
22 SENSOR; SPEED
GVWR CLASS-5 16001-18000LBS(RQH) (A) 		8-98002-215-1 02 1 0811-1401 ●
22 SENSOR; SPEED
(A) 		8-98219-354-0 02 1 1402- ●
22 SENSOR; SPEED
GVWR CLASS-5 16001-18000LBS(RQH) (A) 		8-98219-354-0 02 1 1402- ●
22 SENSOR; SPEED
(B) 		8-98006-184-0 01 1 0807-1201 ● ●
22 SENSOR; SPEED
(B) 		8-98006-184-0 01 1 1202-1408 ●
22 SENSOR; SPEED
EXC. FRONT WIDE TREAD<7GV> (B) 		8-98006-184-0 01 1 1202-1408 ●
22 SENSOR; SPEED
(B) 		8-98219-391-0 01 1 1409- ●
22 SENSOR; SPEED
EXC. FRONT WIDE TREAD<7GV> (B) 		8-98219-391-0 01 1 1409- ●
22 SENSOR; SPEED
(B) 		8-98006-185-0 01 1 0807-1201 ● ●
22 SENSOR; SPEED
(B) 		8-98006-185-0 01 1 1202-1408 ●
22 SENSOR; SPEED
EXC. FRONT WIDE TREAD<7GV> (B) 		8-98006-185-0 01 1 1202-1408 ●
22 SENSOR; SPEED
(B) 		8-98219-392-0 01 1 1409- ●
22 SENSOR; SPEED
EXC. FRONT WIDE TREAD<7GV> (B) 		8-98219-392-0 01 1 1409- ●
22 SENSOR; SPEED
FRONT WIDE TREAD<7GV> (B) 		8-98205-825-0 01 1 1202- ●
22 SENSOR; SPEED
FRONT WIDE TREAD<7GV> (B) 		8-98205-826-0 01 1 1202- ●
24 BOLT; SENSOR
(A) M6X10 FLANGE 		0-28050-610-0 02 1 0807-1401 ● ●
24 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28050-616-0 02 1 1402- ● ●
24 BOLT; SENSOR
(B) M6X10 FLANGE 		0-28050-610-0 02 1 0807-1310 ● ●
24 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 02 1 1311- ● ●
24 BOLT; SENSOR
(C) M8X12 FLANGE 		0-28050-812-0 02 1 0807-1201 ● ●
24 BOLT; SENSOR
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1202- ●
24 BOLT; SENSOR
EXC. FRONT WIDE TREAD<7GV> (C) M8X12 FLANGE 		0-28050-812-0 02 1 1202- ●
24 BOLT; SENSOR
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0807- ● ●
24 BOLT; SENSOR
(D) M10X12 FLANGE 		0-28051-012-0 02 1 0807- ● ●
24 BOLT; SENSOR
FRONT WIDE TREAD<7GV> (C) M8X16 FLANGE 		0-28050-816-0 02 1 1202- ●
29 NUT
FRONT WIDE TREAD<7GV> M8 FLANGE 		0-91180-108-0 02 1 1202- ●
36 PROTECTOR; SENSOR 8-98188-198-0 01 1 1108- ●
36 PROTECTOR; SENSOR 8-98188-199-0 01 1 1108- ●
37 BOLT; PROTECTOR
M6X10 FLANGE 		0-28050-610-0 02 1 1108- ●

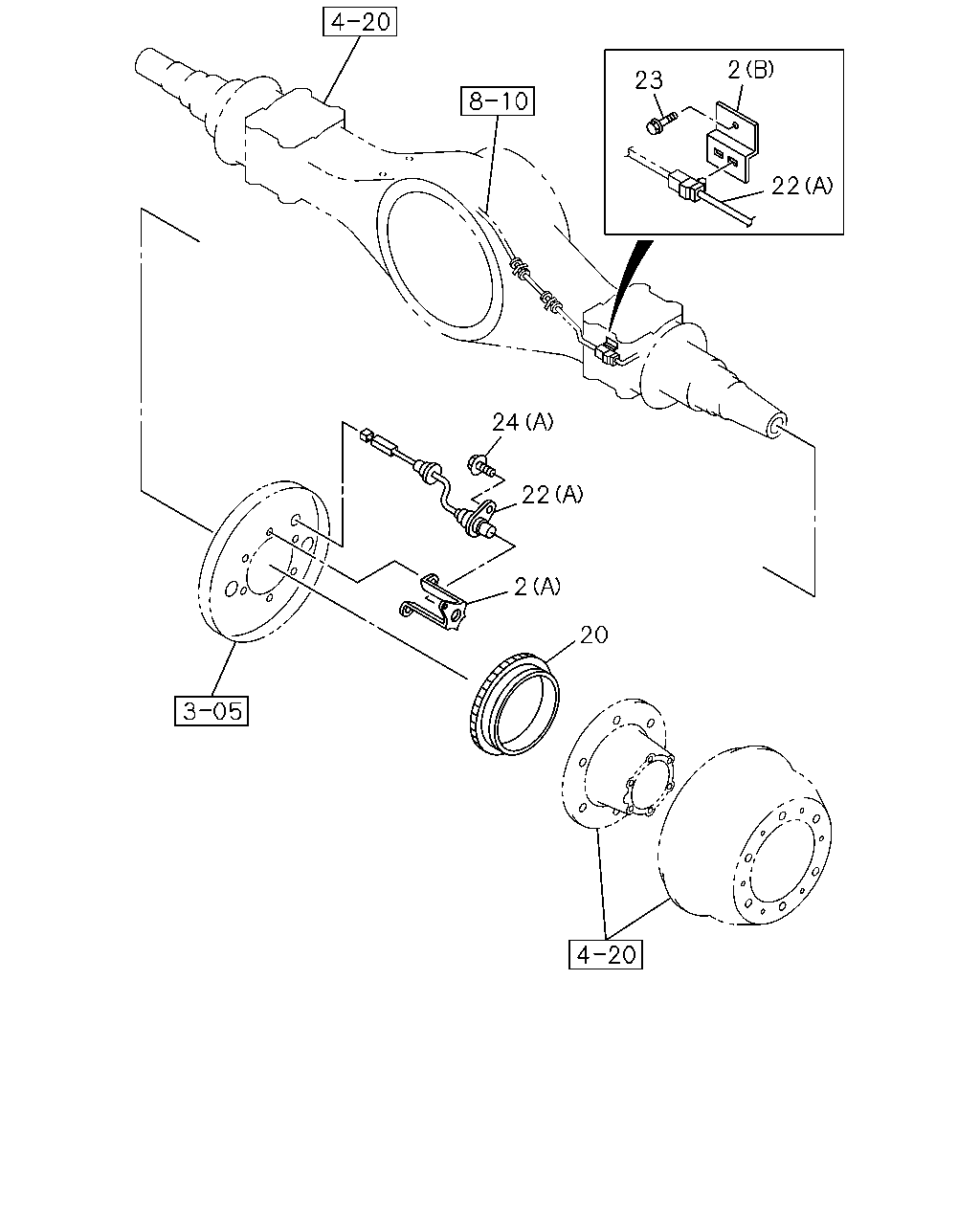

çizim 115725
2 23 22 24 22 2 20
BalonParca AdiParca NoAdetTipApplied Date A B
2 BRACKET; SENSOR
GVWR CLASS-5 18001-19500LBS(RQQ) (A) 		8-98002-441-1 02 1 0811- ●
2 BRACKET; SENSOR
(A) 		8-98000-019-2 02 1 0807- ●
2 BRACKET; SENSOR
(A) 		8-98002-440-1 02 1 0807-0810 ●
2 BRACKET; SENSOR
GVWR CLASS-5 16001-18000LBS(RQH) (A) 		8-98002-440-1 02 1 0811- ●
2 BRACKET; SENSOR
(B) 		8-97080-060-2 02 1 0807- ● ●
2 BRACKET; SENSOR
FRONT WIDE TREAD<7GV> (C) 		8-98141-581-0 02 1 1202- ●
20 ROTOR; SENSOR 8-97206-774-4 02 1 0807- ●
20 ROTOR; SENSOR 8-97206-775-3 02 1 0807- ●
22 SENSOR; SPEED
GVWR CLASS-5 18001-19500LBS(RQQ) (A) 		8-98002-216-1 02 1 0811-1401 ●
22 SENSOR; SPEED
GVWR CLASS-5 18001-19500LBS(RQQ) (A) 		8-98219-355-0 02 1 1402- ●
22 SENSOR; SPEED
(A) 		8-98002-215-1 02 1 0807-0810 ● ●
22 SENSOR; SPEED
(A) 		8-98002-215-1 02 1 0811-1401 ●
22 SENSOR; SPEED
GVWR CLASS-5 16001-18000LBS(RQH) (A) 		8-98002-215-1 02 1 0811-1401 ●
22 SENSOR; SPEED
(A) 		8-98219-354-0 02 1 1402- ●
22 SENSOR; SPEED
GVWR CLASS-5 16001-18000LBS(RQH) (A) 		8-98219-354-0 02 1 1402- ●
22 SENSOR; SPEED
(B) 		8-98006-184-0 01 1 0807-1201 ● ●
22 SENSOR; SPEED
(B) 		8-98006-184-0 01 1 1202-1408 ●
22 SENSOR; SPEED
EXC. FRONT WIDE TREAD<7GV> (B) 		8-98006-184-0 01 1 1202-1408 ●
22 SENSOR; SPEED
(B) 		8-98219-391-0 01 1 1409- ●
22 SENSOR; SPEED
EXC. FRONT WIDE TREAD<7GV> (B) 		8-98219-391-0 01 1 1409- ●
22 SENSOR; SPEED
(B) 		8-98006-185-0 01 1 0807-1201 ● ●
22 SENSOR; SPEED
(B) 		8-98006-185-0 01 1 1202-1408 ●
22 SENSOR; SPEED
EXC. FRONT WIDE TREAD<7GV> (B) 		8-98006-185-0 01 1 1202-1408 ●
22 SENSOR; SPEED
(B) 		8-98219-392-0 01 1 1409- ●
22 SENSOR; SPEED
EXC. FRONT WIDE TREAD<7GV> (B) 		8-98219-392-0 01 1 1409- ●
22 SENSOR; SPEED
FRONT WIDE TREAD<7GV> (B) 		8-98205-825-0 01 1 1202- ●
22 SENSOR; SPEED
FRONT WIDE TREAD<7GV> (B) 		8-98205-826-0 01 1 1202- ●
23 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0807- ● ●
24 BOLT; SENSOR
(A) M6X10 FLANGE 		0-28050-610-0 02 1 0807-1401 ● ●
24 BOLT; SENSOR
(A) M6X16 FLANGE 		0-28050-616-0 02 1 1402- ● ●
24 BOLT; SENSOR
(B) M6X10 FLANGE 		0-28050-610-0 02 1 0807-1310 ● ●
24 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 02 1 1311- ● ●
24 BOLT; SENSOR
(C) M8X12 FLANGE 		0-28050-812-0 02 1 0807-1201 ● ●
24 BOLT; SENSOR
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1202- ●
24 BOLT; SENSOR
EXC. FRONT WIDE TREAD<7GV> (C) M8X12 FLANGE 		0-28050-812-0 02 1 1202- ●
24 BOLT; SENSOR
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0807- ● ●
24 BOLT; SENSOR
(D) M10X12 FLANGE 		0-28051-012-0 02 1 0807- ● ●
24 BOLT; SENSOR
FRONT WIDE TREAD<7GV> (C) M8X16 FLANGE 		0-28050-816-0 02 1 1202- ●
