◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#75826) — 24 parça

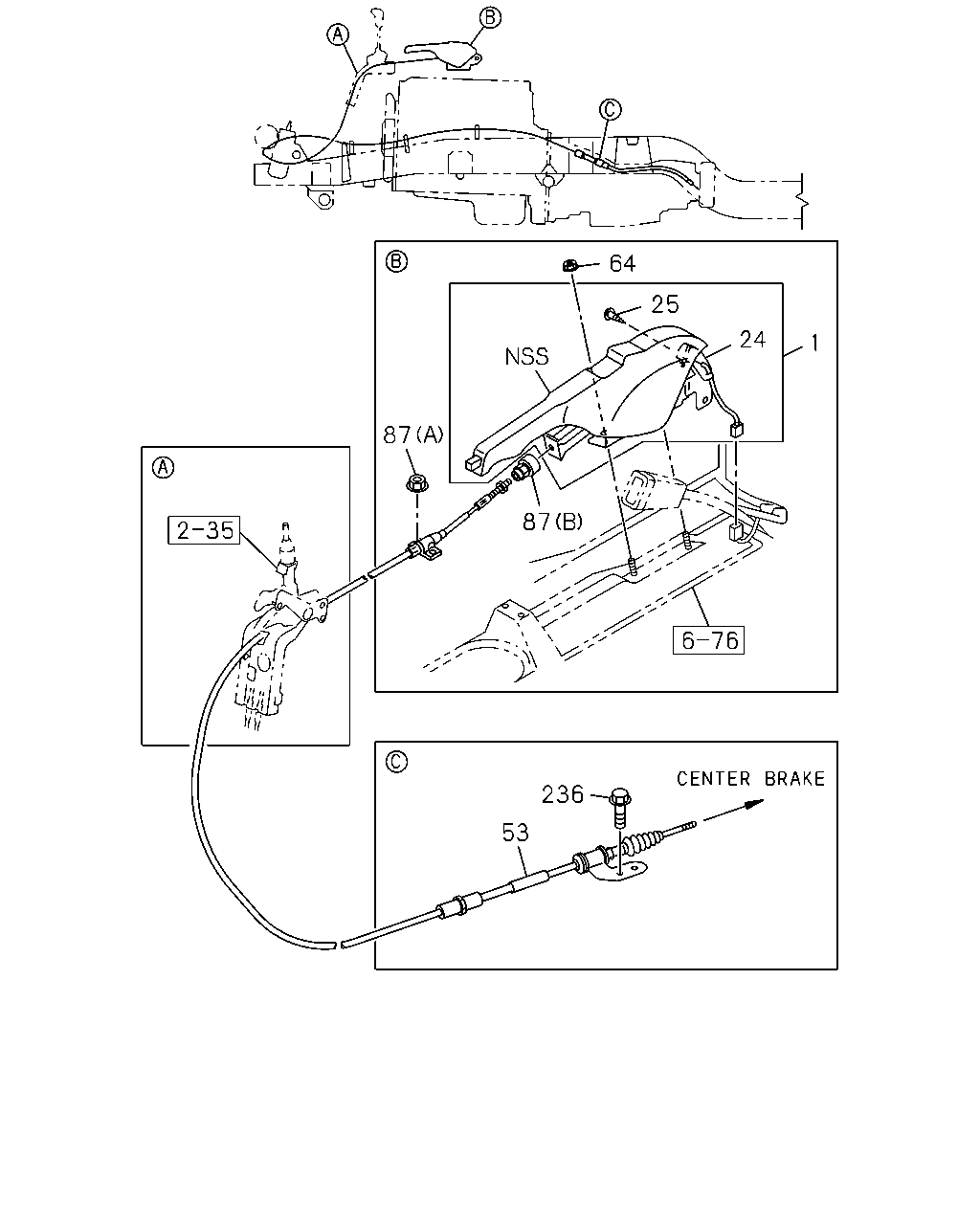

çizim 115430
64 25 24 1 87 87 236 53
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEM ASM; PARKING BRK
GRAY 		8-97406-006-0 01 1 0807-1303 ● ●
1 STEM ASM; PARKING BRK
GRAY 		8-97426-514-0 01 1 1304- ● ●
24 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0807-1303 ● ●
24 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1304- ● ●
25 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0807- ● ●
53 CABLE; PARK BRK,FRT LWR 8-98057-441-3 01 1 0807- ● ●
64 NUT; PARKING BRK
M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0807- ● ●
87 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0807- ● ●
87 NUT
(B) M6 		8-98034-313-1 01 1 0807- ● ●
236 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 03 1 0807- ● ●
çizim 115434
53 237 235 241 241 324 181 238 53 236 74 74 85 235
BalonParca AdiParca NoAdetTipApplied Date A B
53 CABLE; PARK BRK,FRT LWR 8-98057-441-3 01 1 0807- ● ●
74 NUT; CONT WIRE
(A) M8 		0-91110-508-0 01 1 0807- ● ●
74 NUT; CONT WIRE
(B) M8 FLANGE 		9-46259-016-0 01 1 0807- ● ●
85 CLIP; BRKT
ID=13 L=20 		0-95235-236-0 01 1 0807- ● ●
181 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0807- ● ●
235 BRACKET; CONT CABLE TO FRAME
(A) 		8-98033-907-0 01 1 0807- ● ●
235 BRACKET; CONT CABLE TO FRAME
(B) 		8-98106-986-1 01 1 0807- ● ●
236 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 03 1 0807- ● ●
237 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 01 1 0807- ● ●
238 BOLT; CLIP TO BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0807- ● ●
241 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0807- ● ●
324 BRACKET 8-98041-476-0 01 1 0807-0809 ● ●
324 BRACKET 8-98099-516-0 01 1 0810-1508 ● ●
324 BRACKET 8-98216-763-1 01 1 1509- ● ●
