3-08 — PARKING BRAKE
(#75824) — 23 parça
◀

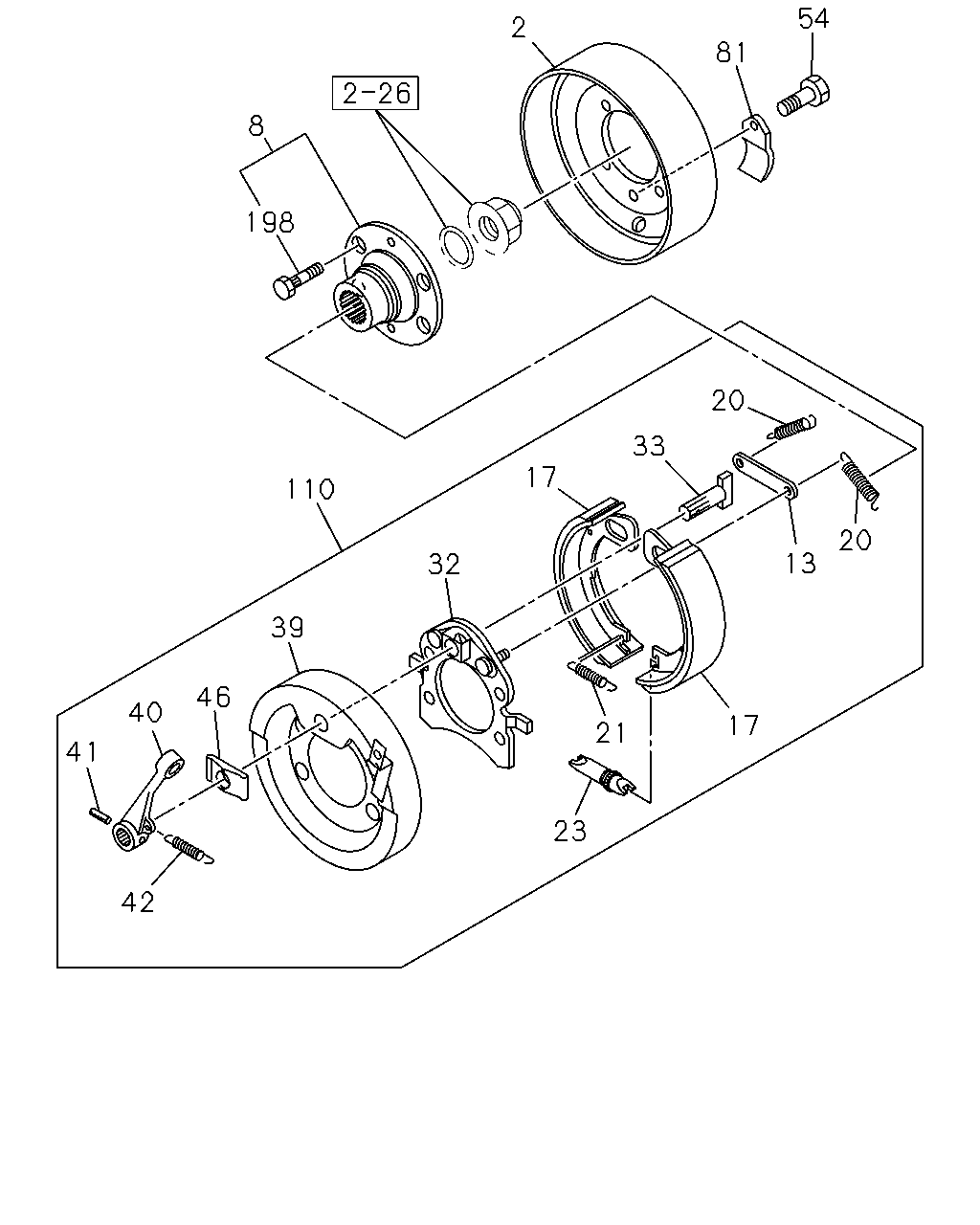

[308A] NO.2 (18 parça)
[308A] NO.1 (5 parça)
▶
54
2
81
8
198
20
33
17
110
20
13
32
39
46
40
17
21
41
23
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
DRUM; PARKING BRK
1-46211-057-1
01
1
0807-
8
FLANGE; PARKING BRK
8-98044-142-0
01
1
0807-
13
BRACE; PARKING BRK
1-46239-003-0
01
1
0807-
17
SHOE; PARKING BRK
8-97042-934-1
02
1
0807-
20
SPRING; RETURN,SECONDARY,PARKING BRK
1-09586-002-0
02
1
0807-
21
SPRING; RETURN,PARKING BRK SHOE
1-09583-280-0
01
1
0807-
23
SCREW; ADJ,PARKING BRK SHOE
8-98043-963-0
01
1
0807-
32
PLATE; SUPPORT,PARKING BRK
1-46213-069-0
01
1
0807-
33
SHAFT; CAM,PARKING BRK
8-98043-961-0
01
1
0807-
39
COVER; DUST,PARKING BRK
1-46213-075-0
01
1
0807-
40
LEVER; CM/SHF,PARKING BRK
8-98047-550-0
01
1
0807-
41
PIN; KNOCK,LEVER
9-09878-594-0
01
1
0807-
42
SPRING; RETURN,LEVER
1-09583-041-0
01
1
0807-
46
WASHER; LEVER
1-09509-057-0
01
1
0807-
54
BOLT; COVER
M8X20 W/LK&PL WASHER
0-50640-820-0
02
1
0807-
81
COVER; CHECK HOLE,PARKING BRK
8-98031-861-0
02
1
0807-
110
BRAKE ASM; PARKING
8-98034-305-0
01
1
0807-
198
BOLT; KNURL
M12X39
8-97365-446-0
04
1
0807-
197
130
130
114
37
110
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
NUT; SUPPORT PLATE
M14 FLANGE
8-97365-444-0
04
1
0807-
110
BRAKE ASM; PARKING
8-98034-305-0
01
1
0807-
114
STUD; SUPPORT PLATE
M14X22.5 L=42.5
8-97365-445-0
04
1
0807-
130
BOLT; BRKT
M10X25 FLANGE
0-28151-025-0
03
1
0807-
197
BRACKET; CENTER BRAKE CABLE
8-97244-812-0
01
1
0807-
