Sayfa 3-05 - Isuzu EPC

3-05 — REAR WHEEL BRAKE (#75823) — 269 parça

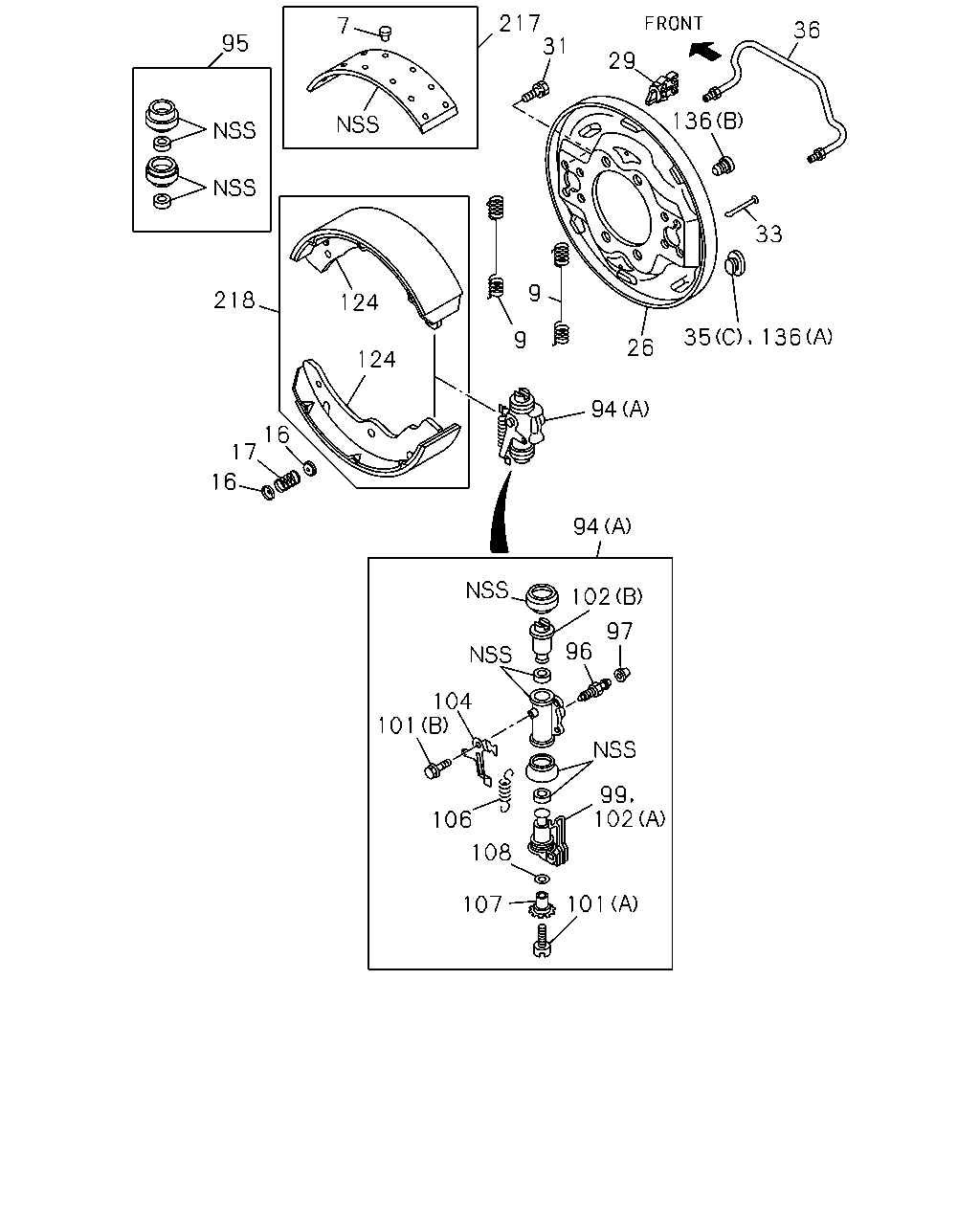

217 31 7 36 95 29 136 33 9 218 124 35 136 9 26 124 94 16 17 16 94 102 97 96 104 101 99 102 106 108 101 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	RIVET; LINING,RR BRK GVWR CLASS-5 18001-19500LBS(RQQ)	1-09732-029-0	96	1	0811-	●
7	RIVET; LINING,RR BRK	1-09732-029-0	48	1	0807-		●
7	RIVET; LINING,RR BRK	1-09732-029-0	64	1	0807-0810	●
7	RIVET; LINING,RR BRK GVWR CLASS-5 16001-18000LBS(RQH)	1-09732-029-0	64	1	0811-	●
9	SPRING; RETURN,BRK SHOE GVWR CLASS-5 18001-19500LBS(RQQ)	1-09583-346-0	04	1	0811-	●
9	SPRING; RETURN,BRK SHOE	8-97022-087-0	04	1	0807-		●
9	SPRING; RETURN,BRK SHOE	8-97122-869-0	04	1	0807-0810	●
9	SPRING; RETURN,BRK SHOE GVWR CLASS-5 16001-18000LBS(RQH)	8-97122-869-0	04	1	0811-	●
16	CUP; SHOE HOLDING	9-47165-096-0	08	1	0807-0810	●	●
16	CUP; SHOE HOLDING	9-47165-096-0	08	1	0811-		●
16	CUP; SHOE HOLDING GVWR CLASS-5 16001-18000LBS(RQH)	9-47165-096-0	08	1	0811-	●
17	SPRING; SHOE HOLD DOWN	5-09580-101-1	04	1	0807-0810	●	●
17	SPRING; SHOE HOLD DOWN	5-09580-101-1	04	1	0811-		●
17	SPRING; SHOE HOLD DOWN GVWR CLASS-5 16001-18000LBS(RQH)	5-09580-101-1	04	1	0811-	●
26	PLATE; BACK,RR BRK GVWR CLASS-5 18001-19500LBS(RQQ)	8-97372-818-0	01	1	0811-	●
26	PLATE; BACK,RR BRK GVWR CLASS-5 18001-19500LBS(RQQ)	8-97372-819-0	01	1	0811-	●
26	PLATE; BACK,RR BRK	8-97192-080-0	01	1	0807-		●
26	PLATE; BACK,RR BRK	8-97192-081-0	01	1	0807-		●
26	PLATE; BACK,RR BRK	8-97207-157-0	01	1	0807-0810	●
26	PLATE; BACK,RR BRK GVWR CLASS-5 16001-18000LBS(RQH)	8-97207-157-0	01	1	0811-	●
26	PLATE; BACK,RR BRK	8-97207-158-0	01	1	0807-0810	●
26	PLATE; BACK,RR BRK GVWR CLASS-5 16001-18000LBS(RQH)	8-97207-158-0	01	1	0811-	●
29	CLIP; PIPE,BRK GVWR CLASS-5 18001-19500LBS(RQQ)	1-47143-008-0	02	1	0811-	●
29	CLIP; PIPE,BRK	8-97022-086-0	02	1	0807-0810	●	●
29	CLIP; PIPE,BRK	8-97022-086-0	02	1	0811-		●
29	CLIP; PIPE,BRK GVWR CLASS-5 16001-18000LBS(RQH)	8-97022-086-0	02	1	0811-	●
31	BOLT; RR WHEEL CYL GVWR CLASS-5 18001-19500LBS(RQQ) M12	1-47159-184-0	16	1	0811-	●
31	BOLT; RR WHEEL CYL	8-97081-305-0	16	1	0807-0810	●	●
31	BOLT; RR WHEEL CYL	8-97081-305-0	16	1	0811-		●
31	BOLT; RR WHEEL CYL GVWR CLASS-5 16001-18000LBS(RQH)	8-97081-305-0	16	1	0811-	●
33	PIN; SHOE HOLD DOWN	8-97022-089-0	04	1	0807-		●
33	PIN; SHOE HOLD DOWN	8-97122-870-0	04	1	0807-0810	●
33	PIN; SHOE HOLD DOWN GVWR CLASS-5 16001-18000LBS(RQH)	8-97122-870-0	04	1	0811-	●
35	GROMMET; CHECK HOLE GVWR CLASS-5 18001-19500LBS(RQQ) (A)	1-09333-033-0	04	1	0811-	●
35	GROMMET; CHECK HOLE GVWR CLASS-5 18001-19500LBS(RQQ) (B)	9-09956-640-0	04	1	0811-	●
35	GROMMET; CHECK HOLE (C)	8-97017-507-0	02	1	0807-		●
35	GROMMET; CHECK HOLE (C)	8-97017-507-0	06	1	0807-0810	●
35	GROMMET; CHECK HOLE GVWR CLASS-5 16001-18000LBS(RQH) (C)	8-97017-507-0	06	1	0811-	●
36	PIPE; OIL,RR BRK GVWR CLASS-5 18001-19500LBS(RQQ)	8-97372-826-0	02	1	0811-	●
36	PIPE; OIL,RR BRK	8-97192-215-0	02	1	0807-0810	●	●
36	PIPE; OIL,RR BRK	8-97192-215-0	02	1	0811-		●
36	PIPE; OIL,RR BRK GVWR CLASS-5 16001-18000LBS(RQH)	8-97192-215-0	02	1	0811-	●
94	CYLINDER; WHEEL,RR BRK GVWR CLASS-5 18001-19500LBS(RQQ) (B) FRONT	8-97372-820-0	01	1	0811-1510	●
94	CYLINDER; WHEEL,RR BRK GVWR CLASS-5 18001-19500LBS(RQQ) (B) FRONT	8-98317-281-0	01	1	1511-	●
94	CYLINDER; WHEEL,RR BRK GVWR CLASS-5 18001-19500LBS(RQQ) (B) FRONT	8-97372-821-0	01	1	0811-1510	●
94	CYLINDER; WHEEL,RR BRK GVWR CLASS-5 18001-19500LBS(RQQ) (B) FRONT	8-98317-278-0	01	1	1511-	●
94	CYLINDER; WHEEL,RR BRK GVWR CLASS-5 18001-19500LBS(RQQ) (B) REAR	8-97372-822-0	01	1	0811-1510	●
94	CYLINDER; WHEEL,RR BRK GVWR CLASS-5 18001-19500LBS(RQQ) (B) REAR	8-98317-282-0	01	1	1511-	●
94	CYLINDER; WHEEL,RR BRK GVWR CLASS-5 18001-19500LBS(RQQ) (B) REAR	8-97372-823-0	01	1	0811-1510	●
94	CYLINDER; WHEEL,RR BRK GVWR CLASS-5 18001-19500LBS(RQQ) (B) REAR	8-98317-280-0	01	1	1511-	●
94	CYLINDER; WHEEL,RR BRK (A) REAR	8-97349-705-0	01	1	0807-		●
94	CYLINDER; WHEEL,RR BRK (A) REAR	8-97349-706-0	01	1	0807-		●
94	CYLINDER; WHEEL,RR BRK (A) FRONT	8-97349-707-0	01	1	0807-		●
94	CYLINDER; WHEEL,RR BRK (A) FRONT	8-97349-708-0	01	1	0807-		●
94	CYLINDER; WHEEL,RR BRK (A) REAR	8-97358-878-0	01	1	0807-0810	●
94	CYLINDER; WHEEL,RR BRK GVWR CLASS-5 16001-18000LBS(RQH) (A) REAR	8-97358-878-0	01	1	0811-	●
94	CYLINDER; WHEEL,RR BRK (A) REAR	8-97358-879-0	01	1	0807-0810	●
94	CYLINDER; WHEEL,RR BRK GVWR CLASS-5 16001-18000LBS(RQH) (A) REAR	8-97358-879-0	01	1	0811-	●
94	CYLINDER; WHEEL,RR BRK (A) FRONT	8-97358-880-0	01	1	0807-0810	●
94	CYLINDER; WHEEL,RR BRK GVWR CLASS-5 16001-18000LBS(RQH) (A) FRONT	8-97358-880-0	01	1	0811-	●
94	CYLINDER; WHEEL,RR BRK (A) FRONT	8-97358-881-0	01	1	0807-0810	●
94	CYLINDER; WHEEL,RR BRK GVWR CLASS-5 16001-18000LBS(RQH) (A) FRONT	8-97358-881-0	01	1	0811-	●
95	CUP SET; RR WHEEL CYL	5-87832-051-0	02	1	0807-0810	●
95	CUP SET; RR WHEEL CYL GVWR CLASS-5 16001-18000LBS(RQH)	5-87832-051-0	02	1	0811-	●
95	CUP SET; RR WHEEL CYL GVWR CLASS-5 18001-19500LBS(RQQ)	5-87832-131-0	01	1	0811-1507	●
95	CUP SET; RR WHEEL CYL GVWR CLASS-5 18001-19500LBS(RQQ)	5-87832-359-0	01	1	1508-	●
95	CUP SET; RR WHEEL CYL	5-87832-070-0	01	1	0807-		●
96	SCREW; BLEEDER,RR BRK	8-98050-476-0	02	1	0807-		●
96	SCREW; BLEEDER,RR BRK	8-98050-477-0	02	1	0807-	●
97	CAP; BLEEDER,RR WHEEL CYL	8-98050-479-0	02	1	0807-	●	●
99	PISTON; RR WHEEL CYL GVWR CLASS-5 18001-19500LBS(RQQ)	8-97372-831-0	02	1	0811-	●
99	PISTON; RR WHEEL CYL GVWR CLASS-5 18001-19500LBS(RQQ)	8-97372-832-0	02	1	0811-	●
99	PISTON; RR WHEEL CYL	8-97349-729-0	01	1	0807-		●
99	PISTON; RR WHEEL CYL	8-97349-730-0	02	1	0807-		●
99	PISTON; RR WHEEL CYL	8-97349-731-0	02	1	0807-0810	●
99	PISTON; RR WHEEL CYL GVWR CLASS-5 16001-18000LBS(RQH)	8-97349-731-0	02	1	0811-	●
99	PISTON; RR WHEEL CYL	8-97349-732-0	02	1	0807-0810	●
99	PISTON; RR WHEEL CYL GVWR CLASS-5 16001-18000LBS(RQH)	8-97349-732-0	02	1	0811-	●
101	SCREW; ADJ,RR WHEEL CYL GVWR CLASS-5 18001-19500LBS(RQQ) (A)	8-97372-837-0	02	1	0811-	●
101	SCREW; ADJ,RR WHEEL CYL GVWR CLASS-5 18001-19500LBS(RQQ) (A)	8-97372-838-0	02	1	0811-	●
101	SCREW; ADJ,RR WHEEL CYL (A)	8-97349-741-0	02	1	0807-0810	●	●
101	SCREW; ADJ,RR WHEEL CYL (A)	8-97349-741-0	02	1	0811-		●
101	SCREW; ADJ,RR WHEEL CYL GVWR CLASS-5 16001-18000LBS(RQH) (A)	8-97349-741-0	02	1	0811-	●
101	SCREW; ADJ,RR WHEEL CYL (A)	8-97349-742-0	02	1	0807-0810	●	●
101	SCREW; ADJ,RR WHEEL CYL (A)	8-97349-742-0	02	1	0811-		●
101	SCREW; ADJ,RR WHEEL CYL GVWR CLASS-5 16001-18000LBS(RQH) (A)	8-97349-742-0	02	1	0811-	●
101	SCREW; ADJ,RR WHEEL CYL (B)	8-97349-747-0	04	1	0807-0810	●	●
101	SCREW; ADJ,RR WHEEL CYL (B)	8-97349-747-0	04	1	0811-		●
101	SCREW; ADJ,RR WHEEL CYL GVWR CLASS-5 16001-18000LBS(RQH) (B)	8-97349-747-0	04	1	0811-	●
102	PISTON; REAR WHEEL CYL GVWR CLASS-5 18001-19500LBS(RQQ) (B)	8-97372-833-0	04	1	0811-	●
102	PISTON; REAR WHEEL CYL (B)	8-97078-045-0	04	1	0807-		●
102	PISTON; REAR WHEEL CYL (A)	8-97349-729-0	01	1	0807-		●
102	PISTON; REAR WHEEL CYL (B)	8-97332-043-0	04	1	0807-0810	●
102	PISTON; REAR WHEEL CYL GVWR CLASS-5 16001-18000LBS(RQH) (B)	8-97332-043-0	04	1	0811-	●
104	LEVER; ADJ GVWR CLASS-5 18001-19500LBS(RQQ)	1-47619-133-0	02	1	0811-	●
104	LEVER; ADJ GVWR CLASS-5 18001-19500LBS(RQQ)	1-47619-134-0	02	1	0811-	●
104	LEVER; ADJ	8-97349-743-0	02	1	0807-0810	●	●
104	LEVER; ADJ	8-97349-743-0	02	1	0811-		●
104	LEVER; ADJ GVWR CLASS-5 16001-18000LBS(RQH)	8-97349-743-0	02	1	0811-	●
104	LEVER; ADJ	8-97349-744-0	02	1	0807-0810	●	●
104	LEVER; ADJ	8-97349-744-0	02	1	0811-		●
104	LEVER; ADJ GVWR CLASS-5 16001-18000LBS(RQH)	8-97349-744-0	02	1	0811-	●
106	SPRING; ADJ LEVER GVWR CLASS-5 18001-19500LBS(RQQ)	1-09583-345-0	04	1	0811-	●
106	SPRING; ADJ LEVER	8-97349-745-0	04	1	0807-0810	●	●
106	SPRING; ADJ LEVER	8-97349-745-0	04	1	0811-		●
106	SPRING; ADJ LEVER GVWR CLASS-5 16001-18000LBS(RQH)	8-97349-745-0	04	1	0811-	●
107	GEAR; ADJ,RR W/CYL GVWR CLASS-5 18001-19500LBS(RQQ)	8-97372-835-0	02	1	0811-	●
107	GEAR; ADJ,RR W/CYL GVWR CLASS-5 18001-19500LBS(RQQ)	8-97372-836-0	02	1	0811-	●
107	GEAR; ADJ,RR W/CYL	8-97349-738-0	02	1	0807-		●
107	GEAR; ADJ,RR W/CYL	8-97349-740-0	02	1	0807-		●
107	GEAR; ADJ,RR W/CYL	8-97358-894-0	02	1	0807-0810	●
107	GEAR; ADJ,RR W/CYL GVWR CLASS-5 16001-18000LBS(RQH)	8-97358-894-0	02	1	0811-	●
107	GEAR; ADJ,RR W/CYL	8-97358-895-0	02	1	0807-0810	●
107	GEAR; ADJ,RR W/CYL GVWR CLASS-5 16001-18000LBS(RQH)	8-97358-895-0	02	1	0811-	●
108	WASHER; THRUST,GEAR ADJ GVWR CLASS-5 18001-19500LBS(RQQ)	1-47629-135-0	04	1	0811-	●
108	WASHER; THRUST,GEAR ADJ	8-97349-736-0	04	1	0807-0810	●	●
108	WASHER; THRUST,GEAR ADJ	8-97349-736-0	04	1	0811-		●
108	WASHER; THRUST,GEAR ADJ GVWR CLASS-5 16001-18000LBS(RQH)	8-97349-736-0	04	1	0811-	●
124	SHOE ASM; BRK,RR GVWR CLASS-5 18001-19500LBS(RQQ)	8-97373-425-0	04	1	0811-	●
124	SHOE ASM; BRK,RR	8-97201-061-0	04	1	0807-		●
124	SHOE ASM; BRK,RR	8-97188-455-0	04	1	0807-0810	●
124	SHOE ASM; BRK,RR GVWR CLASS-5 16001-18000LBS(RQH)	8-97188-455-0	04	1	0811-	●
136	GROMMET (A)	8-97017-507-0	04	1	0807-		●
136	GROMMET (B)	1-47154-008-0	04	1	0807-	●	●
217	LINING KIT; RR BRK GVWR CLASS-5 18001-19500LBS(RQQ)	5-87832-134-0	01	1	0811-	●
217	LINING KIT; RR BRK	5-87831-774-0	01	1	0807-		●
217	LINING KIT; RR BRK	5-87831-692-0	01	1	0807-0810	●
217	LINING KIT; RR BRK GVWR CLASS-5 16001-18000LBS(RQH)	5-87831-692-0	01	1	0811-	●
217	LINING KIT; RR BRK BEST VALUE PARTS	5-87610-120-0	01	1	0807-		●
217	LINING KIT; RR BRK BEST VALUE PARTS	5-87610-119-0	01	1	0807-0810	●
217	LINING KIT; RR BRK GVWR CLASS-5 16001-18000LBS(RQH) BEST VALUE PARTS	5-87610-119-0	01	1	0811-	●
218	SHOE KIT; BRK,RR GVWR CLASS-5 18001-19500LBS(RQQ)	5-87832-132-0	01	1	0811-	●
218	SHOE KIT; BRK,RR	5-87831-775-0	01	1	0807-		●
218	SHOE KIT; BRK,RR	5-87831-693-0	01	1	0807-0810	●
218	SHOE KIT; BRK,RR GVWR CLASS-5 16001-18000LBS(RQH)	5-87831-693-0	01	1	0811-	●

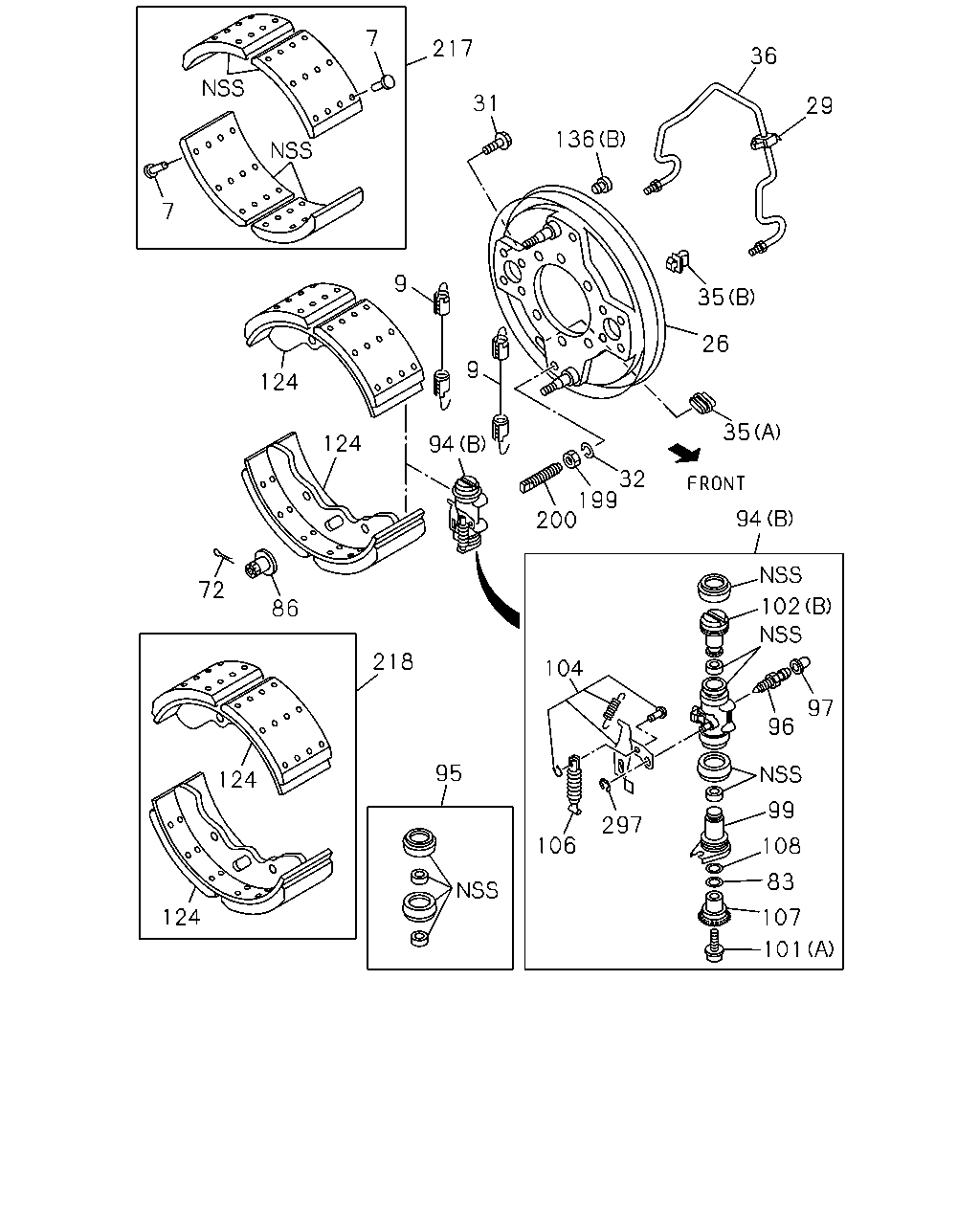

7 217 36 31 29 136 7 9 35 26 9 124 35 124 94 32 199 200 94 72 102 86 218 104 97 96 95 124 99 297 106 108 83 124 107 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	RIVET; LINING,RR BRK GVWR CLASS-5 18001-19500LBS(RQQ)	1-09732-029-0	96	1	0811-	●
7	RIVET; LINING,RR BRK	1-09732-029-0	48	1	0807-		●
7	RIVET; LINING,RR BRK	1-09732-029-0	64	1	0807-0810	●
7	RIVET; LINING,RR BRK GVWR CLASS-5 16001-18000LBS(RQH)	1-09732-029-0	64	1	0811-	●
9	SPRING; RETURN,BRK SHOE GVWR CLASS-5 18001-19500LBS(RQQ)	1-09583-346-0	04	1	0811-	●
9	SPRING; RETURN,BRK SHOE	8-97022-087-0	04	1	0807-		●
9	SPRING; RETURN,BRK SHOE	8-97122-869-0	04	1	0807-0810	●
9	SPRING; RETURN,BRK SHOE GVWR CLASS-5 16001-18000LBS(RQH)	8-97122-869-0	04	1	0811-	●
26	PLATE; BACK,RR BRK GVWR CLASS-5 18001-19500LBS(RQQ)	8-97372-818-0	01	1	0811-	●
26	PLATE; BACK,RR BRK GVWR CLASS-5 18001-19500LBS(RQQ)	8-97372-819-0	01	1	0811-	●
26	PLATE; BACK,RR BRK	8-97192-080-0	01	1	0807-		●
26	PLATE; BACK,RR BRK	8-97192-081-0	01	1	0807-		●
26	PLATE; BACK,RR BRK	8-97207-157-0	01	1	0807-0810	●
26	PLATE; BACK,RR BRK GVWR CLASS-5 16001-18000LBS(RQH)	8-97207-157-0	01	1	0811-	●
26	PLATE; BACK,RR BRK	8-97207-158-0	01	1	0807-0810	●
26	PLATE; BACK,RR BRK GVWR CLASS-5 16001-18000LBS(RQH)	8-97207-158-0	01	1	0811-	●
29	CLIP; PIPE,BRK GVWR CLASS-5 18001-19500LBS(RQQ)	1-47143-008-0	02	1	0811-	●
29	CLIP; PIPE,BRK	8-97022-086-0	02	1	0807-0810	●	●
29	CLIP; PIPE,BRK	8-97022-086-0	02	1	0811-		●
29	CLIP; PIPE,BRK GVWR CLASS-5 16001-18000LBS(RQH)	8-97022-086-0	02	1	0811-	●
31	BOLT; RR WHEEL CYL GVWR CLASS-5 18001-19500LBS(RQQ) M12	1-47159-184-0	16	1	0811-	●
31	BOLT; RR WHEEL CYL	8-97081-305-0	16	1	0807-0810	●	●
31	BOLT; RR WHEEL CYL	8-97081-305-0	16	1	0811-		●
31	BOLT; RR WHEEL CYL GVWR CLASS-5 16001-18000LBS(RQH)	8-97081-305-0	16	1	0811-	●
32	WASHER; LK GVWR CLASS-5 18001-19500LBS(RQQ) ID=12.2	0-91510-512-0	04	1	0811-	●
35	GROMMET; CHECK HOLE GVWR CLASS-5 18001-19500LBS(RQQ) (A)	1-09333-033-0	04	1	0811-	●
35	GROMMET; CHECK HOLE GVWR CLASS-5 18001-19500LBS(RQQ) (B)	9-09956-640-0	04	1	0811-	●
35	GROMMET; CHECK HOLE (C)	8-97017-507-0	02	1	0807-		●
35	GROMMET; CHECK HOLE (C)	8-97017-507-0	06	1	0807-0810	●
35	GROMMET; CHECK HOLE GVWR CLASS-5 16001-18000LBS(RQH) (C)	8-97017-507-0	06	1	0811-	●
36	PIPE; OIL,RR BRK GVWR CLASS-5 18001-19500LBS(RQQ)	8-97372-826-0	02	1	0811-	●
36	PIPE; OIL,RR BRK	8-97192-215-0	02	1	0807-0810	●	●
36	PIPE; OIL,RR BRK	8-97192-215-0	02	1	0811-		●
36	PIPE; OIL,RR BRK GVWR CLASS-5 16001-18000LBS(RQH)	8-97192-215-0	02	1	0811-	●
72	PIN; SPLIT GVWR CLASS-5 18001-19500LBS(RQQ)	9-09874-040-0	04	1	0811-	●
83	WASHER; PL GVWR CLASS-5 18001-19500LBS(RQQ)	1-47629-136-0	04	1	0811-	●
86	NUT; FLANGE GVWR CLASS-5 18001-19500LBS(RQQ)	1-09440-003-0	04	1	0811-	●
94	CYLINDER; WHEEL,RR BRK GVWR CLASS-5 18001-19500LBS(RQQ) (B) FRONT	8-97372-820-0	01	1	0811-1510	●
94	CYLINDER; WHEEL,RR BRK GVWR CLASS-5 18001-19500LBS(RQQ) (B) FRONT	8-98317-281-0	01	1	1511-	●
94	CYLINDER; WHEEL,RR BRK GVWR CLASS-5 18001-19500LBS(RQQ) (B) FRONT	8-97372-821-0	01	1	0811-1510	●
94	CYLINDER; WHEEL,RR BRK GVWR CLASS-5 18001-19500LBS(RQQ) (B) FRONT	8-98317-278-0	01	1	1511-	●
94	CYLINDER; WHEEL,RR BRK GVWR CLASS-5 18001-19500LBS(RQQ) (B) REAR	8-97372-822-0	01	1	0811-1510	●
94	CYLINDER; WHEEL,RR BRK GVWR CLASS-5 18001-19500LBS(RQQ) (B) REAR	8-98317-282-0	01	1	1511-	●
94	CYLINDER; WHEEL,RR BRK GVWR CLASS-5 18001-19500LBS(RQQ) (B) REAR	8-97372-823-0	01	1	0811-1510	●
94	CYLINDER; WHEEL,RR BRK GVWR CLASS-5 18001-19500LBS(RQQ) (B) REAR	8-98317-280-0	01	1	1511-	●
94	CYLINDER; WHEEL,RR BRK (A) REAR	8-97349-705-0	01	1	0807-		●
94	CYLINDER; WHEEL,RR BRK (A) REAR	8-97349-706-0	01	1	0807-		●
94	CYLINDER; WHEEL,RR BRK (A) FRONT	8-97349-707-0	01	1	0807-		●
94	CYLINDER; WHEEL,RR BRK (A) FRONT	8-97349-708-0	01	1	0807-		●
94	CYLINDER; WHEEL,RR BRK (A) REAR	8-97358-878-0	01	1	0807-0810	●
94	CYLINDER; WHEEL,RR BRK GVWR CLASS-5 16001-18000LBS(RQH) (A) REAR	8-97358-878-0	01	1	0811-	●
94	CYLINDER; WHEEL,RR BRK (A) REAR	8-97358-879-0	01	1	0807-0810	●
94	CYLINDER; WHEEL,RR BRK GVWR CLASS-5 16001-18000LBS(RQH) (A) REAR	8-97358-879-0	01	1	0811-	●
94	CYLINDER; WHEEL,RR BRK (A) FRONT	8-97358-880-0	01	1	0807-0810	●
94	CYLINDER; WHEEL,RR BRK GVWR CLASS-5 16001-18000LBS(RQH) (A) FRONT	8-97358-880-0	01	1	0811-	●
94	CYLINDER; WHEEL,RR BRK (A) FRONT	8-97358-881-0	01	1	0807-0810	●
94	CYLINDER; WHEEL,RR BRK GVWR CLASS-5 16001-18000LBS(RQH) (A) FRONT	8-97358-881-0	01	1	0811-	●
95	CUP SET; RR WHEEL CYL	5-87832-051-0	02	1	0807-0810	●
95	CUP SET; RR WHEEL CYL GVWR CLASS-5 16001-18000LBS(RQH)	5-87832-051-0	02	1	0811-	●
95	CUP SET; RR WHEEL CYL GVWR CLASS-5 18001-19500LBS(RQQ)	5-87832-131-0	01	1	0811-1507	●
95	CUP SET; RR WHEEL CYL GVWR CLASS-5 18001-19500LBS(RQQ)	5-87832-359-0	01	1	1508-	●
95	CUP SET; RR WHEEL CYL	5-87832-070-0	01	1	0807-		●
96	SCREW; BLEEDER,RR BRK	8-98050-476-0	02	1	0807-		●
96	SCREW; BLEEDER,RR BRK	8-98050-477-0	02	1	0807-	●
97	CAP; BLEEDER,RR WHEEL CYL	8-98050-479-0	02	1	0807-	●	●
99	PISTON; RR WHEEL CYL GVWR CLASS-5 18001-19500LBS(RQQ)	8-97372-831-0	02	1	0811-	●
99	PISTON; RR WHEEL CYL GVWR CLASS-5 18001-19500LBS(RQQ)	8-97372-832-0	02	1	0811-	●
99	PISTON; RR WHEEL CYL	8-97349-729-0	01	1	0807-		●
99	PISTON; RR WHEEL CYL	8-97349-730-0	02	1	0807-		●
99	PISTON; RR WHEEL CYL	8-97349-731-0	02	1	0807-0810	●
99	PISTON; RR WHEEL CYL GVWR CLASS-5 16001-18000LBS(RQH)	8-97349-731-0	02	1	0811-	●
99	PISTON; RR WHEEL CYL	8-97349-732-0	02	1	0807-0810	●
99	PISTON; RR WHEEL CYL GVWR CLASS-5 16001-18000LBS(RQH)	8-97349-732-0	02	1	0811-	●
101	SCREW; ADJ,RR WHEEL CYL GVWR CLASS-5 18001-19500LBS(RQQ) (A)	8-97372-837-0	02	1	0811-	●
101	SCREW; ADJ,RR WHEEL CYL GVWR CLASS-5 18001-19500LBS(RQQ) (A)	8-97372-838-0	02	1	0811-	●
101	SCREW; ADJ,RR WHEEL CYL (A)	8-97349-741-0	02	1	0807-0810	●	●
101	SCREW; ADJ,RR WHEEL CYL (A)	8-97349-741-0	02	1	0811-		●
101	SCREW; ADJ,RR WHEEL CYL GVWR CLASS-5 16001-18000LBS(RQH) (A)	8-97349-741-0	02	1	0811-	●
101	SCREW; ADJ,RR WHEEL CYL (A)	8-97349-742-0	02	1	0807-0810	●	●
101	SCREW; ADJ,RR WHEEL CYL (A)	8-97349-742-0	02	1	0811-		●
101	SCREW; ADJ,RR WHEEL CYL GVWR CLASS-5 16001-18000LBS(RQH) (A)	8-97349-742-0	02	1	0811-	●
101	SCREW; ADJ,RR WHEEL CYL (B)	8-97349-747-0	04	1	0807-0810	●	●
101	SCREW; ADJ,RR WHEEL CYL (B)	8-97349-747-0	04	1	0811-		●
101	SCREW; ADJ,RR WHEEL CYL GVWR CLASS-5 16001-18000LBS(RQH) (B)	8-97349-747-0	04	1	0811-	●
102	PISTON; REAR WHEEL CYL GVWR CLASS-5 18001-19500LBS(RQQ) (B)	8-97372-833-0	04	1	0811-	●
102	PISTON; REAR WHEEL CYL (B)	8-97078-045-0	04	1	0807-		●
102	PISTON; REAR WHEEL CYL (A)	8-97349-729-0	01	1	0807-		●
102	PISTON; REAR WHEEL CYL (B)	8-97332-043-0	04	1	0807-0810	●
102	PISTON; REAR WHEEL CYL GVWR CLASS-5 16001-18000LBS(RQH) (B)	8-97332-043-0	04	1	0811-	●
104	LEVER; ADJ GVWR CLASS-5 18001-19500LBS(RQQ)	1-47619-133-0	02	1	0811-	●
104	LEVER; ADJ GVWR CLASS-5 18001-19500LBS(RQQ)	1-47619-134-0	02	1	0811-	●
104	LEVER; ADJ	8-97349-743-0	02	1	0807-0810	●	●
104	LEVER; ADJ	8-97349-743-0	02	1	0811-		●
104	LEVER; ADJ GVWR CLASS-5 16001-18000LBS(RQH)	8-97349-743-0	02	1	0811-	●
104	LEVER; ADJ	8-97349-744-0	02	1	0807-0810	●	●
104	LEVER; ADJ	8-97349-744-0	02	1	0811-		●
104	LEVER; ADJ GVWR CLASS-5 16001-18000LBS(RQH)	8-97349-744-0	02	1	0811-	●
106	SPRING; ADJ LEVER GVWR CLASS-5 18001-19500LBS(RQQ)	1-09583-345-0	04	1	0811-	●
106	SPRING; ADJ LEVER	8-97349-745-0	04	1	0807-0810	●	●
106	SPRING; ADJ LEVER	8-97349-745-0	04	1	0811-		●
106	SPRING; ADJ LEVER GVWR CLASS-5 16001-18000LBS(RQH)	8-97349-745-0	04	1	0811-	●
107	GEAR; ADJ,RR W/CYL GVWR CLASS-5 18001-19500LBS(RQQ)	8-97372-835-0	02	1	0811-	●
107	GEAR; ADJ,RR W/CYL GVWR CLASS-5 18001-19500LBS(RQQ)	8-97372-836-0	02	1	0811-	●
107	GEAR; ADJ,RR W/CYL	8-97349-738-0	02	1	0807-		●
107	GEAR; ADJ,RR W/CYL	8-97349-740-0	02	1	0807-		●
107	GEAR; ADJ,RR W/CYL	8-97358-894-0	02	1	0807-0810	●
107	GEAR; ADJ,RR W/CYL GVWR CLASS-5 16001-18000LBS(RQH)	8-97358-894-0	02	1	0811-	●
107	GEAR; ADJ,RR W/CYL	8-97358-895-0	02	1	0807-0810	●
107	GEAR; ADJ,RR W/CYL GVWR CLASS-5 16001-18000LBS(RQH)	8-97358-895-0	02	1	0811-	●
108	WASHER; THRUST,GEAR ADJ GVWR CLASS-5 18001-19500LBS(RQQ)	1-47629-135-0	04	1	0811-	●
108	WASHER; THRUST,GEAR ADJ	8-97349-736-0	04	1	0807-0810	●	●
108	WASHER; THRUST,GEAR ADJ	8-97349-736-0	04	1	0811-		●
108	WASHER; THRUST,GEAR ADJ GVWR CLASS-5 16001-18000LBS(RQH)	8-97349-736-0	04	1	0811-	●
124	SHOE ASM; BRK,RR GVWR CLASS-5 18001-19500LBS(RQQ)	8-97373-425-0	04	1	0811-	●
124	SHOE ASM; BRK,RR	8-97201-061-0	04	1	0807-		●
124	SHOE ASM; BRK,RR	8-97188-455-0	04	1	0807-0810	●
124	SHOE ASM; BRK,RR GVWR CLASS-5 16001-18000LBS(RQH)	8-97188-455-0	04	1	0811-	●
136	GROMMET (A)	8-97017-507-0	04	1	0807-		●
136	GROMMET (B)	1-47154-008-0	04	1	0807-	●	●
199	NUT GVWR CLASS-5 18001-19500LBS(RQQ)	1-09400-100-0	04	1	0811-	●
200	BOLT GVWR CLASS-5 18001-19500LBS(RQQ)	1-47162-017-0	04	1	0811-0904	●
200	BOLT GVWR CLASS-5 18001-19500LBS(RQQ)	1-47162-050-0	04	1	0905-	●
217	LINING KIT; RR BRK GVWR CLASS-5 18001-19500LBS(RQQ)	5-87832-134-0	01	1	0811-	●
217	LINING KIT; RR BRK	5-87831-774-0	01	1	0807-		●
217	LINING KIT; RR BRK	5-87831-692-0	01	1	0807-0810	●
217	LINING KIT; RR BRK GVWR CLASS-5 16001-18000LBS(RQH)	5-87831-692-0	01	1	0811-	●
217	LINING KIT; RR BRK BEST VALUE PARTS	5-87610-120-0	01	1	0807-		●
217	LINING KIT; RR BRK BEST VALUE PARTS	5-87610-119-0	01	1	0807-0810	●
217	LINING KIT; RR BRK GVWR CLASS-5 16001-18000LBS(RQH) BEST VALUE PARTS	5-87610-119-0	01	1	0811-	●
218	SHOE KIT; BRK,RR GVWR CLASS-5 18001-19500LBS(RQQ)	5-87832-132-0	01	1	0811-	●
218	SHOE KIT; BRK,RR	5-87831-775-0	01	1	0807-		●
218	SHOE KIT; BRK,RR	5-87831-693-0	01	1	0807-0810	●
218	SHOE KIT; BRK,RR GVWR CLASS-5 16001-18000LBS(RQH)	5-87831-693-0	01	1	0811-	●
297	RING; SNAP GVWR CLASS-5 18001-19500LBS(RQQ)	1-47629-263-0	04	1	0811-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
