◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 3 - Brakes, Brake System ▶ 3-02 - FRONT DISC BRAKE CALIPER ▶
3-02 — FRONT DISC BRAKE CALIPER (#75822) — 45 parça

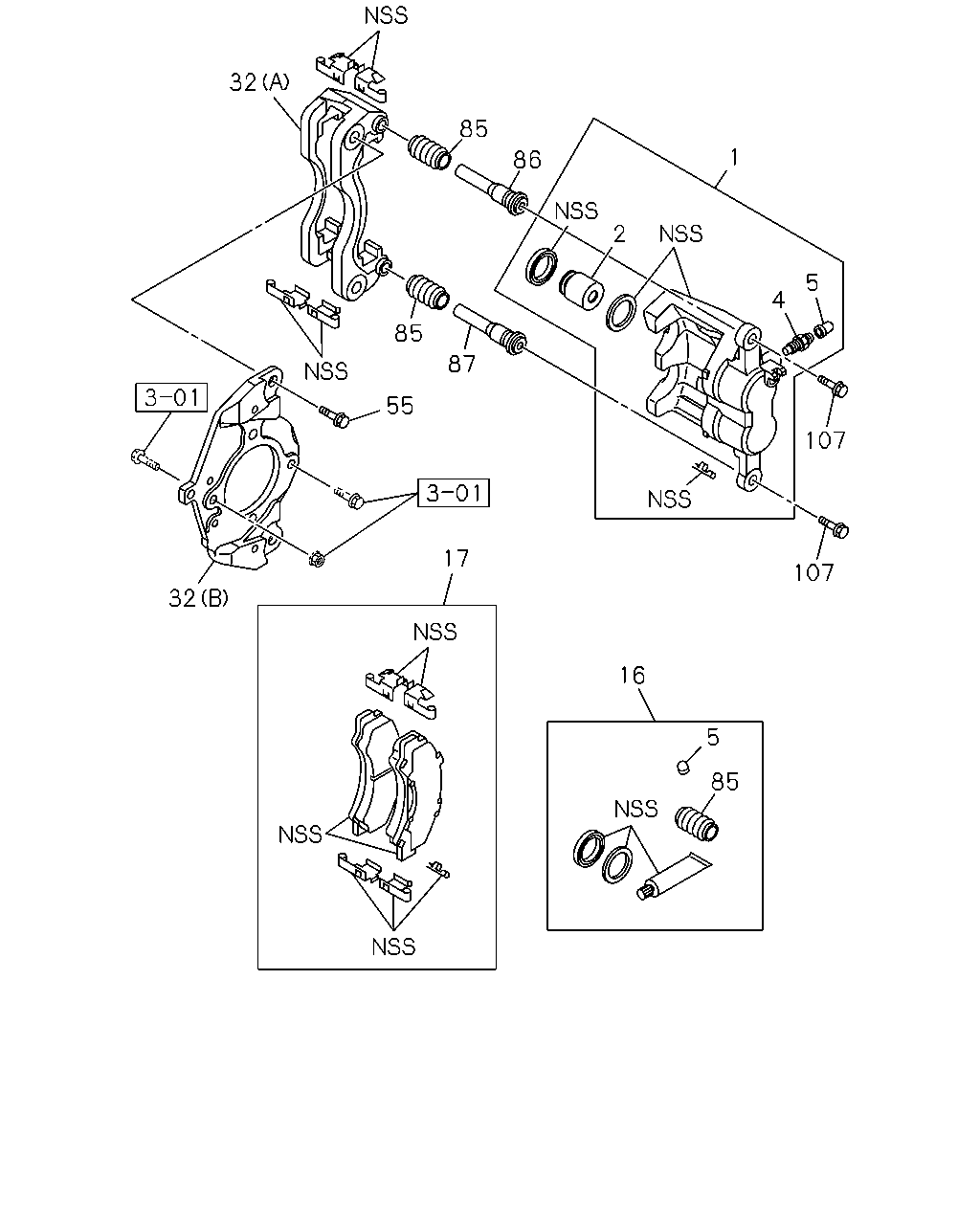

çizim 115294
32 85 1 86 2 5 4 85 87 55 107 17 107 32 16 5 85
BalonParca AdiParca NoAdetTipApplied Date A B
1 CALIPER; FRT DISC BRK 8-97365-907-0 01 1 0807-1310 ●
1 CALIPER; FRT DISC BRK 8-98247-730-0 01 1 1311-1412 ●
1 CALIPER; FRT DISC BRK 8-98303-461-0 01 1 1501- ●
1 CALIPER; FRT DISC BRK 8-97365-908-0 01 1 0807-1310 ●
1 CALIPER; FRT DISC BRK 8-98247-731-0 01 1 1311-1412 ●
1 CALIPER; FRT DISC BRK 8-98303-462-0 01 1 1501- ●
1 CALIPER; FRT DISC BRK 8-97365-909-0 01 1 0807-1412 ●
1 CALIPER; FRT DISC BRK 8-98303-469-0 01 1 1501- ●
1 CALIPER; FRT DISC BRK 8-97365-910-0 01 1 0807-1412 ●
1 CALIPER; FRT DISC BRK 8-98303-470-0 01 1 1501- ●
2 PISTON; CALIPER,DISC BRK,FRT 8-97365-269-0 04 1 0807- ●
2 PISTON; CALIPER,DISC BRK,FRT 8-97365-279-0 04 1 0807- ●
4 SCREW; BLEEDER,DISC BRK,FRT 8-98050-476-0 02 1 1311-1412 ●
4 SCREW; BLEEDER,DISC BRK,FRT 8-98050-476-0 02 1 1501- ● ●
4 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 0807-1310 ● ●
4 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 1311-1412 ●
5 CAP; BLEEDER,DISC BRK,FRT 8-98050-479-0 02 1 1311-1412 ●
5 CAP; BLEEDER,DISC BRK,FRT 8-98050-479-0 02 1 1501- ● ●
5 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 0807-1310 ● ●
5 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 1311-1412 ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98120-357-0 01 1 0807-1310 ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98248-904-0 01 1 1311-1412 ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98302-531-0 01 1 1501- ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98120-358-0 01 1 0807-1412 ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98302-532-0 01 1 1501- ●
17 PAD KIT; CALIPER,DISC BRK,FRT 8-97329-266-0 01 1 0807-1212 ●
17 PAD KIT; CALIPER,DISC BRK,FRT 8-98216-922-0 01 1 1301- ●
17 PAD KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-97211-691-0 01 1 0807- ●
32 SUPPORT; FRT DISC BRK
(A) 		8-97365-271-0 02 1 0807- ●
32 SUPPORT; FRT DISC BRK
(B) 		8-98009-726-0 01 1 0807- ●
32 SUPPORT; FRT DISC BRK
(B) 		8-98009-727-0 01 1 0807- ●
32 SUPPORT; FRT DISC BRK
(A) 		8-97365-284-0 02 1 0807- ●
32 SUPPORT; FRT DISC BRK
(B) 		8-98009-730-0 01 1 0807-1107 ●
32 SUPPORT; FRT DISC BRK
(B) 		8-98188-551-0 01 1 1108- ●
32 SUPPORT; FRT DISC BRK
(B) 		8-98009-731-0 01 1 0807-1107 ●
32 SUPPORT; FRT DISC BRK
(B) 		8-98188-552-0 01 1 1108- ●
55 BOLT; SUPPORT BRKT TO DISC BRK
M16X31 FLANGE 		8-97359-816-0 04 1 0807- ●
55 BOLT; SUPPORT BRKT TO DISC BRK
M16X40 FLANGE 		8-97359-817-0 04 1 0807- ●
85 BOOT; PIN 8-97365-265-0 04 1 0807-0901 ● ●
85 BOOT; PIN 8-98120-354-0 04 1 0902- ● ●
86 PIN; GUIDE 8-98047-529-0 02 1 0807- ● ●
87 PIN; LOCK 8-98248-005-0 02 1 1311- ●
87 PIN; LOCK 8-98047-531-0 02 1 0807-1310 ● ●
87 PIN; LOCK 8-98047-531-0 02 1 1311- ●
107 BOLT; PIN 8-97365-264-0 04 1 0807- ● ●
