Isuzu WW
▶
TRUCKS
▶
ELF
▶
51174 - ELF400/500/600/BUS
▶
2 - Clutch, Transmission, Trans Axle
▶
2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶

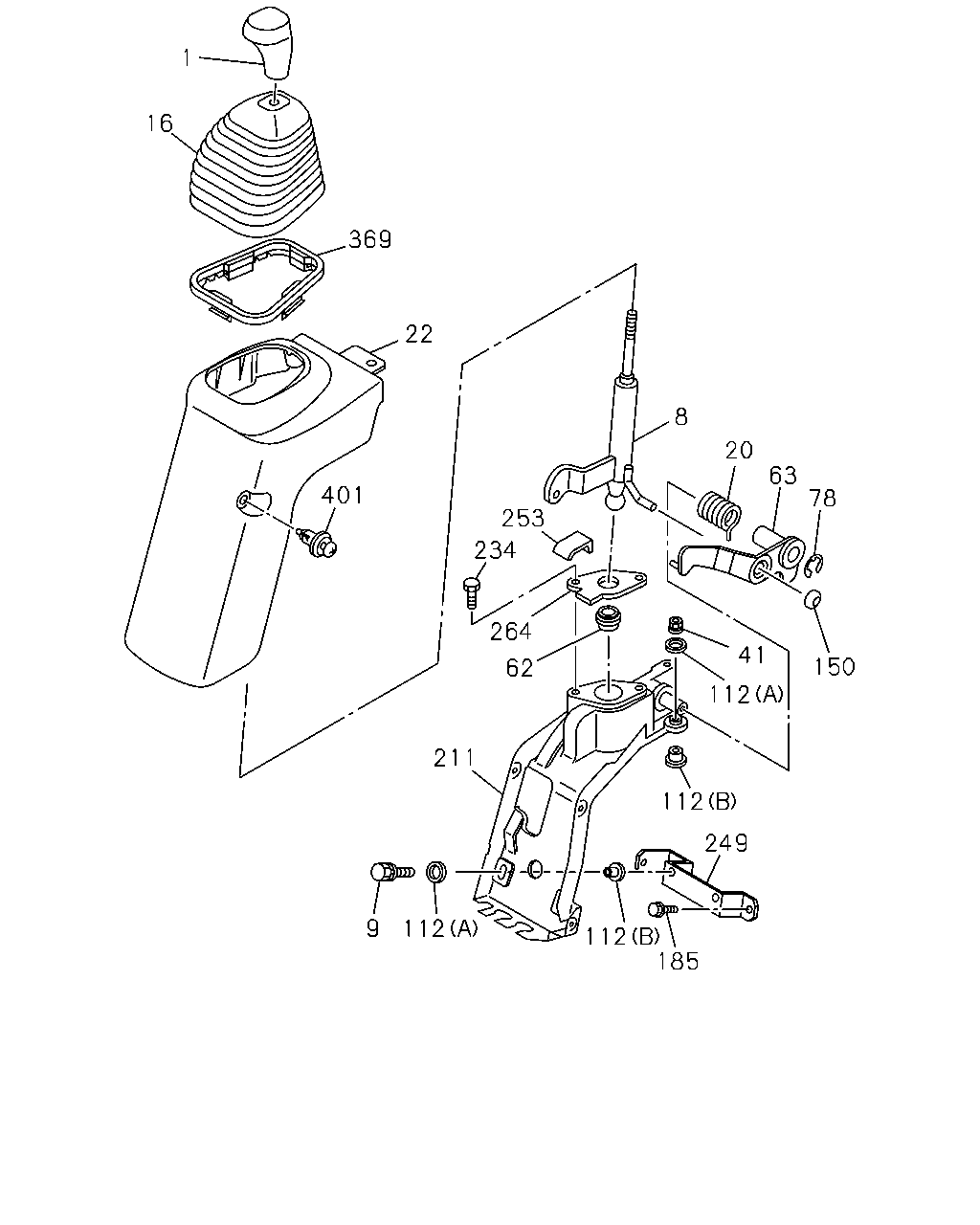

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#75817) — 22 parça
1
16
369
22
8
20
63
401
78
253
234
264
41
150
62
112
211
112
249
112
185
9
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
KNOB; CHANGE LEVER
BLACK
8-97196-287-1
01
1
0807-
8
LEVER; CHANGE
8-97204-506-0
01
1
0807-
9
BOLT; CHANGE LEVER
M8X28 W/LK&PL WASHER
8-94438-324-1
02
1
0807-
16
BOOT; CHANGE LEVER
8-98035-063-0
01
1
0807-
20
SPRING; CHANGE LEVER
8-97204-514-1
01
1
0807-
22
COVER; DUST,CHANGE LEVER
GRAY
8-97411-505-1
01
1
0807-1012
22
COVER; DUST,CHANGE LEVER
GRAY
8-97422-706-0
01
1
1101-
41
NUT; CHANGE LEVER
M8 W/DISHED WASHER
8-97329-625-0
02
1
0807-
62
SEAT; BALL,CHANGE LEVER
8-97011-895-1
01
1
0807-
63
LEVER; RELAY,SELECT
8-97163-768-0
01
1
0807-
78
RING; SNAP,CHANGE LEVER
ID=10
0-91805-510-0
01
1
0807-
112
RUBBER; CUSHION
(A)
8-97091-426-0
04
1
0807-
112
RUBBER; CUSHION
(B)
8-97091-427-0
04
1
0807-
150
BALL; DETENT,CONT LEVER
8-97049-147-0
01
1
0807-
185
BOLT; BRKT,COVER
M8X20 FLANGE
0-28650-820-0
02
1
0807-
211
BRACKET; CHANGE LEVER
8-97204-505-1
01
1
0807-
234
BOLT; BRKT
M6X12 FLANGE
1-33739-842-0
02
1
0807-
249
BRACKET; COVER
8-97387-767-0
01
1
0807-
253
STOPPER; CHANGE LEVER
8-97204-510-0
01
1
0807-
264
PLATE; COVER
8-97204-511-0
01
1
0807-
369
RETAINER; REINF
8-98032-213-1
01
1
0807-
401
CLIP; COVER
GRAY
8-97406-179-0
04
1
0807-
