2-20 — MANUAL TRANSMISSION ASM AND CASE (#75813) — 30 parça

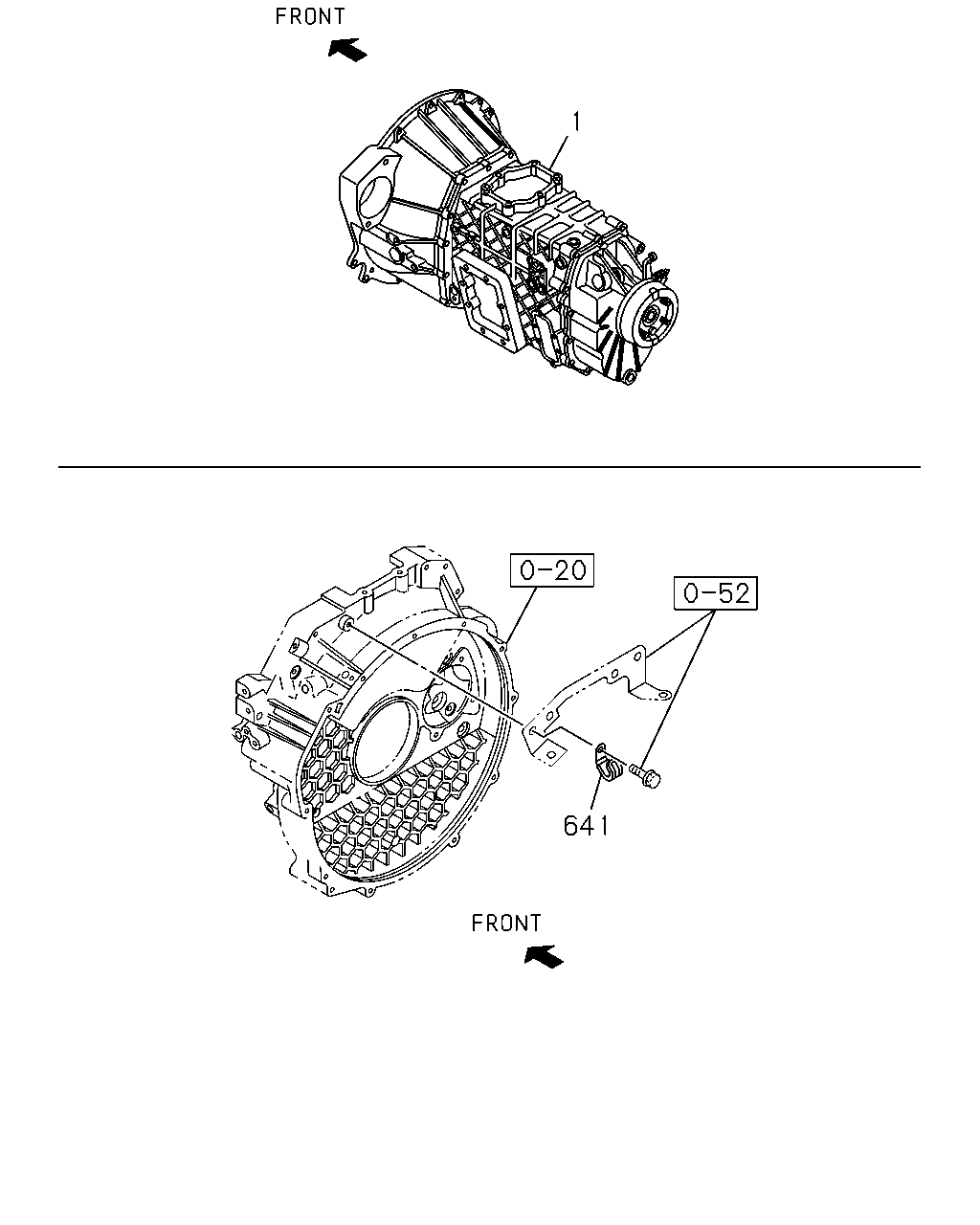

çizim 106125
1 641
BalonParca AdiParca NoAdetTipApplied Date
1 TRANSMISSION ASM; MANUAL
ELF500,600 SGL CAB(NP***S) FINAL GEAR RATIO 43/9(S2J) 		8-98066-919-0 01 1 1002-
1 TRANSMISSION ASM; MANUAL 8-98066-921-0 01 1 0807-1001
1 TRANSMISSION ASM; MANUAL
ELF400 SGL CAB(NP***N) 		8-98066-921-0 01 1 1002-
1 TRANSMISSION ASM; MANUAL
ELF500,600 SGL CAB(NP***S) FINAL GEAR RATIO 41/9(HC6) 		8-98066-921-0 01 1 1002-
641 CLIP; CAM SENSOR
ID=8 		8-94107-659-0 01 1 0807-

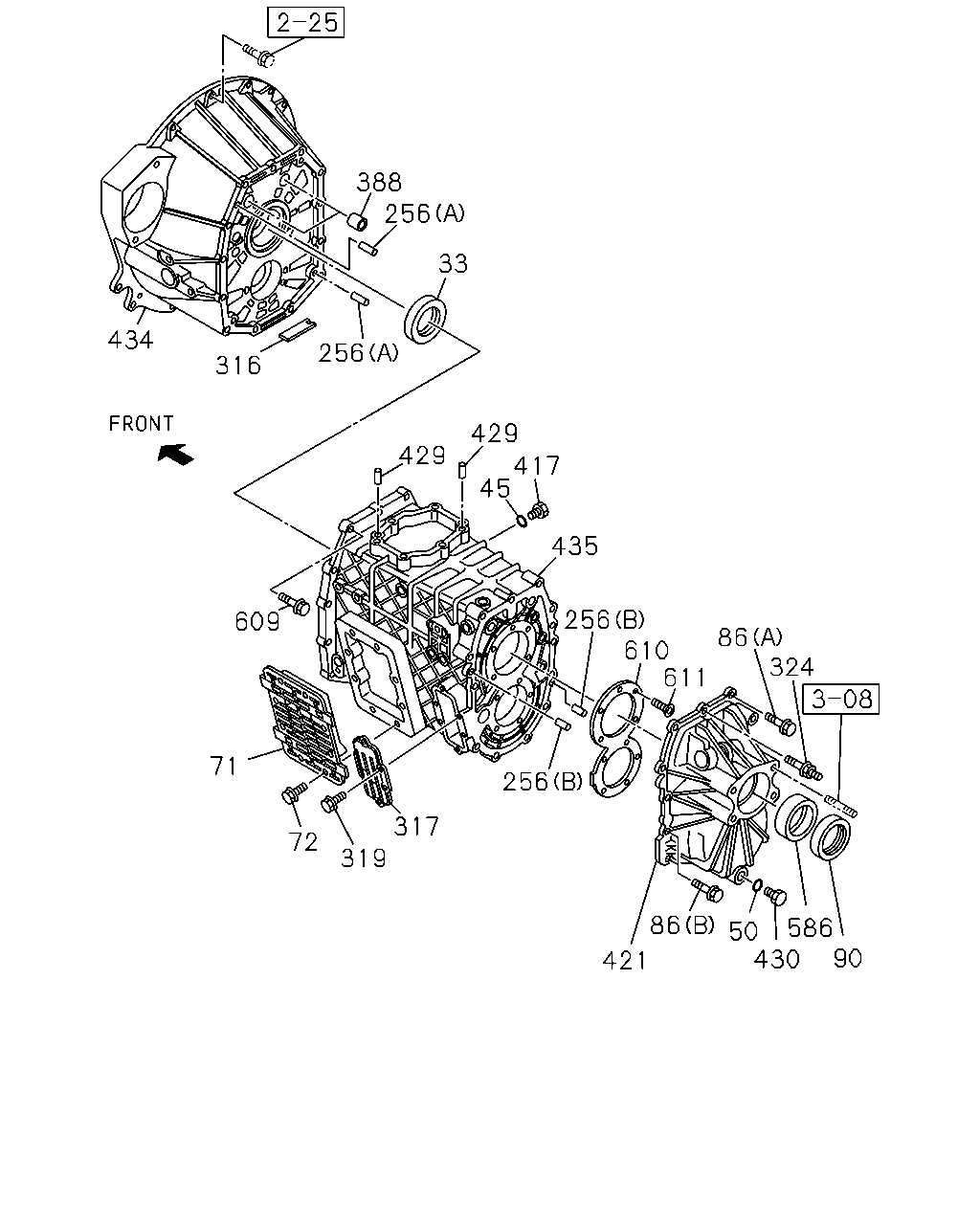

çizim 106985
388 256 33 434 256 316 429 429 417 45 435 256 610 611 609 86 324 256 71 317 72 319 86 50 586 421 430 90
BalonParca AdiParca NoAdetTipApplied Date
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		8-97253-550-0 01 1 0807-
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 		8-97115-712-0 01 1 0807-
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 		8-97115-712-0 01 1 0807-
71 COVER; SIDE,TRANS CASE 8-97252-624-2 01 1 0807-
72 BOLT; SIDE COVER
M10X20 FLANGE 		8-98014-142-0 08 1 0807-
86 BOLT; RR COVER
(A) M10X40 FLANGE 		0-28151-040-0 10 1 0807-
86 BOLT; RR COVER
(B) M10X40 FLANGE 		8-97365-377-0 02 1 0807-
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		8-97253-551-1 01 1 0807-
256 PIN; KNOCK
(A) OD=10 L=20 		8-97135-423-0 02 1 0807-
256 PIN; KNOCK
(B) ID=6 L=12 		9-08160-612-0 02 1 0807-
316 MAGNET; TRANS CASE 8-94249-524-2 01 1 0807-
317 COVER; CASE 8-97252-626-0 01 1 0807-
319 BOLT; COVER
M8X20 FLANGE 		0-28050-820-0 06 1 0807-
324 STUD; RR COVER
M10X15,M10X40 L=65 		8-97365-379-0 01 1 0807-
388 BUSHING; CLU HSG 8-97241-326-2 02 1 0807-
417 PLUG; OIL FILLER,TRANS 8-97365-373-0 01 1 0807-
421 COVER; RR,TRANS 8-97238-934-5 01 1 0807-
429 PIN; STRAIGHT
OD=10 L=20 		8-97135-423-0 02 1 0807-
430 PLUG; OIL DRAIN 8-97365-374-0 01 1 0807-
434 HOUSING; CLU 8-97238-930-4 01 1 0807-
435 CASE; TRANS 8-97382-868-1 01 1 0807-
586 BEARING; NEEDLE 8-97253-108-0 01 1 0807-
609 BOLT; HSG TO CASE
M10X40 FLANGE 		0-28151-040-0 13 1 0807-
610 RETAINER; BRG 8-97241-314-2 01 1 0807-
611 SCREW
M10X27 TORQUES 		8-97365-354-0 10 1 0807-
