◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#75808) — 27 parça

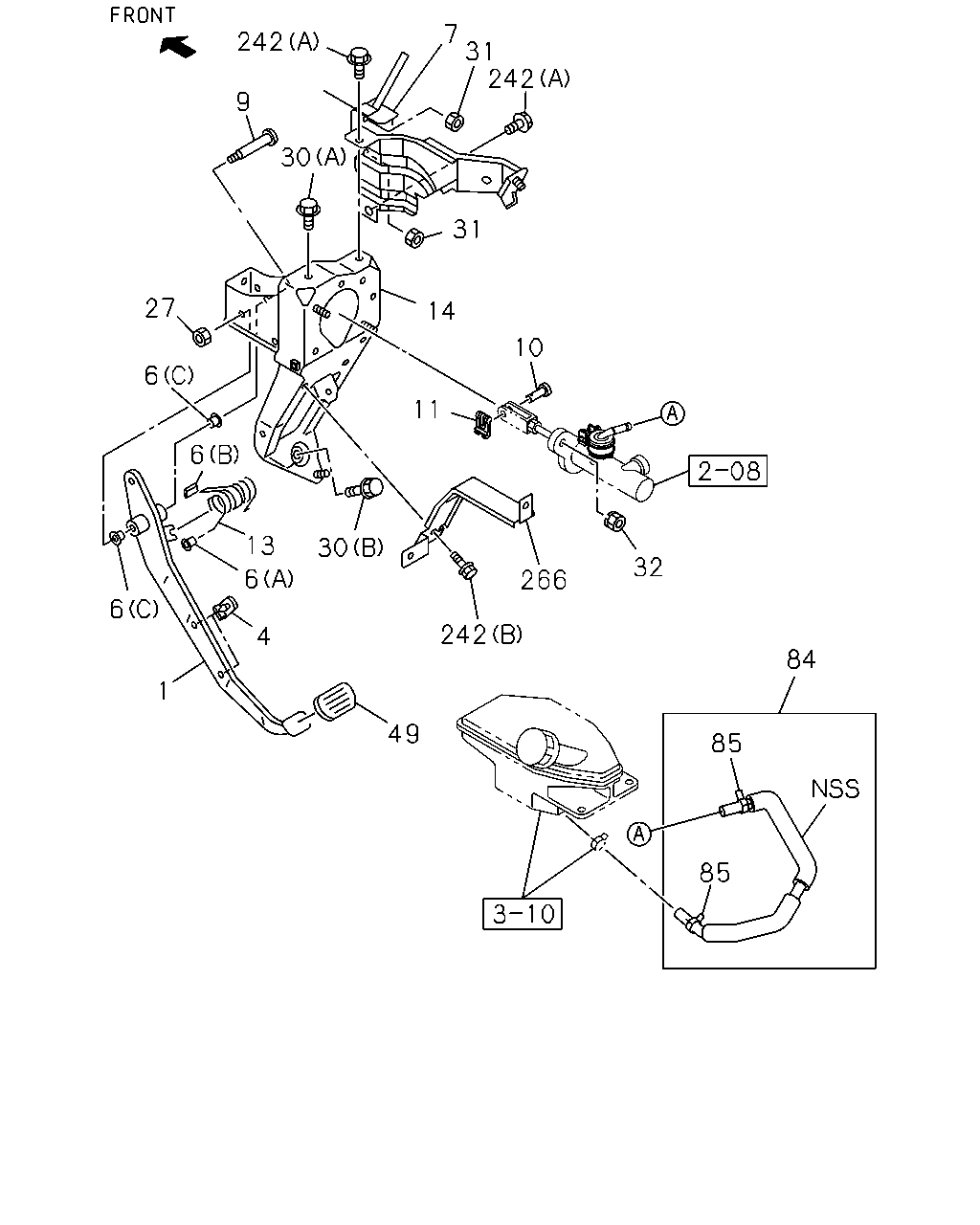

çizim 98596
7 31 242 242 9 30 31 27 14 10 6 11 6 13 30 32 6 266 6 242 4 84 1 49 85 85
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU 8-98034-754-0 01 1 0807- ● ●
4 STOPPER; CLU PEDAL 8-97853-534-1 02 1 0807- ● ●
6 BUSHING; CLU PEDAL
(C) 		8-94238-596-0 02 1 0807- ● ●
6 BUSHING; CLU PEDAL
(A) 		8-97853-619-0 02 1 0807- ● ●
6 BUSHING; CLU PEDAL
(B) 		8-97853-620-0 01 1 0807- ● ●
7 BRACKET; CLU PEDAL 8-98111-112-1 01 1 0807-1409 ● ●
7 BRACKET; CLU PEDAL 8-98222-745-0 01 1 1410- ● ●
9 PIN; CLU PEDAL 8-97866-667-0 01 1 0807- ● ●
10 PIN; CLU PEDAL 8-97387-230-0 01 1 0807-1007 ● ●
10 PIN; CLU PEDAL 8-98147-657-0 01 1 1008- ● ●
11 PIN; SNAP,PUSH ROD TO PEDAL 8-98007-161-0 01 1 0807- ● ●
13 SPRING; ASSIST,CLU PEDAL 8-98034-014-0 01 1 0807- ● ●
14 BRACKET ASM; CLU PEDAL MTG 8-98054-878-0 01 1 0807- ● ●
27 NUT; FULCRUM PIN
M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 0807- ● ●
30 BOLT; CLU MTG BRKT
(A) M10X25 FLANGE 		0-28661-025-0 01 1 0807- ● ●
30 BOLT; CLU MTG BRKT
(B) M10X22 W/PL WASHER 		8-98033-926-0 01 1 0807-0903 ● ●
30 BOLT; CLU MTG BRKT
(B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 0904- ● ●
31 NUT; MTG BRKT TO BODY
M8 W/LK WASHER 		8-94279-050-0 02 1 0807- ● ●
32 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 0807- ● ●
49 RUBBER; PAD,CLU PEDAL 8-97853-413-2 01 1 0807- ● ●
84 HOSE; RUBBER,CLU LINE 8-98025-423-1 01 1 0807-1208 ● ●
84 HOSE; RUBBER,CLU LINE 8-98218-210-1 01 1 1209- ● ●
85 CLIP; HOSE TO M/CYL 8-98031-178-0 02 1 0807-1208 ● ●
85 CLIP; HOSE TO M/CYL 8-98168-080-0 02 1 1209- ● ●
242 BOLT; BRKT,CLUTCH
(B) M6X12 FLANGE 		0-28050-612-0 01 1 0807- ● ●
242 BOLT; BRKT,CLUTCH
(A) M8X16 FLANGE 		0-28450-816-0 02 1 0807- ● ●
266 BRACKET; CLU SWITCH 8-98078-745-4 01 1 0807- ● ●
