◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51174 - ELF400/500/600/BUS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#75807) — 18 parça

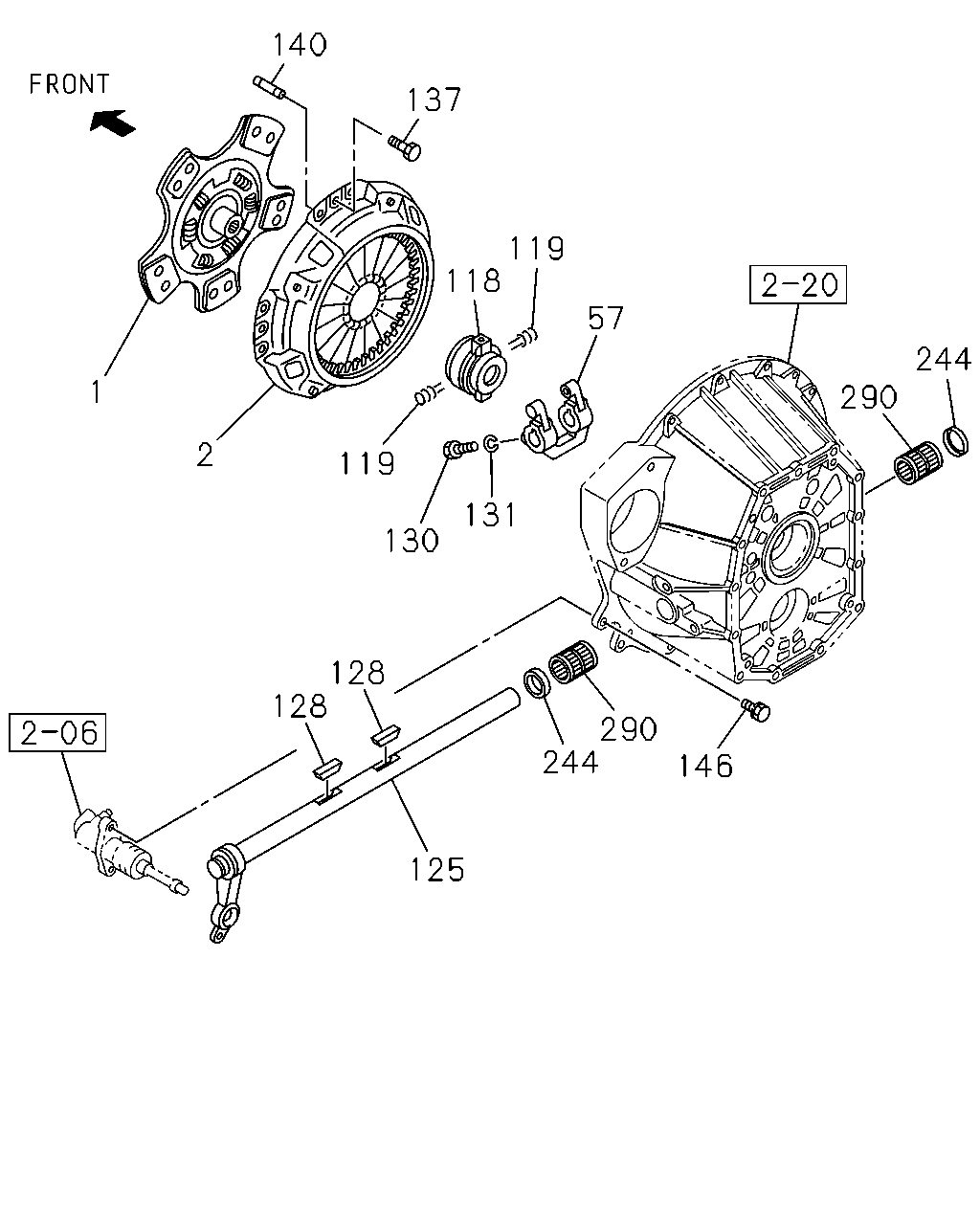

çizim 97613
140 137 119 118 57 244 1 290 2 119 131 130 128 128 290 244 146 125
BalonParca AdiParca NoAdetTipApplied Date A B
1 DISC; CLUTCH
BEST VALUE PARTS 		5-87610-105-0 01 1 1502- ● ●
1 DISC; CLUTCH 8-97380-142-0 01 1 0807-1007 ● ●
1 DISC; CLUTCH 8-98164-918-1 01 1 1008- ● ●
2 PLATE ASM; PRESSURE,CLU 8-97038-831-2 01 1 0807- ● ●
2 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		5-87610-104-0 01 1 0807- ● ●
57 FORK; SHIFT,CLU 8-97310-456-1 01 1 0807- ● ●
118 BEARING; CLU RELEASE
BEST VALUE PARTS 		1-87610-110-0 01 1 0807- ● ●
118 BEARING; CLU RELEASE 1-31310-012-0 01 1 0807- ● ●
119 SPRING; SHIFT FORK 1-31329-024-0 02 1 0807- ● ●
125 SHAFT; CLU 8-97310-435-0 01 1 0807- ● ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0807- ● ●
130 SCREW; SHIFT FORK
M8X14 		0-61200-814-0 01 1 0807- ● ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 0807- ● ●
137 BOLT; CLU COVER
M10X16 FLANGE 		0-28051-016-0 10 1 0807- ● ●
140 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0807- ● ●
146 BOLT; SLAVE CYL TO TRANS CASE
M8X30 FLANGE 		0-28650-830-0 02 1 0807- ● ●
244 SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-002-0 02 1 0807- ● ●
290 BEARING; NEEDLE
NTN 		1-09811-002-1 02 1 0807- ● ●
