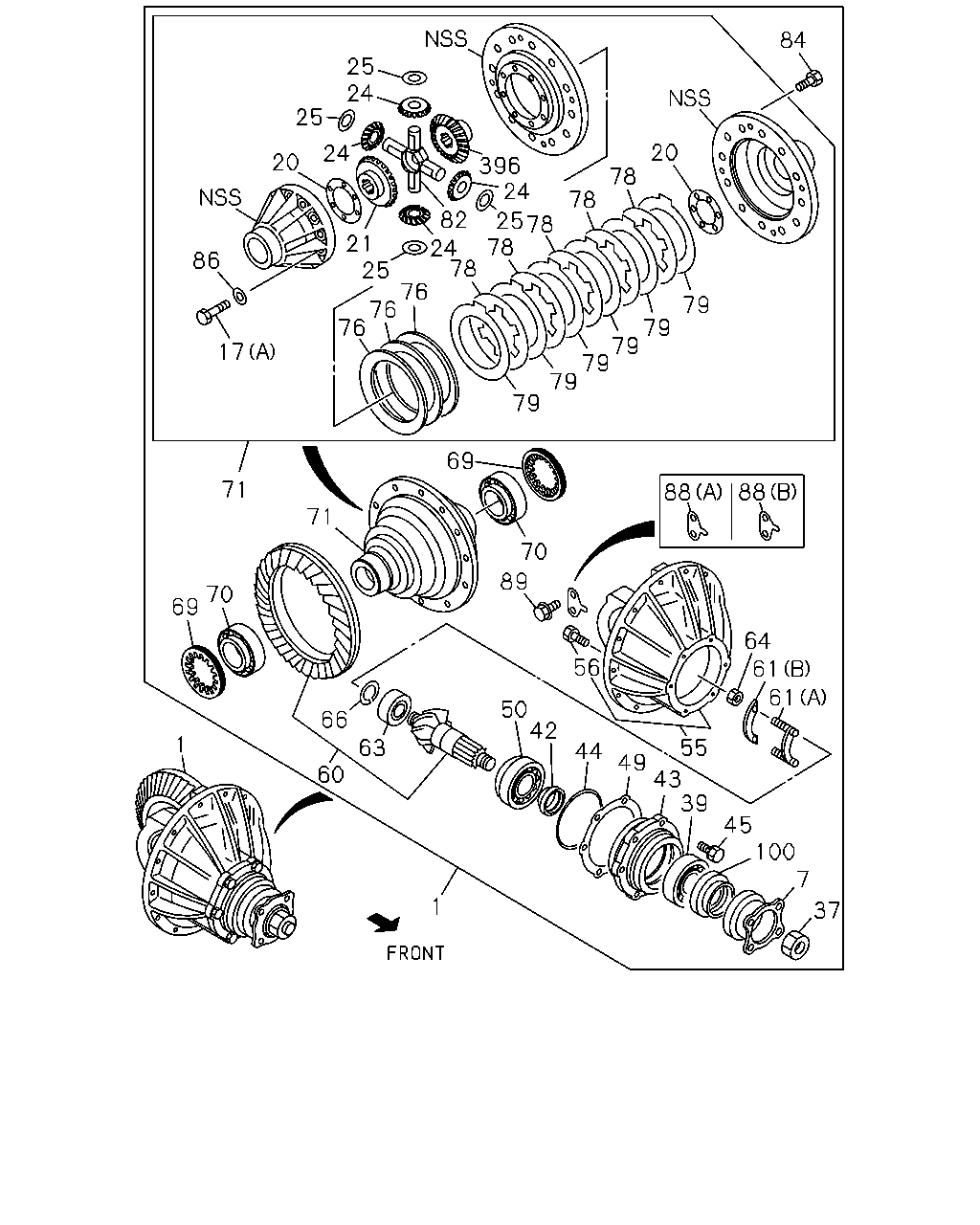

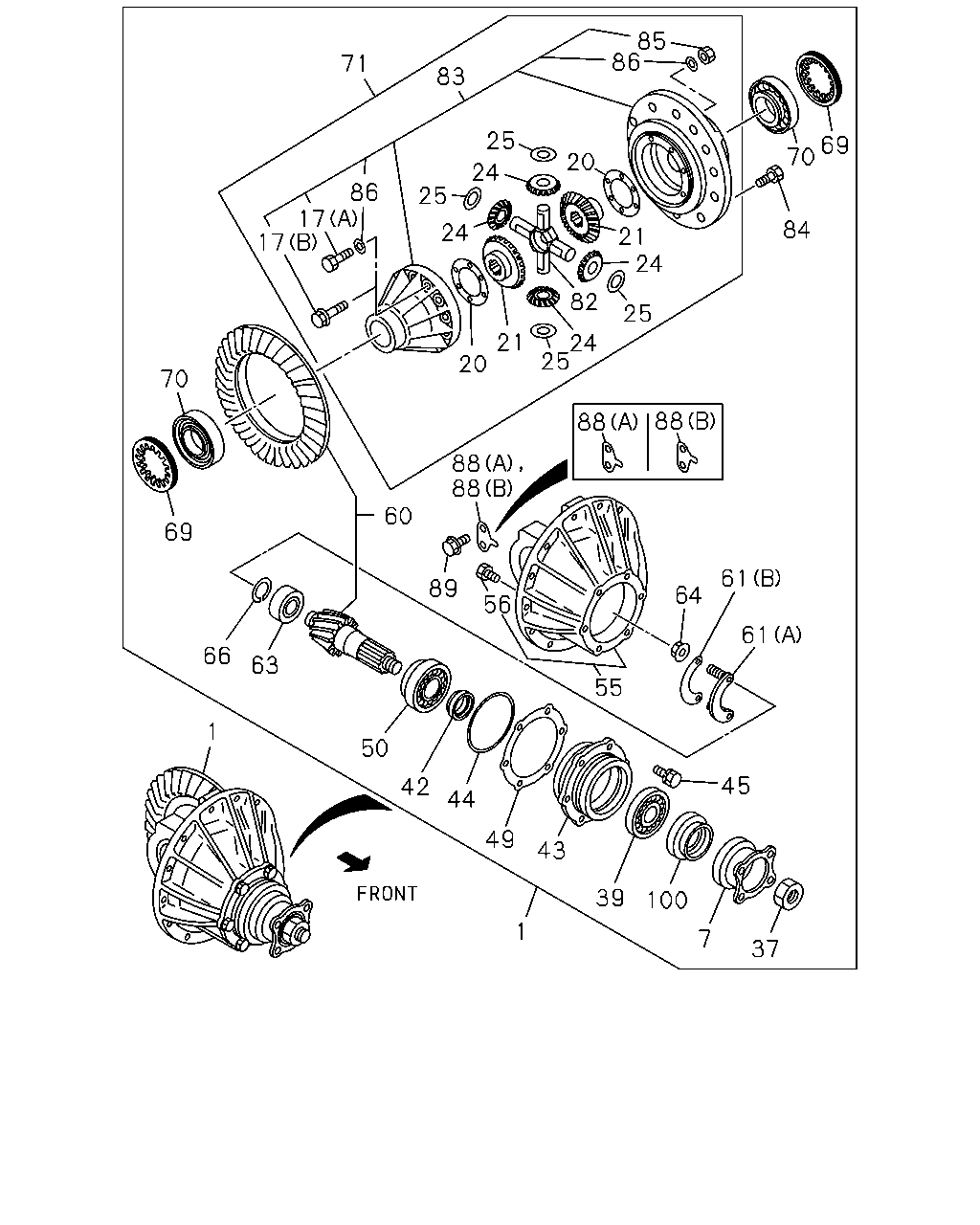

4-25 — REAR FINAL DRIVE (#75801) — 132 parça

37 7 100 39 1 1 43 49 44 42 50 63 66 45 55 61 61 64 56 89 60 88 88 88 88 25 24 25 24 21 21 20 84 69 70 20 25 24 24 25 86 85 83 71 86 17 17 70 69 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/7	8-98094-791-0	01	1	0810-
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-98044-421-0	01	1	0810-
7	05.545 FLANGE; FINAL	8-97047-095-2	01	1	0810-
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> (A)	8-98107-373-0	12	1	0810-
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> (A) M12X90	8-97047-295-0	12	1	0810-1208
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> (B) M12X90	8-98219-448-0	12	1	1209-
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0810-
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0810-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0810-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0810-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0810-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0810-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0810-
21	05.528 GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0810-1004
21	05.528 GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	01	1	1005-
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0810-1004
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	02	1	1005-
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0810-1004
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1005-
25	05.528 WASHER; THRUST,PINION	1-41552-020-0	04	1	0810-
37	05.595 NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0810-
39	05.484 BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1002-
39	05.484 BEARING; FINAL PINION NSK	1-09812-026-0	01	1	0810-1002
39	05.484 BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1003-
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0810-
43	05.453 CAGE; FINAL PINION	8-97047-098-0	01	1	0810-
44	05.476 GASKET; PINION CAGE	8-97048-053-0	01	1	0810-
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0810-0909
45	05.453 BOLT; FINAL PINION CAGE 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-1209
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0810-
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0810-
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0810-
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0810-
49	05.458 SHIM; FINAL PINION CAGE 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0810-
50	05.447 BEARING; FINAL PINION 05.484 NSK	1-09812-041-2	01	1	0810-
50	05.447 BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0810-
55	05.505 CARRIER; DIFF	8-97094-637-0	01	1	0810-
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0810-
60	05.529 GEAR SET; FINAL DRIVE,RR 43/7	8-97092-946-0	01	1	0810-
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0810-
61	05.476 RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0810-
63	05.447 BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0810-
63	05.447 BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	0810-
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0810-
66	05.476 RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0810-
69	05.506 NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0810-
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0810-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0810-1004
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98169-220-2	01	1	1005-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-4	01	1	0810-
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	0810-1004
82	05.517 SPIDER; DIFF PINION	1-41521-062-0	01	1	1005-1309
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	1310-
83	05.510 CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-97047-117-2	01	1	0810-1208
83	05.510 CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-98219-707-0	01	1	1209-
84	05.531 BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0810-
85	05.510 NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M12	8-97065-214-0	12	1	0810-
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0810-
86	05.510 WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0810-1208
86	05.510 WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1209-
88	05.506 PLATE; LK,ADJ NUT (B) T=2.3	8-97087-821-0	AR	1	0810-
88	05.506 PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	AR	1	0810-
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0810-
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0810-

20 25 24 24 25 84 20 78 78 78 78 78 76 76 76 21 82 25 24 24 25 396 86 17 69 71 70 69 71 70 89 88 88 79 79 79 79 79 79 56 64 61 61 55 50 42 44 49 43 39 45 100 7 37 1 63 66 60 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/7	8-98094-791-0	01	1	0810-
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-98044-421-0	01	1	0810-
7	05.545 FLANGE; FINAL	8-97047-095-2	01	1	0810-
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> (A)	8-98107-373-0	12	1	0810-
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> (A) M12X90	8-97047-295-0	12	1	0810-1208
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> (B) M12X90	8-98219-448-0	12	1	1209-
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0810-
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0810-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0810-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0810-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0810-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0810-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0810-
21	05.528 GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0810-1004
21	05.528 GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	01	1	1005-
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0810-1004
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	02	1	1005-
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0810-1004
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1005-
25	05.528 WASHER; THRUST,PINION	1-41552-020-0	04	1	0810-
37	05.595 NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0810-
39	05.484 BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1002-
39	05.484 BEARING; FINAL PINION NSK	1-09812-026-0	01	1	0810-1002
39	05.484 BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1003-
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0810-
43	05.453 CAGE; FINAL PINION	8-97047-098-0	01	1	0810-
44	05.476 GASKET; PINION CAGE	8-97048-053-0	01	1	0810-
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0810-0909
45	05.453 BOLT; FINAL PINION CAGE 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-1209
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0810-
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0810-
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0810-
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0810-
49	05.458 SHIM; FINAL PINION CAGE 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0810-
50	05.447 BEARING; FINAL PINION 05.484 NSK	1-09812-041-2	01	1	0810-
50	05.447 BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0810-
55	05.505 CARRIER; DIFF	8-97094-637-0	01	1	0810-
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0810-
60	05.529 GEAR SET; FINAL DRIVE,RR 43/7	8-97092-946-0	01	1	0810-
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0810-
61	05.476 RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0810-
63	05.447 BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0810-
63	05.447 BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	0810-
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0810-
66	05.476 RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0810-
69	05.506 NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0810-
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0810-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0810-1004
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98169-220-2	01	1	1005-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-4	01	1	0810-
76	05.511 DISC; BEVEL LIMITED SLIP DIFF<6LV>	8-97142-795-0	03	1	0810-
78	05.511 DISC; FRICTION LIMITED SLIP DIFF<6LV>	8-97142-793-0	05	1	0810-
79	05.511 PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97142-794-0	06	1	0810-
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	0810-1004
82	05.517 SPIDER; DIFF PINION	1-41521-062-0	01	1	1005-1309
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	1310-
84	05.531 BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0810-
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0810-
86	05.510 WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0810-1208
86	05.510 WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1209-
88	05.506 PLATE; LK,ADJ NUT (B) T=2.3	8-97087-821-0	AR	1	0810-
88	05.506 PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	AR	1	0810-
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0810-
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0810-
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV>	8-97142-805-0	01	1	0810-1004
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV>	8-98169-195-0	01	1	1005-
