Sayfa 3-78 - Isuzu EPC

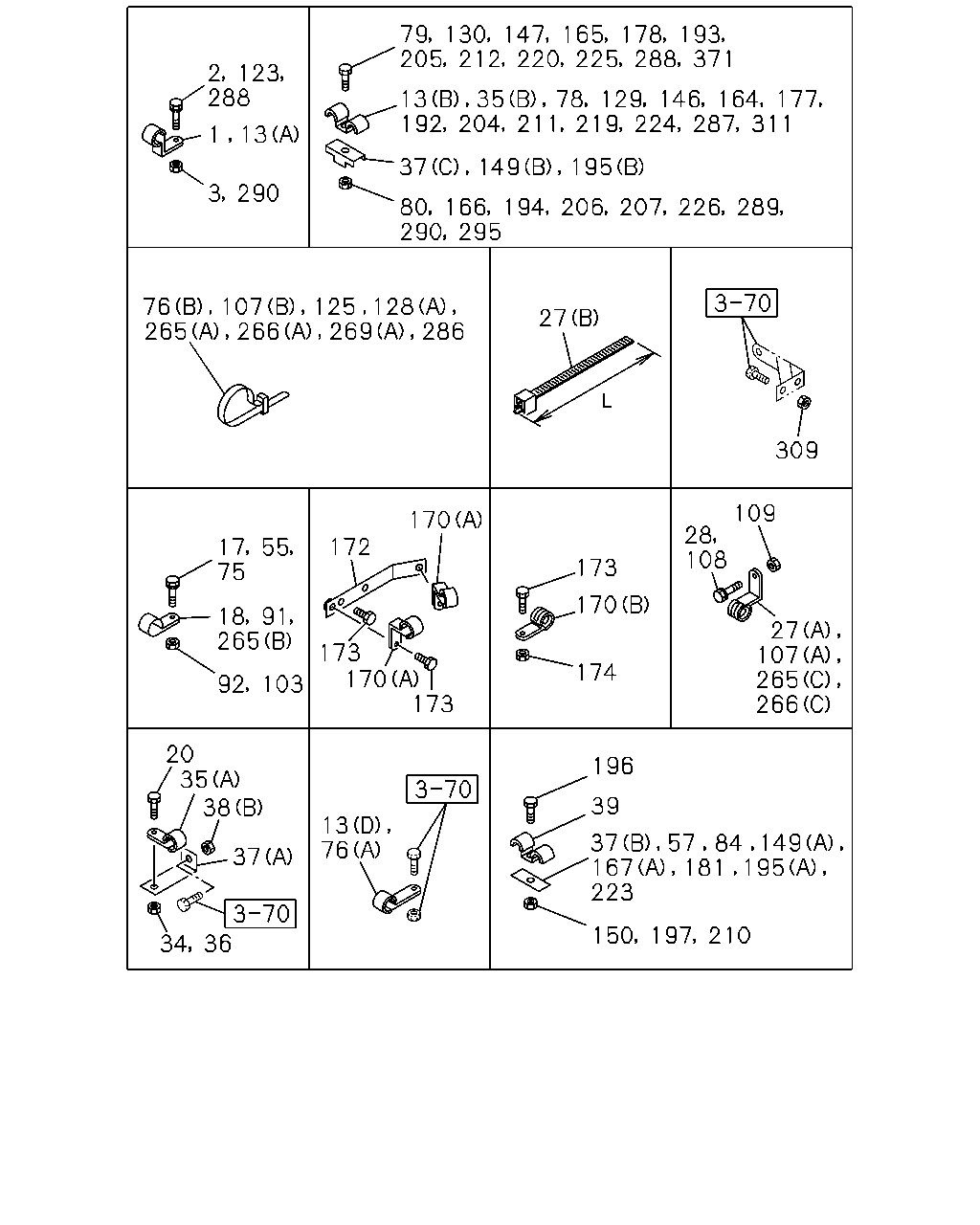

3-78 — FIXING PARTS; AIR PIPING (#758) — 288 parça

123 288 13 1 195 37 149 3 290 206 207 226 289 76 107 27 309 109 170 28 108 172 17 75 55 173 170 265 27 107 265 266 173 170 174 173 92 103 20 35 38 196 39 13 76 167 181 195 223 37 150 197 210 34 36 37 57 84 149 265 266 269 286 128 125 2 79 130 147 165 178 193 205 212 220 225 288 371 13 35 78 129 146 164 177 192 204 211 219 224 287 311 80 166 194 290 295 18 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6 H=20 L=20	1-09700-603-0	01	1	9505-
2	BOLT; CLIP FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	01	1	9505-
3	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9505-
13	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9204-9504
13	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=7 L=38 H=21	1-09700-916-0	01	1	9505-
13	CLIP; AIR PIPE (B) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9204-9504
13	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=7 L=40	9-09524-675-0	01	1	9505-
13	CLIP; AIR PIPE (C)	5-09700-165-0	01	1	9204-
13	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9505-
13	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9505-
17	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	01	1	9505-
18	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9505-
20	BOLT; CLIP M8X16 FLANGE	0-28010-816-0	01	1	9204-9204
20	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9205-
20	BOLT; CLIP M8X20 FLANGE	0-28010-820-0	06	1	9204-9204
20	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	06	1	9205-9504
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	06	1	9505-
27	CLIP; FLEX HOSE (A) ID=23 H=30 L=35	1-09700-743-0	03	1	9204-9504
27	CLIP; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=23 H=30 L=35	1-09700-743-0	03	1	9505-
27	CLIP; FLEX HOSE (B) L=250	5-09707-030-0	01	1	9204-9504
27	CLIP; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	5-09707-030-0	01	1	9505-
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28010-820-0	03	1	9204-9204
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28080-820-0	03	1	9205-9504
28	BOLT; CLIP,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	03	1	9505-
34	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9505-
35	CLIP; AIR PIPE (A) ID=16.5	5-09700-364-0	01	1	9204-9504
35	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9505-
35	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.5	5-09700-364-0	01	1	9505-
36	NUT; CLIP M8	9-09110-408-0	01	1	9204-
37	BRACKET; PIPE CLIP (A) L=55	1-47475-304-0	01	1	9204-9504
37	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=50	1-47475-299-2	01	1	9505-
37	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47475-427-1	03	1	9505-
37	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=55	1-47475-304-0	01	1	9505-
38	NUT; BRKT (A) M6 FLANGE	1-09984-141-0	01	1	9204-
38	NUT; BRKT (B) M8	9-09110-408-0	01	1	9204-9504
38	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8	9-09110-408-0	01	1	9505-
39	CLIP; AIR PIPE AIR DRYER<PS7> ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9204-9206
39	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16 & 7 L=21 & 17	1-09700-675-0	04	1	9505-
55	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	04	1	9204-9204
55	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	04	1	9205-9504
55	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	04	1	9505-
57	BRACKET; PIPE CLIP,AIR AIR DRYER<PS7> L=50	1-47475-299-2	01	1	9204-9206
75	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	01	1	9505-
76	CLIP; NYLON TUBE (A)	1-09701-019-0	02	1	9204-9504
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=25 L=50	1-09701-019-0	02	1	9505-
76	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	03	1	9204-9504
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	03	1	9505-
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9505-
79	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	01	1	9505-
80	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9505-
84	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=50	1-47475-299-2	02	1	9505-
91	CLIP; AIR PIPE ID=11 H=20 L=20	5-09700-351-0	04	1	9204-9504
91	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 H=20 L=20	5-09700-351-0	04	1	9505-
92	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9204-9504
92	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9505-
103	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9204-9504
103	NUT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9505-
107	CLIP; NYLON TUBE (A)	1-09700-743-0	01	1	9204-9504
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=23 H=30 L=35	1-09700-743-0	01	1	9505-
107	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	9204-9504
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	14	1	9505-
108	BOLT; TUBE CLIP M8X16 FLANGE	0-28010-816-0	01	1	9204-9204
108	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9205-9504
108	BOLT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28080-816-0	01	1	9505-
109	NUT; TUBE CLIP M8	9-09110-408-0	01	1	9204-9504
109	NUT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9505-
123	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	02	1	9505-
123	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	05	1	9505-
123	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 FLANGE	0-28080-845-0	01	1	9505-
125	CLIP; NYLON TUBE L=250	1-09707-126-0	01	1	9204-9504
125	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-09707-126-0	01	1	9505-
128	CLIP; NYLON TUBE (B)	1-09701-055-1	01	1	9204-9504
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=32 L=50	1-09701-055-1	01	1	9505-
128	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	02	1	9204-9504
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	02	1	9505-
128	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) (A) L=250	1-09707-126-0	16	1	9204-
128	CLIP; NYLON TUBE WHEEL BASE 7100MM(71W) (A) L=250	1-09707-126-0	18	1	9204-
129	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9505-
130	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	01	1	9505-
146	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	07	1	9505-
147	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	04	1	9505-
149	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=50	1-47475-299-2	01	1	9505-
149	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47475-427-1	01	1	9505-
149	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M8 W/NUT	1-47475-439-2	04	1	9505-
149	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-47475-746-2	01	1	9505-
150	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	08	1	9505-
164	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9505-
165	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	02	1	9505-
166	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9505-
167	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=50	1-47475-299-2	01	1	9505-
167	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=55	1-47475-304-0	01	1	9505-
170	CLIP; NYLON TUBE (A) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	9204-9504
170	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	9505-
170	CLIP; NYLON TUBE (B) ID=25 L=60	1-09701-041-1	01	1	9204-9504
170	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=25 L=60	1-09701-041-1	01	1	9505-
172	BRACKET; TUBE CLIP	1-47476-053-1	01	1	9204-9504
172	BRACKET; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47476-053-1	01	1	9505-
173	BOLT; CLIP BRKT M8X16 FLANGE	0-28010-816-0	02	1	9204-9204
173	BOLT; CLIP BRKT M8X16 FLANGE	0-28080-816-0	02	1	9205-9504
173	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28080-816-0	02	1	9505-
173	BOLT; CLIP BRKT M8X20 FLANGE	0-28010-820-0	01	1	9204-9204
173	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	01	1	9205-9504
173	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	01	1	9505-
173	BOLT; CLIP BRKT M10X20 W/LK WASHER	9-01921-020-0	02	1	9204-9204
173	BOLT; CLIP BRKT M10X20 W/LK WASHER	0-50051-020-0	02	1	9205-9504
173	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X20 W/LK WASHER	0-50051-020-0	02	1	9505-
174	NUT; CLIP BRKT M8	9-09110-408-0	01	1	9204-9504
174	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9505-
177	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9505-
177	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9505-
178	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	02	1	9505-
181	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=50	1-47475-299-2	02	1	9505-
192	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	9505-
192	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	03	1	9505-
193	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	04	1	9505-
193	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 FLANGE	0-28080-845-0	02	1	9505-
194	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	03	1	9505-
195	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=50	1-47475-299-2	03	1	9505-
195	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47475-427-1	04	1	9505-
195	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M8 W/NUT	1-47475-439-2	04	1	9505-
196	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	03	1	9505-
197	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	03	1	9505-
204	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	9505-
205	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	01	1	9505-
205	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28080-835-0	01	1	9505-
205	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 FLANGE	0-28080-845-0	01	1	9505-
206	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9505-
207	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9505-
210	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9505-
211	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9505-
212	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	02	1	9505-
219	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	03	1	9505-
220	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	03	1	9505-
223	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=50	1-47475-299-2	01	1	9505-
224	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9505-
225	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	01	1	9505-
226	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9505-
265	CLIP; NYLON TUBE (C) ID=23 H=30 L=35	1-09700-743-0	01	1	9204-9504
265	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=23 H=30 L=35	1-09700-743-0	01	1	9505-
265	CLIP; NYLON TUBE (B) ID=19 L=28	9-09525-856-0	01	1	9204-9504
265	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=19 L=28	9-09525-856-0	01	1	9505-
265	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=250	1-09707-126-0	01	1	9204-
266	CLIP; NYLON TUBE (B) ID=23 H=30 L=35	1-09700-743-0	01	1	9204-9504
266	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=23 H=30 L=35	1-09700-743-0	01	1	9505-
266	CLIP; NYLON TUBE (C) ID=20 H=23 L=27	1-09700-861-0	01	1	9204-9504
266	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=20 H=23 L=27	1-09700-861-0	01	1	9505-
266	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	02	1	9204-9504
266	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	02	1	9505-
266	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=250	1-09707-126-0	01	1	9204-
269	CLIP; BAND,NYLON TUBE (B) ID=34.5 H=23 L=27.5	1-09700-905-0	10	1	9204-9504
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=34.5 H=23 L=27.5	1-09700-905-0	10	1	9505-
269	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	12	1	9204-9504
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	12	1	9505-
269	CLIP; BAND,NYLON TUBE AIR DRYER<PS7> (A) L=250	1-09707-126-0	06	1	9305-
269	CLIP; BAND,NYLON TUBE EXC. AIR DRYER<PS7> (A) L=250	1-09707-126-0	04	1	9204-9504
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) L=250	1-09707-126-0	04	1	9505-
269	CLIP; BAND,NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=250	1-09707-126-0	05	1	9204-9304
269	CLIP; BAND,NYLON TUBE AIR DRYER<PS7> (A) L=250	1-09707-126-0	05	1	9204-9304
269	CLIP; BAND,NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=250	1-09707-126-0	05	1	9305-
269	CLIP; BAND,NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=250	1-09707-126-0	07	1	9204-9504
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=250	1-09707-126-0	07	1	9505-
286	CLIP; NYLON TUBE L=250	1-09707-126-0	02	1	9204-9205
286	CLIP; NYLON TUBE L=250	1-09707-126-0	03	1	9206-9504
286	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-09707-126-0	03	1	9505-
286	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) L=250	1-09707-126-0	01	1	9204-
287	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9505-
288	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28010-816-0	01	1	9204-9204
288	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28080-816-0	01	1	9205-9504
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	03	1	9505-
288	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28010-825-0	01	1	9204-9204
288	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28080-825-0	01	1	9205-9504
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	01	1	9505-
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28080-816-0	01	1	9505-
289	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9505-
290	NUT; CLIP,AIR PIPE M8	9-09110-408-0	02	1	9204-
295	NUT; CLIP,AIR PIPE AIR DRYER<PS7> M8	9-09110-408-0	01	1	9204-9206
295	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	04	1	9505-
309	NUT; BRKT FIX M8	9-09110-408-0	02	1	9204-9504
309	NUT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9505-
311	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9505-
371	BOLT; CLIP,AIR PIPE AIR DRYER<PS7> M8X16 FLANGE	0-28010-816-0	01	1	9204-9204
371	BOLT; CLIP,AIR PIPE AIR DRYER<PS7> M8X25 FLANGE	0-28080-825-0	01	1	9205-
371	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X18 FLANGE	0-28080-818-0	01	1	9505-
371	BOLT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 FLANGE	0-28080-845-0	03	1	9505-

269 16 132 16 167 268 126 267 20 169 269 266 127 16 16 126 128 127 126 133 123 168 21 284 149 195 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	BRACKET; PIPE CLIP (A)	1-47465-168-1	01	1	9204-
16	BRACKET; PIPE CLIP (B)	1-47475-739-0	01	1	9204-9504
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47475-739-0	01	1	9505-
16	BRACKET; PIPE CLIP (C)	1-47475-868-0	02	1	9204-9504
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-47475-868-0	02	1	9505-
16	BRACKET; PIPE CLIP (D)	1-47476-273-0	08	1	9204-9504
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-47476-273-0	08	1	9505-
20	BOLT; CLIP M8X16 FLANGE	0-28010-816-0	01	1	9204-9204
20	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9205-
20	BOLT; CLIP M8X20 FLANGE	0-28010-820-0	06	1	9204-9204
20	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	06	1	9205-9504
20	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	06	1	9505-
21	NUT; CLIP M8	9-09110-408-0	04	1	9204-9504
21	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	04	1	9505-
123	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	02	1	9505-
123	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	05	1	9505-
123	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X45 FLANGE	0-28080-845-0	01	1	9505-
126	BOLT; CLIP BRKT M8X20 FLANGE	0-28010-820-0	05	1	9204-9204
126	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	05	1	9205-9504
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	05	1	9505-
126	BOLT; CLIP BRKT M10X30 W/LK WASHER	0-50041-030-0	02	1	9204-9504
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 W/LK WASHER	0-50041-030-0	02	1	9505-
127	NUT; CLIP BRKT M8	9-09110-408-0	05	1	9204-9504
127	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	05	1	9505-
127	NUT; CLIP BRKT M10	9-09110-410-0	02	1	9204-9504
127	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09110-410-0	02	1	9505-
128	CLIP; NYLON TUBE (B)	1-09701-055-1	01	1	9204-9504
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=32 L=50	1-09701-055-1	01	1	9505-
128	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	02	1	9204-9504
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	02	1	9505-
128	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) (A) L=250	1-09707-126-0	16	1	9204-
128	CLIP; NYLON TUBE WHEEL BASE 7100MM(71W) (A) L=250	1-09707-126-0	18	1	9204-
132	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-881-0	01	1	9505-
133	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X18 FLANGE	0-28080-818-0	01	1	9505-
149	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=50	1-47475-299-2	01	1	9505-
149	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47475-427-1	01	1	9505-
149	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M8 W/NUT	1-47475-439-2	04	1	9505-
149	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-47475-746-2	01	1	9505-
167	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=50	1-47475-299-2	01	1	9505-
167	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=55	1-47475-304-0	01	1	9505-
168	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	01	1	9505-
169	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9505-
195	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=50	1-47475-299-2	03	1	9505-
195	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47475-427-1	04	1	9505-
195	BRACKET; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M8 W/NUT	1-47475-439-2	04	1	9505-
266	CLIP; NYLON TUBE (B) ID=23 H=30 L=35	1-09700-743-0	01	1	9204-9504
266	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=23 H=30 L=35	1-09700-743-0	01	1	9505-
266	CLIP; NYLON TUBE (C) ID=20 H=23 L=27	1-09700-861-0	01	1	9204-9504
266	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=20 H=23 L=27	1-09700-861-0	01	1	9505-
266	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	02	1	9204-9504
266	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	02	1	9505-
266	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=250	1-09707-126-0	01	1	9204-
267	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	01	1	9204-9204
267	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	02	1	9205-9504
267	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	02	1	9505-
268	NUT; CLIP BRKT M8	9-09110-408-0	02	1	9204-9504
268	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9505-
269	CLIP; BAND,NYLON TUBE (B) ID=34.5 H=23 L=27.5	1-09700-905-0	10	1	9204-9504
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=34.5 H=23 L=27.5	1-09700-905-0	10	1	9505-
269	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	12	1	9204-9504
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	12	1	9505-
269	CLIP; BAND,NYLON TUBE AIR DRYER<PS7> (A) L=250	1-09707-126-0	06	1	9305-
269	CLIP; BAND,NYLON TUBE EXC. AIR DRYER<PS7> (A) L=250	1-09707-126-0	04	1	9204-9504
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) L=250	1-09707-126-0	04	1	9505-
269	CLIP; BAND,NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=250	1-09707-126-0	05	1	9204-9304
269	CLIP; BAND,NYLON TUBE AIR DRYER<PS7> (A) L=250	1-09707-126-0	05	1	9204-9304
269	CLIP; BAND,NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=250	1-09707-126-0	05	1	9305-
269	CLIP; BAND,NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=250	1-09707-126-0	07	1	9204-9504
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=250	1-09707-126-0	07	1	9505-
284	CLIP; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=18 & 18	8-94323-068-0	02	1	9505-

333 254 184 356 362 13 42 16 38 203 203 354 353

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9204-9504
13	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=7 L=38 H=21	1-09700-916-0	01	1	9505-
13	CLIP; AIR PIPE (B) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9204-9504
13	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=7 L=40	9-09524-675-0	01	1	9505-
13	CLIP; AIR PIPE (C)	5-09700-165-0	01	1	9204-
13	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9505-
13	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9505-
16	BRACKET; PIPE CLIP (A)	1-47465-168-1	01	1	9204-
16	BRACKET; PIPE CLIP (B)	1-47475-739-0	01	1	9204-9504
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47475-739-0	01	1	9505-
16	BRACKET; PIPE CLIP (C)	1-47475-868-0	02	1	9204-9504
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-47475-868-0	02	1	9505-
16	BRACKET; PIPE CLIP (D)	1-47476-273-0	08	1	9204-9504
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-47476-273-0	08	1	9505-
38	NUT; BRKT (A) M6 FLANGE	1-09984-141-0	01	1	9204-
38	NUT; BRKT (B) M8	9-09110-408-0	01	1	9204-9504
38	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8	9-09110-408-0	01	1	9505-
42	BOLT; CLIP,AIR PIPE M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9204-
184	BOLT; PIPE CLIP M6X16 W/LK&PL WASHER	1-09980-497-0	01	1	9204-9504
184	BOLT; PIPE CLIP DUAL AIR GAUGE<UG2> M6X16 W/LK&PL WASHER	1-09980-497-0	01	1	9505-
203	BOLT; CLIP BRKT M6X20 W/LK&PL WASHER	1-09980-493-0	04	1	9204-9504
203	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X20 W/LK&PL WASHER	1-09980-493-0	04	1	9505-
254	BOLT; PIPE CLIP M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9204-
333	BRACKET; BRK AIR PIPE	1-79738-179-1	01	1	9204-9504
333	BRACKET; BRK AIR PIPE DUAL AIR GAUGE<UG2>	1-79738-179-1	01	1	9505-
333	BRACKET; BRK AIR PIPE EXC. DUAL AIR GAUGE<UG2>	1-79738-164-2	01	1	9505-
353	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	9204-9504
353	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	9505-
354	BOLT; PIPE CLIP M6X12 W/LK WASHER	0-50040-612-0	02	1	9204-9504
354	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X12 W/LK WASHER	0-50040-612-0	02	1	9505-
356	CLIP; AIR PIPE ID=6 H=20 L=20	9-09527-005-0	01	1	9204-9504
356	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> ID=6 H=20 L=20	9-09527-005-0	01	1	9505-
362	BOLT; FLEX HOSE CLIP M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9204-9204
362	BOLT; FLEX HOSE CLIP M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
