Isuzu WW
▶
TRUCKS
▶
NPS
▶
51190 - NPS(LHD)EURO1
▶
3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶

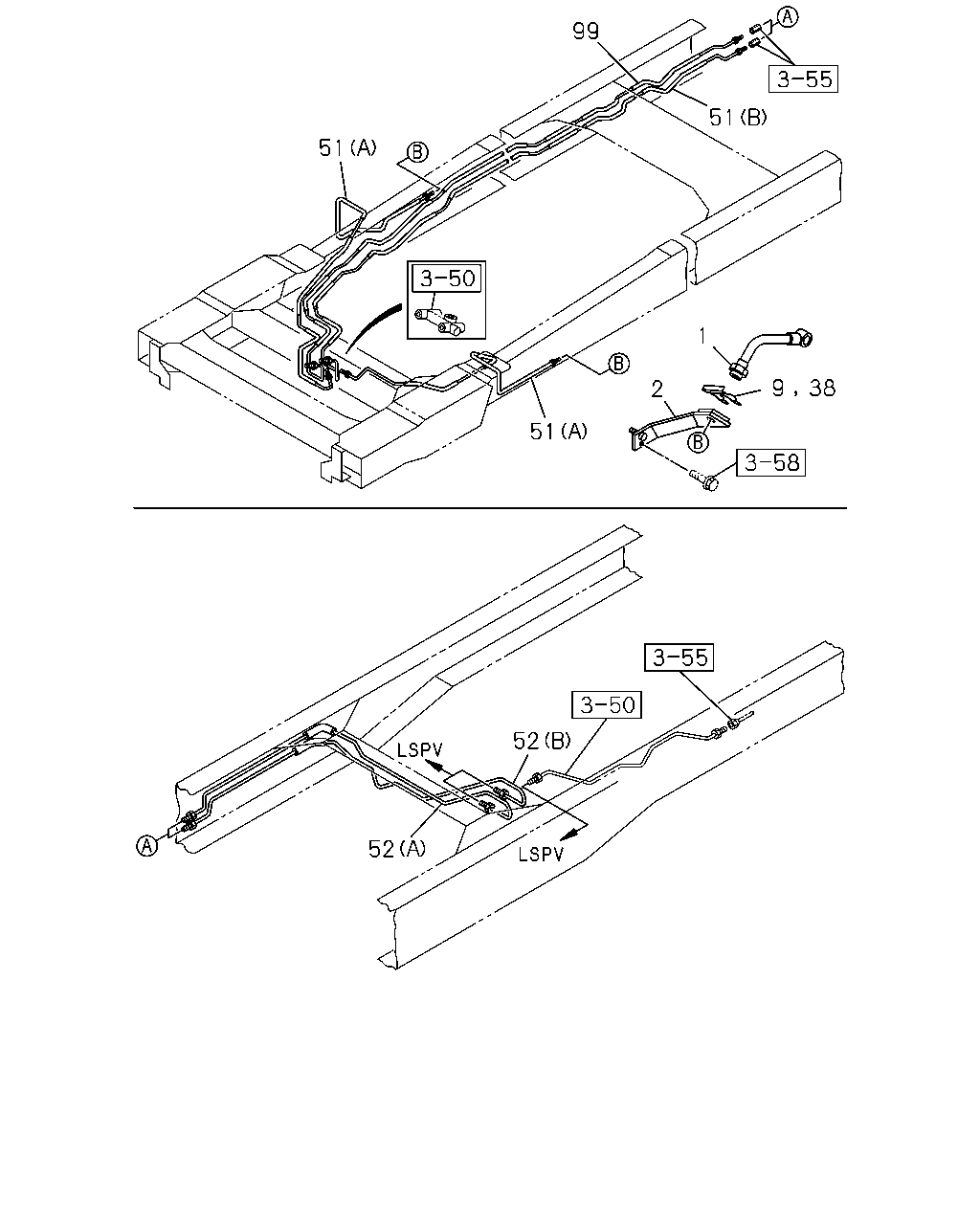

3-52 — BRAKE PIPING; OIL,FRONT
(#75790) — 10 parça
99
51
51
1
9
38
2
51
52
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.680 HOSE; FLEX,FRT BRK
8-97039-543-1
02
1
0810-
2
04.681 BRACKET; FLEX HOSE,FRT BRK
8-98049-943-1
01
1
0810-
9
04.686 CLIP; FLEX HOSE,FRT BRK
8-97360-054-0
02
1
0810-
38
04.686 CLIP
8-97360-054-0
02
1
0810-
51
04.685 PIPE; BRK
(B) 4/6WAY TO 2WAY,FRONT
8-98057-260-0
01
1
0810-
51
04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT RH 6WAY TO 2WAY,FRONT
8-98060-402-1
01
1
0810-
51
04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT LH 6WAY TO 2WAY,FRONT
8-98060-406-2
01
1
0810-
52
04.685 PIPE; BRK
(B) 2WAY TO LSPV,REAR
8-98057-265-0
01
1
0810-
52
04.685 PIPE; BRK
(A) 2WAY TO LSPV,FRONT
8-98057-268-0
01
1
0810-
99
04.686 PIPE ASM; 4/5/6 WAY
4/6WAY TO 2WAY,REAR
8-98057-259-0
01
1
0810-
