Isuzu WW
▶
TRUCKS
▶
NPS
▶
51190 - NPS(LHD)EURO1
▶
3 - Brakes, Brake System
▶
3-50 - BRAKE PIPING; OIL,MASTER CYLINDER
▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER
(#75789) — 39 parça
◀
[350A] FIXING LSPV (10 parça)
[350A] CAB INSIDE (13 parça)
[350A] CAB OUTSIDE (14 parça)
[350A] PIPING LSPV (2 parça)
▶
11
35
164
13
263
260
262
261
261
11
26
104
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
04.686 VALVE; BRK CONT
04.730
8-94427-224-2
01
1
0810-
13
04.686 BOLT; VLV TO BRKT
02.343 M8X16 FLANGE
0-28050-816-0
04
1
0810-
26
04.730 BRACKET; PROPORTIONING VLV
8-98057-012-0
01
1
0810-
35
04.685 PIPE; BRK,VLV TO RR AXLE
8-98057-271-0
01
1
0810-
104
04.730 BOLT; BRKT TO BODY
02.343 M8X16 FLANGE
0-28050-816-0
02
1
0810-
164
04.730 SCREW; BLEEDER
04.685
8-97093-663-0
01
1
0810-
260
04.685 SHACKLE; LSPV
04.710
8-97173-366-0
01
1
0810-
261
04.685 BUSHING; LSPV
04.710
8-97145-631-0
02
1
0810-
262
04.685 COLLAR; LSPV
04.710
8-97139-186-0
01
1
0810-
263
04.685 CAP; BLEEDER
8-97093-662-0
01
1
0810-
56
56
129
153
256
19
145

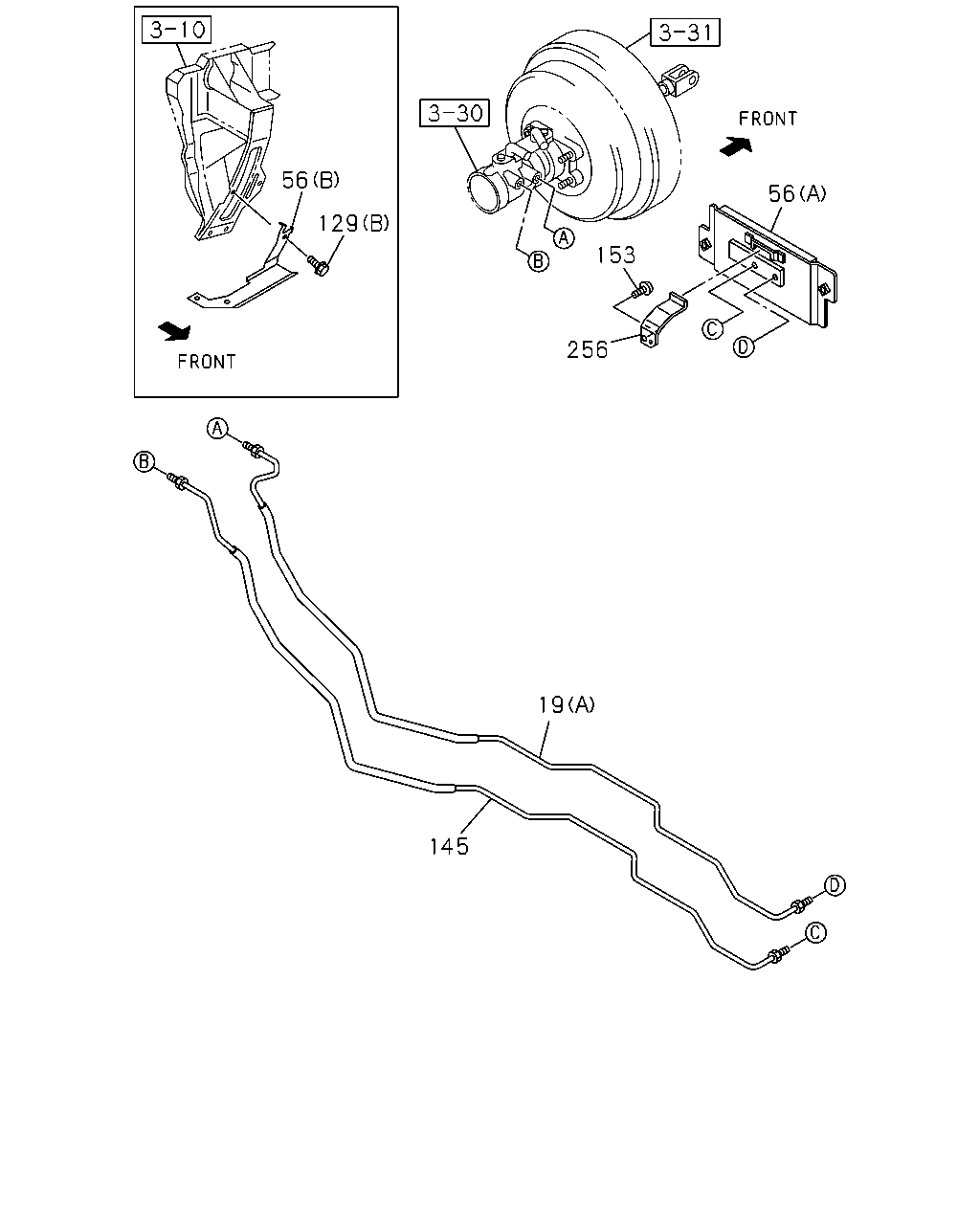

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
04.685 PIPE; BRK,M/CYL TO UNION
(B)
8-98056-155-1
02
1
0810-
19
04.685 PIPE; BRK,M/CYL TO UNION
(A)
8-98097-183-1
01
1
0810-
56
04.686 BRACKET; UNION,BRK
(A)
8-98056-774-1
01
1
0810-1005
56
04.686 BRACKET; UNION,BRK
(A)
8-98154-268-1
01
1
1006-
56
04.686 BRACKET; UNION,BRK
(B)
8-98097-178-1
01
1
0810-
129
04.710 BOLT; BRKT
02.343 (B) M6X16 FLANGE
0-28650-616-0
01
1
0810-
129
04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER
8-98081-030-0
02
1
0810-
145
04.685 PIPE; BRK,METERING VLV TO UNION
8-98097-179-1
01
1
0810-
153
04.730 SCREW; BRKT FIX
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.681 T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
01
1
0810-1001
153
04.730 SCREW; BRKT FIX
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
01
1
1002-
256
04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)
8-98039-683-4
01
1
0810-1001
256
04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>
8-98039-683-4
01
1
1002-1005
256
04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>
8-98163-521-0
01
1
1006-
19
19
56
8
117
129
7
7
8
227
253
10

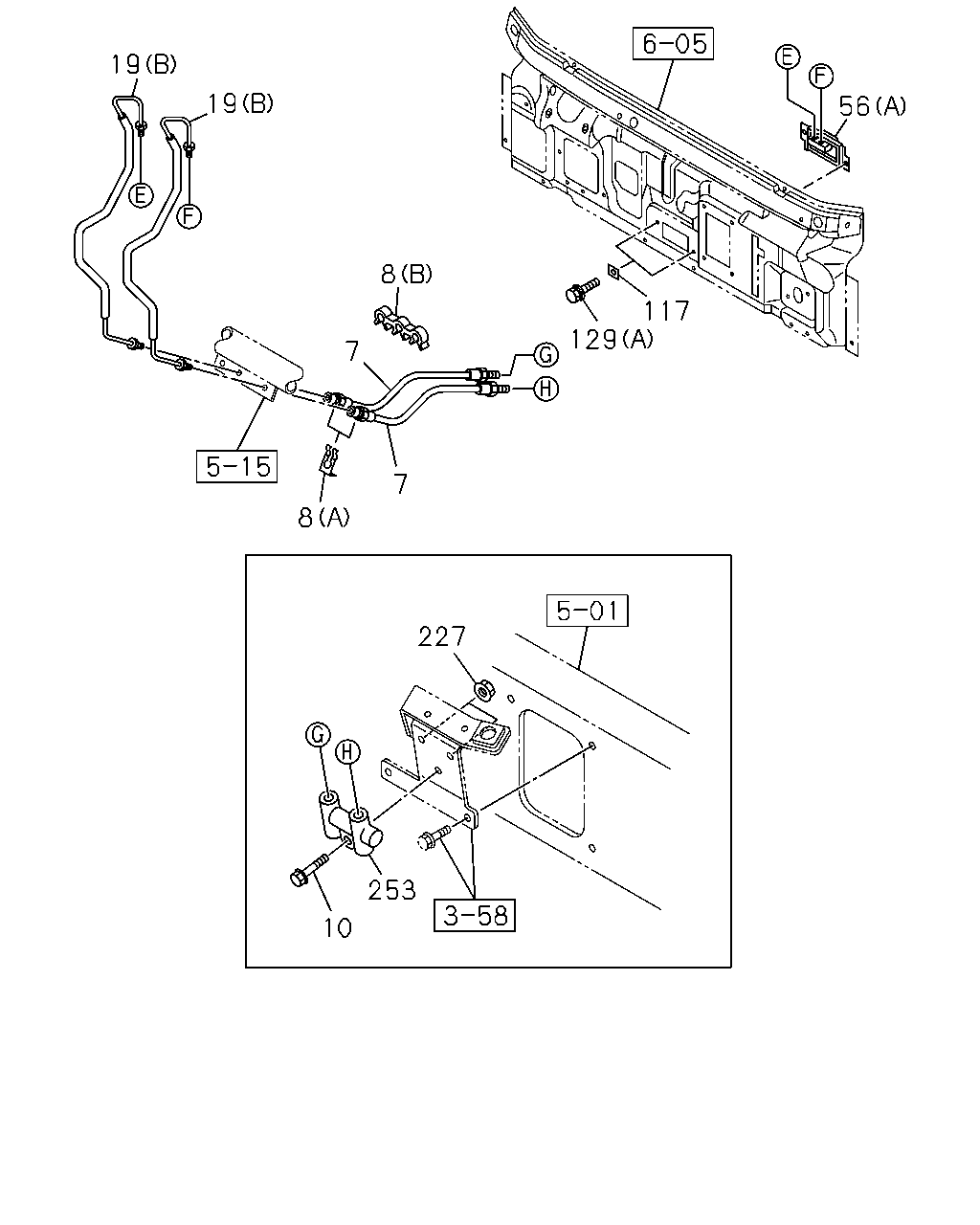

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT
8-98029-865-0
02
1
0810-
8
04.681 CLIP; FLEX HOSE,CABLE SIDE
04.686 (B)
8-97076-471-0
01
1
0810-
8
04.681 CLIP; FLEX HOSE,CABLE SIDE
(A)
8-97365-304-0
02
1
0810-
10
04.686 BOLT; JOINT
00.685 M6X40 FLANGE
0-28650-640-0
01
1
0810-
19
04.685 PIPE; BRK,M/CYL TO UNION
(B)
8-98056-155-1
02
1
0810-
19
04.685 PIPE; BRK,M/CYL TO UNION
(A)
8-98097-183-1
01
1
0810-
56
04.686 BRACKET; UNION,BRK
(A)
8-98056-774-1
01
1
0810-1005
56
04.686 BRACKET; UNION,BRK
(A)
8-98154-268-1
01
1
1006-
56
04.686 BRACKET; UNION,BRK
(B)
8-98097-178-1
01
1
0810-
117
04.686 SEAL; UNION,BRK PIPE JOINT
08.845
8-97856-616-0
02
1
0810-
129
04.710 BOLT; BRKT
02.343 (B) M6X16 FLANGE
0-28650-616-0
01
1
0810-
129
04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER
8-98081-030-0
02
1
0810-
227
04.685 NUT; JOINT
01.062 M8 FLANGE
0-91180-108-0
02
1
0810-
253
04.840 JOINT
04.686
8-97120-033-2
01
1
0810-
35
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
04.686 VALVE; BRK CONT
04.730
8-94427-224-2
01
1
0810-
35
04.685 PIPE; BRK,VLV TO RR AXLE
8-98057-271-0
01
1
0810-
