2-05 — CLUTCH PIPING (#7578) — 49 parça

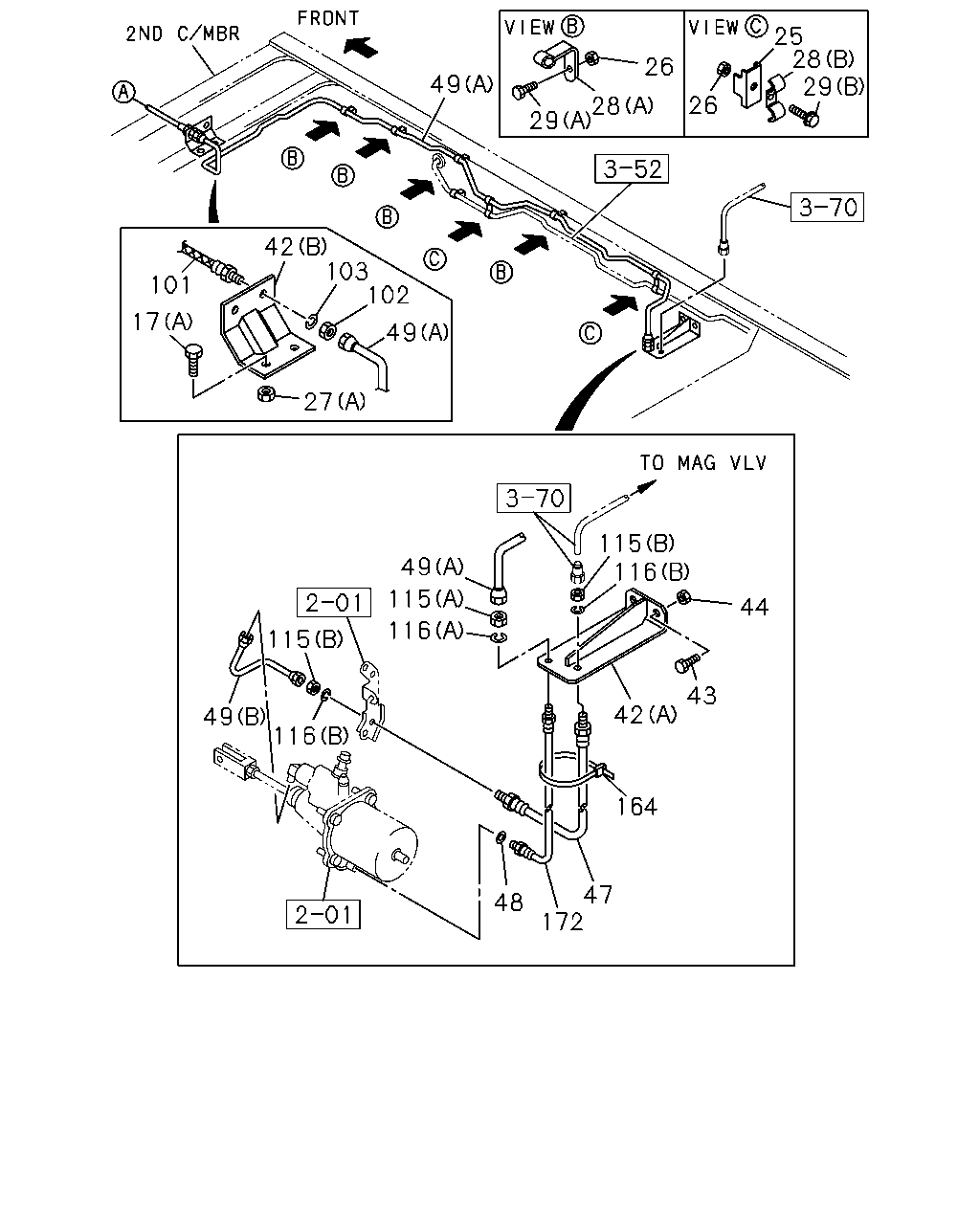

25 28 29 26 49 26 28 29 42 103 102 101 17 49 27 115 116 49 115 116 115 44 43 42 49 116 164 47 172 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	0101-
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER THA	8-94279-201-0	02	1	0101-
25	BRACKET; OIL PIPE	1-47475-427-1	02	1	0101-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	06	1	0101-
27	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	0101-
27	NUT; BRKT (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0101-
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20 THA	1-09700-604-0	04	1	0101-
28	CLIP; OIL PIPE (B) ID=7 & 9 L=17.5 & 17.5 THA	1-09700-746-0	02	1	0101-
29	BOLT; CLIP,OIL PIPE (B) M8X45 FLANGE	0-28080-845-0	02	1	0101-
29	BOLT; CLIP,OIL PIPE (A) M8X30 FLANGE	0-28680-830-0	04	1	0101-
42	BRACKET; FLEX HOSE,CLU CONT (B) THA	1-47476-781-0	01	1	0101-
42	BRACKET; FLEX HOSE,CLU CONT (A) THA	1-47476-912-1	01	1	0101-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	0101-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0101-
47	HOSE; FLEX,CLU CONT L=600	1-09363-699-0	01	1	0101-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	0101-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=204	1-49117-400-0	01	1	0101-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) THA	8-97919-219-0	01	1	0101-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0101-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0101-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0101-
115	NUT; FLEX HOSE,CLU CONT (B) M12	9-09840-280-0	02	1	0101-
115	NUT; FLEX HOSE,CLU CONT (A) M14	9-99111-414-0	01	1	0101-
116	WASHER; FLEX HOSE,CLU CONT (B) ID=12.2	9-09150-512-0	02	1	0101-
116	WASHER; FLEX HOSE,CLU CONT (A) ID=14.2	9-09150-514-0	01	1	0101-
164	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	0101-
172	HOSE; FLEX,CLU BOOSTER L=520	1-09364-583-0	01	1	0101-

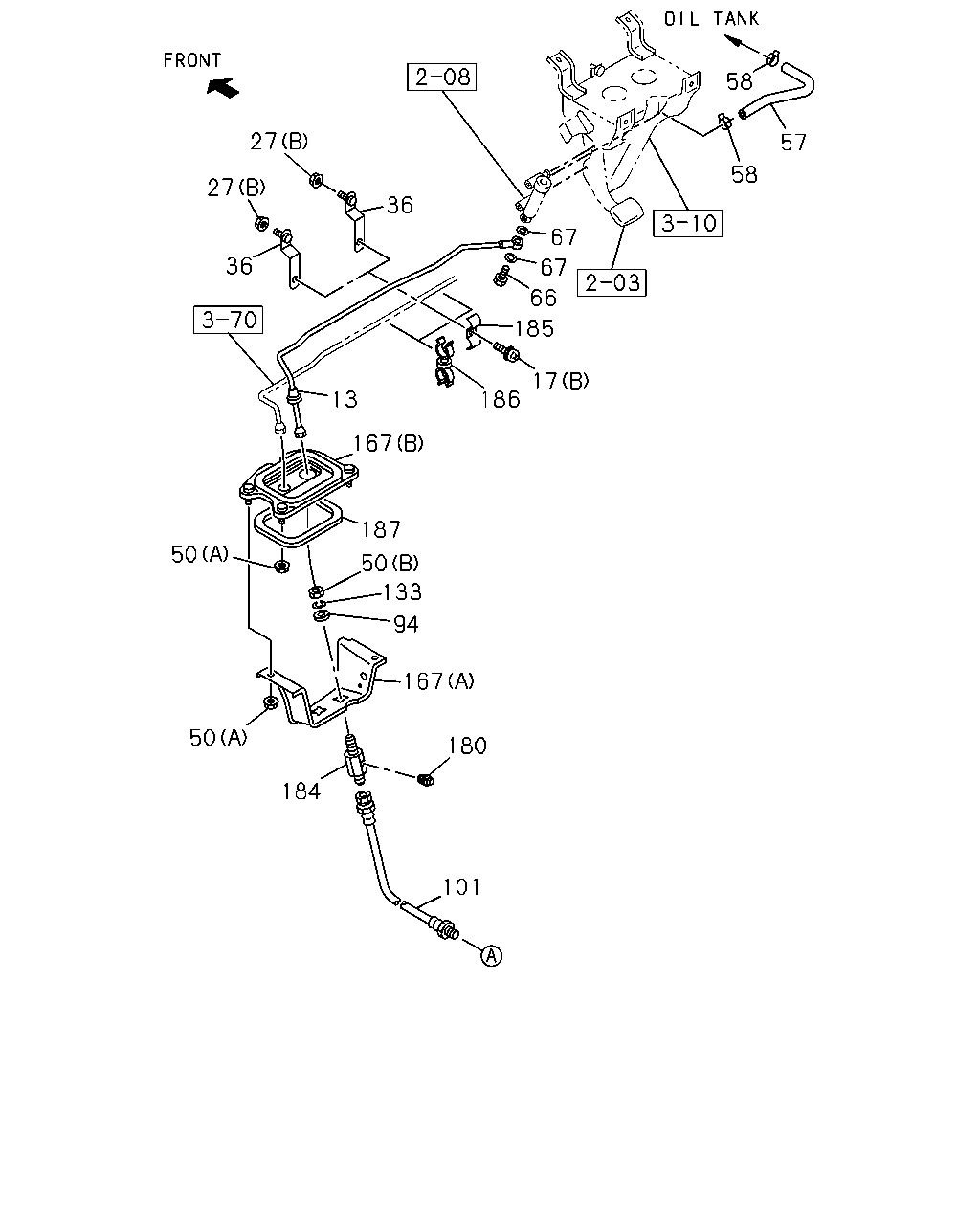

58 27 57 58 27 36 67 67 66 185 36 17 186 13 167 187 50 133 94 50 167 50 180 184 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL THA	8-97916-209-0	01	1	0101-
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	0101-
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER THA	8-94279-201-0	02	1	0101-
27	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	0101-
27	NUT; BRKT (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0101-
36	BRACKET; CLIP THA	1-79738-186-1	02	1	0101-
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0101-
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0101-
57	HOSE; CLU M/CYL TO OIL TANK THA	8-97916-100-0	01	1	0101-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0101-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0101-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0101-
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0101-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0101-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0101-
167	BRACKET; UNION (A) THA	1-79738-193-6	01	1	0101-
167	BRACKET; UNION (B)	1-79738-845-1	01	1	0101-
180	PLUG; PIPE	9-09204-510-0	01	1	0101-
184	UNION; FLEX HOSE	1-09656-679-0	01	1	0101-
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	0101-
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8 THA	8-94313-325-0	02	1	0101-
187	SEAL; BRKT	1-79738-190-0	01	1	0101-
