1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#7574) — 182 parça

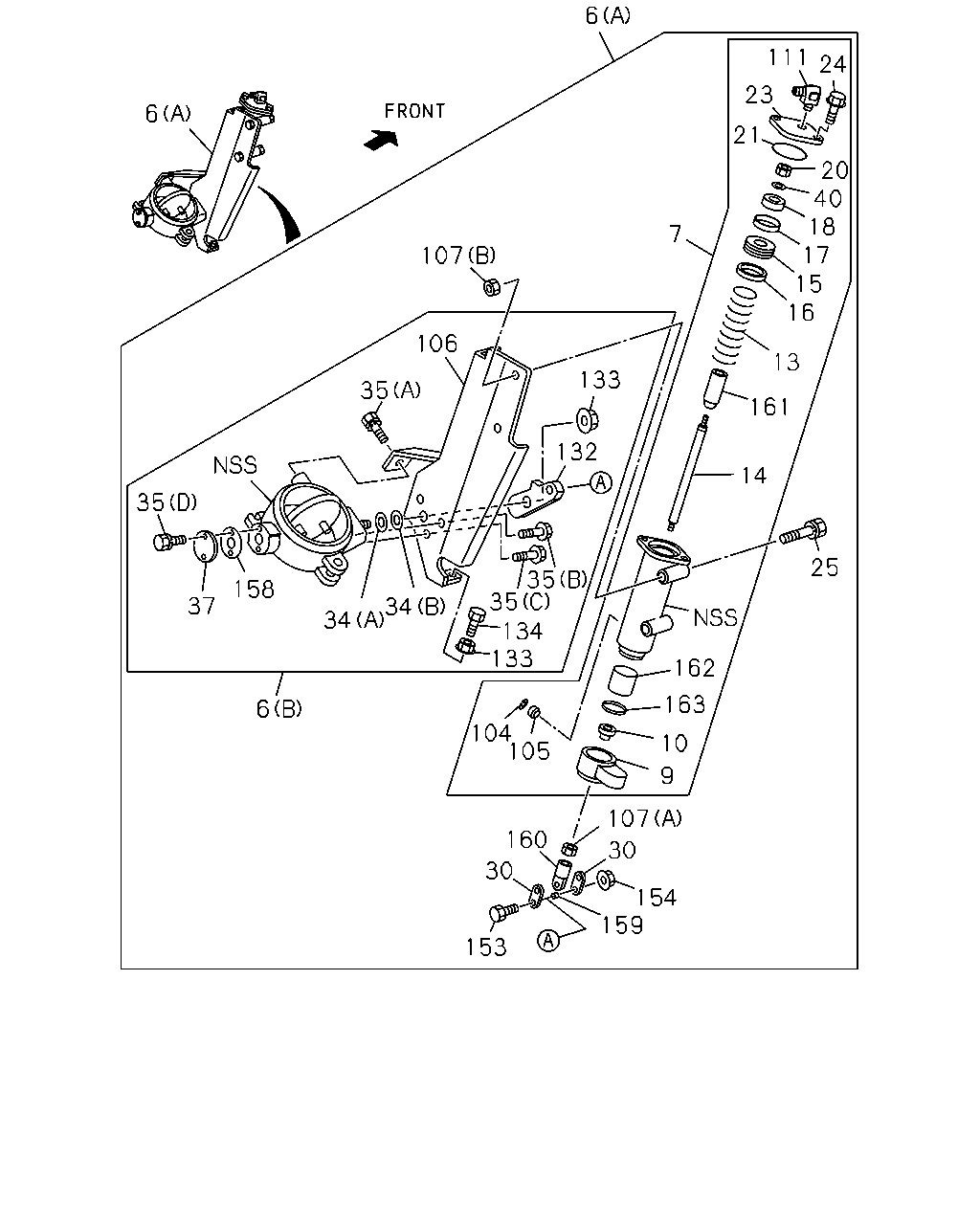

6 111 24 23 6 21 20 40 18 17 15 16 7 107 106 13 133 35 161 132 14 35 25 35 35 134 133 158 37 34 34 162 163 6 104 105 10 9 107 160 30 30 154 159 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	VALVE; EXH BRAKE (B)	1-22181-134-0	01	1	0101-0211	●
6	VALVE; EXH BRAKE (A)	8-94395-246-2	01	1	0101-0211	●
6	VALVE; EXH BRAKE (A)	8-97602-527-0	01	1	0212-	●
6	VALVE; EXH BRAKE (B)	1-22181-158-0	01	1	0101-0211		●
6	VALVE; EXH BRAKE (B)	8-97600-870-0	01	1	0212-		●
6	VALVE; EXH BRAKE (A)	8-94391-043-1	01	1	0101-0211		●
6	VALVE; EXH BRAKE (A)	8-97602-529-0	01	1	0212-		●
7	CYLINDER ASM; CONT	1-22190-632-0	01	1	0101-0211	●
7	CYLINDER ASM; CONT	1-22190-655-0	01	1	0101-0211		●
7	CYLINDER ASM; CONT	1-22190-656-0	01	1	0212-		●
9	COVER; CYL	1-22199-070-0	01	1	0101-0211	●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	0101-0211	●	●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	0212-		●
13	SPRING; CONT CYL	1-09580-517-0	01	1	0101-0211	●	●
13	SPRING; CONT CYL	1-09580-517-0	01	1	0212-		●
14	SHAFT; CONT CYL	1-22199-158-0	01	1	0101-0211	●
14	SHAFT; CONT CYL	1-22199-145-0	01	1	0101-		●
15	PLATE; CONT CYL	1-22199-156-0	01	1	0101-0211	●
15	PLATE; CONT CYL	8-97600-316-0	01	1	0101-		●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	0101-0211	●
16	RING; WEAR,CONT CYL	8-97600-317-0	01	1	0101-		●
17	GASKET; CONT CYL	1-22199-103-0	01	1	0101-0211	●
17	GASKET; CONT CYL	8-97600-318-0	01	1	0101-		●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	0101-0211	●
20	NUT; CONT CYL	9-83315-085-0	01	1	0101-0211	●
20	NUT; CONT CYL M8 FLANGE	0-91150-108-0	01	1	0101-		●
21	GASKET; COVER	1-22199-072-0	01	1	0101-0211	●	●
21	GASKET; COVER	1-22199-072-0	01	1	0212-		●
23	COVER; CONT CYL	1-22199-066-0	01	1	0101-0211	●
23	COVER; CONT CYL	8-97600-319-0	01	1	0101-		●
24	BOLT; COVER	1-22199-155-0	02	1	0101-0211	●
24	BOLT; COVER	1-22199-174-0	02	1	0101-		●
25	BOLT; CONT CYL M10X60 FLANGE	0-28081-060-0	02	1	0101-0211	●
25	BOLT; CONT CYL M10X60 FLANGE	1-22199-160-0	02	1	0101-		●
30	ROD; LINK,CONT CYL	1-22199-124-0	02	1	0101-0211	●
34	RING; SEAL (A) ID=15	8-94397-184-0	02	1	0101-0211	●	●
34	RING; SEAL (A) ID=15	8-94397-184-0	02	1	0212-		●
34	RING; SEAL (B) ID=13.7	9-22189-124-0	02	1	0101-0211	●	●
34	RING; SEAL (B) ID=13.7	9-22189-124-0	02	1	0212-		●
35	BOLT; PLATE FIX (A) M10X20	0-28021-020-0	01	1	0101-0211	●
35	BOLT; PLATE FIX (D) M8X16 W/LK WASHER	0-50040-816-0	02	1	0101-0211	●
35	BOLT; PLATE FIX (C)	1-22199-174-0	02	1	0101-0211	●
35	BOLT; PLATE FIX (B)	1-22199-188-0	01	1	0101-0211	●
35	BOLT; PLATE FIX	1-22199-174-0	05	1	0101-		●
37	COVER; BODY	1-22189-327-0	01	1	0101-0211	●
37	COVER; BODY (B)	1-22199-130-0	01	1	0101-		●
37	COVER; BODY (A)	9-22189-160-0	01	1	0101-		●
40	WASHER; LK,COVER ID=8.2	9-09150-508-0	01	1	0101-0211	●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW THA	1-09650-430-0	01	1	0212-	●	●
104	RING; RET	9-88510-331-0	01	1	0101-0211	●	●
104	RING; RET	9-88510-331-0	01	1	0212-		●
105	FILTER; CONT CYL	9-88510-330-0	01	1	0101-0211	●	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	0212-		●
106	BRACKET; CONT CYL	8-94395-578-0	01	1	0101-0211	●
106	BRACKET; CONT CYL	8-97600-313-0	01	1	0101-0211		●
106	BRACKET; CONT CYL	8-97600-869-0	01	1	0212-		●
107	NUT; CONT CYL (B) M10 FLANGE	0-91150-110-0	02	1	0101-0211	●
107	NUT; CONT CYL (A)	9-83315-085-0	01	1	0101-0211	●
107	NUT; CONT CYL M10 FLANGE	0-91150-110-0	01	1	0101-		●
111	ELBOW; CONT CYL	1-09650-358-1	01	1	0101-0211	●	●
132	LEVER; BRK VLV	1-22196-342-0	01	1	0101-0211	●
132	LEVER; BRK VLV	8-94397-185-0	01	1	0101-		●
133	NUT; LK M8 FLANGE	0-91150-108-0	03	1	0101-0211	●	●
133	NUT; LK M8 FLANGE	0-91150-108-0	03	1	0212-		●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	0101-0211	●	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	0212-		●
153	BOLT; CLEVIS,CONT CYL	1-33739-200-0	02	1	0101-0211	●
153	BOLT; CLEVIS,CONT CYL	8-97600-320-0	02	1	0101-		●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	0101-0211	●
154	NUT; CLEVIS,CONT CYL M6	9-09110-406-0	04	1	0101-		●
158	GASKET; COVER	1-22189-286-0	01	1	0101-0211	●
159	COLLAR; CONT CYL	1-22199-138-0	02	1	0101-0211	●
160	JOINT; CONT CYL	1-22199-137-0	01	1	0101-0211	●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	0101-0211	●	●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	0212-		●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	0101-0211	●	●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	0212-		●
163	WASHER; CONT CYL	1-22199-148-0	01	1	0101-0211	●	●
163	WASHER; CONT CYL	1-22199-148-0	01	1	0212-		●

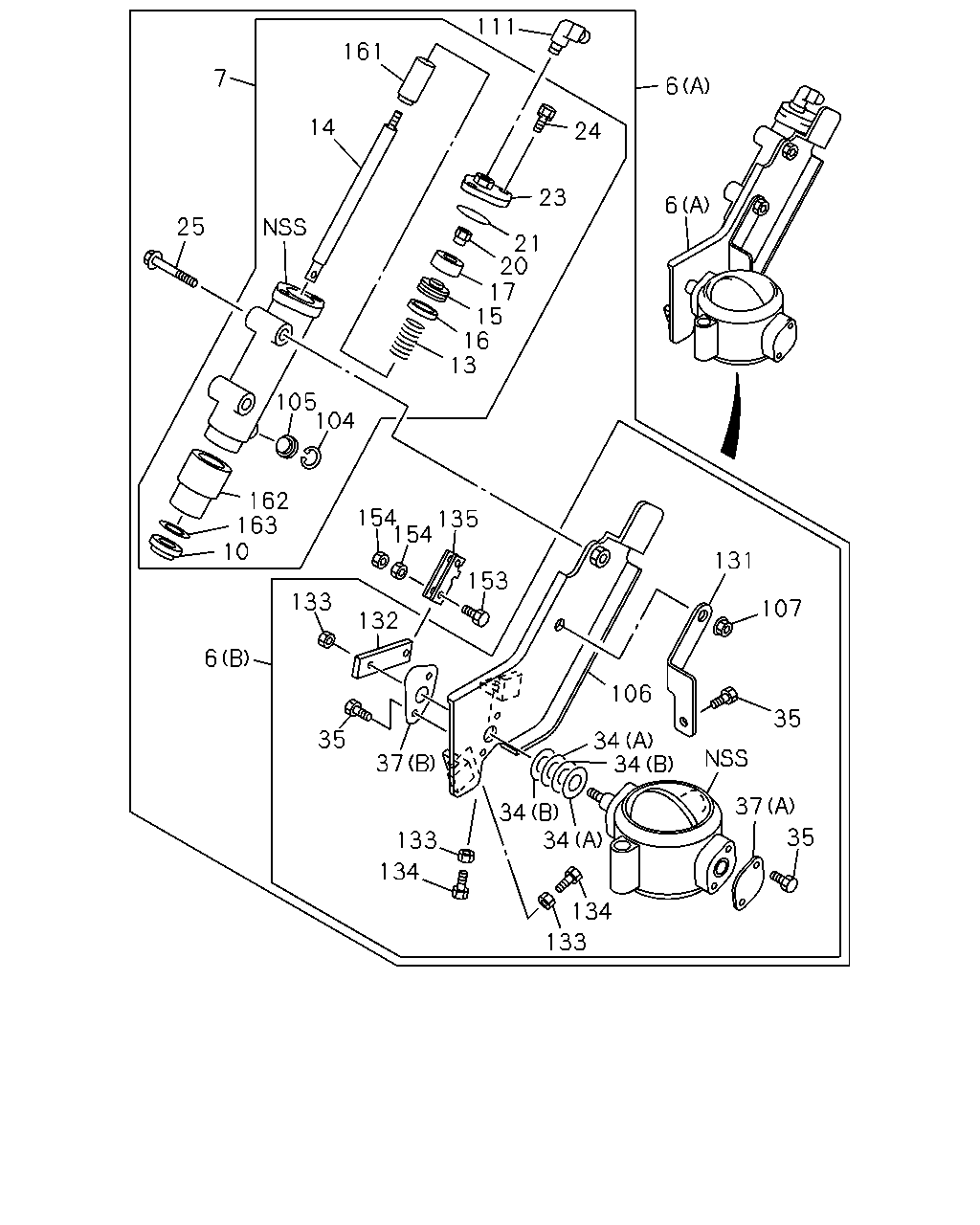

111 161 7 6 14 24 23 6 25 21 20 17 15 16 13 105 104 162 163 10 154 135 154 131 153 133 107 132 6 106 35 35 34 34 37 34 34 37 35 133 134 134 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	VALVE; EXH BRAKE (B)	1-22181-134-0	01	1	0101-0211	●
6	VALVE; EXH BRAKE (A)	8-94395-246-2	01	1	0101-0211	●
6	VALVE; EXH BRAKE (A)	8-97602-527-0	01	1	0212-	●
6	VALVE; EXH BRAKE (B)	1-22181-158-0	01	1	0101-0211		●
6	VALVE; EXH BRAKE (B)	8-97600-870-0	01	1	0212-		●
6	VALVE; EXH BRAKE (A)	8-94391-043-1	01	1	0101-0211		●
6	VALVE; EXH BRAKE (A)	8-97602-529-0	01	1	0212-		●
7	CYLINDER ASM; CONT	1-22190-632-0	01	1	0101-0211	●
7	CYLINDER ASM; CONT	1-22190-655-0	01	1	0101-0211		●
7	CYLINDER ASM; CONT	1-22190-656-0	01	1	0212-		●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	0101-0211	●	●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	0212-		●
13	SPRING; CONT CYL	1-09580-517-0	01	1	0101-0211	●	●
13	SPRING; CONT CYL	1-09580-517-0	01	1	0212-		●
14	SHAFT; CONT CYL	1-22199-158-0	01	1	0101-0211	●
14	SHAFT; CONT CYL	1-22199-145-0	01	1	0101-		●
15	PLATE; CONT CYL	1-22199-156-0	01	1	0101-0211	●
15	PLATE; CONT CYL	8-97600-316-0	01	1	0101-		●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	0101-0211	●
16	RING; WEAR,CONT CYL	8-97600-317-0	01	1	0101-		●
17	GASKET; CONT CYL	1-22199-103-0	01	1	0101-0211	●
17	GASKET; CONT CYL	8-97600-318-0	01	1	0101-		●
20	NUT; CONT CYL	9-83315-085-0	01	1	0101-0211	●
20	NUT; CONT CYL M8 FLANGE	0-91150-108-0	01	1	0101-		●
21	GASKET; COVER	1-22199-072-0	01	1	0101-0211	●	●
21	GASKET; COVER	1-22199-072-0	01	1	0212-		●
23	COVER; CONT CYL	1-22199-066-0	01	1	0101-0211	●
23	COVER; CONT CYL	8-97600-319-0	01	1	0101-		●
24	BOLT; COVER	1-22199-155-0	02	1	0101-0211	●
24	BOLT; COVER	1-22199-174-0	02	1	0101-		●
25	BOLT; CONT CYL M10X60 FLANGE	0-28081-060-0	02	1	0101-0211	●
25	BOLT; CONT CYL M10X60 FLANGE	1-22199-160-0	02	1	0101-		●
34	RING; SEAL (A) ID=15	8-94397-184-0	02	1	0101-0211	●	●
34	RING; SEAL (A) ID=15	8-94397-184-0	02	1	0212-		●
34	RING; SEAL (B) ID=13.7	9-22189-124-0	02	1	0101-0211	●	●
34	RING; SEAL (B) ID=13.7	9-22189-124-0	02	1	0212-		●
35	BOLT; PLATE FIX (A) M10X20	0-28021-020-0	01	1	0101-0211	●
35	BOLT; PLATE FIX (D) M8X16 W/LK WASHER	0-50040-816-0	02	1	0101-0211	●
35	BOLT; PLATE FIX (C)	1-22199-174-0	02	1	0101-0211	●
35	BOLT; PLATE FIX (B)	1-22199-188-0	01	1	0101-0211	●
35	BOLT; PLATE FIX	1-22199-174-0	05	1	0101-		●
37	COVER; BODY	1-22189-327-0	01	1	0101-0211	●
37	COVER; BODY (B)	1-22199-130-0	01	1	0101-		●
37	COVER; BODY (A)	9-22189-160-0	01	1	0101-		●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW THA	1-09650-430-0	01	1	0212-	●	●
104	RING; RET	9-88510-331-0	01	1	0101-0211	●	●
104	RING; RET	9-88510-331-0	01	1	0212-		●
105	FILTER; CONT CYL	9-88510-330-0	01	1	0101-0211	●	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	0212-		●
106	BRACKET; CONT CYL	8-94395-578-0	01	1	0101-0211	●
106	BRACKET; CONT CYL	8-97600-313-0	01	1	0101-0211		●
106	BRACKET; CONT CYL	8-97600-869-0	01	1	0212-		●
107	NUT; CONT CYL (B) M10 FLANGE	0-91150-110-0	02	1	0101-0211	●
107	NUT; CONT CYL (A)	9-83315-085-0	01	1	0101-0211	●
107	NUT; CONT CYL M10 FLANGE	0-91150-110-0	01	1	0101-		●
111	ELBOW; CONT CYL	1-09650-358-1	01	1	0101-0211	●	●
131	PLATE; BODY	8-94391-039-0	01	1	0101-		●
132	LEVER; BRK VLV	1-22196-342-0	01	1	0101-0211	●
132	LEVER; BRK VLV	8-94397-185-0	01	1	0101-		●
133	NUT; LK M8 FLANGE	0-91150-108-0	03	1	0101-0211	●	●
133	NUT; LK M8 FLANGE	0-91150-108-0	03	1	0212-		●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	0101-0211	●	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	0212-		●
135	CLEVIS; CONT CYL	1-22199-053-0	01	1	0101-		●
153	BOLT; CLEVIS,CONT CYL	1-33739-200-0	02	1	0101-0211	●
153	BOLT; CLEVIS,CONT CYL	8-97600-320-0	02	1	0101-		●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	0101-0211	●
154	NUT; CLEVIS,CONT CYL M6	9-09110-406-0	04	1	0101-		●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	0101-0211	●	●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	0212-		●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	0101-0211	●	●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	0212-		●
163	WASHER; CONT CYL	1-22199-148-0	01	1	0101-0211	●	●
163	WASHER; CONT CYL	1-22199-148-0	01	1	0212-		●

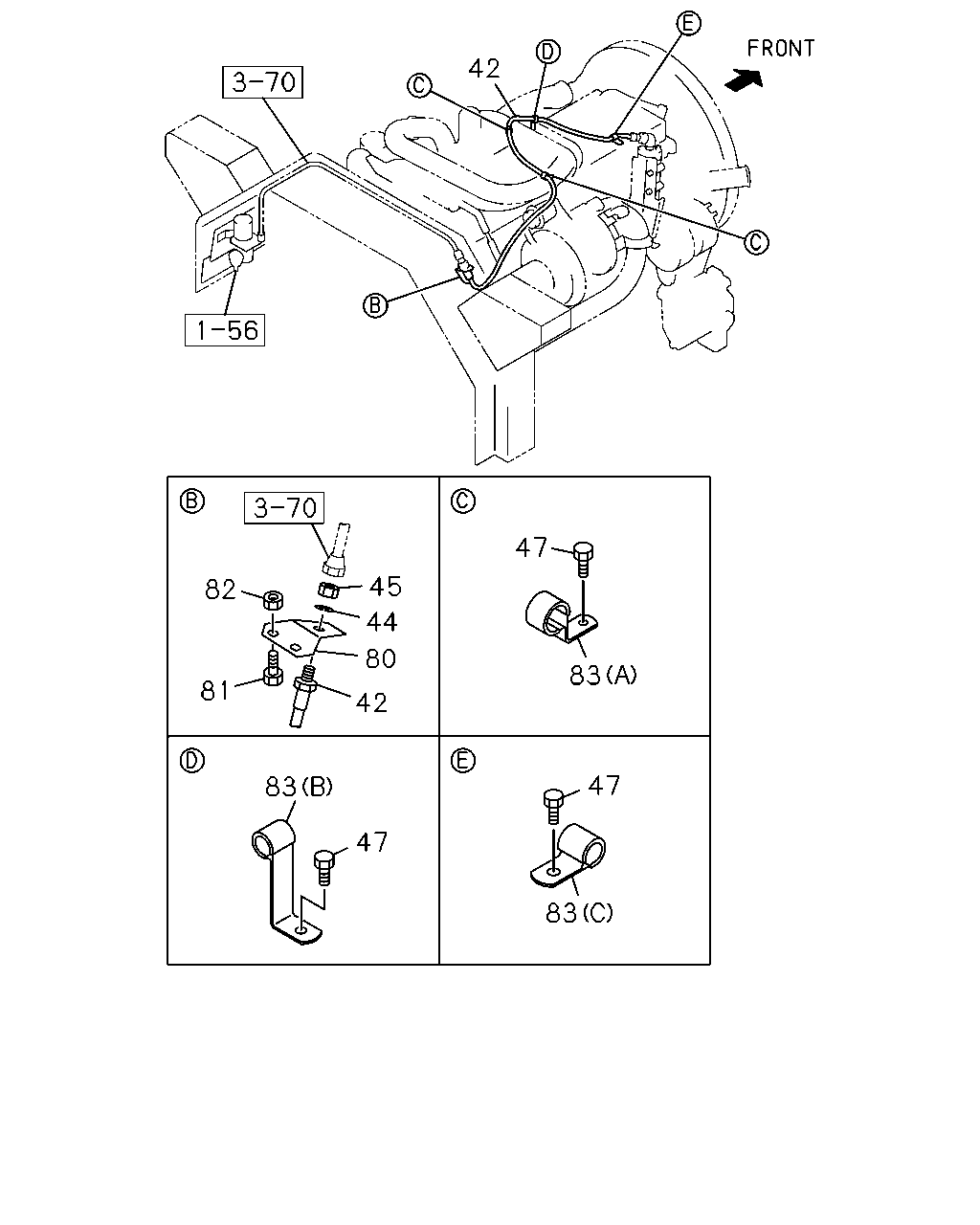

42 47 45 44 80 82 83 81 42 47 83 47 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	HOSE; FLEX,EXH BRK L=1030	1-09363-568-1	01	1	0101-	●
42	HOSE; FLEX,EXH BRK L=400	1-09363-606-0	01	1	0101-		●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0101-	●	●
45	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0101-	●	●
47	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0101-	●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW THA	1-09650-430-0	01	1	0212-	●	●
80	BRACKET; FLEX HOSE	1-47476-880-1	01	1	0101-	●
80	BRACKET; FLEX HOSE THA	1-47476-355-0	01	1	0101-		●
81	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	02	1	0101-	●	●
82	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	0101-	●	●
83	CLIP; FLEX HOSE (A) ID=11 H=20 L=25	1-09700-848-0	02	1	0101-	●
83	CLIP; FLEX HOSE (B) ID=11 H=34 L=27	1-09701-023-0	01	1	0101-	●
83	CLIP; FLEX HOSE (C) ID=13 L=32	9-09525-265-0	01	1	0101-	●

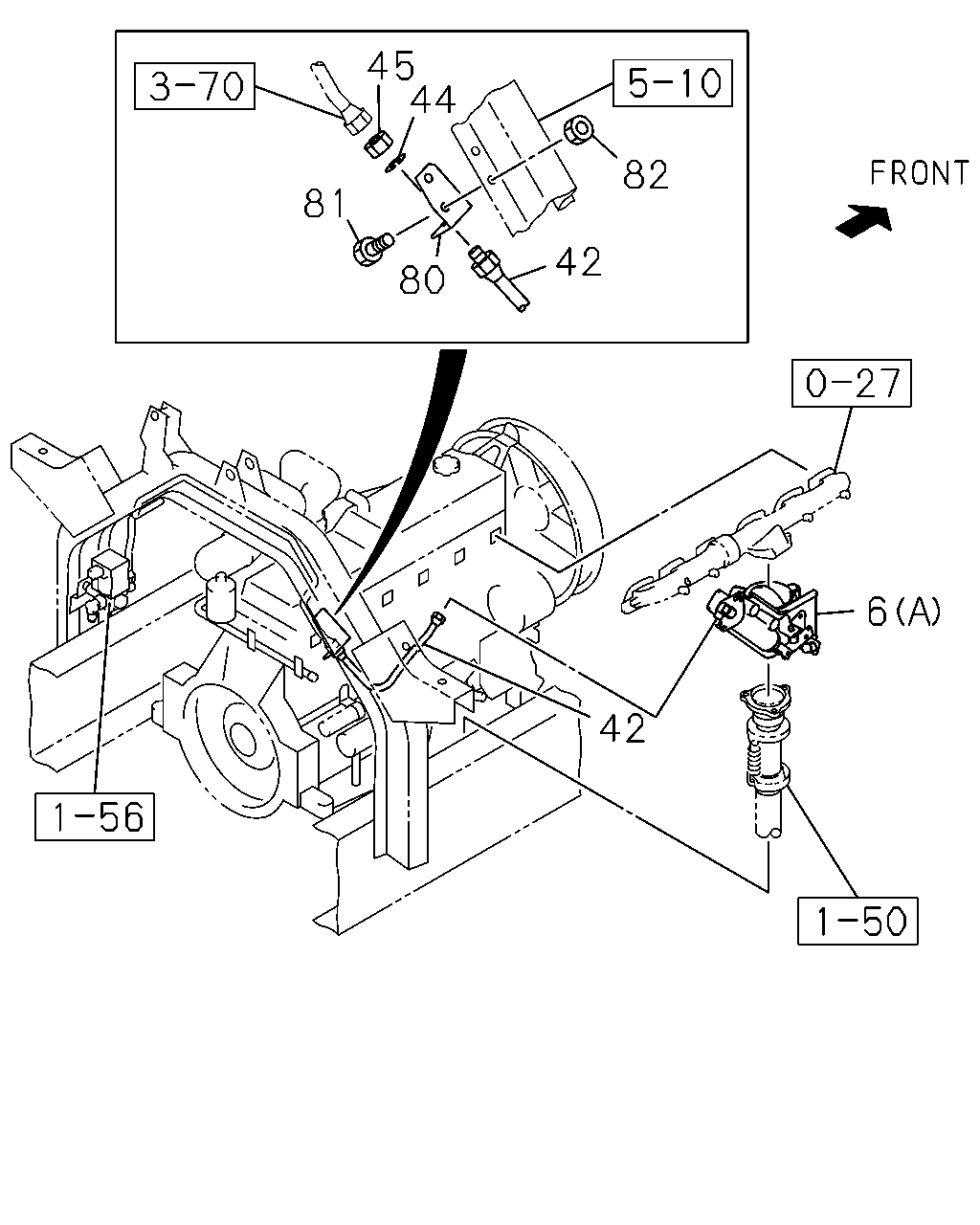

45 44 82 80 81 42 6 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	VALVE; EXH BRAKE (B)	1-22181-134-0	01	1	0101-0211	●
6	VALVE; EXH BRAKE (A)	8-94395-246-2	01	1	0101-0211	●
6	VALVE; EXH BRAKE (A)	8-97602-527-0	01	1	0212-	●
6	VALVE; EXH BRAKE (B)	1-22181-158-0	01	1	0101-0211		●
6	VALVE; EXH BRAKE (B)	8-97600-870-0	01	1	0212-		●
6	VALVE; EXH BRAKE (A)	8-94391-043-1	01	1	0101-0211		●
6	VALVE; EXH BRAKE (A)	8-97602-529-0	01	1	0212-		●
42	HOSE; FLEX,EXH BRK L=1030	1-09363-568-1	01	1	0101-	●
42	HOSE; FLEX,EXH BRK L=400	1-09363-606-0	01	1	0101-		●
44	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0101-	●	●
45	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0101-	●	●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW THA	1-09650-430-0	01	1	0212-	●	●
80	BRACKET; FLEX HOSE	1-47476-880-1	01	1	0101-	●
80	BRACKET; FLEX HOSE THA	1-47476-355-0	01	1	0101-		●
81	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	02	1	0101-	●	●
82	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	02	1	0101-	●	●
