1-50 — EXHAUST PIPE AND SILENCER (#7573) — 201 parça

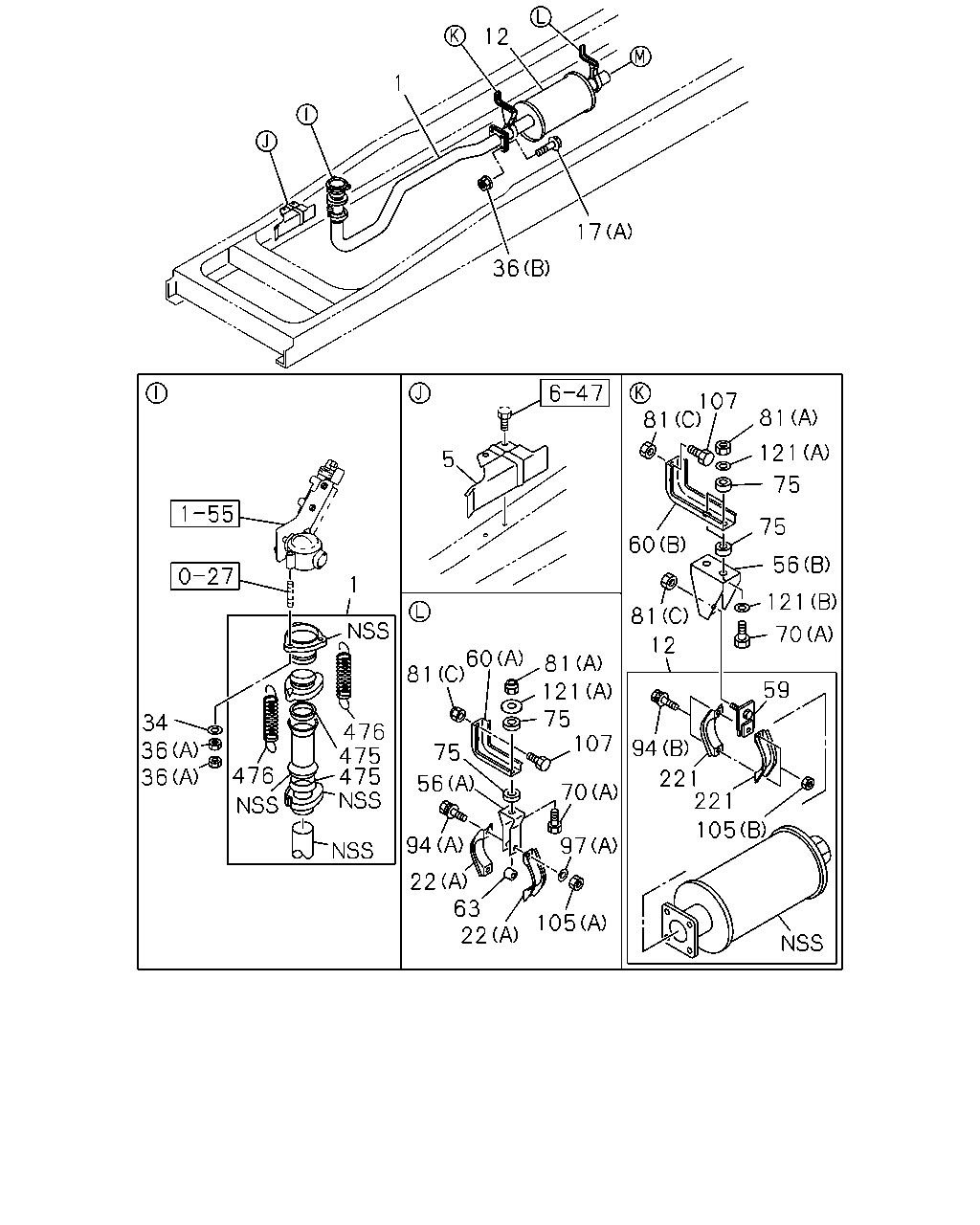

çizim 6035
12 1 17 36 107 81 81 121 5 75 75 60 56 1 121 81 70 12 60 81 81 121 75 107 59 34 36 36 476 475 475 94 75 476 221 221 56 70 105 94 97 22 63 22 105
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
THA 		8-97915-014-1 01 1 0101- ●
1 PIPE; EXH
THA 		8-97917-921-1 01 1 0101- ●
5 PROTECTOR; HEAT 1-33659-215-0 01 1 0101- ●
5 PROTECTOR; HEAT
THA 		1-33659-182-1 01 1 0101- ●
12 SILENCER ASM; EXH
THA 		8-97917-927-1 01 1 0101- ●
12 SILENCER ASM; EXH
THA 		8-97917-926-1 01 1 0101- ●
17 BOLT; EXH PIPE
(B) M12X110 		1-09000-290-0 01 1 0101-0401 ●
17 BOLT; EXH PIPE
M12X120 		1-09000-293-0 01 1 0402- ●
17 BOLT; EXH PIPE
(A) M12X25 FLANGE 		1-09000-604-0 04 1 0101- ● ●
22 CLAMP; EXH PIPE
(B) THA 		8-97917-678-1 01 1 0101- ●
22 CLAMP; EXH PIPE
(A) THA 		8-97917-746-1 04 1 0101- ●
22 CLAMP; EXH PIPE
(B) THA 		8-97915-961-1 01 1 0101- ●
22 CLAMP; EXH PIPE
(A) ID=80-84 THA 		8-97915-977-1 04 1 0101- ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 0101-0410 ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0411- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0101- ●
36 NUT; EXH PIPE
(B) M12 		9-99110-512-0 04 1 0101- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 06 1 0101- ●
56 BRACKET; CLAMP,EXH PIPE
(A) THA 		8-97915-974-0 04 1 0101-0101 ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) THA 		8-97915-974-0 03 1 0102- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) THA 		8-97917-725-1 02 1 0101- ● ●
59 BRACKET; EXH SILENCER,FRT
THA 		8-97917-954-1 01 1 0101- ● ●
60 BRACKET; FRAME TO BRKT
(A) THA 		8-97915-973-1 02 1 0101- ● ●
60 BRACKET; FRAME TO BRKT
(B) THA 		8-97917-724-2 01 1 0101- ● ●
63 TUBE; DIST,BRKT
THA 		8-97915-989-0 02 1 0101- ● ●
70 BOLT; BRKT
(A) M10X50 		0-10806-050-0 02 1 0101- ● ●
70 BOLT; BRKT
(A) M10X50 		0-10806-050-0 02 1 0101- ● ●
70 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 02 1 0101- ● ●
70 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 04 1 0101- ●
75 RUBBER; SUPPORT,BRKT
THA 		8-97916-904-0 04 1 0101- ● ●
75 RUBBER; SUPPORT,BRKT
THA 		8-97916-904-0 04 1 0101- ● ●
81 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 0101- ● ●
81 NUT; BRKT
(C) M10 FLANGE 		0-91150-210-0 01 1 0101- ● ●
81 NUT; BRKT
(C) M10 FLANGE 		0-91150-210-0 04 1 0101- ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 02 1 0101- ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 02 1 0101- ● ●
81 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 04 1 0101- ●
94 BOLT; CLAMP
(B) M10X40 FLANGE 		0-28081-040-0 02 1 0101- ● ●
94 BOLT; CLAMP
(A) M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0101-0101 ● ●
94 BOLT; CLAMP
(A) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0102- ● ●
94 BOLT; CLAMP
(A) THA 		8-97916-896-0 02 1 0101- ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 OD=18 		9-09160-510-0 02 1 0101- ● ●
97 WASHER; PL,CLAMP
(B) ID=10.5 OD=26 		9-09160-710-0 01 1 0101- ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 04 1 0101-0101 ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 0102- ● ●
105 NUT; CLAMP
(B) M10 FLANGE 		0-91150-210-0 01 1 0101- ● ●
105 NUT; CLAMP
(B) M10 FLANGE 		0-91150-210-0 02 1 0101- ● ●
105 NUT; CLAMP
(A) THA 		8-97916-605-0 02 1 0101- ● ●
105 NUT; CLAMP
(A) M10 		9-09110-510-0 04 1 0101-0101 ● ●
105 NUT; CLAMP
(A) M10 		9-09110-510-0 02 1 0102- ● ●
107 BOLT; BRKT
M10X40 FLANGE 		0-28681-040-0 04 1 0101- ● ●
121 WASHER; PL,BRKT
(B) ID=10.5 OD=18 		9-09160-510-0 02 1 0101- ● ●
121 WASHER; PL,BRKT
(A) ID=10.5 OD=32 		9-09164-810-0 02 1 0101- ● ●
121 WASHER; PL,BRKT
(A) ID=10.5 OD=32 		9-09164-810-0 02 1 0101- ● ●
221 CLAMP; EXH SILENCER
ID=80-84 THA 		8-97915-977-1 02 1 0101- ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE
OD=100.4 THA 		1-22119-374-0 02 1 0101- ●
476 SPRING; VIBNON,EXH PIPE
THA 		1-09583-298-0 02 1 0101- ●

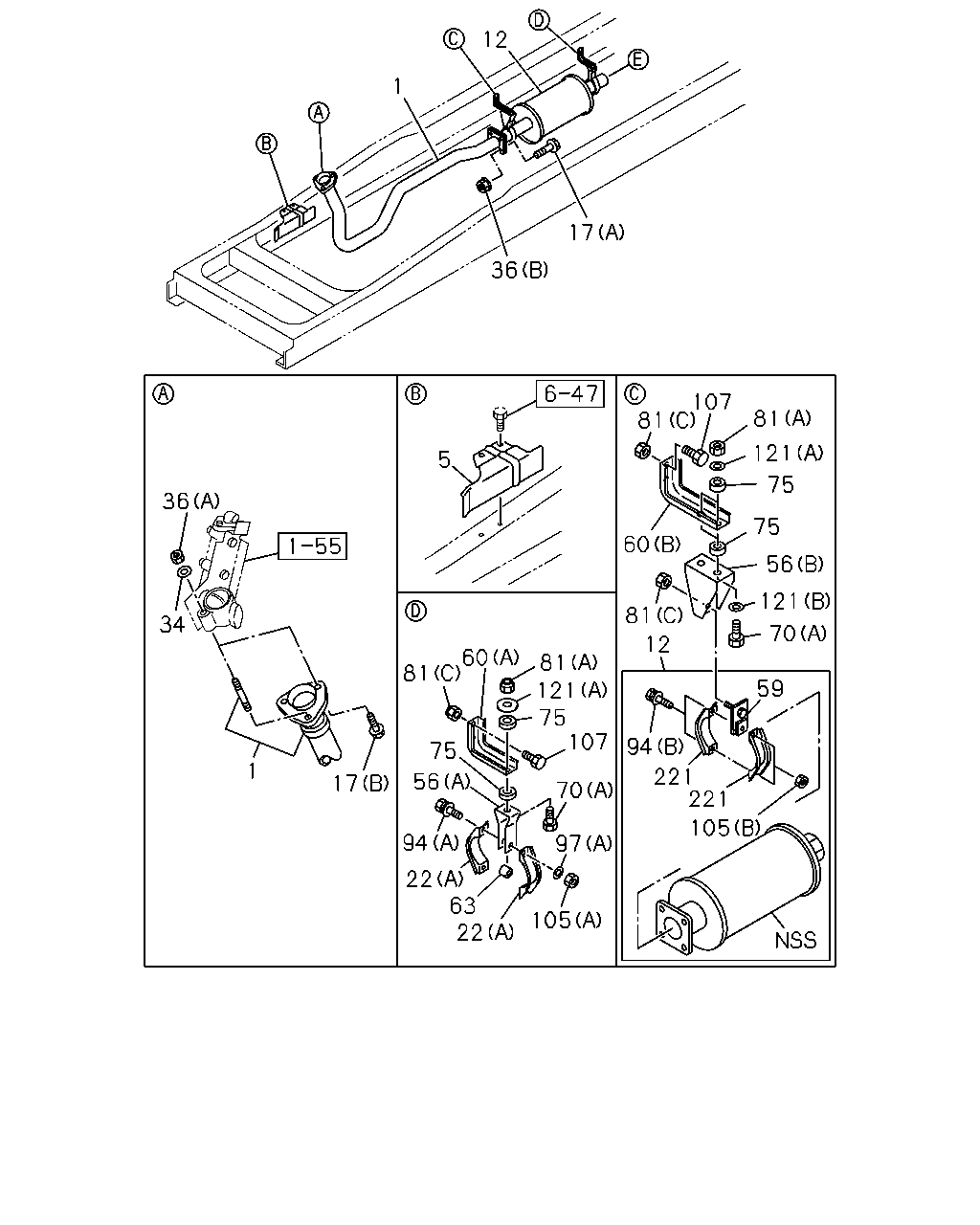

çizim 7598
12 1 17 36 107 81 81 60 121 75 5 36 75 34 56 81 12 121 70 60 81 81 121 75 107 59 94 221 221 105 75 56 1 17 70 94 97 22 63 22 105
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
THA 		8-97915-014-1 01 1 0101- ●
1 PIPE; EXH
THA 		8-97917-921-1 01 1 0101- ●
5 PROTECTOR; HEAT 1-33659-215-0 01 1 0101- ●
5 PROTECTOR; HEAT
THA 		1-33659-182-1 01 1 0101- ●
12 SILENCER ASM; EXH
THA 		8-97917-927-1 01 1 0101- ●
12 SILENCER ASM; EXH
THA 		8-97917-926-1 01 1 0101- ●
17 BOLT; EXH PIPE
(B) M12X110 		1-09000-290-0 01 1 0101-0401 ●
17 BOLT; EXH PIPE
M12X120 		1-09000-293-0 01 1 0402- ●
17 BOLT; EXH PIPE
(A) M12X25 FLANGE 		1-09000-604-0 04 1 0101- ● ●
22 CLAMP; EXH PIPE
(B) THA 		8-97917-678-1 01 1 0101- ●
22 CLAMP; EXH PIPE
(A) THA 		8-97917-746-1 04 1 0101- ●
22 CLAMP; EXH PIPE
(B) THA 		8-97915-961-1 01 1 0101- ●
22 CLAMP; EXH PIPE
(A) ID=80-84 THA 		8-97915-977-1 04 1 0101- ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 0101-0410 ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0411- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0101- ●
36 NUT; EXH PIPE
(B) M12 		9-99110-512-0 04 1 0101- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 06 1 0101- ●
56 BRACKET; CLAMP,EXH PIPE
(A) THA 		8-97915-974-0 04 1 0101-0101 ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) THA 		8-97915-974-0 03 1 0102- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) THA 		8-97917-725-1 02 1 0101- ● ●
59 BRACKET; EXH SILENCER,FRT
THA 		8-97917-954-1 01 1 0101- ● ●
60 BRACKET; FRAME TO BRKT
(A) THA 		8-97915-973-1 02 1 0101- ● ●
60 BRACKET; FRAME TO BRKT
(B) THA 		8-97917-724-2 01 1 0101- ● ●
63 TUBE; DIST,BRKT
THA 		8-97915-989-0 02 1 0101- ● ●
70 BOLT; BRKT
(A) M10X50 		0-10806-050-0 02 1 0101- ● ●
70 BOLT; BRKT
(A) M10X50 		0-10806-050-0 02 1 0101- ● ●
70 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 02 1 0101- ● ●
70 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 04 1 0101- ●
75 RUBBER; SUPPORT,BRKT
THA 		8-97916-904-0 04 1 0101- ● ●
75 RUBBER; SUPPORT,BRKT
THA 		8-97916-904-0 04 1 0101- ● ●
81 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 0101- ● ●
81 NUT; BRKT
(C) M10 FLANGE 		0-91150-210-0 01 1 0101- ● ●
81 NUT; BRKT
(C) M10 FLANGE 		0-91150-210-0 04 1 0101- ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 02 1 0101- ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 02 1 0101- ● ●
81 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 04 1 0101- ●
94 BOLT; CLAMP
(B) M10X40 FLANGE 		0-28081-040-0 02 1 0101- ● ●
94 BOLT; CLAMP
(A) M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0101-0101 ● ●
94 BOLT; CLAMP
(A) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0102- ● ●
94 BOLT; CLAMP
(A) THA 		8-97916-896-0 02 1 0101- ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 OD=18 		9-09160-510-0 02 1 0101- ● ●
97 WASHER; PL,CLAMP
(B) ID=10.5 OD=26 		9-09160-710-0 01 1 0101- ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 04 1 0101-0101 ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 0102- ● ●
105 NUT; CLAMP
(B) M10 FLANGE 		0-91150-210-0 01 1 0101- ● ●
105 NUT; CLAMP
(B) M10 FLANGE 		0-91150-210-0 02 1 0101- ● ●
105 NUT; CLAMP
(A) THA 		8-97916-605-0 02 1 0101- ● ●
105 NUT; CLAMP
(A) M10 		9-09110-510-0 04 1 0101-0101 ● ●
105 NUT; CLAMP
(A) M10 		9-09110-510-0 02 1 0102- ● ●
107 BOLT; BRKT
M10X40 FLANGE 		0-28681-040-0 04 1 0101- ● ●
121 WASHER; PL,BRKT
(B) ID=10.5 OD=18 		9-09160-510-0 02 1 0101- ● ●
121 WASHER; PL,BRKT
(A) ID=10.5 OD=32 		9-09164-810-0 02 1 0101- ● ●
121 WASHER; PL,BRKT
(A) ID=10.5 OD=32 		9-09164-810-0 02 1 0101- ● ●
221 CLAMP; EXH SILENCER
ID=80-84 THA 		8-97915-977-1 02 1 0101- ● ●

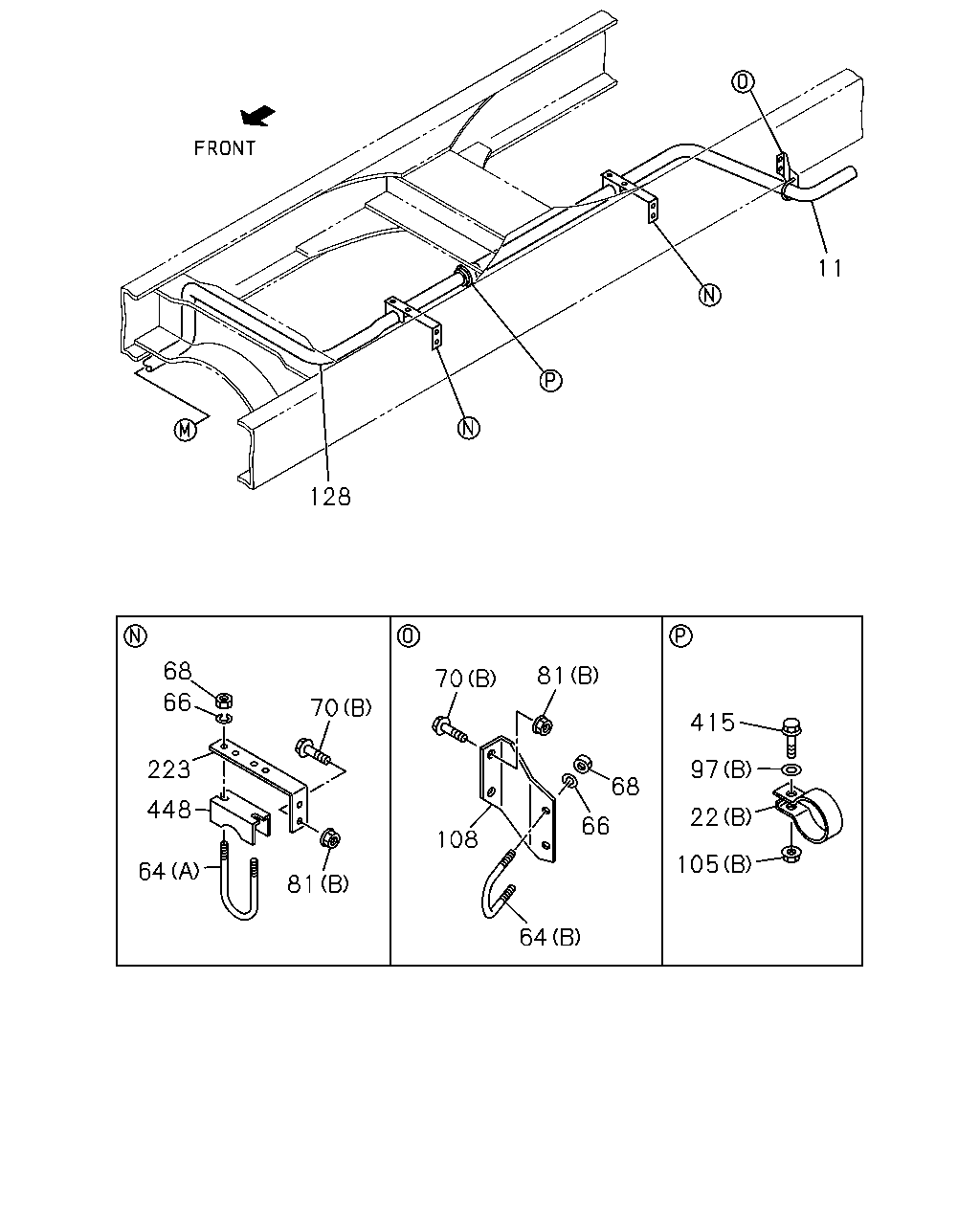

çizim 41182
11 128 68 66 81 70 70 415 223 97 68 448 22 66 108 105 64 81 64
BalonParca AdiParca NoAdetTipApplied Date A B
11 PIPE; EXH,RR
THA 		8-97915-039-1 01 1 0101- ●
11 PIPE; EXH,RR
THA 		8-97917-673-0 01 1 0101- ●
22 CLAMP; EXH PIPE
(B) THA 		8-97917-678-1 01 1 0101- ●
22 CLAMP; EXH PIPE
(A) THA 		8-97917-746-1 04 1 0101- ●
22 CLAMP; EXH PIPE
(B) THA 		8-97915-961-1 01 1 0101- ●
22 CLAMP; EXH PIPE
(A) ID=80-84 THA 		8-97915-977-1 04 1 0101- ●
64 U-BOLT; EXH PIPE,RR
(A) THA 		8-97917-676-0 02 1 0101- ●
64 U-BOLT; EXH PIPE,RR
(B) THA 		8-97917-749-0 01 1 0101- ●
64 U-BOLT; EXH PIPE,RR
(B) THA 		8-97915-979-0 01 1 0101- ●
64 U-BOLT; EXH PIPE,RR
(A) THA 		8-97915-981-0 02 1 0101- ●
66 WASHER; LK,U BOLT
ID=8.2 		9-09150-508-0 02 1 0101- ●
66 WASHER; LK,U BOLT
ID=8.2 		9-09150-508-0 06 1 0101- ●
68 NUT; U BOLT
M8 FLANGE 		0-91150-108-0 04 1 0101- ●
68 NUT; U BOLT
M8 		9-09110-408-0 02 1 0101- ●
68 NUT; U BOLT
M8 		9-09110-408-0 06 1 0101- ●
70 BOLT; BRKT
(A) M10X50 		0-10806-050-0 02 1 0101- ● ●
70 BOLT; BRKT
(A) M10X50 		0-10806-050-0 02 1 0101- ● ●
70 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 02 1 0101- ● ●
70 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 04 1 0101- ●
81 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 0101- ● ●
81 NUT; BRKT
(C) M10 FLANGE 		0-91150-210-0 01 1 0101- ● ●
81 NUT; BRKT
(C) M10 FLANGE 		0-91150-210-0 04 1 0101- ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 02 1 0101- ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 02 1 0101- ● ●
81 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 04 1 0101- ●
97 WASHER; PL,CLAMP
(A) ID=10.5 OD=18 		9-09160-510-0 02 1 0101- ● ●
97 WASHER; PL,CLAMP
(B) ID=10.5 OD=26 		9-09160-710-0 01 1 0101- ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 04 1 0101-0101 ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 0102- ● ●
105 NUT; CLAMP
(B) M10 FLANGE 		0-91150-210-0 01 1 0101- ● ●
105 NUT; CLAMP
(B) M10 FLANGE 		0-91150-210-0 02 1 0101- ● ●
105 NUT; CLAMP
(A) THA 		8-97916-605-0 02 1 0101- ● ●
105 NUT; CLAMP
(A) M10 		9-09110-510-0 04 1 0101-0101 ● ●
105 NUT; CLAMP
(A) M10 		9-09110-510-0 02 1 0102- ● ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
THA 		8-97917-748-0 01 1 0101- ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
THA 		8-97916-505-0 01 1 0101- ●
128 PIPE; EXH,RR
WHEEL BASE 5400MM<54W> THA 		8-97921-518-0 01 1 0101- ●
128 PIPE; EXH,RR
WHEEL BASE 6300MM<63W> THA 		8-97915-022-1 01 1 0101- ●
128 PIPE; EXH,RR
WHEEL BASE 5200MM<52W> THA 		8-97917-670-0 01 1 0101- ● ●
128 PIPE; EXH,RR
WHEEL BASE 5800MM<58W> THA 		8-97917-671-0 01 1 0101- ● ●
128 PIPE; EXH,RR
WHEEL BASE 5400MM<54W> THA 		8-97915-020-0 01 1 0101- ●
128 PIPE; EXH,RR
WHEEL BASE 6300MM<63W> THA 		8-97917-672-0 01 1 0101- ●
223 BRACKET; EXH PIPE
THA 		8-97915-971-1 02 1 0101- ●
415 BOLT; CLAMP
M10X35 FLANGE 		0-28681-035-0 01 1 0101- ● ●
448 PIECE; DIST,U-BOLT
THA 		8-97917-747-1 02 1 0101- ●

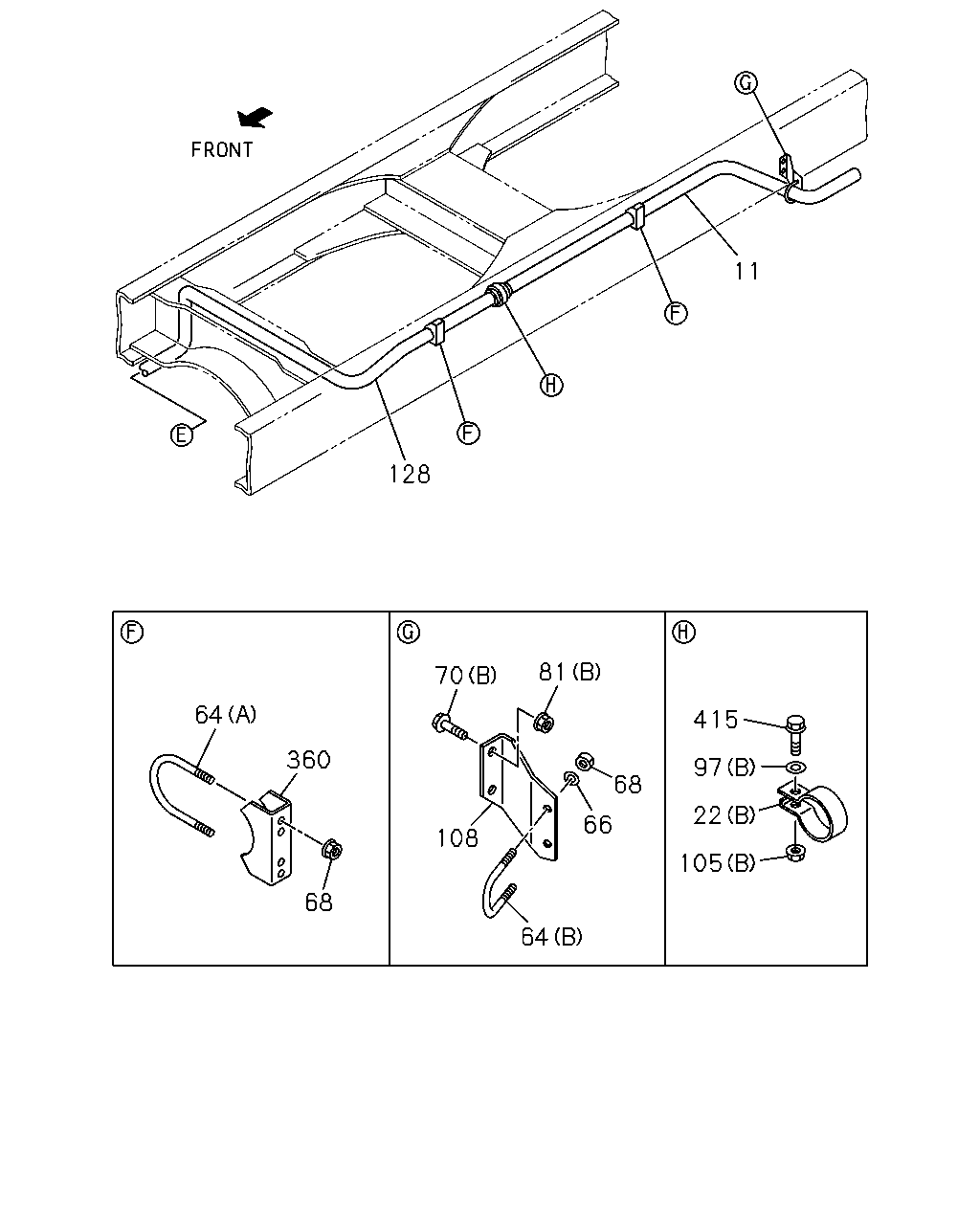

çizim 44290
11 128 81 70 64 415 360 97 68 22 66 108 105 68 64
BalonParca AdiParca NoAdetTipApplied Date A B
11 PIPE; EXH,RR
THA 		8-97915-039-1 01 1 0101- ●
11 PIPE; EXH,RR
THA 		8-97917-673-0 01 1 0101- ●
22 CLAMP; EXH PIPE
(B) THA 		8-97917-678-1 01 1 0101- ●
22 CLAMP; EXH PIPE
(A) THA 		8-97917-746-1 04 1 0101- ●
22 CLAMP; EXH PIPE
(B) THA 		8-97915-961-1 01 1 0101- ●
22 CLAMP; EXH PIPE
(A) ID=80-84 THA 		8-97915-977-1 04 1 0101- ●
64 U-BOLT; EXH PIPE,RR
(A) THA 		8-97917-676-0 02 1 0101- ●
64 U-BOLT; EXH PIPE,RR
(B) THA 		8-97917-749-0 01 1 0101- ●
64 U-BOLT; EXH PIPE,RR
(B) THA 		8-97915-979-0 01 1 0101- ●
64 U-BOLT; EXH PIPE,RR
(A) THA 		8-97915-981-0 02 1 0101- ●
66 WASHER; LK,U BOLT
ID=8.2 		9-09150-508-0 02 1 0101- ●
66 WASHER; LK,U BOLT
ID=8.2 		9-09150-508-0 06 1 0101- ●
68 NUT; U BOLT
M8 FLANGE 		0-91150-108-0 04 1 0101- ●
68 NUT; U BOLT
M8 		9-09110-408-0 02 1 0101- ●
68 NUT; U BOLT
M8 		9-09110-408-0 06 1 0101- ●
70 BOLT; BRKT
(A) M10X50 		0-10806-050-0 02 1 0101- ● ●
70 BOLT; BRKT
(A) M10X50 		0-10806-050-0 02 1 0101- ● ●
70 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 02 1 0101- ● ●
70 BOLT; BRKT
(B) M8X35 FLANGE 		0-28680-835-0 04 1 0101- ●
81 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 0101- ● ●
81 NUT; BRKT
(C) M10 FLANGE 		0-91150-210-0 01 1 0101- ● ●
81 NUT; BRKT
(C) M10 FLANGE 		0-91150-210-0 04 1 0101- ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 02 1 0101- ● ●
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 02 1 0101- ● ●
81 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 04 1 0101- ●
97 WASHER; PL,CLAMP
(A) ID=10.5 OD=18 		9-09160-510-0 02 1 0101- ● ●
97 WASHER; PL,CLAMP
(B) ID=10.5 OD=26 		9-09160-710-0 01 1 0101- ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 04 1 0101-0101 ● ●
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 0102- ● ●
105 NUT; CLAMP
(B) M10 FLANGE 		0-91150-210-0 01 1 0101- ● ●
105 NUT; CLAMP
(B) M10 FLANGE 		0-91150-210-0 02 1 0101- ● ●
105 NUT; CLAMP
(A) THA 		8-97916-605-0 02 1 0101- ● ●
105 NUT; CLAMP
(A) M10 		9-09110-510-0 04 1 0101-0101 ● ●
105 NUT; CLAMP
(A) M10 		9-09110-510-0 02 1 0102- ● ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
THA 		8-97917-748-0 01 1 0101- ●
108 BRACKET; BRKT TO FRAME,EXH SILENCER,FR
THA 		8-97916-505-0 01 1 0101- ●
128 PIPE; EXH,RR
WHEEL BASE 5400MM<54W> THA 		8-97921-518-0 01 1 0101- ●
128 PIPE; EXH,RR
WHEEL BASE 6300MM<63W> THA 		8-97915-022-1 01 1 0101- ●
128 PIPE; EXH,RR
WHEEL BASE 5200MM<52W> THA 		8-97917-670-0 01 1 0101- ● ●
128 PIPE; EXH,RR
WHEEL BASE 5800MM<58W> THA 		8-97917-671-0 01 1 0101- ● ●
128 PIPE; EXH,RR
WHEEL BASE 5400MM<54W> THA 		8-97915-020-0 01 1 0101- ●
128 PIPE; EXH,RR
WHEEL BASE 6300MM<63W> THA 		8-97917-672-0 01 1 0101- ●
360 PIECE; DIST,EXH PIPE
THA 		8-97917-674-0 02 1 0101- ●
415 BOLT; CLAMP
M10X35 FLANGE 		0-28681-035-0 01 1 0101- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
