3-77 — BRAKE PIPING; AIR,REAR (#757) — 158 parça

86 82 84 182 181 126 184 73 195 194 193 192 225 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
73	BOLT; CLIP M8X20 FLANGE	0-28010-820-0	01	1	9204-9204
73	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9205-9504
73	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	01	1	9505-
82	SLEEVE; RUBBER,NYLON TUBE ID=15 OD=19 L=50	1-09337-014-0	01	1	9204-9504
82	SLEEVE; RUBBER,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=15 OD=19 L=50	1-09337-014-0	01	1	9505-
82	SLEEVE; RUBBER,NYLON TUBE ID=29 OD=39 L=40	1-09337-013-0	01	1	9205-9504
82	SLEEVE; RUBBER,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=29 OD=39 L=40	1-09337-013-0	01	1	9505-
84	WASHER; PL,BRKT ID=8.4	9-09160-508-0	04	1	9204-9504
84	WASHER; PL,BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=8.4	9-09160-508-0	04	1	9505-
86	PROTECTOR; NYLON TUBE L=100	8-94272-502-0	01	1	9204-9504
86	PROTECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=100	8-94272-502-0	01	1	9505-
126	UNION; NYLON TUBE (B)	1-09654-282-0	01	1	9204-9504
126	UNION; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09654-282-0	01	1	9505-
126	UNION; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09664-181-0	01	1	9204-
181	NUT; TUBE UNION (B) M16	9-99111-316-0	01	1	9204-9504
181	NUT; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16	9-99111-316-0	01	1	9505-
181	NUT; TUBE UNION NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09487-024-0	01	1	9204-
182	BRACKET; TUBE CLIP	1-47476-200-0	02	1	9204-9504
182	BRACKET; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47476-200-0	02	1	9505-
184	BOLT; TUBE CLIP M8X20 FLANGE	0-28080-820-0	02	1	9204-9504
184	BOLT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	02	1	9505-
192	TUBE; NYLON GREEN OD=3/8" L=30000	1-09368-248-0	AR	1	9204-9211
192	TUBE; NYLON RED OD=3/8" L=30000	1-09368-249-0	AR	1	9204-9504
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) RED OD=3/8" L=30000	1-09368-249-0	AR	1	9505-
192	TUBE; NYLON GREEN OD=1/2" L=30000	1-09368-251-0	AR	1	9204-9211
192	TUBE; NYLON RED OD=1/2" L=30000	1-09368-252-0	AR	1	9204-9211
192	TUBE; NYLON ORANGE OD=1/2" L=30000	1-09368-253-0	AR	1	9204-9209
192	TUBE; NYLON WHEEL BASE 6300MM(63W) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ORANGE OD=1/2" L=30000	1-09368-253-0	AR	1	9210-9211
192	TUBE; NYLON NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ORANGE OD=3/8" L=30000	1-09368-247-0	AR	1	9204-
193	NUT; SLEEVE OD=1/2"	1-09660-558-0	AR	1	9204-9209
193	NUT; SLEEVE WHEEL BASE 6300MM(63W) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) OD=1/2"	1-09660-558-0	AR	1	9210-9211
193	NUT; SLEEVE WHEEL BASE 6300MM(63W) OD=3/8"	1-09660-557-0	AR	1	9204-9208
193	NUT; SLEEVE AUSTRALIA EQUIPMENT(RR3) OD=3/8"	1-09660-557-0	AR	1	9204-9208
193	NUT; SLEEVE WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) OD=3/8"	1-09660-557-0	AR	1	9204-9208
193	NUT; SLEEVE WHEEL BASE 6300MM(63W) OD=3/8"	1-09660-557-0	AR	1	9209-9306
193	NUT; SLEEVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) OD=3/8"	1-09660-557-0	AR	1	9209-9306
193	NUT; SLEEVE WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) OD=3/8"	1-09660-557-0	AR	1	9209-9306
193	NUT; SLEEVE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) OD=3/8"	1-09660-557-0	AR	1	9307-9504
193	NUT; SLEEVE WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) OD=3/8"	1-09660-557-0	AR	1	9307-9504
193	NUT; SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) OD=3/8"	1-09660-557-0	AR	1	9505-
193	NUT; SLEEVE WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3/8"	1-09660-557-0	AR	1	9505-
194	SLEEVE; TUBE ID=12.93 OD=15.85 L=10.92	1-09666-061-0	AR	1	9204-9209
194	SLEEVE; TUBE WHEEL BASE 6300MM(63W) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ID=12.93 OD=15.85 L=10.92	1-09666-061-0	AR	1	9210-9211
194	SLEEVE; TUBE WHEEL BASE 6300MM(63W) ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9204-9208
194	SLEEVE; TUBE AUSTRALIA EQUIPMENT(RR3) ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9204-9208
194	SLEEVE; TUBE WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9204-9208
194	SLEEVE; TUBE WHEEL BASE 6300MM(63W) ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9209-9306
194	SLEEVE; TUBE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9209-9306
194	SLEEVE; TUBE WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9209-9306
194	SLEEVE; TUBE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9307-9504
194	SLEEVE; TUBE WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9307-9504
194	SLEEVE; TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9505-
194	SLEEVE; TUBE WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9505-
195	RING; INSERT OD=1/2"	1-09669-107-0	AR	1	9204-9209
195	RING; INSERT WHEEL BASE 6300MM(63W) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) OD=1/2"	1-09669-107-0	AR	1	9210-9211
195	RING; INSERT OD=1/2"	1-09669-107-0	04	1	9204-9211
195	RING; INSERT WHEEL BASE 6300MM(63W) OD=3/8"	1-09669-108-0	AR	1	9204-9208
195	RING; INSERT AUSTRALIA EQUIPMENT(RR3) OD=3/8"	1-09669-108-0	AR	1	9204-9208
195	RING; INSERT WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) OD=3/8"	1-09669-108-0	AR	1	9204-9208
195	RING; INSERT WHEEL BASE 6300MM(63W) OD=3/8"	1-09669-108-0	AR	1	9209-9306
195	RING; INSERT NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) OD=3/8"	1-09669-108-0	AR	1	9209-9306
195	RING; INSERT WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) OD=3/8"	1-09669-108-0	AR	1	9209-9306
195	RING; INSERT NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) OD=3/8"	1-09669-108-0	AR	1	9307-9504
195	RING; INSERT WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) OD=3/8"	1-09669-108-0	AR	1	9307-9504
195	RING; INSERT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) OD=3/8"	1-09669-108-0	AR	1	9505-
195	RING; INSERT WHEEL BASE 6300MM(63W),WHEEL BASE 7100MM(71W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3/8"	1-09669-108-0	AR	1	9505-
205	BOLT; TUBE CLIP M8X20 FLANGE	0-28010-820-0	02	1	9204-9204
205	BOLT; TUBE CLIP M8X20 FLANGE	0-28080-820-0	02	1	9205-9504
205	BOLT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	02	1	9505-
225	NUT; TUBE CLIP M8	9-09110-408-0	02	1	9204-9504
225	NUT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9505-

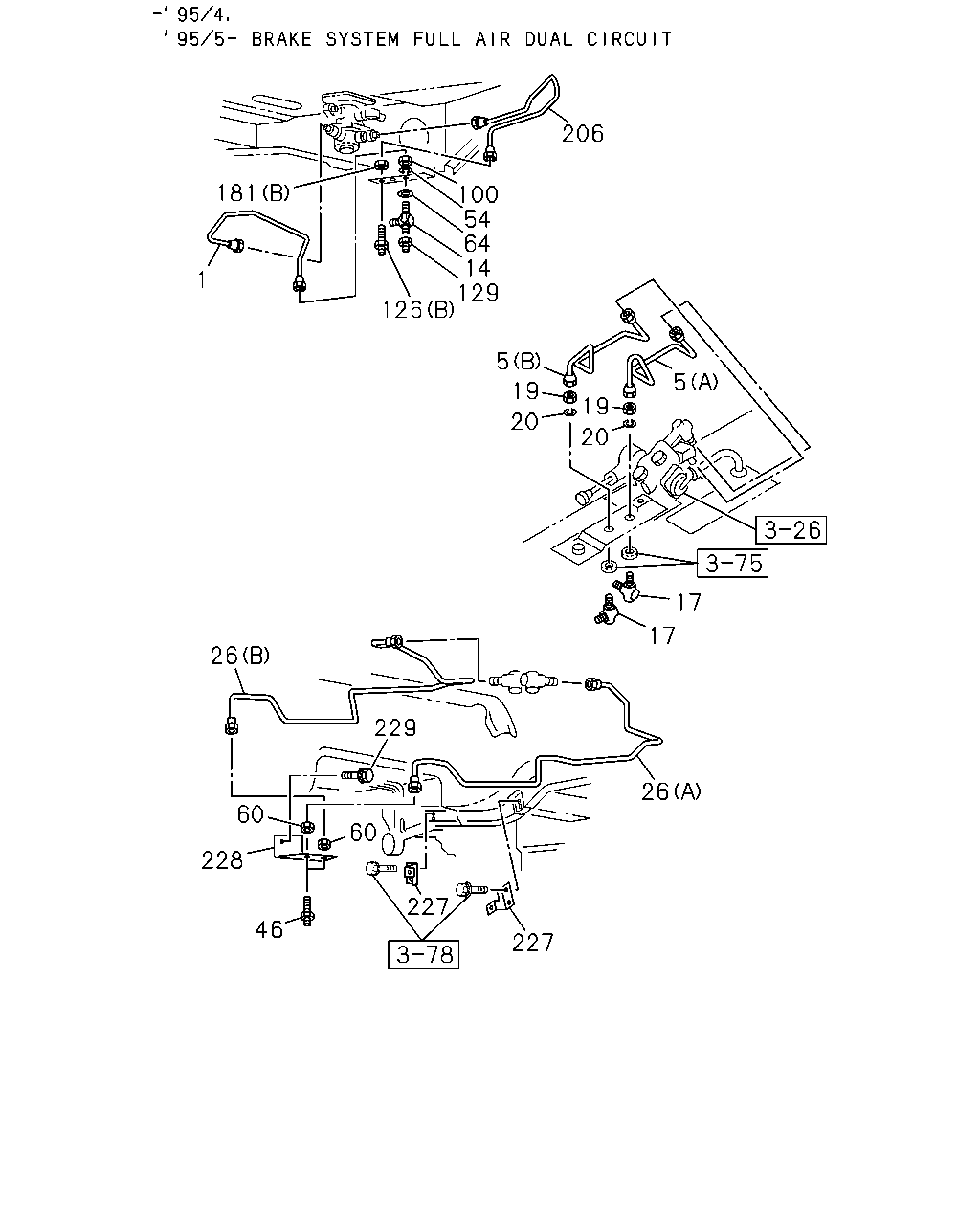

206 181 100 54 64 14 129 126 1 5 5 19 19 20 20 17 17 26 229 26 60 60 228 227 46 227

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=578	1-47492-706-0	01	1	9204-9212
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=578	1-47499-741-0	01	1	9301-9504
1	PIPE; AIR,FLEX HOSE TO BRK VLV NYLON TUBE AIR PIPING<Z29> L=578	1-47499-741-0	01	1	9505-
1	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. NYLON TUBE AIR PIPING<Z29> L=578	1-47497-110-0	01	1	9505-
5	PIPE; AIR,UNION TO PARKING VLV (A) L=657	1-47482-412-0	01	1	9204-9212
5	PIPE; AIR,UNION TO PARKING VLV (A) L=524	1-47497-873-0	01	1	9301-9504
5	PIPE; AIR,UNION TO PARKING VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=524	1-47497-873-0	01	1	9505-
5	PIPE; AIR,UNION TO PARKING VLV (B) L=524	1-47482-413-0	01	1	9204-9212
5	PIPE; AIR,UNION TO PARKING VLV (B) L=657	1-47497-874-0	01	1	9301-9504
5	PIPE; AIR,UNION TO PARKING VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=657	1-47497-874-0	01	1	9505-
14	UNION; AIR PIPE	1-09656-451-1	01	1	9204-9504
14	UNION; AIR PIPE DUAL AIR GAUGE<UG2>	1-09656-451-1	01	1	9505-
17	UNION; AIR PIPE M14	9-09225-208-1	02	1	9204-9504
17	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14	9-09225-208-1	02	1	9505-
19	NUT; PIPE UNION M14	9-99111-414-0	02	1	9204-9504
19	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14	9-99111-414-0	02	1	9505-
20	WASHER; LK,PIPE UNION ID=14.2	9-09150-514-0	02	1	9204-9504
20	WASHER; LK,PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2	9-09150-514-0	02	1	9505-
26	PIPE; AIR,FLEX HOSE TO UNION (B) L=1551	1-47487-289-0	01	1	9204-9212
26	PIPE; AIR,FLEX HOSE TO UNION (B) L=1551	1-47497-875-0	01	1	9301-9504
26	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1551	1-47497-875-0	01	1	9505-
26	PIPE; AIR,FLEX HOSE TO UNION (A) L=1506	1-47492-715-0	01	1	9204-9212
26	PIPE; AIR,FLEX HOSE TO UNION (A) L=1506	1-47499-744-0	01	1	9301-9504
26	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=1506	1-47499-744-0	01	1	9505-
46	NIPPLE; AIR PIPE	1-09654-281-0	02	1	9204-9504
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09654-281-0	02	1	9505-
54	WASHER; LK,UNION ID=16.2	9-09150-516-0	02	1	9204-9404
54	WASHER; LK,UNION ID=16.2	9-09150-516-0	01	1	9405-9504
54	WASHER; LK,UNION DUAL AIR GAUGE<UG2> ID=16.2	9-09150-516-0	01	1	9505-
60	NUT; NIPPLE,AIR PIPE	9-99111-314-0	02	1	9204-9504
60	NUT; NIPPLE,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-99111-314-0	02	1	9505-
64	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9204-9504
64	GASKET; FLEX HOSE DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9505-
100	NUT; UNION M16	9-99111-416-0	02	1	9204-9404
100	NUT; UNION M16	9-99111-416-0	01	1	9405-9504
100	NUT; UNION DUAL AIR GAUGE<UG2> M16	9-99111-416-0	01	1	9505-
126	UNION; NYLON TUBE (B)	1-09654-282-0	01	1	9204-9504
126	UNION; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09654-282-0	01	1	9505-
126	UNION; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09664-181-0	01	1	9204-
129	CONNECTOR; NYLON TUBE	1-09660-564-0	01	1	9204-9504
129	CONNECTOR; NYLON TUBE DUAL AIR GAUGE<UG2>	1-09660-564-0	01	1	9505-
181	NUT; TUBE UNION (B) M16	9-99111-316-0	01	1	9204-9504
181	NUT; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16	9-99111-316-0	01	1	9505-
181	NUT; TUBE UNION NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A)	1-09487-024-0	01	1	9204-
206	PIPE; AIR,BRK VLV TO FLEX HOSE	1-47492-705-0	01	1	9204-9212
206	PIPE; AIR,BRK VLV TO FLEX HOSE	1-47499-742-0	01	1	9301-9504
206	PIPE; AIR,BRK VLV TO FLEX HOSE NYLON TUBE AIR PIPING<Z29>	1-47499-742-0	01	1	9505-
206	PIPE; AIR,BRK VLV TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=691	1-47497-062-0	01	1	9505-
227	BRACKET ASM; AIR PIPE	1-71998-421-0	02	1	9204-9504
227	BRACKET ASM; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-71998-421-0	02	1	9505-
228	BRACKET; FLEX HOSE JOINT	1-79738-183-1	01	1	9204-9504
228	BRACKET; FLEX HOSE JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-183-1	01	1	9505-9507
228	BRACKET; FLEX HOSE JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79738-824-0	01	1	9508-
229	BOLT; HOSE UNION BRKT M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9204-9504
229	BOLT; HOSE UNION BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9505-

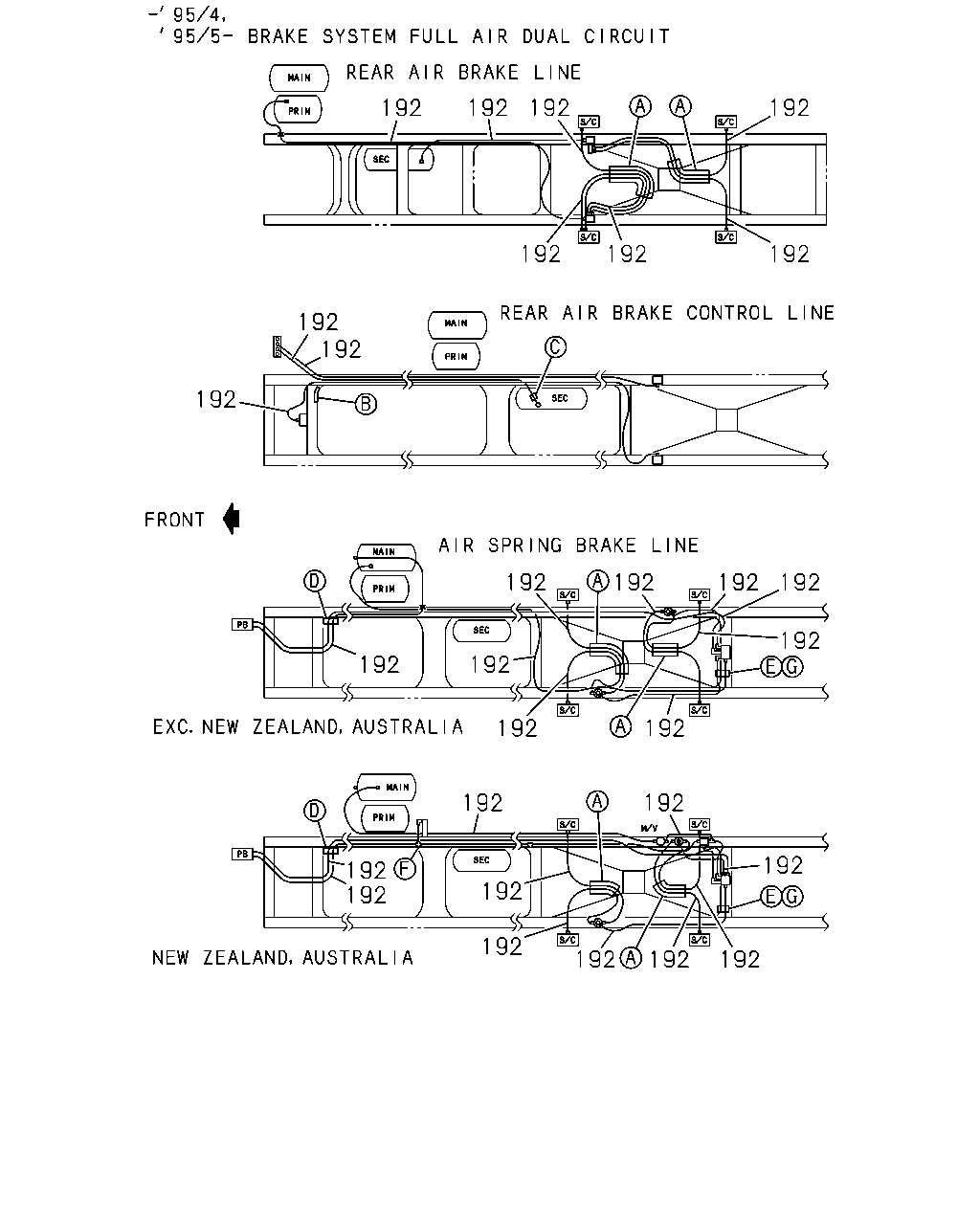

192 192 192 192 192 192 192 192 192 192 192 192 192 192 192 192 192 192 192 192 192 192 192 192 192 192 192 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
192	TUBE; NYLON GREEN OD=3/8" L=30000	1-09368-248-0	AR	1	9204-9211
192	TUBE; NYLON RED OD=3/8" L=30000	1-09368-249-0	AR	1	9204-9504
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) RED OD=3/8" L=30000	1-09368-249-0	AR	1	9505-
192	TUBE; NYLON GREEN OD=1/2" L=30000	1-09368-251-0	AR	1	9204-9211
192	TUBE; NYLON RED OD=1/2" L=30000	1-09368-252-0	AR	1	9204-9211
192	TUBE; NYLON ORANGE OD=1/2" L=30000	1-09368-253-0	AR	1	9204-9209
192	TUBE; NYLON WHEEL BASE 6300MM(63W) EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ORANGE OD=1/2" L=30000	1-09368-253-0	AR	1	9210-9211
192	TUBE; NYLON NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) ORANGE OD=3/8" L=30000	1-09368-247-0	AR	1	9204-

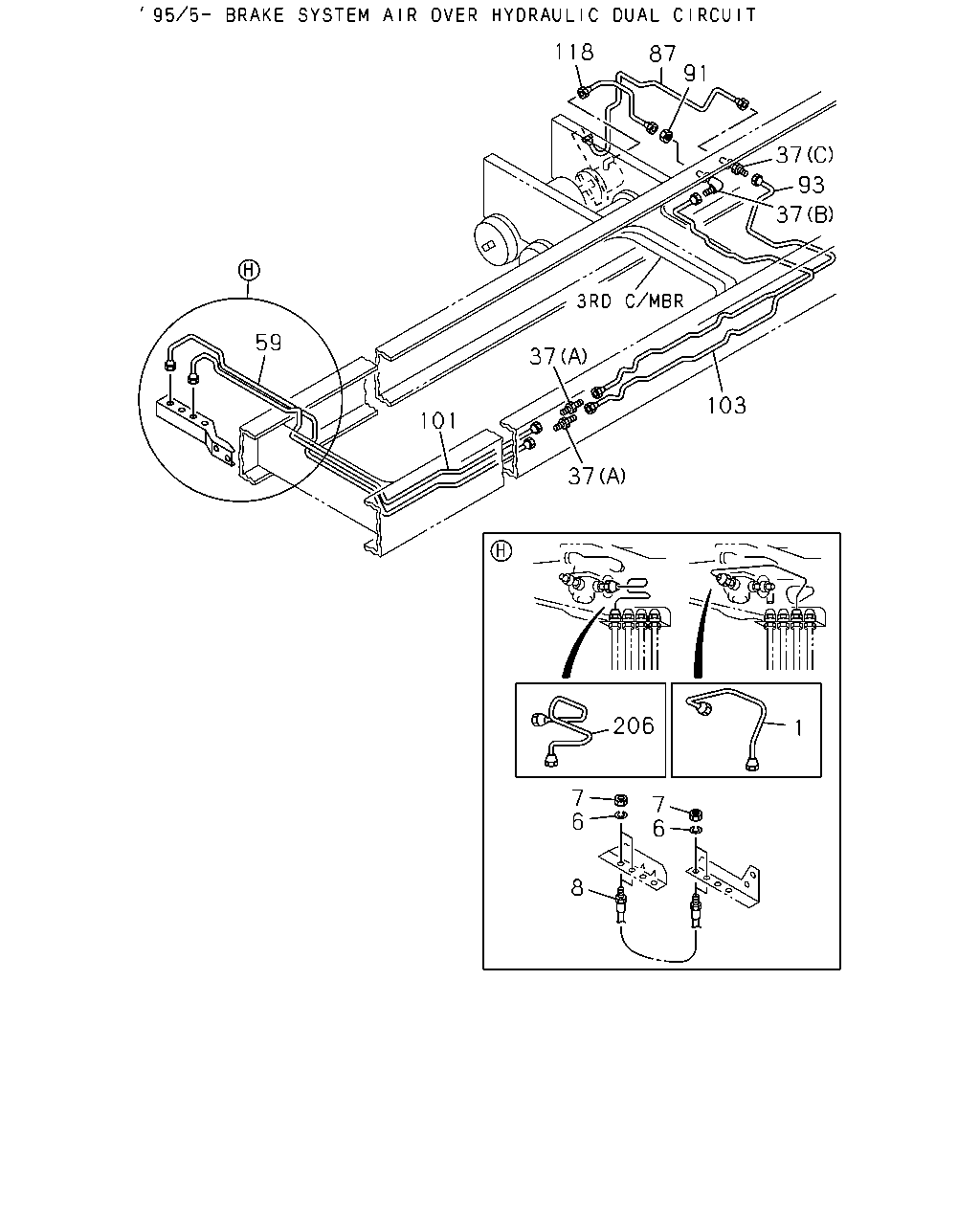

118 87 91 37 93 37 59 37 103 101 37 206 1 7 6 7 6 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=578	1-47492-706-0	01	1	9204-9212
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=578	1-47499-741-0	01	1	9301-9504
1	PIPE; AIR,FLEX HOSE TO BRK VLV NYLON TUBE AIR PIPING<Z29> L=578	1-47499-741-0	01	1	9505-
1	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. NYLON TUBE AIR PIPING<Z29> L=578	1-47497-110-0	01	1	9505-
6	WASHER; LK,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> ID=16.2	9-09150-516-0	02	1	9505-
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16.2	9-09150-516-0	02	1	9505-
7	NUT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M16	9-99111-416-0	02	1	9505-
7	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	02	1	9505-
8	HOSE; FLEX,AIR,CAB SIDE EXC. DUAL AIR GAUGE<UG2> L=630	0-07424-630-0	01	1	9505-
8	HOSE; FLEX,AIR,CAB SIDE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=630	0-07424-630-0	01	1	9505-
37	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16 L=42	9-09233-010-1	02	1	9505-
37	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M16 L=74	9-09233-310-1	01	1	9505-
37	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M16 ELBOW	9-09235-210-1	01	1	9505-
59	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2517 SERVICED BY L=2600	1-47426-424-0	01	1	9505-
87	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=960 SERVICED BY L=1000	1-47426-414-0	01	1	9505-
91	NUT; PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	02	1	9505-
93	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=3042 SERVICED BY L=3300	1-47426-426-0	01	1	9505-
101	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2438 SERVICED BY L=2500	1-47426-423-0	01	1	9505-
103	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2752 SERVICED BY L=2900	1-47426-425-0	01	1	9505-
118	PIPE; AIR,UNION TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=590 SERVICED BY L=600	1-47426-408-0	01	1	9505-
206	PIPE; AIR,BRK VLV TO FLEX HOSE	1-47492-705-0	01	1	9204-9212
206	PIPE; AIR,BRK VLV TO FLEX HOSE	1-47499-742-0	01	1	9301-9504
206	PIPE; AIR,BRK VLV TO FLEX HOSE NYLON TUBE AIR PIPING<Z29>	1-47499-742-0	01	1	9505-
206	PIPE; AIR,BRK VLV TO FLEX HOSE EXC. NYLON TUBE AIR PIPING<Z29> L=691	1-47497-062-0	01	1	9505-
