8-15 — FIXING PARTS; WIRING HARNESS (#75697) — 92 parça

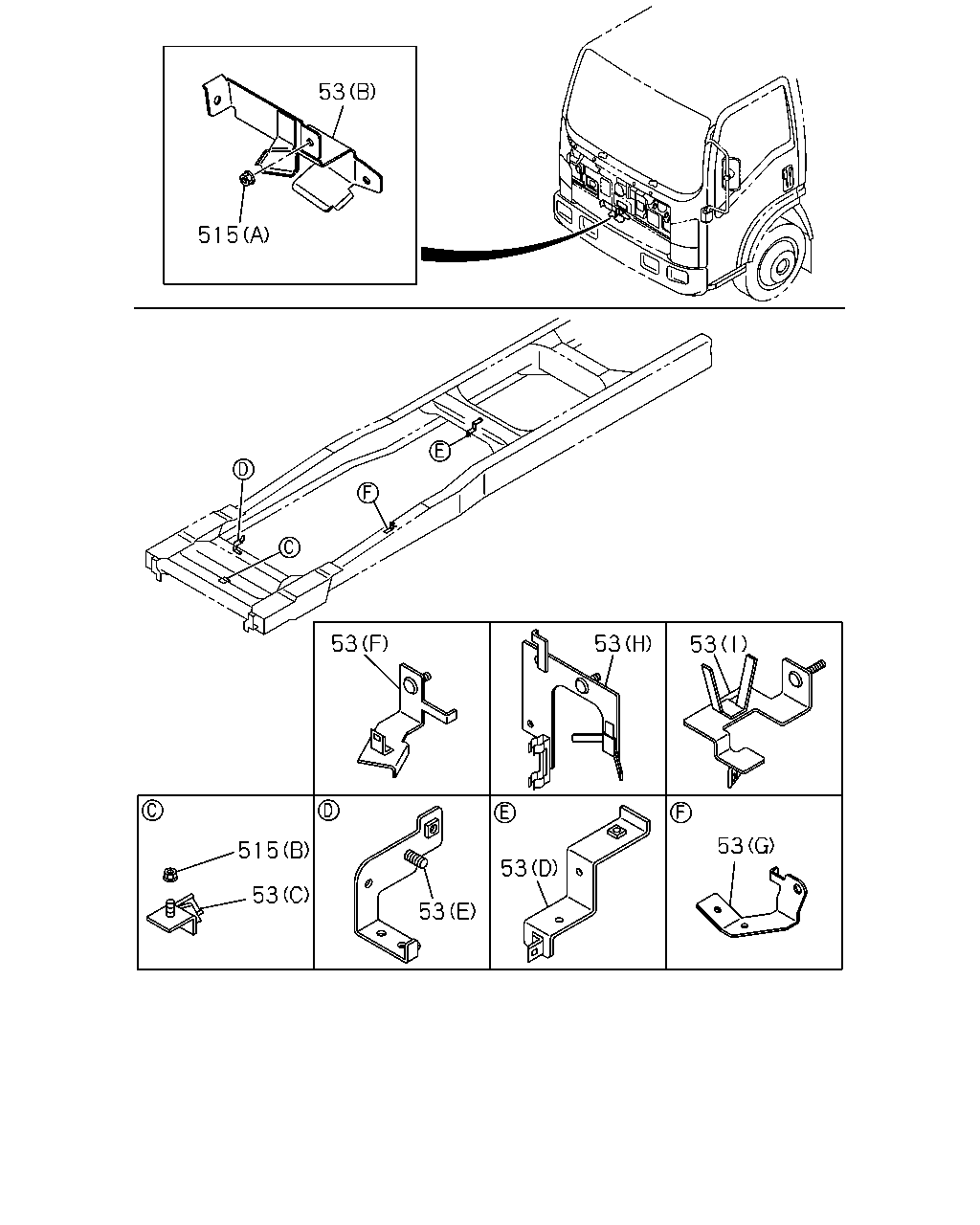

53 515 53 53 53 53 515 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J)	8-98084-590-0	01	1	0812-
53	02.483 BRACKET; HARNESS (G)	8-98130-669-1	01	1	0810-
53	02.483 BRACKET; HARNESS (I)	8-98132-377-0	01	1	0810-
53	02.483 BRACKET; HARNESS (H)	8-98126-454-2	01	1	0810-
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0810-
53	02.483 BRACKET; HARNESS (B)	8-98051-457-0	01	1	0810-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0810-
53	02.483 BRACKET; HARNESS (E)	8-98077-503-1	01	1	0810-
53	02.483 BRACKET; HARNESS (D)	8-98077-504-0	01	1	0810-
53	02.483 BRACKET; HARNESS (F)	8-98114-461-2	01	1	0810-
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	02	1	0810-0909
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	0910-
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	0910-
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	0910-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0810-
515	02.559 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0810-0911
515	02.559 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0810-0911
515	02.559 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0912-
515	02.559 NUT; BRKT (C) M8 FLANGE	8-98040-024-0	01	1	0810-
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	0810-0909

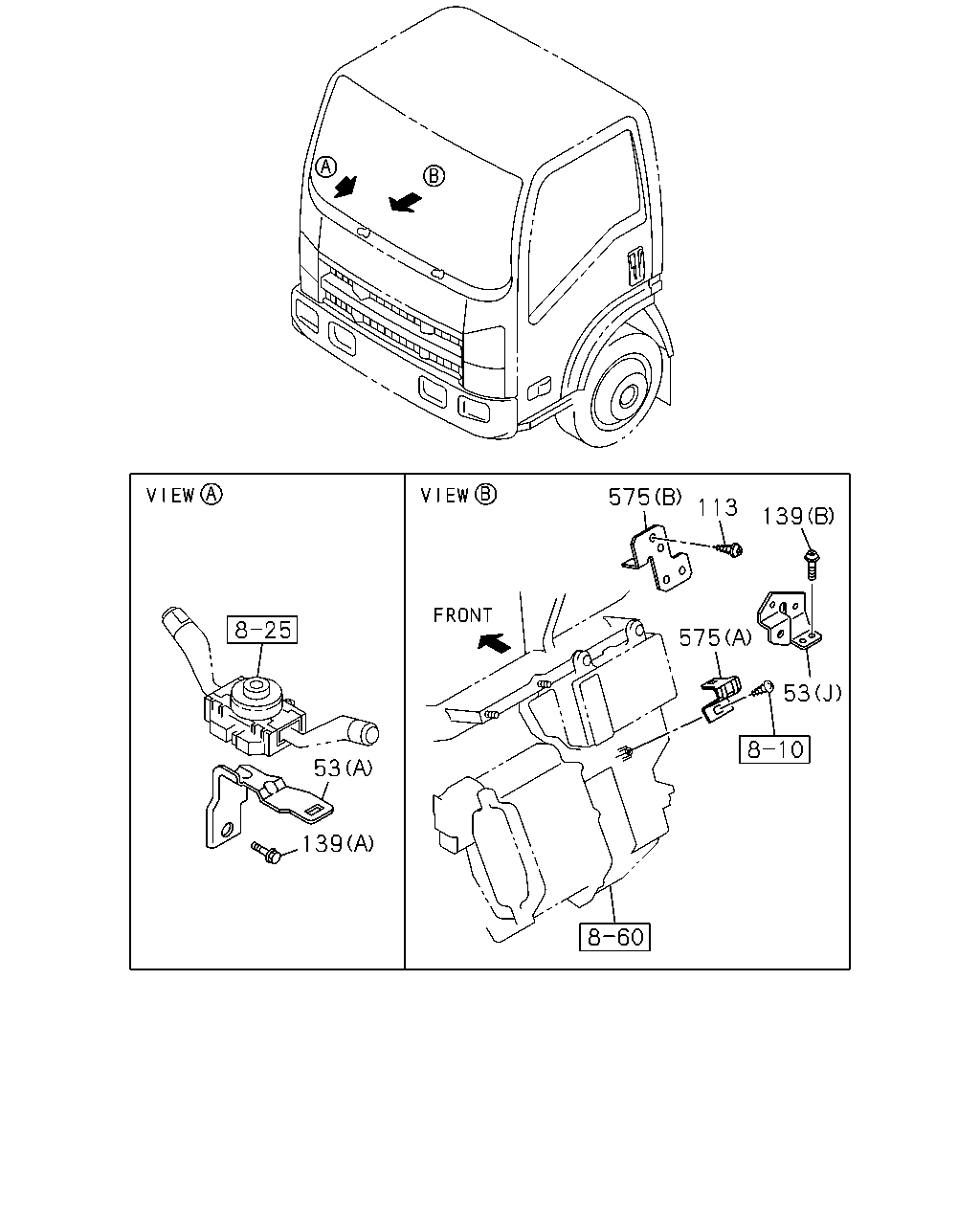

575 113 139 575 53 53 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J)	8-98084-590-0	01	1	0812-
53	02.483 BRACKET; HARNESS (G)	8-98130-669-1	01	1	0810-
53	02.483 BRACKET; HARNESS (I)	8-98132-377-0	01	1	0810-
53	02.483 BRACKET; HARNESS (H)	8-98126-454-2	01	1	0810-
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0810-
53	02.483 BRACKET; HARNESS (B)	8-98051-457-0	01	1	0810-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0810-
53	02.483 BRACKET; HARNESS (E)	8-98077-503-1	01	1	0810-
53	02.483 BRACKET; HARNESS (D)	8-98077-504-0	01	1	0810-
53	02.483 BRACKET; HARNESS (F)	8-98114-461-2	01	1	0810-
113	02.483 SCREW; HARNESS CONNECTOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1208-1212
113	02.483 SCREW; HARNESS CONNECTOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0812-1101
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0810-
575	02.559 BRACKET; FUSE BOX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	1-82698-128-2	01	1	1208-
575	02.559 BRACKET; FUSE BOX (A)	8-98042-656-2	01	1	0810-

483 488 16 16 16 48 48 16 22 16 16 16 513 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS AIR CONDITIONER MANUAL CONT(C60) (E) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	0810-
16	02.559 CLIP; HARNESS (G) L=135	1-09987-143-1	01	1	0810-1106
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0810-
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0810-
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0810-
16	02.559 CLIP; HARNESS (F) L=40.6	8-97229-357-0	02	1	0810-
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	0810-
22	02.559 CLIP; ENG HARNESS L=170.3	1-09987-182-0	01	1	0811-
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	05	1	0810-
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	0810-
483	02.559 CLIP; ENG HARNESS 03.162 L=140	5-09707-031-1	01	1	0810-
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	04	1	0810-
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	0907-1309
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80	8-97304-373-0	01	1	0810-
530	02.559 SEAL; HARNESS 16.545 OD=32 BLACK	8-98031-126-0	01	1	0810-

516 139 38 139 480 529 480 377 377 386 377 386 386 377 386 113 515 552 219 515 515 552 577 24 294 515

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.559 NUT; HARNESS 01.062 M6 FLANGE	0-91180-106-0	01	1	0810-1409
24	02.559 NUT; HARNESS M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-
38	02.559 BOLT; CLIP,HARNESS AIR CONDITIONER MANUAL CONT(C60) 09.216 M6X12 FLANGE	0-28250-612-0	02	1	0810-
113	02.483 SCREW; HARNESS CONNECTOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1208-1212
113	02.483 SCREW; HARNESS CONNECTOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0812-1101
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0810-
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0810-1506
294	02.559 NUT 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	0810-
377	02.559 BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0810-1004
377	02.559 BOLT; CAB EARTH 02.343 (D) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1005-
377	02.559 BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0810-1004
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1005-
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0810-1004
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0810-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0810-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-
480	02.483 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0810-
480	02.483 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0810-
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	02	1	0810-0909
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	0910-
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	0910-
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	0910-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0810-
515	02.559 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0810-0911
515	02.559 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0810-0911
515	02.559 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0912-
515	02.559 NUT; BRKT (C) M8 FLANGE	8-98040-024-0	01	1	0810-
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	0810-0909
516	02.559 BOLT; HARNESS 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0810-
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0810-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0810-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0810-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0810-

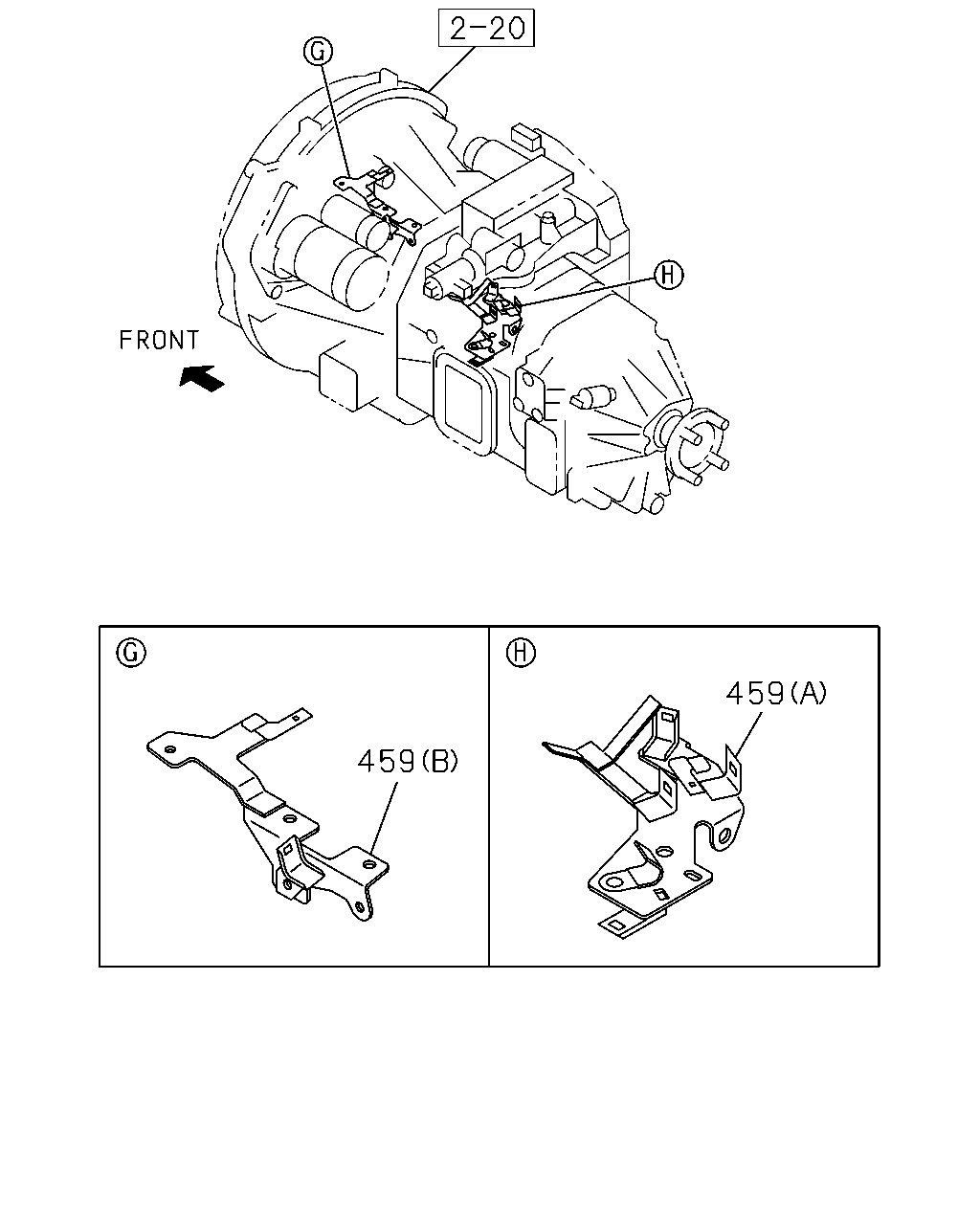

459 459

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98123-282-0	01	1	0810-
	459	02.483 BRACKET; SUPPORT,HARNESS (A)	8-98123-286-1	01	1	0810-
