7-50 — FRONT SEAT (#75691) — 170 parça

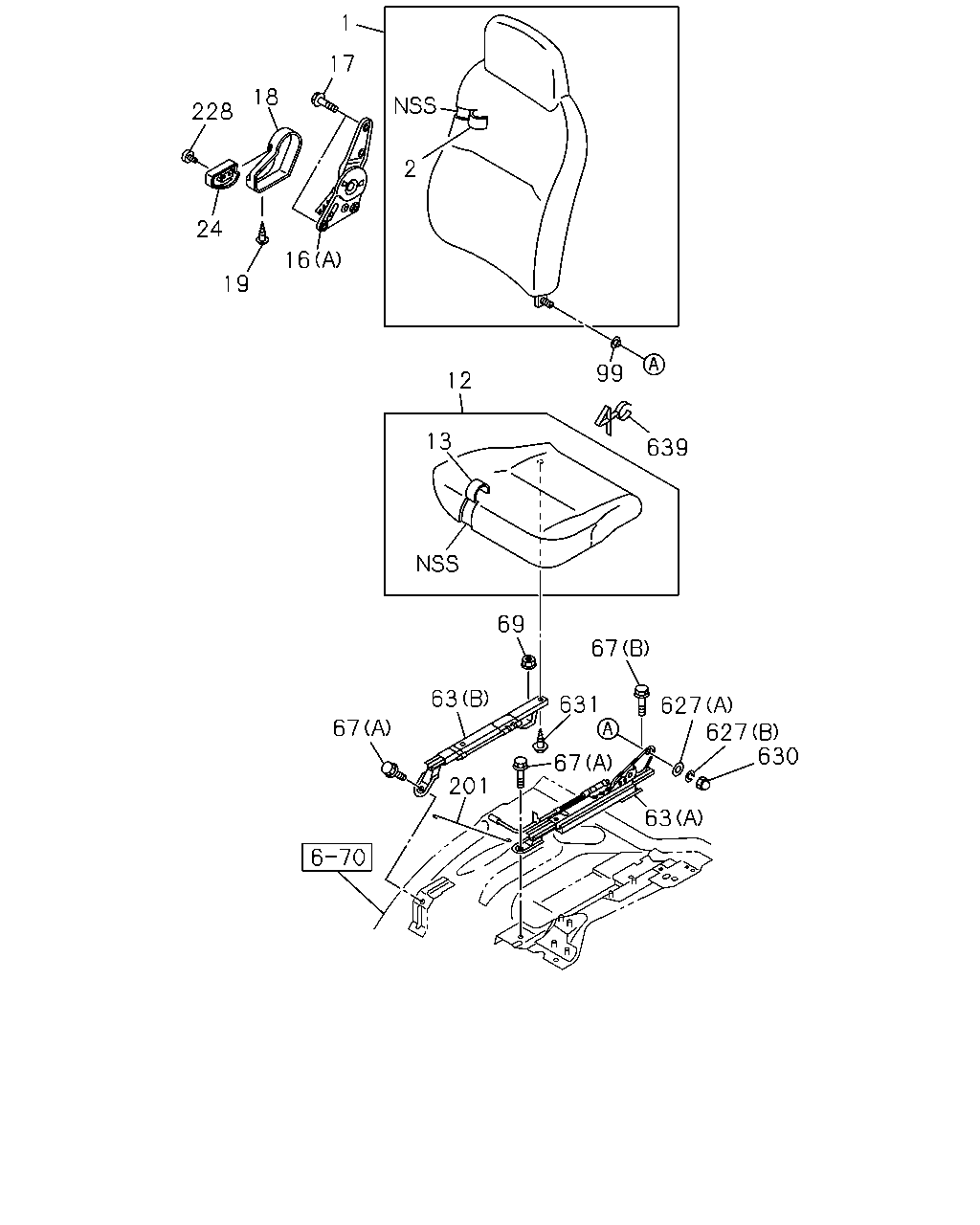

çizim 60041
1 17 18 228 2 24 16 19 99 12 13 639 69 67 63 631 627 627 630 67 67 201 63
BalonParca AdiParca NoAdetTipApplied Date
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-145-5 01 1 0810-1009
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-235-1 01 1 1010-
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97409-313-6 01 1 0810-1009
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-234-1 01 1 1010-
1 16.720 BACK ASM; SEAT
SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97414-142-7 01 1 0810-
1 16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97409-312-7 01 1 0810-
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-146-1 01 1 0810-1009
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-254-0 01 1 1010-
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97409-319-2 01 1 0810-1009
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-253-0 01 1 1010-
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97411-910-2 01 1 0810-
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97409-318-2 01 1 0810-
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-150-1 01 1 0810-1009
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-248-1 01 1 1010-
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-147-3 01 1 0810-0902
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-252-1 01 1 0903-1009
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-241-1 01 1 1010-
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-708-1 01 1 0810-1009
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-247-1 01 1 1010-
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-323-3 01 1 0810-0902
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-251-1 01 1 0903-1009
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-240-1 01 1 1010-
12 16.670 CUSHION; SEAT,FRT
SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97414-149-0 01 1 0810-
12 16.670 CUSHION; SEAT,FRT
SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-143-4 01 1 0810-
12 16.670 CUSHION; SEAT,FRT
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-706-0 01 1 0810-
12 16.670 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-322-4 01 1 0810-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-151-1 01 1 0810-1009
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-268-1 01 1 1010-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-148-2 01 1 0810-0902
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-260-0 01 1 0903-1009
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-260-1 01 1 1010-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-709-1 01 1 0810-1009
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-267-1 01 1 1010-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-329-3 01 1 0810-0902
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-259-0 01 1 0903-1009
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-259-1 01 1 1010-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97414-860-0 01 1 0810-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-144-2 01 1 0810-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-707-0 01 1 0810-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-328-2 01 1 0810-
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK W/KNOB 		8-97859-273-3 01 1 0810-
16 16.682 ADJUSTER ASM; RECLINING
(C) BLACK W/KNOB 		8-97859-274-3 01 1 0810-
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 0810-
17 16.682 BOLT; RECLINING
M10X20 		8-98062-661-0 04 1 0810-
18 16.682 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 0810-
19 16.686 SCREW; COVER
M5 		8-98062-663-0 01 1 0810-
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 0810-
63 16.682 ADJUSTER; SEAT SLIDE
(A) 		8-97382-800-2 01 1 0810-
63 16.682 ADJUSTER; SEAT SLIDE
(B) 		8-97382-801-1 01 1 0810-
67 16.682 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE 		8-98055-941-0 02 1 0810-
67 16.682 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE 		8-98055-942-0 01 1 0810-
69 16.682 NUT; FRT SEAT
M10 FLANGE 		8-98055-961-0 01 1 0810-
99 16.716 BUSHING; SEAT BACK 8-98112-751-0 01 1 0810-
201 16.682 CABLE; ADJ 8-98003-086-1 01 1 0810-
228 16.714 SCREW; KNOB
M4 		8-98062-662-0 01 1 0810-
627 16.682 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 0810-
627 16.682 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 0810-
630 16.682 NUT; CAP
M8 		8-98063-225-0 01 1 0810-
631 16.682 BOLT; ADJ,SEAT
M8X25 W/LK WASHER 		8-98062-658-0 02 1 0810-
631 16.682 BOLT; ADJ,SEAT
M8X32 W/LK WASHER 		8-98062-659-0 02 1 0810-
639 16.679 CLIP; SEAT
INSPECTION ENGINE COVER<8GA> 		8-98097-693-0 01 1 0810-

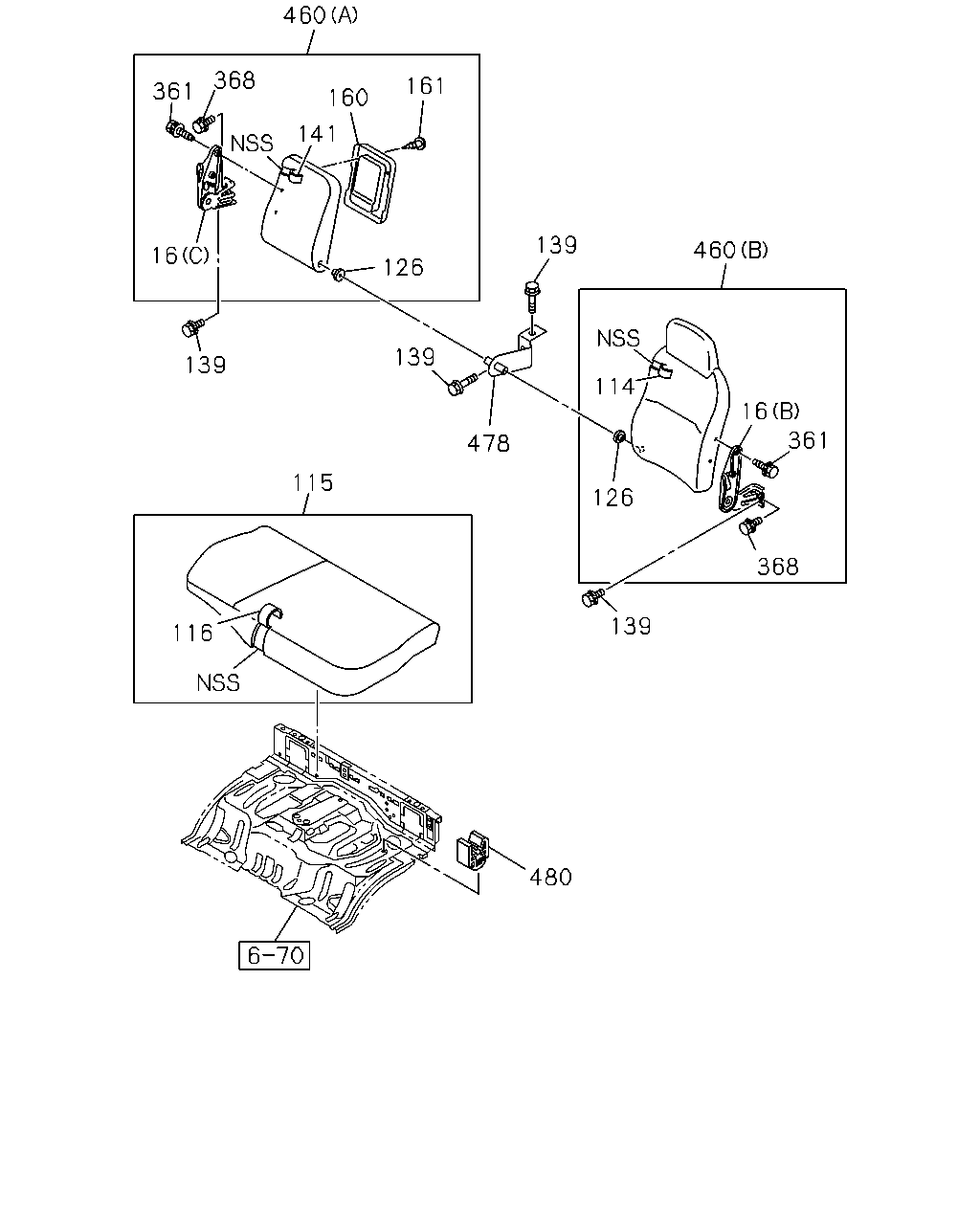

çizim 60112
460 368 161 361 160 141 139 460 16 126 139 139 114 16 361 478 115 126 368 139 116 480
BalonParca AdiParca NoAdetTipApplied Date
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK W/KNOB 		8-97859-273-3 01 1 0810-
16 16.682 ADJUSTER ASM; RECLINING
(C) BLACK W/KNOB 		8-97859-274-3 01 1 0810-
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 0810-
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-721-0 01 1 1001-1009
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-292-0 01 1 1010-
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-720-0 01 1 1001-
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97409-277-1 01 1 0810-0912
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-277-1 01 1 1001-1009
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-291-0 01 1 1010-
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97409-276-1 01 1 0810-0912
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97409-276-1 01 1 1001-
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-321-2 01 1 1010-
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-274-0 01 1 0901-0902
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-274-0 01 1 0903-1009
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-274-0 01 1 0903-1009
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-274-0 01 1 1010-
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97405-347-3 02 1 0810-0810
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97405-347-3 01 1 0811-0812
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97405-347-3 01 1 0811-0812
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97405-347-3 01 1 0901-0902
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97405-344-4 01 1 0810-0902
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-273-0 01 1 0903-0912
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-706-0 01 1 1001-1009
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-320-2 01 1 1010-
115 16.720 CUSHION ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97405-346-5 01 1 0810-
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97405-343-4 01 1 0810-0912
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-705-2 01 1 1001-
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-341-1 01 1 1010-
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-289-0 01 1 0901-0902
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-289-0 01 1 0903-1009
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-289-0 01 1 0903-1009
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-289-0 01 1 1010-
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-291-2 02 1 0810-0810
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-291-2 01 1 0811-0812
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-291-2 01 1 0811-0812
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-291-2 01 1 0901-0902
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-288-2 01 1 0810-0902
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-288-0 01 1 0903-0912
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-735-0 01 1 1001-1009
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-340-1 01 1 1010-
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97409-290-3 01 1 0810-
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-287-2 01 1 0810-0912
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-734-1 01 1 1001-
126 16.686 BUSHING; HINGE,RECLINING 8-98069-558-0 02 1 0810-
139 16.679 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER 		8-98031-841-0 04 1 0810-
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-727-0 01 1 1001-1009
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-306-0 01 1 1010-
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-726-0 01 1 1001-
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97409-334-1 01 1 0810-0912
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-334-1 01 1 1001-1009
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-305-1 01 1 1010-
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97409-336-1 01 1 0810-0912
141 16.724 COVER; TRIM,BENCH SEAT,BACK
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97409-336-2 01 1 1001-
160 16.650 CONSOLE; UPR,BACK CENTER
GRAY 		8-97405-361-1 01 1 0810-
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 03 1 0810-0812
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 0901-
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 04 1 0810-
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 0810-
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97418-692-0 01 1 1001-1009
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97421-279-0 01 1 1010-
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97418-691-0 01 1 1001-
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (B) DARK GRAY 		8-97405-335-4 01 1 0810-0912
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97405-335-4 01 1 1001-1009
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97421-278-0 01 1 1010-
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (B) DARK GRAY 		8-97405-334-4 01 1 0810-0912
460 16.670 BACK ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> (B) DARK GRAY 		8-97405-334-4 01 1 1001-
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97418-698-1 01 1 1001-1009
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97421-300-1 01 1 1010-
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97418-697-2 01 1 1001-
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK GRAY 		8-97405-338-2 01 1 0810-0912
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97405-338-3 01 1 1001-1009
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97421-299-1 01 1 1010-
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97405-337-2 01 1 0810-0912
460 16.670 BACK ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97405-337-4 01 1 1001-
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-98002-092-0 01 1 0810-
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 0810-
çizim 101403
115 116 480
BalonParca AdiParca NoAdetTipApplied Date
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-321-2 01 1 1010-
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-274-0 01 1 0901-0902
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-274-0 01 1 0903-1009
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-274-0 01 1 0903-1009
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-274-0 01 1 1010-
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97405-347-3 02 1 0810-0810
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97405-347-3 01 1 0811-0812
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97405-347-3 01 1 0811-0812
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97405-347-3 01 1 0901-0902
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97405-344-4 01 1 0810-0902
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-273-0 01 1 0903-0912
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-706-0 01 1 1001-1009
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-320-2 01 1 1010-
115 16.720 CUSHION ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97405-346-5 01 1 0810-
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97405-343-4 01 1 0810-0912
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-705-2 01 1 1001-
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-341-1 01 1 1010-
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-289-0 01 1 0901-0902
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-289-0 01 1 0903-1009
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-289-0 01 1 0903-1009
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-289-0 01 1 1010-
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-291-2 02 1 0810-0810
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-291-2 01 1 0811-0812
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-291-2 01 1 0811-0812
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-291-2 01 1 0901-0902
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-288-2 01 1 0810-0902
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-288-0 01 1 0903-0912
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-735-0 01 1 1001-1009
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-340-1 01 1 1010-
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97409-290-3 01 1 0810-
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-287-2 01 1 0810-0912
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-734-1 01 1 1001-
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 0810-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
