1-31 — AIR DUCT (#7568) — 63 parça

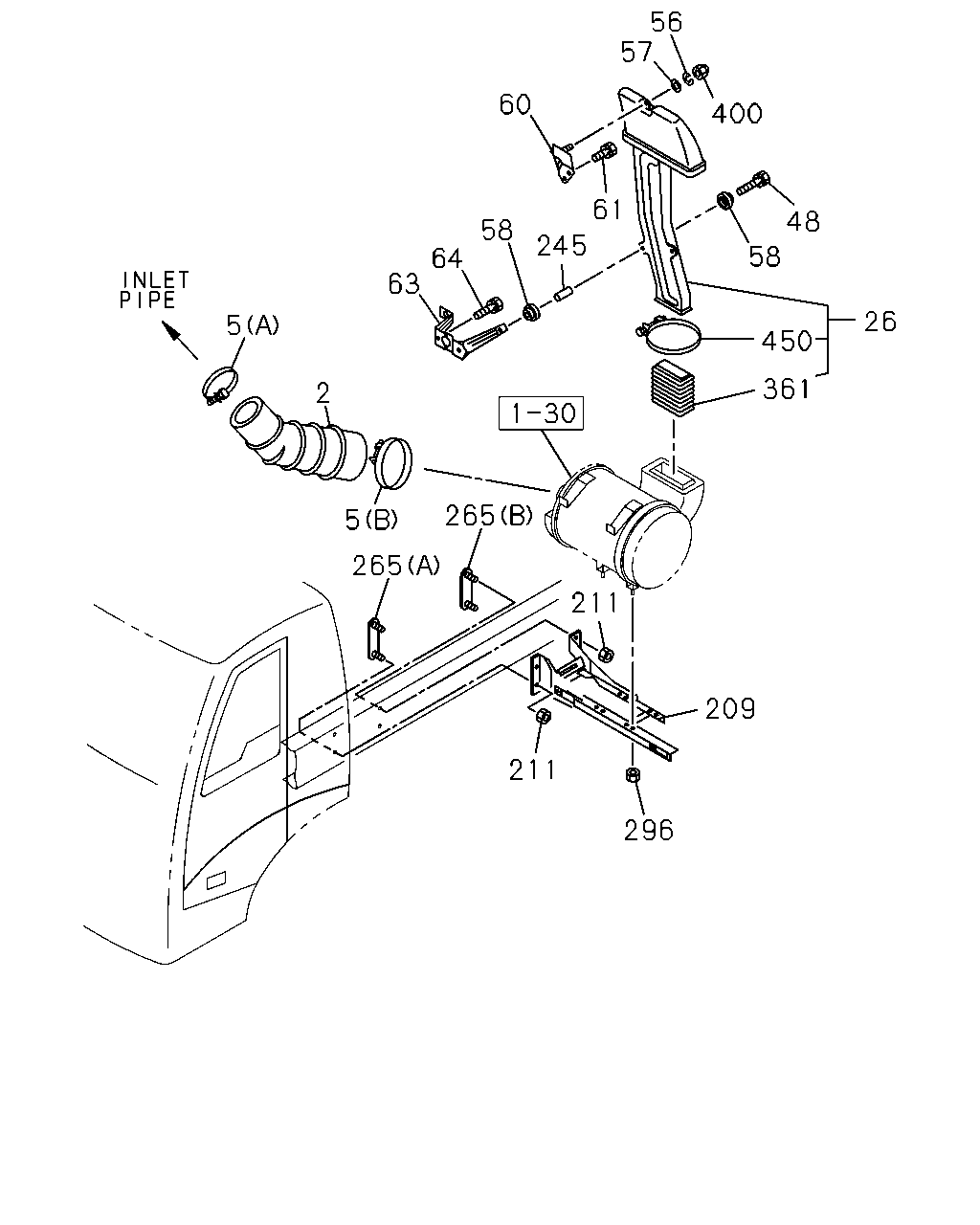

çizim 41181
56 57 60 400 61 245 48 58 58 64 63 26 5 450 361 2 265 5 265 211 209 211 296
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOSE; ACL 1-14231-854-0 01 1 0101- ●
2 HOSE; ACL 1-14232-007-0 01 1 0101- ●
5 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 0101-0212 ●
5 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-198-0 01 1 0301- ●
5 CLIP; AIR DUCT
(B) ID=130-169 		1-09707-157-0 01 1 0101-0212 ●
5 CLIP; AIR DUCT
(B) ID=130-165 		1-09707-201-0 01 1 0301- ●
5 CLIP; AIR DUCT
(A) ID=87-116 THA 		1-09707-144-0 01 1 0101-0212 ●
5 CLIP; AIR DUCT
(A) ID=87-113 		1-09707-199-0 01 1 0301- ●
5 CLIP; AIR DUCT
(B) ID=104-142 THA 		1-09707-155-0 01 1 0101-0212 ●
5 CLIP; AIR DUCT
(B) ID=104-139 		1-09707-200-0 01 1 0301- ●
26 DUCT; AIR INT 1-14230-175-2 01 1 0101- ●
26 DUCT; AIR INT 1-14230-177-2 01 1 0101- ●
48 BOLT; AIR DUCT
M10X26 		1-09030-044-1 02 1 0101- ● ●
56 WASHER; LK,AIR INT DUCT
M10 		1-09500-046-0 01 1 0101- ● ●
57 WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0101- ● ●
58 SUPPORT; AIR INL DUCT 1-14119-397-0 04 1 0101-0211 ● ●
58 SUPPORT; AIR INL DUCT
OD=40 T=18.5 		1-14119-267-0 04 1 0212- ● ●
60 BRACKET; AIR DUCT,UPR
THA 		8-97914-643-0 01 1 0101- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0101- ● ●
63 BRACKET; AIR DUCT,LWR
THA 		8-97914-645-0 01 1 0101- ● ●
64 BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0101- ● ●
209 BRACKET; ACL
THA 		8-97913-971-0 01 1 0101- ●
209 BRACKET; ACL
THA 		8-97916-140-0 01 1 0101- ●
211 NUT; BRKT
M12 FLANGE 		0-91150-212-0 04 1 0101- ● ●
245 PIECE; DIST,AIR DUCT
THA 		1-79998-228-0 02 1 0101- ● ●
265 BRACKET; STUD,ACL
(A) THA 		1-53497-454-1 01 1 0101- ● ●
265 BRACKET; STUD,ACL
(B) 		1-53497-627-0 01 1 0101- ●
296 NUT; ACL
M8 FLANGE 		0-91150-108-0 04 1 0101- ● ●
361 RUBBER; CUSHION,AIR DUCT 1-14231-973-1 01 1 0101- ● ●
400 NUT; CAP,AIR DUCT
M10 		1-09984-145-0 01 1 0101- ● ●
450 CLAMP; HOSE 9-09915-504-1 01 1 0101- ● ●

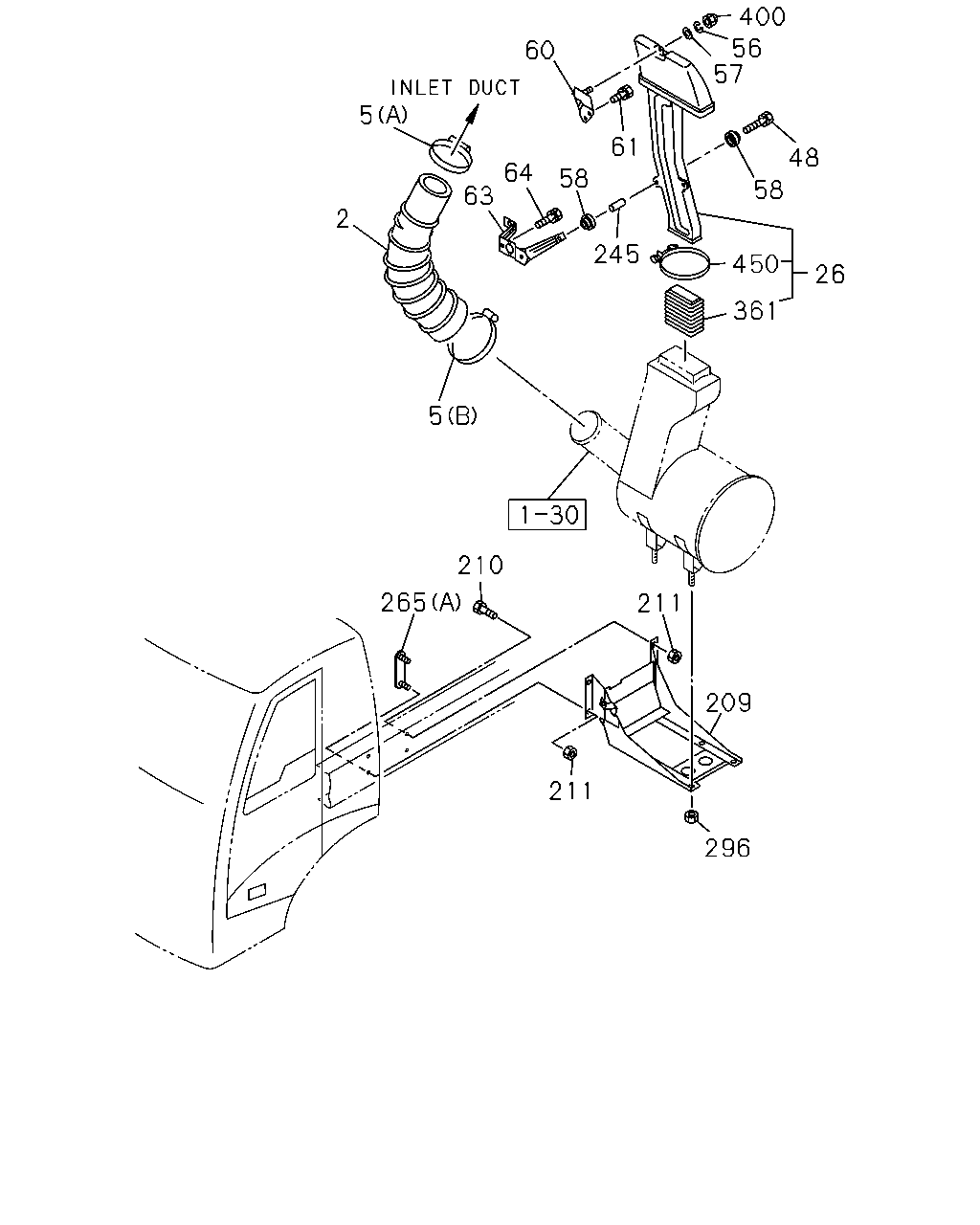

çizim 43988
400 56 57 60 5 61 48 64 58 58 63 2 245 450 26 361 5 210 265 211 209 211 296
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOSE; ACL 1-14231-854-0 01 1 0101- ●
2 HOSE; ACL 1-14232-007-0 01 1 0101- ●
5 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 0101-0212 ●
5 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-198-0 01 1 0301- ●
5 CLIP; AIR DUCT
(B) ID=130-169 		1-09707-157-0 01 1 0101-0212 ●
5 CLIP; AIR DUCT
(B) ID=130-165 		1-09707-201-0 01 1 0301- ●
5 CLIP; AIR DUCT
(A) ID=87-116 THA 		1-09707-144-0 01 1 0101-0212 ●
5 CLIP; AIR DUCT
(A) ID=87-113 		1-09707-199-0 01 1 0301- ●
5 CLIP; AIR DUCT
(B) ID=104-142 THA 		1-09707-155-0 01 1 0101-0212 ●
5 CLIP; AIR DUCT
(B) ID=104-139 		1-09707-200-0 01 1 0301- ●
26 DUCT; AIR INT 1-14230-175-2 01 1 0101- ●
26 DUCT; AIR INT 1-14230-177-2 01 1 0101- ●
48 BOLT; AIR DUCT
M10X26 		1-09030-044-1 02 1 0101- ● ●
56 WASHER; LK,AIR INT DUCT
M10 		1-09500-046-0 01 1 0101- ● ●
57 WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0101- ● ●
58 SUPPORT; AIR INL DUCT 1-14119-397-0 04 1 0101-0211 ● ●
58 SUPPORT; AIR INL DUCT
OD=40 T=18.5 		1-14119-267-0 04 1 0212- ● ●
60 BRACKET; AIR DUCT,UPR
THA 		8-97914-643-0 01 1 0101- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0101- ● ●
63 BRACKET; AIR DUCT,LWR
THA 		8-97914-645-0 01 1 0101- ● ●
64 BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0101- ● ●
209 BRACKET; ACL
THA 		8-97913-971-0 01 1 0101- ●
209 BRACKET; ACL
THA 		8-97916-140-0 01 1 0101- ●
210 BOLT; ACL BRKT
M12X40 FLANGE 		0-28681-240-0 02 1 0101- ●
211 NUT; BRKT
M12 FLANGE 		0-91150-212-0 04 1 0101- ● ●
245 PIECE; DIST,AIR DUCT
THA 		1-79998-228-0 02 1 0101- ● ●
265 BRACKET; STUD,ACL
(A) THA 		1-53497-454-1 01 1 0101- ● ●
265 BRACKET; STUD,ACL
(B) 		1-53497-627-0 01 1 0101- ●
296 NUT; ACL
M8 FLANGE 		0-91150-108-0 04 1 0101- ● ●
361 RUBBER; CUSHION,AIR DUCT 1-14231-973-1 01 1 0101- ● ●
400 NUT; CAP,AIR DUCT
M10 		1-09984-145-0 01 1 0101- ● ●
450 CLAMP; HOSE 9-09915-504-1 01 1 0101- ● ●
