◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51189 - NPS(RHD)EURO1 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#75675) — 38 parça

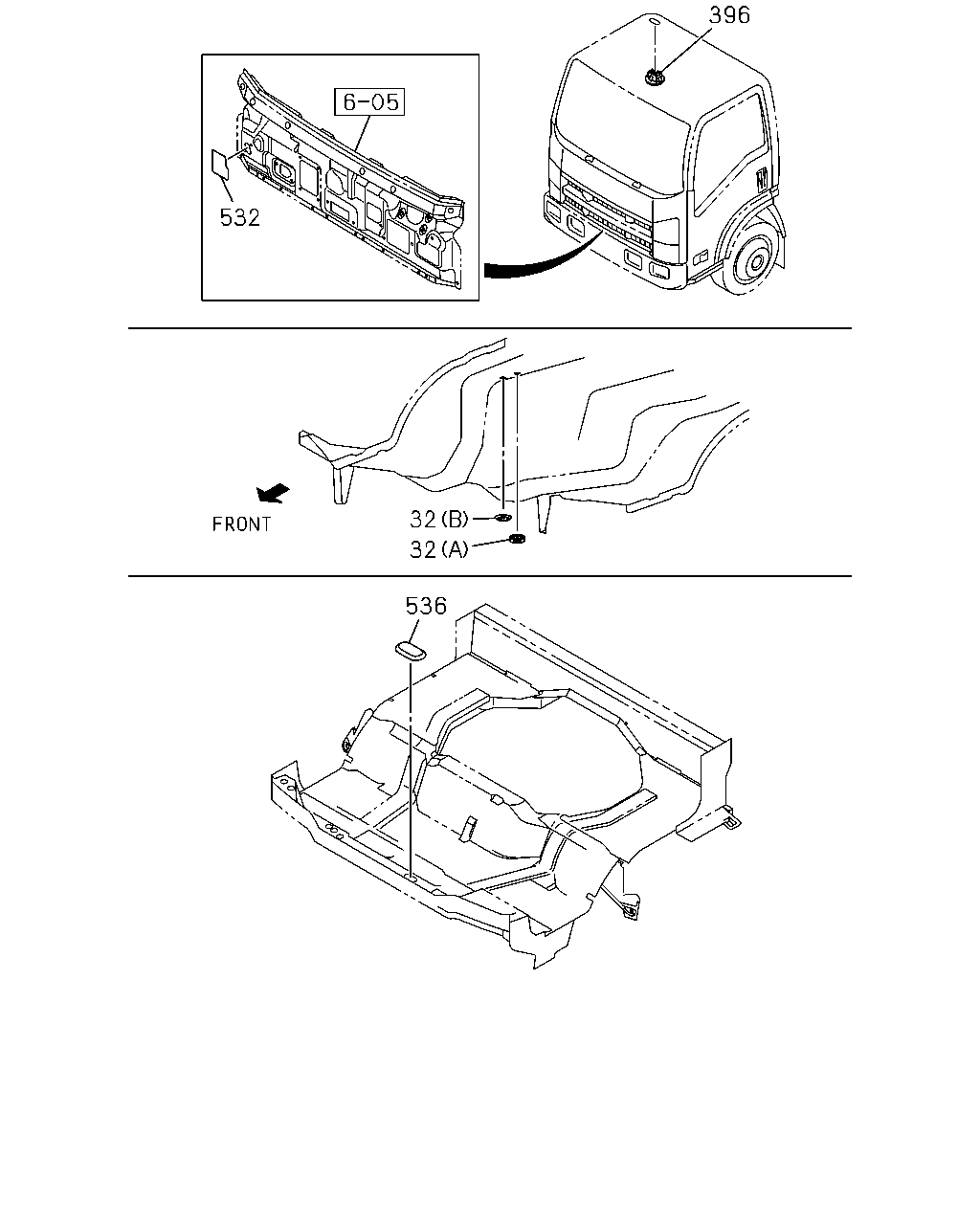

çizim 59722
396 532 32 32 536
BalonParca AdiParca NoAdetTipApplied Date
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
00.785 (A) OD=16.2 		8-94492-493-0 02 1 0810-0908
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(A) OD=15.0 		8-94279-040-0 02 1 0909-
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(B) OD=12.1 		8-97898-423-0 02 1 0810-
396 16.547 GROMMET; LOCATION HOLE 8-98054-990-0 02 1 0810-
532 16.520 SEAL; CABLE 8-98042-432-1 01 1 0810-
536 16.549 PLUG; CABLE,PTO
04.008 		8-98029-219-1 01 1 0810-

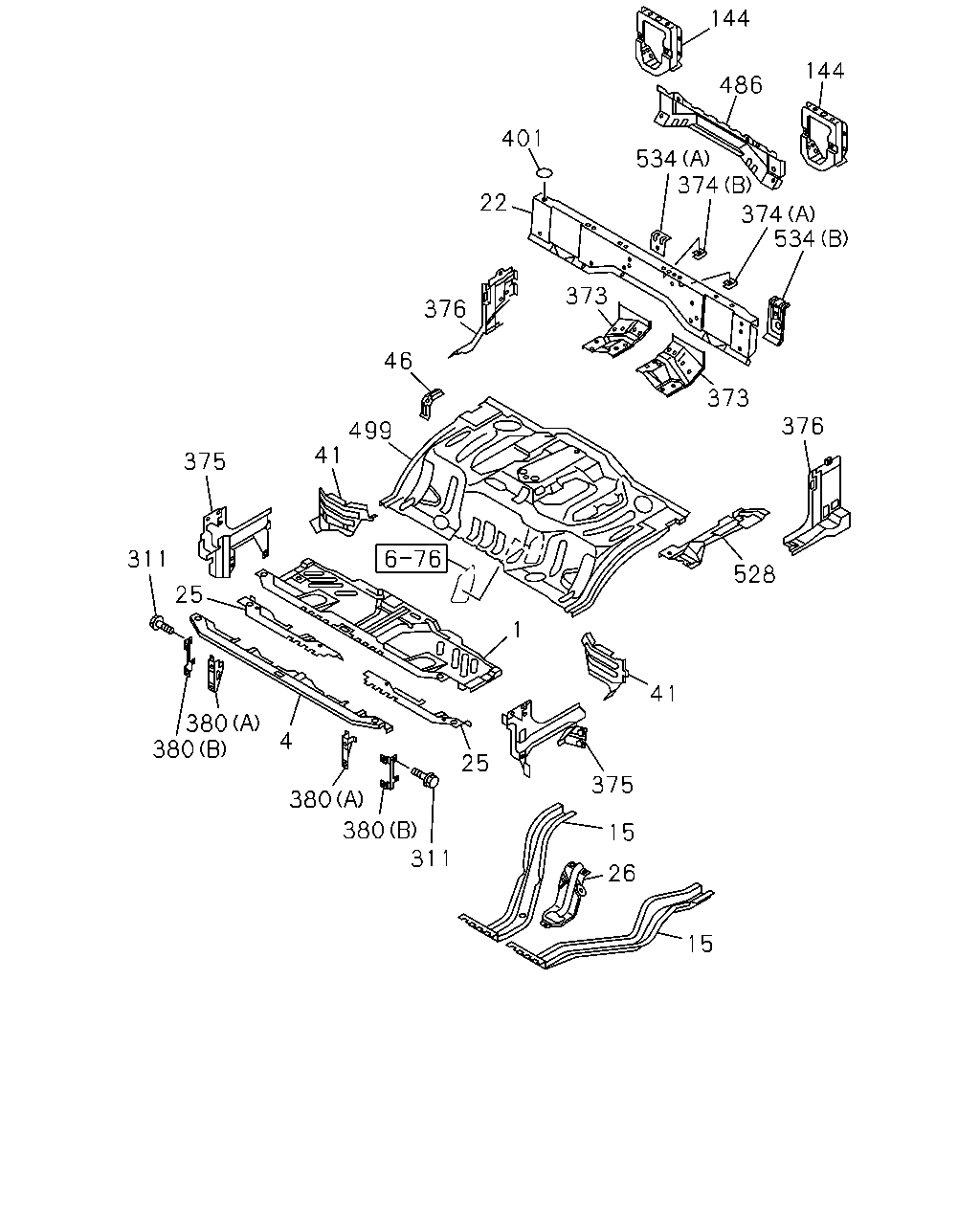

çizim 60347
144 144 486 401 534 374 22 374 534 373 376 46 373 376 499 41 375 311 528 25 1 41 380 380 4 25 375 380 380 311 15 26 15
BalonParca AdiParca NoAdetTipApplied Date
1 16.545 PANEL; FLOOR
EXC. INSPECTION ENGINE COVER<8GA> 		8-98112-870-0 01 1 0810-
4 16.545 FRAME; FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98107-595-0 01 1 0810-
15 16.545 FRAME; UNDER
EXC. INSPECTION ENGINE COVER<8GA> 		8-98059-498-1 01 1 0810-
15 16.545 FRAME; UNDER
EXC. INSPECTION ENGINE COVER<8GA> 		8-98088-004-0 01 1 0810-
22 16.545 FRAME; FLOOR REAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-848-4 01 1 0810-
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-823-0 01 1 0810-
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98107-587-0 01 1 0810-
26 16.545 PANEL; GEAR CONT REINF
EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-382-1 01 1 0810-
41 16.545 SUPPORT; STEP,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-880-1 01 1 0810-
41 16.545 SUPPORT; STEP,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-881-1 01 1 0810-
46 16.545 BRACKET; FRT SEAT,RR OUTER
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-834-0 01 1 0810-
144 16.545 BRACKET; MTG,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97589-544-3 02 1 0810-
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0810-
373 16.545 REINFORCEMENT; SEAT BELT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-523-2 01 1 0810-
373 16.545 REINFORCEMENT; SEAT BELT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98014-524-2 01 1 0810-
374 16.545 NUT; FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (B) M6 		1-09984-110-0 02 1 0810-
374 16.545 NUT; FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 01 1 0810-
375 16.545 CLOSING; PILLAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-98080-727-2 01 1 0810-
375 16.545 CLOSING; PILLAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-98080-728-1 01 1 0810-
376 16.545 CLOSING; PILLAR,LWR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-888-2 01 1 0810-
376 16.545 CLOSING; PILLAR,LWR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97584-618-2 01 1 0810-
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 0810-
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 0810-
380 16.545 BRACKET; HEAD LAMP
EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-97589-384-4 01 1 0810-
380 16.545 BRACKET; HEAD LAMP
EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-97589-385-3 01 1 0810-
401 16.545 GROMMET; HOLE
OD=24.5 T=7.5 		8-97224-683-0 01 1 0810-
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
EXC. INSPECTION ENGINE COVER<8GA> 		8-98030-613-2 01 1 0810-
499 16.545 PANEL; FLOOR,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-97583-828-6 01 1 0810-1207
499 16.545 PANEL; FLOOR,RR
EXC. INSPECTION ENGINE COVER<8GA> 		8-98206-873-0 01 1 1208-
528 16.545 REINFORCEMENT; PARKING BRAKE
EXC. INSPECTION ENGINE COVER<8GA> 		8-97584-619-4 01 1 0810-
534 16.545 REINFORCEMENT; SEAT BACK
EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-97583-851-3 01 1 0810-
534 16.545 REINFORCEMENT; SEAT BACK
EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98019-181-2 01 1 0810-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
