Isuzu WW
▶
TRUCKS
▶
FVM
▶
10780 - FVM(THAI)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

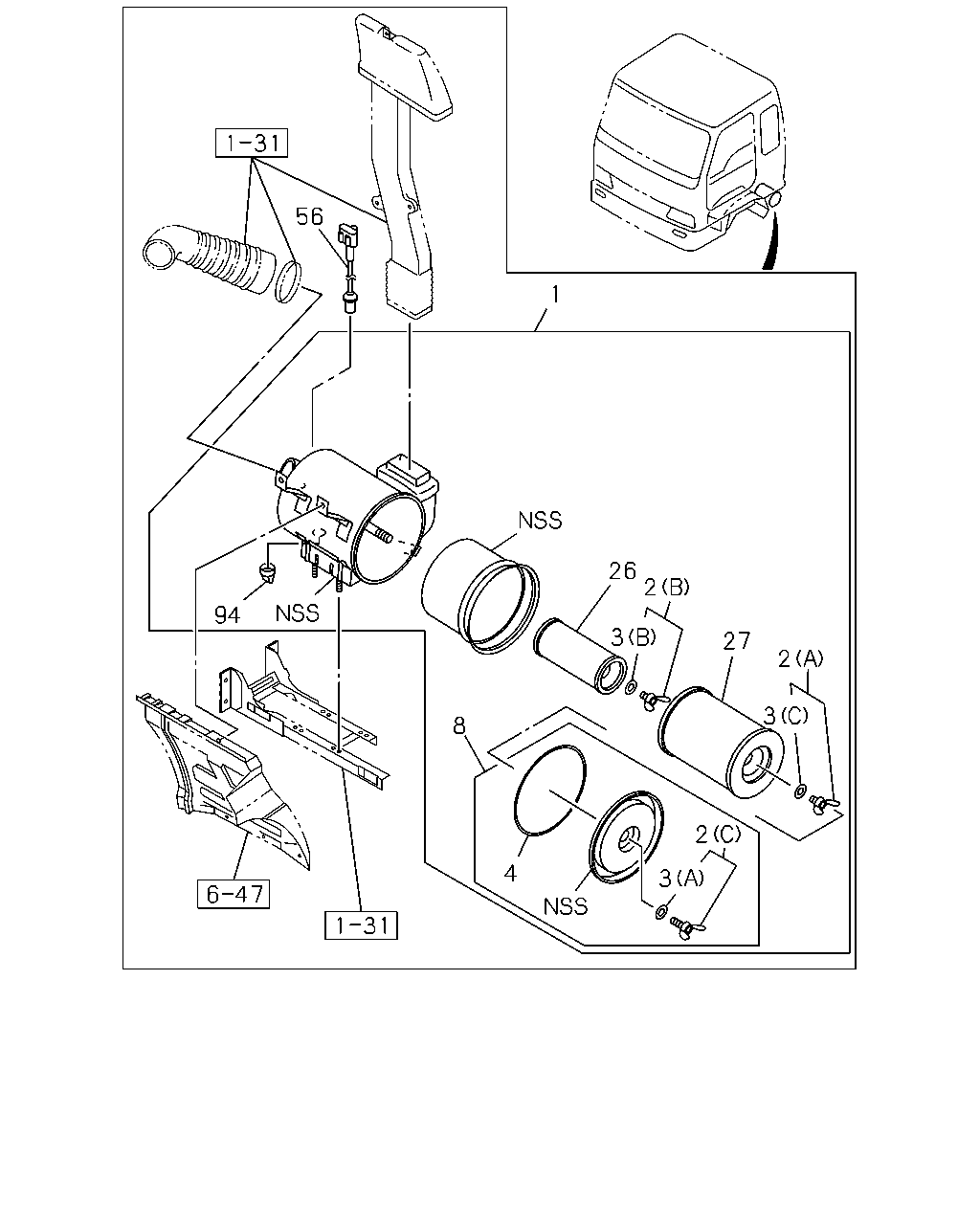

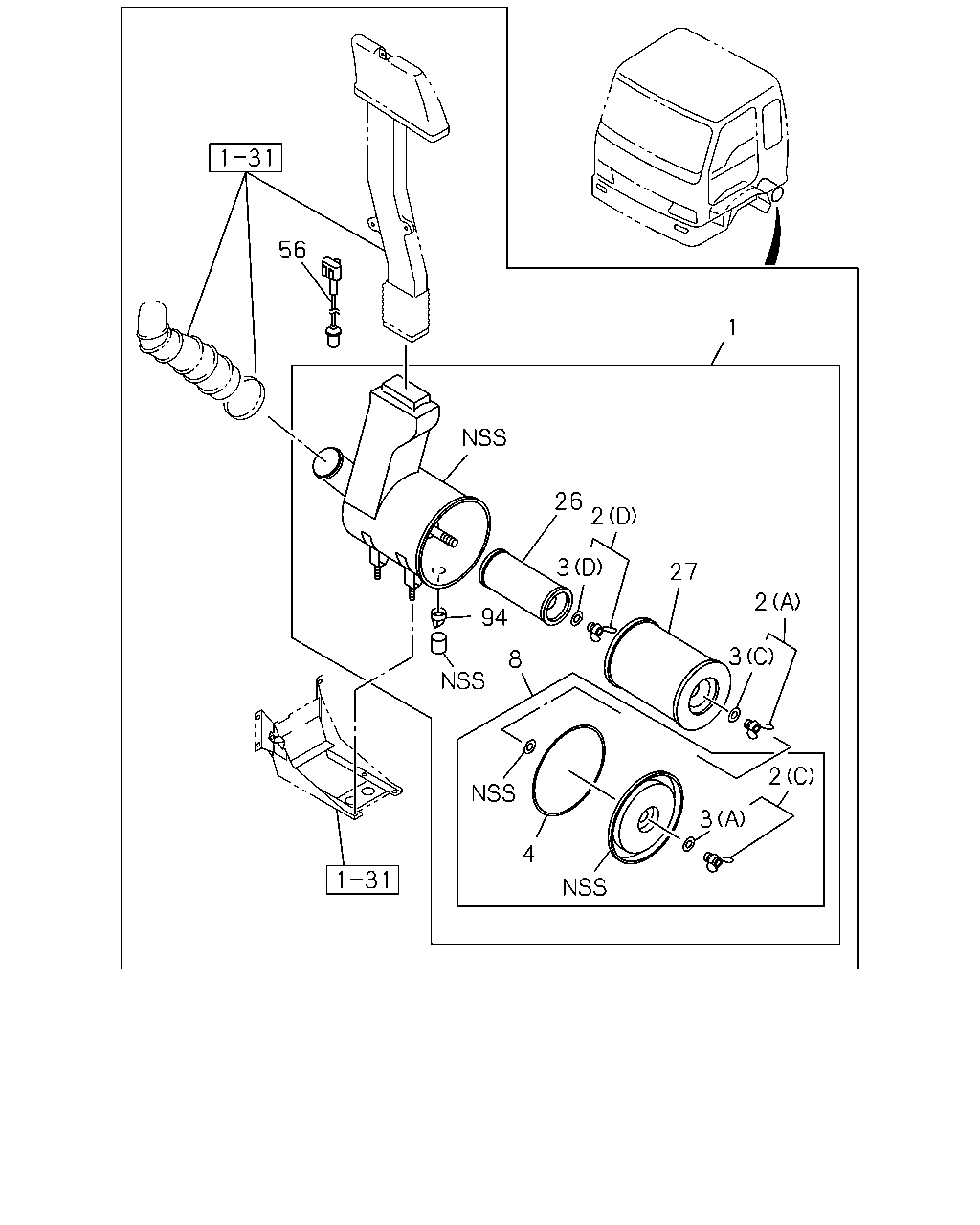

1-30 - AIR CLEANER
▶
1-30 — AIR CLEANER
(#7567) — 42 parça
Tümü
A - 6HE1 TC ENG
B - 6HH1 STD ENG
◀
[130A] 6HH1 (21 parça)
[130A] 6HE1 (21 parça)
▶
56
1
26
2
94
3
27
2
3
8
2
4
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CLEANER ASM; AIR
THA
8-97917-498-0
01
1
0101-
●
1
CLEANER ASM; AIR
THA
8-97917-500-0
01
1
0101-
●
2
NUT; WING,ELEMENT
(D) THA
8-97917-507-0
01
1
0101-
●
2
NUT; WING,ELEMENT
(A) THA
8-97917-508-0
01
1
0101-
●
●
2
NUT; WING,ELEMENT
(C) THA
8-97917-516-0
01
1
0101-
●
●
2
NUT; WING,ELEMENT
(B) THA
8-97917-509-0
01
1
0101-
●
3
WASHER; SEAL,WING NUT
(D) THA
8-97917-510-0
01
1
0101-
●
3
WASHER; SEAL,WING NUT
(A) THA
8-97917-348-0
01
1
0101-
●
●
3
WASHER; SEAL,WING NUT
(C) THA
8-97917-512-0
01
1
0101-
●
●
3
WASHER; SEAL,WING NUT
(B) THA
8-97917-511-0
01
1
0101-
●
4
GASKET; COVER TO BODY
THA
8-97917-514-0
01
1
0101-
●
4
GASKET; COVER TO BODY
THA
8-97917-513-0
01
1
0101-
●
8
COVER ASM; ACL
THA
8-97917-515-0
01
1
0101-
●
8
COVER ASM; ACL
THA
8-97921-509-0
01
1
0101-
●
26
FILTER; ACL,INNER
THA
8-97917-505-0
01
1
0101-
●
26
FILTER; ACL,INNER
THA
8-97917-518-0
01
1
0101-
●
27
FILTER; ACL,OUTER
THA
8-97917-506-0
01
1
0101-
●
27
FILTER; ACL,OUTER
THA
8-97917-519-0
01
1
0101-
●
56
SWITCH; ACL
1-81530-016-0
01
1
0101-
●
●
94
VALVE; VACUATOR
THA
8-97917-502-0
01
1
0101-
●
●
244
COVER ASM; VALVE
THA
1-14219-281-0
01
1
0207-
●
56
1
26
2
3
27
2
94
3
8
2
3
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CLEANER ASM; AIR
THA
8-97917-498-0
01
1
0101-
●
1
CLEANER ASM; AIR
THA
8-97917-500-0
01
1
0101-
●
2
NUT; WING,ELEMENT
(D) THA
8-97917-507-0
01
1
0101-
●
2
NUT; WING,ELEMENT
(A) THA
8-97917-508-0
01
1
0101-
●
●
2
NUT; WING,ELEMENT
(C) THA
8-97917-516-0
01
1
0101-
●
●
2
NUT; WING,ELEMENT
(B) THA
8-97917-509-0
01
1
0101-
●
3
WASHER; SEAL,WING NUT
(D) THA
8-97917-510-0
01
1
0101-
●
3
WASHER; SEAL,WING NUT
(A) THA
8-97917-348-0
01
1
0101-
●
●
3
WASHER; SEAL,WING NUT
(C) THA
8-97917-512-0
01
1
0101-
●
●
3
WASHER; SEAL,WING NUT
(B) THA
8-97917-511-0
01
1
0101-
●
4
GASKET; COVER TO BODY
THA
8-97917-514-0
01
1
0101-
●
4
GASKET; COVER TO BODY
THA
8-97917-513-0
01
1
0101-
●
8
COVER ASM; ACL
THA
8-97917-515-0
01
1
0101-
●
8
COVER ASM; ACL
THA
8-97921-509-0
01
1
0101-
●
26
FILTER; ACL,INNER
THA
8-97917-505-0
01
1
0101-
●
26
FILTER; ACL,INNER
THA
8-97917-518-0
01
1
0101-
●
27
FILTER; ACL,OUTER
THA
8-97917-506-0
01
1
0101-
●
27
FILTER; ACL,OUTER
THA
8-97917-519-0
01
1
0101-
●
56
SWITCH; ACL
1-81530-016-0
01
1
0101-
●
●
94
VALVE; VACUATOR
THA
8-97917-502-0
01
1
0101-
●
●
244
COVER ASM; VALVE
THA
1-14219-281-0
01
1
0207-
●
