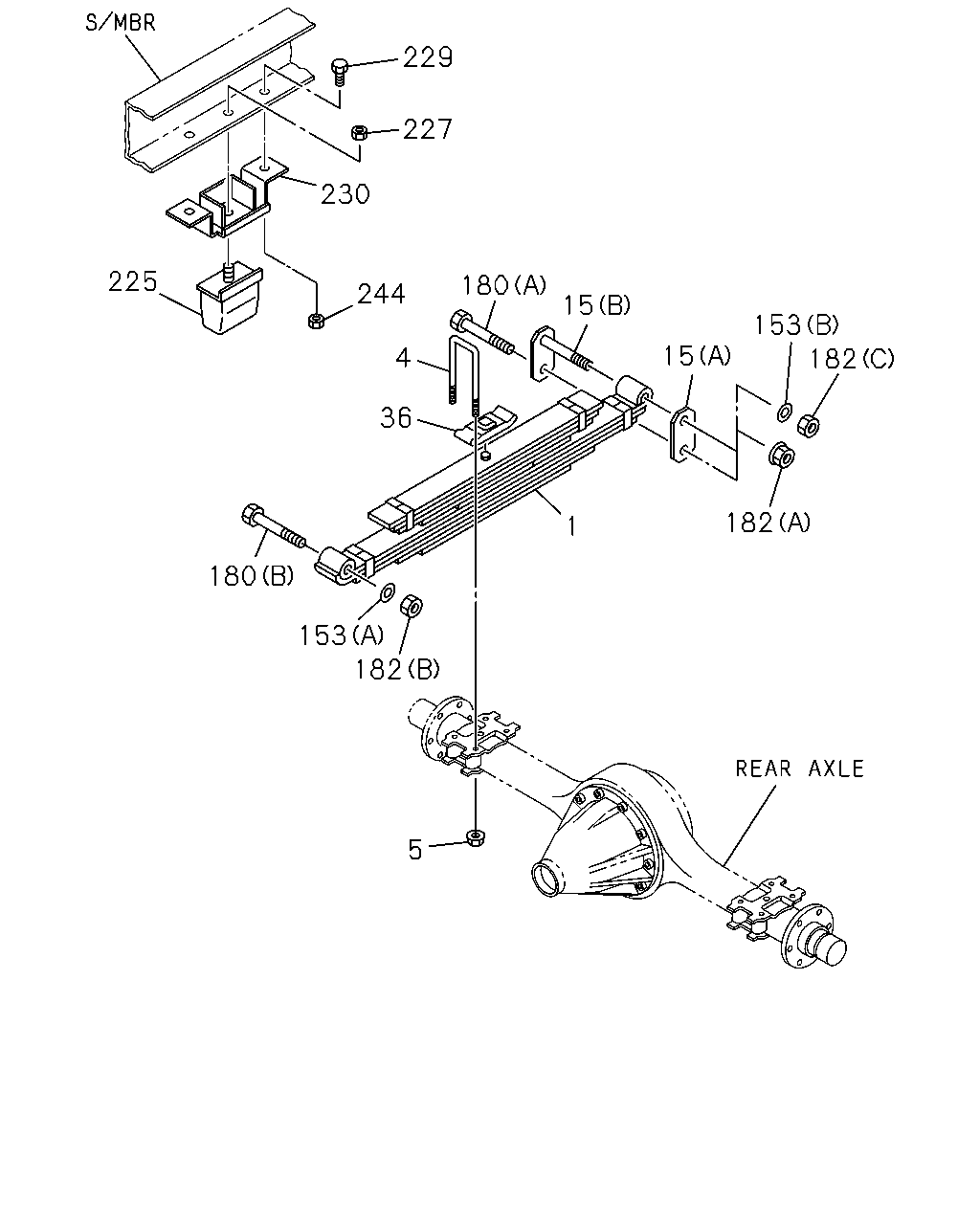

4-60 — REAR SUSPENSION
(#75652) — 23 parça
229
227
230
225
180
244
15
153
182
15
4
36
182
1
180
153
182
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 13-LEAF
8-98089-683-1
02
1
0810-
4
07.516 U-BOLT; RR SPR
L=420
1-51371-196-2
04
1
0810-
5
07.529 NUT; U-BOLT,RR SPR
M18 FLANGE
1-09440-039-1
08
1
0810-
15
07.523 SHACKLE; RR SPR
(A)
8-94118-511-3
02
1
0810-
15
07.523 SHACKLE; RR SPR
(B)
8-97360-011-0
02
1
0810-
36
07.529 SEAT; HELPER RUBBER,RR SPR
07.518
1-51372-059-0
02
1
0810-
153
07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5
8-98011-489-0
04
1
0811-
153
07.529 WASHER; PL,SPRING PIN
(A) ID=19
8-97360-119-0
02
1
0810-
180
07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122
8-98011-487-0
02
1
0811-
180
07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130
8-98011-488-0
02
1
0811-
180
07.529 PIN; RR SPR
07.427 (A) M16X122 FLANGE
8-97360-110-0
02
1
0810-0810
180
07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE
8-97360-110-0
02
1
0811-
180
07.529 PIN; RR SPR
(B) M18X130 FLANGE
8-97360-112-0
02
1
0810-0810
180
07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE
8-97360-112-0
02
1
0811-
182
07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (C) M16
0-91110-516-0
04
1
0811-
182
07.529 NUT; PIN,RR SPR
(B) M18
0-91110-518-0
02
1
0810-
182
07.529 NUT; PIN,RR SPR
07.427 (A) M16 FLANGE
8-97360-125-0
04
1
0810-0810
182
07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE
8-97360-125-0
04
1
0811-
225
07.535 RUBBER; CUSHION,RR SPR
8-98025-096-1
02
1
0810-
227
07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE
0-91180-112-0
02
1
0810-
229
07.535 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
04
1
0810-
230
07.518 SPACER; CUSHION RUBBER
8-98049-968-0
02
1
0810-
244
07.242 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
04
1
0810-
