Isuzu WW
▶
TRUCKS
▶
NPS
▶
51189 - NPS(RHD)EURO1
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶

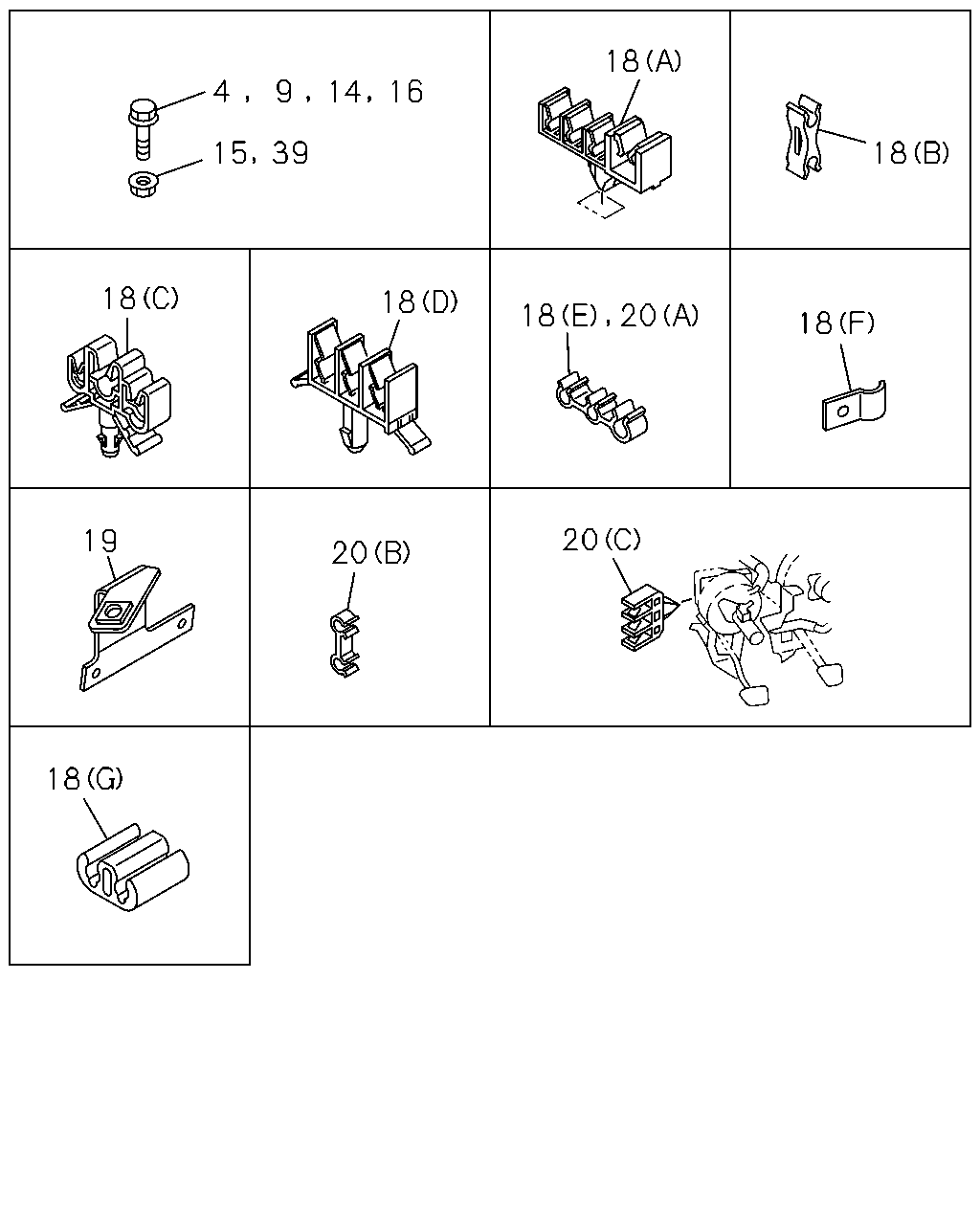

3-58 — FIXING PARTS; OIL PIPING
(#75633) — 20 parça
18
9
16
4
14
18
15
39
18
18
18
20
19
20
18
18
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
04.686 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
02
1
0810-
9
04.686 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0810-
14
04.686 BOLT; CLIP,OIL PIPE
06.216 M8X25 FLANGE
0-28650-825-0
02
1
0810-
15
04.686 NUT; CLIP,OIL PIPE
01.062 M8 FLANGE
0-91180-108-0
02
1
0810-
16
04.686 BOLT; BRKT TO FRAME
01.531 M8X20 FLANGE
0-28650-820-0
01
1
0810-
18
04.686 CLIP; BRK PIPE
(A) ID=10 & 4.76X3
8-97168-819-0
01
1
0810-
18
04.686 CLIP; BRK PIPE
(A) ID=10 & 4.76X3
8-97168-819-0
02
1
0810-
18
04.686 CLIP; BRK PIPE
(F) B=18 L=20
1-09700-372-0
02
1
0810-
18
04.686 CLIP; BRK PIPE
(E) ID=6.4 & 4.8X2
8-94146-043-0
01
1
0810-
18
04.686 CLIP; BRK PIPE
(G) ID=4.8X2
8-94389-060-0
01
1
0810-
18
04.686 CLIP; BRK PIPE
03.162 (B) ID=10 & 6.4 & 4.8
8-97064-484-1
01
1
0810-
18
04.686 CLIP; BRK PIPE
03.162 (B) ID=10 & 6.4 & 4.8
8-97064-484-1
02
1
0810-
18
04.686 CLIP; BRK PIPE
(C) ID=12 & 6.35 & 4.76
8-97202-954-1
03
1
0810-
18
04.686 CLIP; BRK PIPE
(D) ID=10 & 4.76X3
8-97326-158-1
04
1
0810-
18
04.686 CLIP; BRK PIPE
(D) ID=10 & 4.76X3
8-97326-158-1
07
1
0810-
19
04.686 BRACKET; OIL PIPE
8-97389-845-2
01
1
0810-
20
04.686 CLIP; BRK PIPE
(A) ID=6.4 & 4.8X2
8-94146-043-0
01
1
0810-
20
04.686 CLIP; BRK PIPE
(C) ID=6.35 & 4.76X2
8-94250-923-2
01
1
0810-
20
04.686 CLIP; BRK PIPE
(B)
8-94338-104-0
01
1
0810-
39
04.686 NUT; BRKT FIX
01.062 M8 FLANGE
0-91180-108-0
01
1
0810-
