◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10780 - FVM(THAI) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-87 - COUPLING; INJECTION PUMP ▶
0-87 — COUPLING; INJECTION PUMP (#7563) — 54 parça

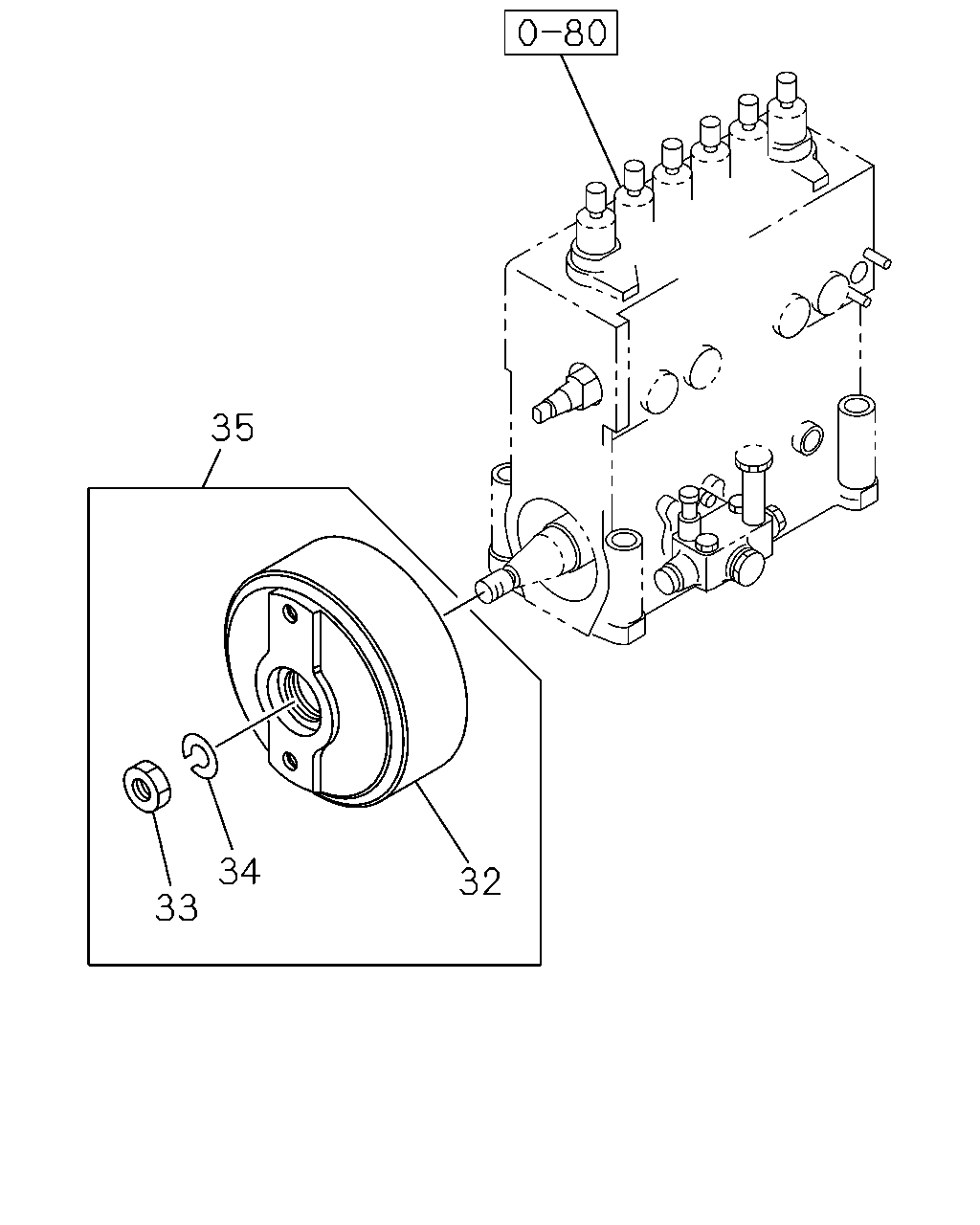

çizim 7514
35 34 32 33
BalonParca AdiParca NoAdetTipApplied Date A B
33 NUT; DAMPER 1-15619-132-0 01 1 0101- ●
34 WASHER; DAMPER 1-15619-131-0 01 1 0101- ●
35 DAMPER ASM; INJ PUMP 1-15744-016-0 01 1 0101- ●
çizim 7882
5 1 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-031-0 01 1 0101- ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-041-0 01 1 0101- ●
1 COUPLING; INJ PUMP DRIVE 1-15780-193-0 01 1 0101- ●
3 NUT; COUPLING FIX,INJ PUMP 1-15619-132-0 01 1 0101- ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 0101- ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 0101- ●
çizim 41252
14 6 20 13 9 11 5 2 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-031-0 01 1 0101- ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-041-0 01 1 0101- ●
1 COUPLING; INJ PUMP DRIVE 1-15780-193-0 01 1 0101- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 0101- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-079-0 01 1 0101- ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 0101- ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 0101- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 0101- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-099-0 01 1 0101- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 0101- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-204-0 01 1 0101- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 0101- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-098-0 02 1 0101- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 0101- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-016-0 02 1 0101- ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-188-0 02 1 0101- ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-076-0 02 1 0101- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 0101- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-204-0 01 1 0101- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 0101- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-098-0 02 1 0101- ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 0101- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-205-0 02 1 0101- ●

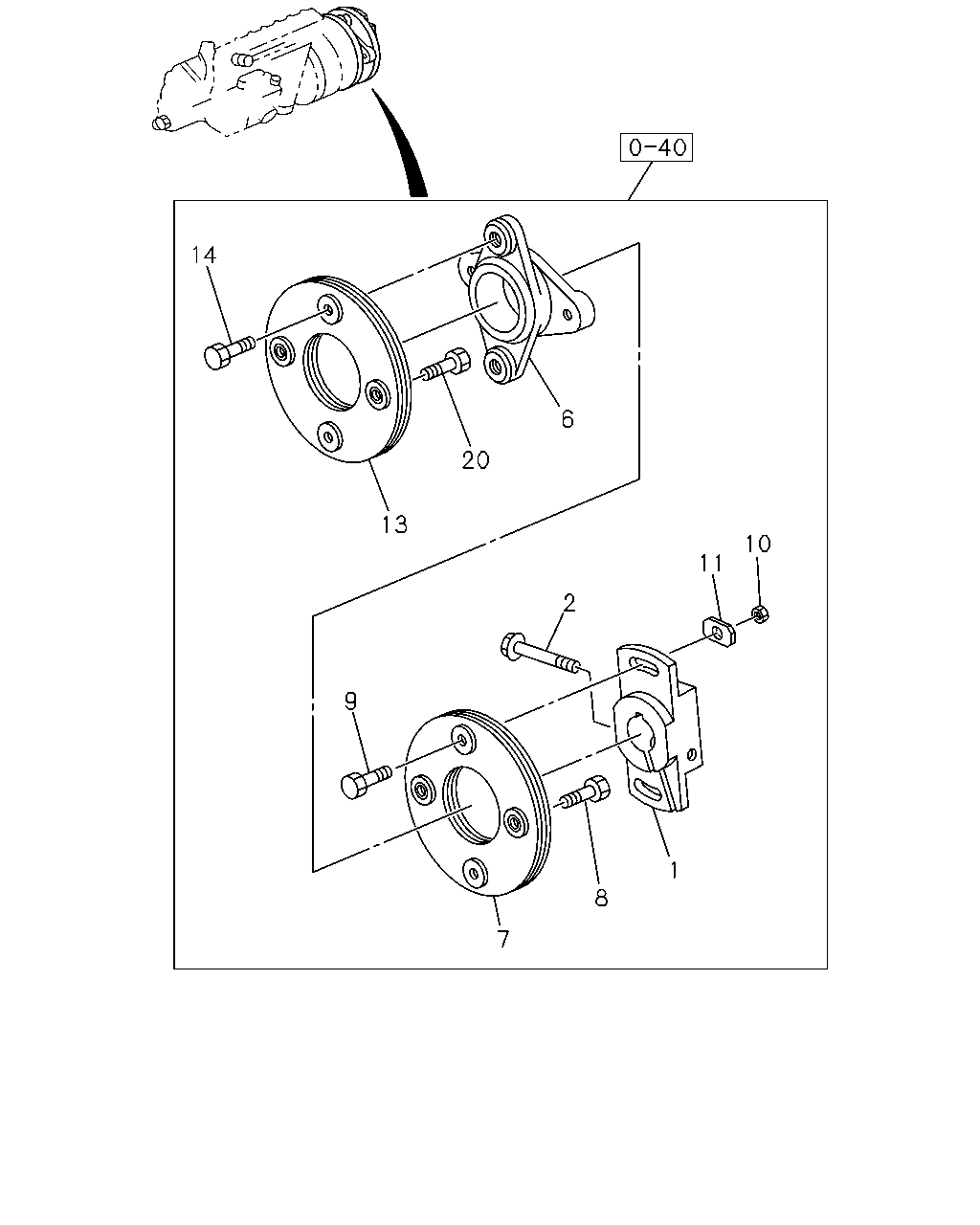

çizim 42768
14 6 20 13 10 11 2 9 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-031-0 01 1 0101- ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-041-0 01 1 0101- ●
1 COUPLING; INJ PUMP DRIVE 1-15780-193-0 01 1 0101- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 0101- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-079-0 01 1 0101- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 0101- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-099-0 01 1 0101- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 0101- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-204-0 01 1 0101- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 0101- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-098-0 02 1 0101- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 0101- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-016-0 02 1 0101- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-073-0 02 1 0101- ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-188-0 02 1 0101- ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-076-0 02 1 0101- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 0101- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-204-0 01 1 0101- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 0101- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-098-0 02 1 0101- ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 0101- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-205-0 02 1 0101- ●
