3-75 — BRAKE PIPING; AIR,FRONT (#756) — 105 parça

98 98 32 98 24 26 37 32 24 26 106 107 35 32 37 25 51 41 65 66 123 124 120 125 52 115 114 50 101 100 99 98 122 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE; AIR,RELAY VLV TO UNION (A) L=957 SERVICED BY L=1000	1-47434-476-0	01	1	9204-9211
24	PIPE; AIR,RELAY VLV TO UNION (A) L=879 SERVICED BY L=900	1-47437-966-0	01	1	9212-9212
24	PIPE; AIR,RELAY VLV TO UNION (A) L=879 SERVICED BY L=900	1-47426-413-0	01	1	9301-9504
24	PIPE; AIR,RELAY VLV TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=879 SERVICED BY L=900	1-47426-413-0	01	1	9505-
24	PIPE; AIR,RELAY VLV TO UNION (B) L=957 SERVICED BY L=1000	1-47434-476-0	01	1	9204-9211
24	PIPE; AIR,RELAY VLV TO UNION (B) L=871	1-47499-551-0	01	1	9212-9212
24	PIPE; AIR,RELAY VLV TO UNION (B) L=871	1-49111-071-0	01	1	9301-9504
24	PIPE; AIR,RELAY VLV TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=871	1-49111-071-0	01	1	9505-
25	UNION; AIR PIPE M16 L=42	9-09233-010-1	02	1	9204-9504
25	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=42	9-09233-010-1	02	1	9505-
26	PIPE; AIR,UNION TO FLEX HOSE L=329 SERVICED BY L=350	1-47426-403-0	01	1	9204-9302
26	PIPE; AIR,UNION TO FLEX HOSE L=331 SERVICED BY L=400	1-49111-434-0	01	1	9303-9504
26	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=331 SERVICED BY L=400	1-49111-434-0	01	1	9505-
32	HOSE; FLEX,FRT L=630	0-07475-630-1	02	1	9204-9504
32	HOSE; FLEX,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=630	0-07475-630-1	02	1	9505-
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9204-9504
35	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	02	1	9505-
37	PIPE; AIR,UNION TO FLEX HOSE L=329 SERVICED BY L=350	1-47426-403-0	01	1	9204-9302
37	PIPE; AIR,UNION TO FLEX HOSE L=331 SERVICED BY L=350	1-47426-403-0	01	1	9303-9504
37	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=331 SERVICED BY L=350	1-47426-403-0	01	1	9505-
41	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	02	1	9204-9504
41	GROMMET; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=28 OD=35 T=25	1-09332-011-1	02	1	9505-
50	SLEEVE; RUBBER,NYLON TUBE ID=29 OD=39 L=40	1-09337-013-0	03	1	9204-9205
50	SLEEVE; RUBBER,NYLON TUBE ID=29 OD=39 L=40	1-09337-013-0	06	1	9206-9504
50	SLEEVE; RUBBER,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=29 OD=39 L=40	1-09337-013-0	06	1	9505-
51	GROMMET; NYLON TUBE ID=28 OD=35 T=25	1-09332-011-1	01	1	9204-9504
51	GROMMET; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=28 OD=35 T=25	1-09332-011-1	01	1	9505-
52	CONNECTOR; NYLON TUBE	1-09660-564-0	01	1	9204-9504
52	CONNECTOR; NYLON TUBE DUAL AIR GAUGE<UG2>	1-09660-564-0	01	1	9505-
65	BRACKET; FLEX HOSE	1-47476-210-0	01	1	9204-9504
65	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47476-210-0	01	1	9505-
65	BRACKET; FLEX HOSE	1-47476-211-0	01	1	9204-9504
65	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47476-211-0	01	1	9505-
66	BOLT; HOSE BRKT M8X25 FLANGE	0-28010-825-0	04	1	9204-9204
66	BOLT; HOSE BRKT M8X25 FLANGE	0-28080-825-0	04	1	9205-9504
66	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	04	1	9505-
98	TUBE; NYLON GREEN OD=3/8" L=30000	1-09368-248-0	AR	1	9204-9504
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GREEN OD=3/8" L=30000	1-09368-248-0	AR	1	9505-
98	TUBE; NYLON GREEN OD=1/2" L=30000	1-09368-251-0	AR	1	9204-9504
98	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) GREEN OD=1/2" L=30000	1-09368-251-0	AR	1	9505-
99	NUT; SLEEVE OD=3/8"	1-09660-557-0	AR	1	9204-9504
99	NUT; SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3/8"	1-09660-557-0	AR	1	9505-
99	NUT; SLEEVE OD=1/2"	1-09660-558-0	AR	1	9204-9504
99	NUT; SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=1/2"	1-09660-558-0	AR	1	9505-
100	SLEEVE; TUBE ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9204-9504
100	SLEEVE; TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9505-
100	SLEEVE; TUBE ID=12.93 OD=15.85 L=10.92	1-09666-061-0	AR	1	9204-9504
100	SLEEVE; TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.93 OD=15.85 L=10.92	1-09666-061-0	AR	1	9505-
101	RING; INSERT OD=1/2"	1-09669-107-0	AR	1	9204-9504
101	RING; INSERT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=1/2"	1-09669-107-0	AR	1	9505-
101	RING; INSERT OD=3/8"	1-09669-108-0	AR	1	9204-9504
101	RING; INSERT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3/8"	1-09669-108-0	AR	1	9505-
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9204-9504
106	NUT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M16	9-99111-416-0	02	1	9505-
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9505-
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9204-9312
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16.2	9-09150-516-0	02	1	9505-
107	WASHER; LK,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> ID=16.2	9-09150-516-0	02	1	9505-
114	UNION; NYLON TUBE	1-09654-282-0	01	1	9204-9504
114	UNION; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09654-282-0	01	1	9505-
115	NUT; TUBE UNION M16	9-99111-316-0	01	1	9204-9504
115	NUT; TUBE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-316-0	01	1	9505-
120	UNION; AIR PIPE	1-09656-451-1	01	1	9204-9504
120	UNION; AIR PIPE DUAL AIR GAUGE<UG2>	1-09656-451-1	01	1	9505-
122	CONNECTOR; FLEX HOSE L=35	1-09660-039-0	02	1	9204-9504
122	CONNECTOR; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=35	1-09660-039-0	02	1	9505-
123	NUT; HOSE CONNECTOR M16	9-99111-416-0	02	1	9204-9404
123	NUT; HOSE CONNECTOR M16	9-99111-416-0	01	1	9405-9504
123	NUT; HOSE CONNECTOR DUAL AIR GAUGE<UG2> M16	9-99111-416-0	01	1	9505-
124	WASHER; LK,CONNECTOR ID=16.2	9-09150-516-0	02	1	9204-9404
124	WASHER; LK,CONNECTOR ID=16.2	9-09150-516-0	01	1	9405-9504
124	WASHER; LK,CONNECTOR DUAL AIR GAUGE<UG2> ID=16.2	9-09150-516-0	01	1	9505-
125	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9204-9504
125	GASKET; FLEX HOSE DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9505-

118 127 128 126 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=361	1-47482-334-0	01	1	9204-9212
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=361	1-47497-112-0	01	1	9301-
126	SPACER; PIPE UNION	1-09503-191-0	02	1	9204-9504
126	SPACER; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09503-191-0	02	1	9505-
127	NUT; UNION PLATE,ENG HOOD M6 FLANGE	1-09984-141-0	01	1	9204-9504
127	NUT; UNION PLATE,ENG HOOD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6 FLANGE	1-09984-141-0	01	1	9505-
128	PLATE; 2 WAY UNION	1-71998-372-0	01	1	9204-9504
128	PLATE; 2 WAY UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-71998-372-0	01	1	9505-
129	SEAL; UNION PLATE	1-79998-224-0	01	1	9204-9504
129	SEAL; UNION PLATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79998-224-0	01	1	9505-

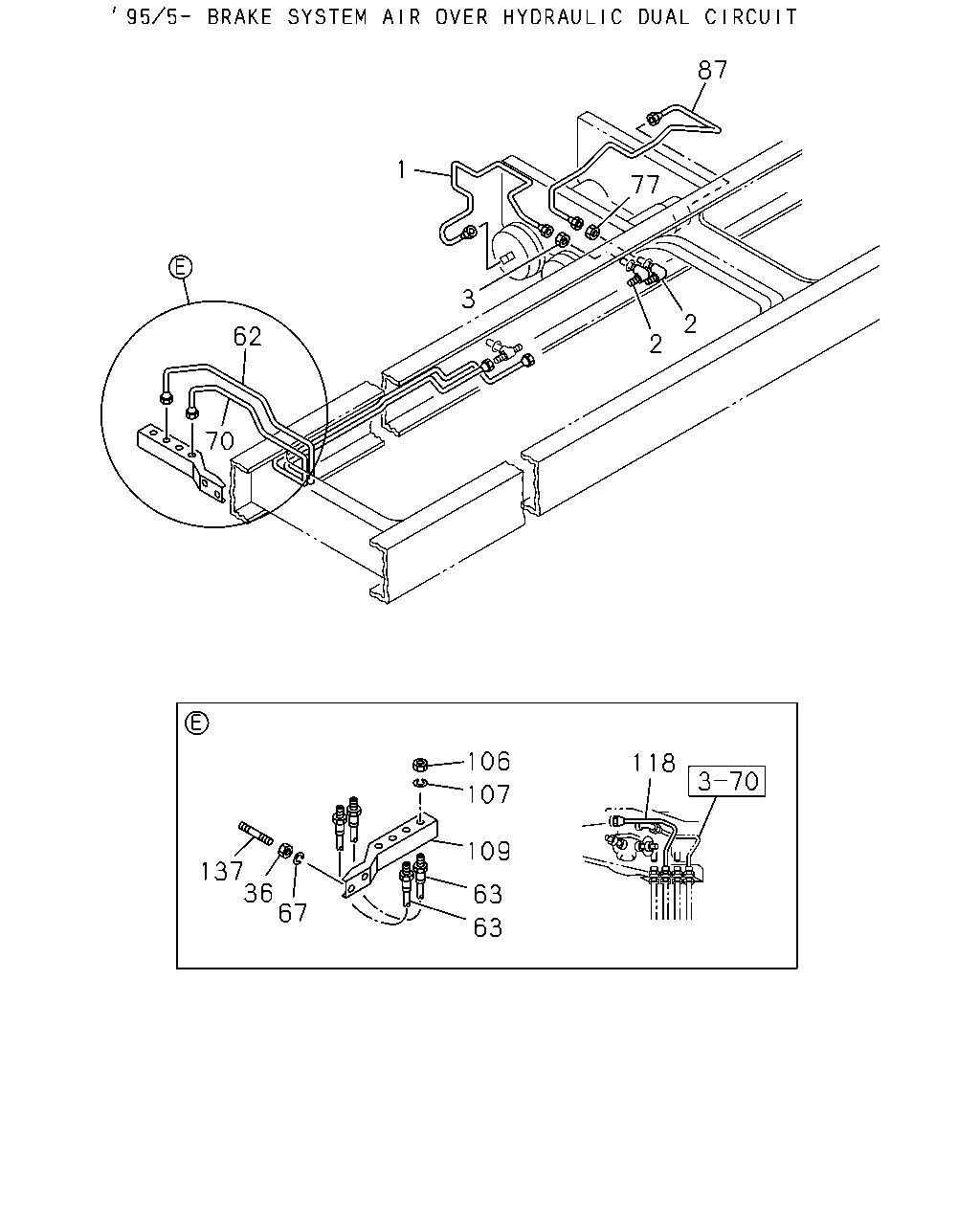

87 1 77 3 2 62 2 70 106 118 107 109 137 36 67 63 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1198 SERVICED BY L=1250	1-47426-416-0	01	1	9505-
2	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16 ELBOW	9-09235-210-1	02	1	9505-
3	NUT; PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	01	1	9505-
36	NUT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10	9-09110-410-0	02	1	9505-
62	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=3085 SERVICED BY L=3300	1-47426-426-0	01	1	9505-
63	HOSE; FLEX,BRK LINE,CAB SIDE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=630	0-07424-630-0	01	1	9505-
63	HOSE; FLEX,BRK LINE,CAB SIDE EXC. DUAL AIR GAUGE<UG2> L=630	0-07424-630-0	01	1	9505-
67	WASHER; LK,HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10.2	9-09150-510-0	02	1	9505-
70	PIPE; AIR,FLEX HOSE TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=3173 SERVICED BY L=3300	1-47426-426-0	01	1	9505-
77	NUT; PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	01	1	9505-
87	PIPE; AIR,UNION TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1371 SERVICED BY L=1400	1-47426-418-0	01	1	9505-
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9204-9504
106	NUT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M16	9-99111-416-0	02	1	9505-
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9505-
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9204-9312
107	WASHER; LK,FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=16.2	9-09150-516-0	02	1	9505-
107	WASHER; LK,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> ID=16.2	9-09150-516-0	02	1	9505-
109	BRACKET; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47475-680-2	01	1	9505-
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=361	1-47482-334-0	01	1	9204-9212
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=361	1-47497-112-0	01	1	9301-
137	STUD; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 L=40	9-04411-025-0	02	1	9505-
