8-90 — RADIO AND TV (#75554) — 12 parça

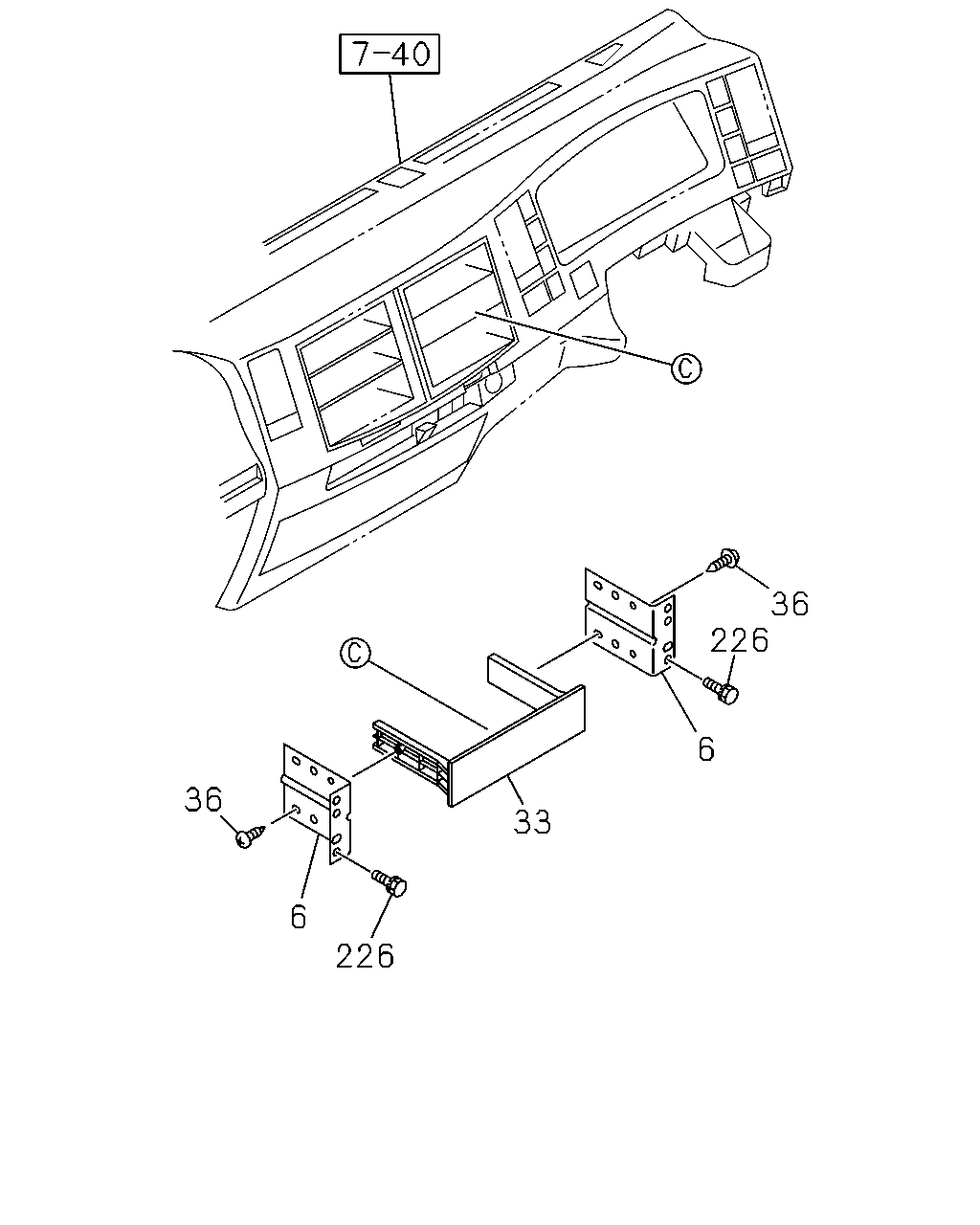

çizim 60002
36 226 6 36 33 6 226
BalonParca AdiParca NoAdetTipApplied Date
6 09.645 BRACKET; RADIO TO PANEL 8-97585-617-0 02 1 0810-
33 09.650 COVER; RADIO
BLACK 		8-97407-896-2 01 1 0810-
36 09.779 SCREW; COVER
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0810-
226 09.647 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0810-1101
226 09.647 BOLT; BRKT
16.100 M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 02 1 1102-1212
226 09.647 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 1301-

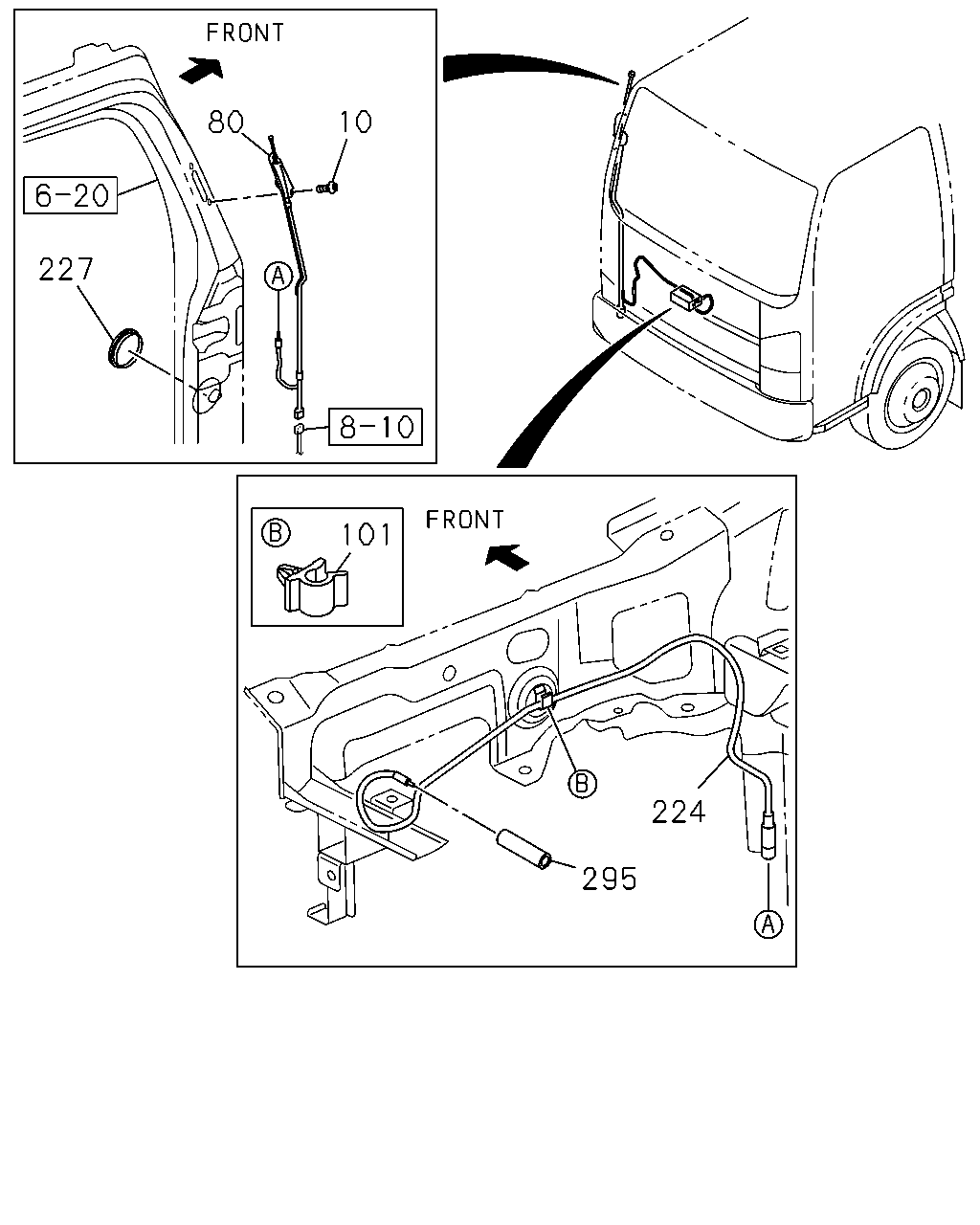

çizim 60005
80 10 227 101 224 295
BalonParca AdiParca NoAdetTipApplied Date
10 09.647 SCREW; ANTENNA CABLE
M5X11 TAPPING W/TORQUES 		8-98061-742-0 02 1 0810-
80 09.645 ANTENNA 8-97387-265-3 01 1 0810-
101 09.649 CLIP; FEEDER TO BRKT
09.647 ID=4.8 		8-94128-483-0 01 1 0810-
224 09.647 CABLE; EXT,FEEDER 8-98029-970-1 01 1 0810-
227 09.647 PROTECTOR; EDGE 8-98053-117-0 01 1 0810-
295 09.665 INSULATOR; ANTENNA 8-98095-617-1 01 1 0810-
