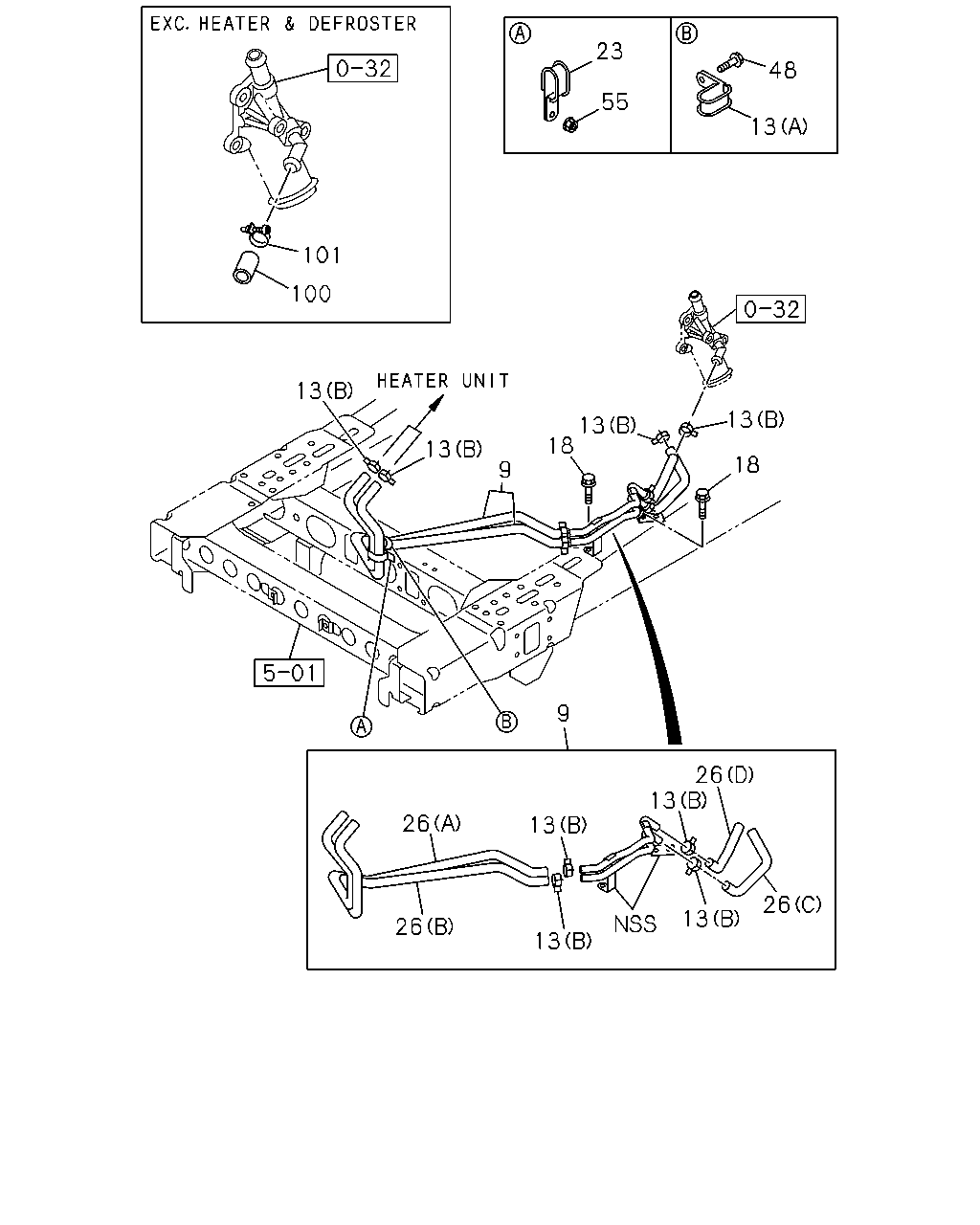

8-45 — HEATER PIPING
(#75552) — 18 parça
23
48
55
13
101
100
13
13
13
18
13
18
9
9
26
13
26
13
26
13
26
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
08.846 PIPE; HTR
HEATER & DEFROSTER(C41)
8-98064-107-1
01
1
0810-0810
13
08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41) (A) B=14
8-98029-678-0
01
1
0810-0810
13
08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41) 03.278 (B) ID=22
8-97359-141-0
04
1
0810-0810
13
08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41) 03.278 (B) ID=22
8-97359-141-0
04
1
0810-0810
18
08.866 BOLT; WATER HOSE
HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE
0-28650-825-0
02
1
0810-0810
23
08.846 CLIP; WATER HOSE,DASH LWR
HEATER & DEFROSTER(C41) B=18
8-97359-144-0
01
1
0810-0810
26
08.846 HOSE; HTR
HEATER & DEFROSTER(C41) (A)
8-98050-293-0
01
1
0810-0810
26
08.846 HOSE; HTR
HEATER & DEFROSTER(C41) (B)
8-98050-294-0
01
1
0810-0810
26
08.846 HOSE; HTR
HEATER & DEFROSTER(C41) (C)
8-98050-295-0
01
1
0810-0810
26
08.846 HOSE; HTR
HEATER & DEFROSTER(C41) (D)
8-98050-296-0
01
1
0810-0810
48
09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41) 03.162 M6X12 FLANGE
0-28050-612-0
01
1
0810-0810
55
08.845 NUT; CLAMP
HEATER & DEFROSTER(C41) 01.062 M6 FLANGE
0-91180-106-0
01
1
0810-0810
100
08.846 CAP; RUBBER,WATER PIPE
01.166
8-94107-793-0
01
1
1406-
100
08.846 CAP; RUBBER,WATER PIPE
EXC. HEATER & DEFROSTER(C41) 01.166
8-94107-793-0
01
1
0810-0810
100
08.846 CAP; RUBBER,WATER PIPE
01.166
8-94107-793-0
01
1
0811-1202
101
08.846 CLIP; CAP,WATER PIPE
01.166 ID=25
8-94233-115-0
01
1
1406-
101
08.846 CLIP; CAP,WATER PIPE
EXC. HEATER & DEFROSTER(C41) 01.166 ID=25
8-94233-115-0
01
1
0810-0810
101
08.846 CLIP; CAP,WATER PIPE
01.166 ID=25
8-94233-115-0
01
1
0811-1202
