◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51188 - NPR BUS(RHD)EURO1 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#75547) — 15 parça
çizim 59636
1 2 110 480 81
BalonParca AdiParca NoAdetTipApplied Date
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> 		8-98126-678-2 01 1 0810-
1 09.735 METER COMPL; CLUSTER
EXC. SPEEDOMETER MILE<UC1> 		8-98100-029-2 01 1 0810-
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 0810-
81 09.735 METER SUB ASM
SPEEDOMETER MILE<UC1> 		8-98126-835-0 01 1 0810-
81 09.735 METER SUB ASM
EXC. SPEEDOMETER MILE<UC1> 		8-98107-762-0 01 1 0810-
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 0810-
480 09.748 COVER; METER
BLACK 		8-98054-433-0 01 1 0810-

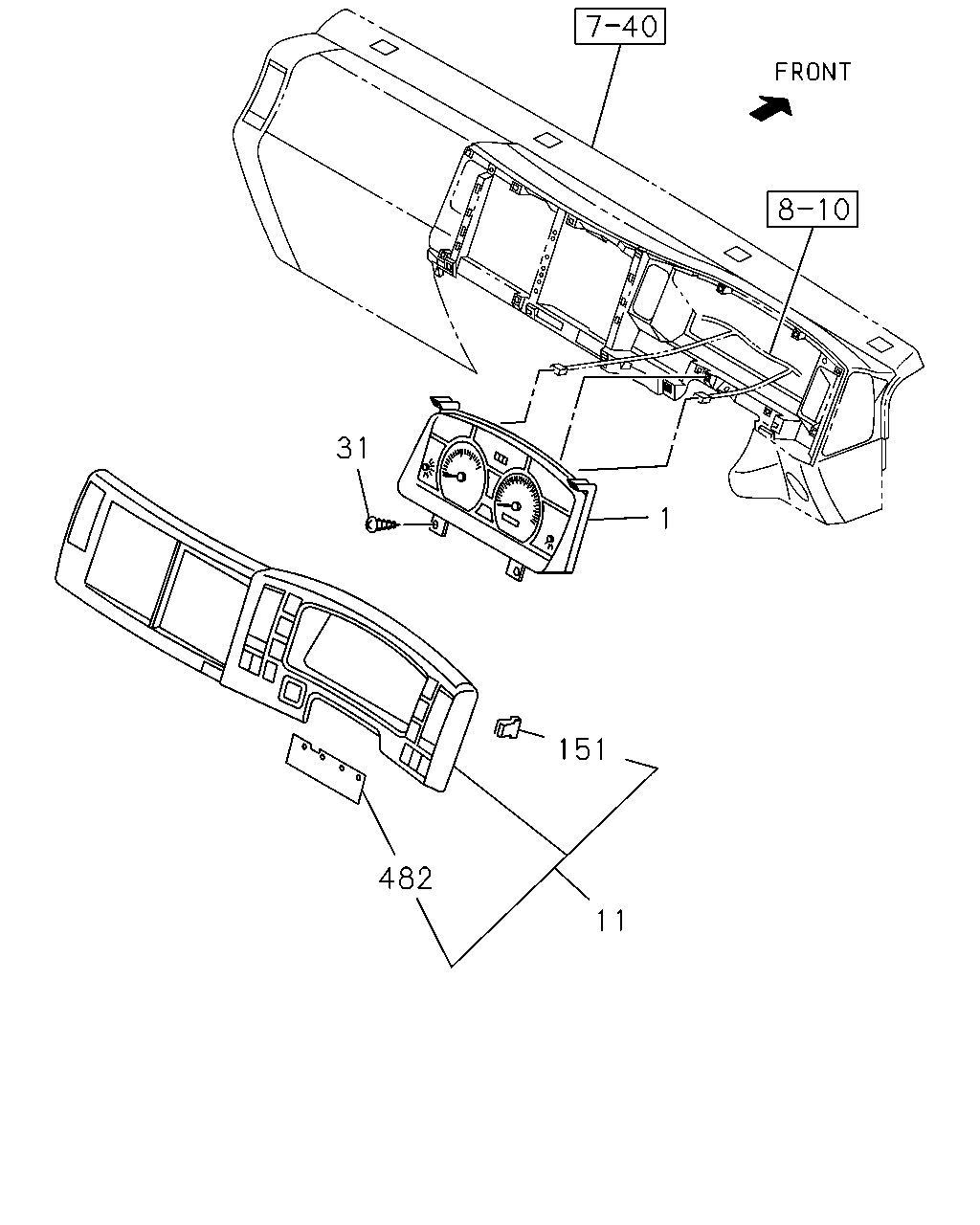

çizim 60075
31 1 151 482 11
BalonParca AdiParca NoAdetTipApplied Date
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> 		8-98126-678-2 01 1 0810-
1 09.735 METER COMPL; CLUSTER
EXC. SPEEDOMETER MILE<UC1> 		8-98100-029-2 01 1 0810-
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 0810-
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0810-1101
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301-
151 09.747 CLIP; METER CLUSTER
16.085 		8-98021-271-0 13 1 0810-
482 09.772 SEAL; CLUSTER METER 8-98116-842-0 01 1 0810-
