8-10 — WIRING HARNESS AND FUSE
(#75545) — 73 parça
◀
[810A] FRAME HARNESS (21 parça)
[810A] OTHER HARNESS(NO.2) (12 parça)
[810A] OTHER HARNESS(NO.1) (4 parça)
[810A] CAB HARNESS (31 parça)
[810A] '12/8- RELAY;CAB HARNESS (2 parça)
[810A] -'12/7 RELAY;CAB HARNESS (2 parça)
[810A] OTHER HARNESS(NO.3) (1 parça)
▶

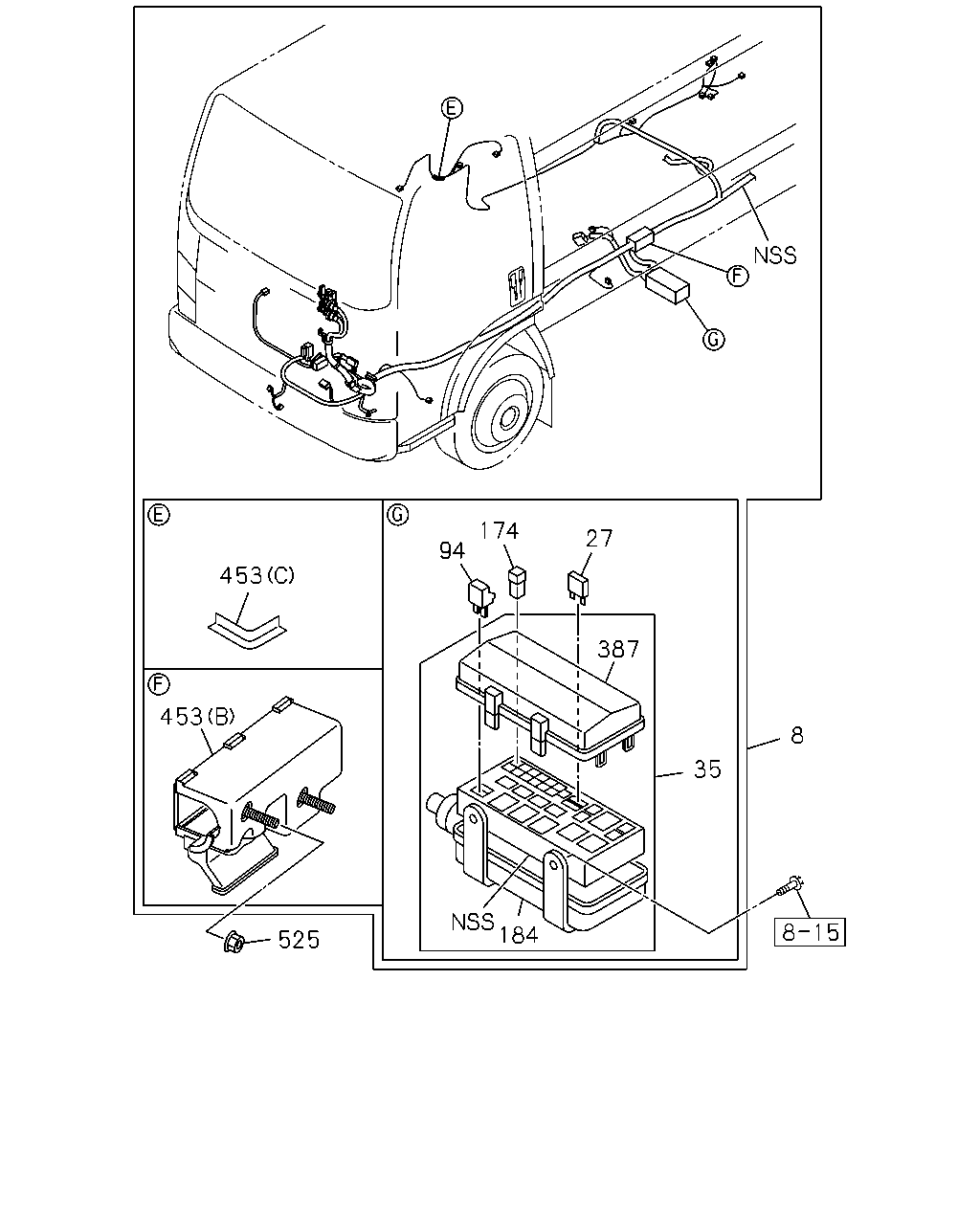

453
453
525
94
174
27
387
35
8
184
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
02.480 HARNESS; FRAME,FRT
EXC. FUEL SEDIMENTER WITH HEATER<6HU>
8-98156-020-2
01
1
1008-1101
8
02.480 HARNESS; FRAME,FRT
EXC. FUEL SEDIMENTER WITH HEATER<6HU>
8-98180-744-1
01
1
1102-1409
8
02.480 HARNESS; FRAME,FRT
EXC. FUEL SEDIMENTER WITH HEATER<6HU>
8-98294-396-0
01
1
1410-
8
02.480 HARNESS; FRAME,FRT
8-98126-189-3
01
1
0810-1007
8
02.480 HARNESS; FRAME,FRT
FUEL SEDIMENTER WITH HEATER<6HU>
8-98126-189-5
01
1
1008-1101
8
02.480 HARNESS; FRAME,FRT
FUEL SEDIMENTER WITH HEATER<6HU>
8-98180-742-1
01
1
1102-1409
8
02.480 HARNESS; FRAME,FRT
FUEL SEDIMENTER WITH HEATER<6HU>
8-98294-394-0
01
1
1410-
27
08.965 FUSE UNIT
02.485 10A RED
8-98054-257-0
AR
1
0810-
35
02.530 BOX; RELAY & FUSE
8-98030-763-0
01
1
0810-
94
02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A
8-94422-639-1
02
1
0810-
174
08.965 FUSE; SLOW BLOW
30A PINK
8-98079-191-0
AR
1
0810-
174
08.965 FUSE; SLOW BLOW
40A GREEN
8-98079-192-0
AR
1
0810-
174
08.965 FUSE; SLOW BLOW
50A RED
8-98079-193-0
AR
1
0810-
174
08.965 FUSE; SLOW BLOW
60A YELLOW
8-97219-407-0
AR
1
0810-
184
02.559 COVER; RELAY & FUSE BOX
8-98030-766-0
01
1
0810-
387
02.483 COVER; RELAY BOX
8-98081-367-0
01
1
0810-
453
02.483 PROTECTOR; HARNESS
(C)
8-94417-716-0
02
1
0810-1101
453
02.483 PROTECTOR; HARNESS
(C)
8-94417-716-0
03
1
1102-
453
02.483 PROTECTOR; HARNESS
(B)
8-98031-620-1
01
1
0810-
453
02.483 PROTECTOR; HARNESS
(A)
8-98034-039-1
01
1
0810-
525
08.919 NUT; CLIP
01.062 M8 FLANGE
0-91180-108-0
02
1
0810-

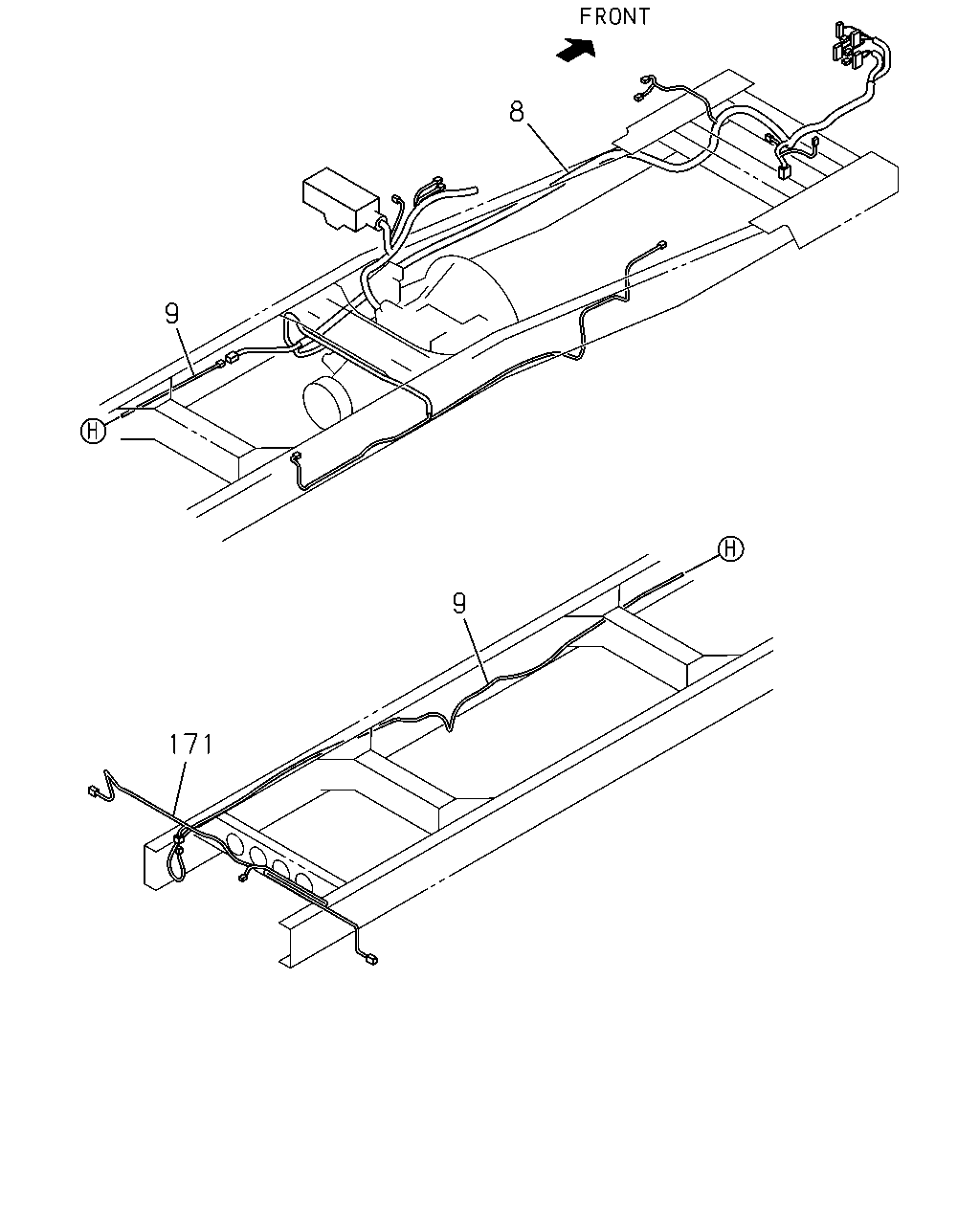

8
9
171
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
02.480 HARNESS; FRAME,FRT
EXC. FUEL SEDIMENTER WITH HEATER<6HU>
8-98156-020-2
01
1
1008-1101
8
02.480 HARNESS; FRAME,FRT
EXC. FUEL SEDIMENTER WITH HEATER<6HU>
8-98180-744-1
01
1
1102-1409
8
02.480 HARNESS; FRAME,FRT
EXC. FUEL SEDIMENTER WITH HEATER<6HU>
8-98294-396-0
01
1
1410-
8
02.480 HARNESS; FRAME,FRT
8-98126-189-3
01
1
0810-1007
8
02.480 HARNESS; FRAME,FRT
FUEL SEDIMENTER WITH HEATER<6HU>
8-98126-189-5
01
1
1008-1101
8
02.480 HARNESS; FRAME,FRT
FUEL SEDIMENTER WITH HEATER<6HU>
8-98180-742-1
01
1
1102-1409
8
02.480 HARNESS; FRAME,FRT
FUEL SEDIMENTER WITH HEATER<6HU>
8-98294-394-0
01
1
1410-
9
02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W)
8-98117-250-0
01
1
0906-
9
02.480 HARNESS; FRAME,RR
8-98117-249-0
01
1
0810-0905
9
02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W)
8-98117-249-0
01
1
0906-
171
02.596 HARNESS; CABLE,TAIL LAMP
8-98008-095-2
01
1
0810-0911
171
02.596 HARNESS; CABLE,TAIL LAMP
8-98156-028-0
01
1
0912-

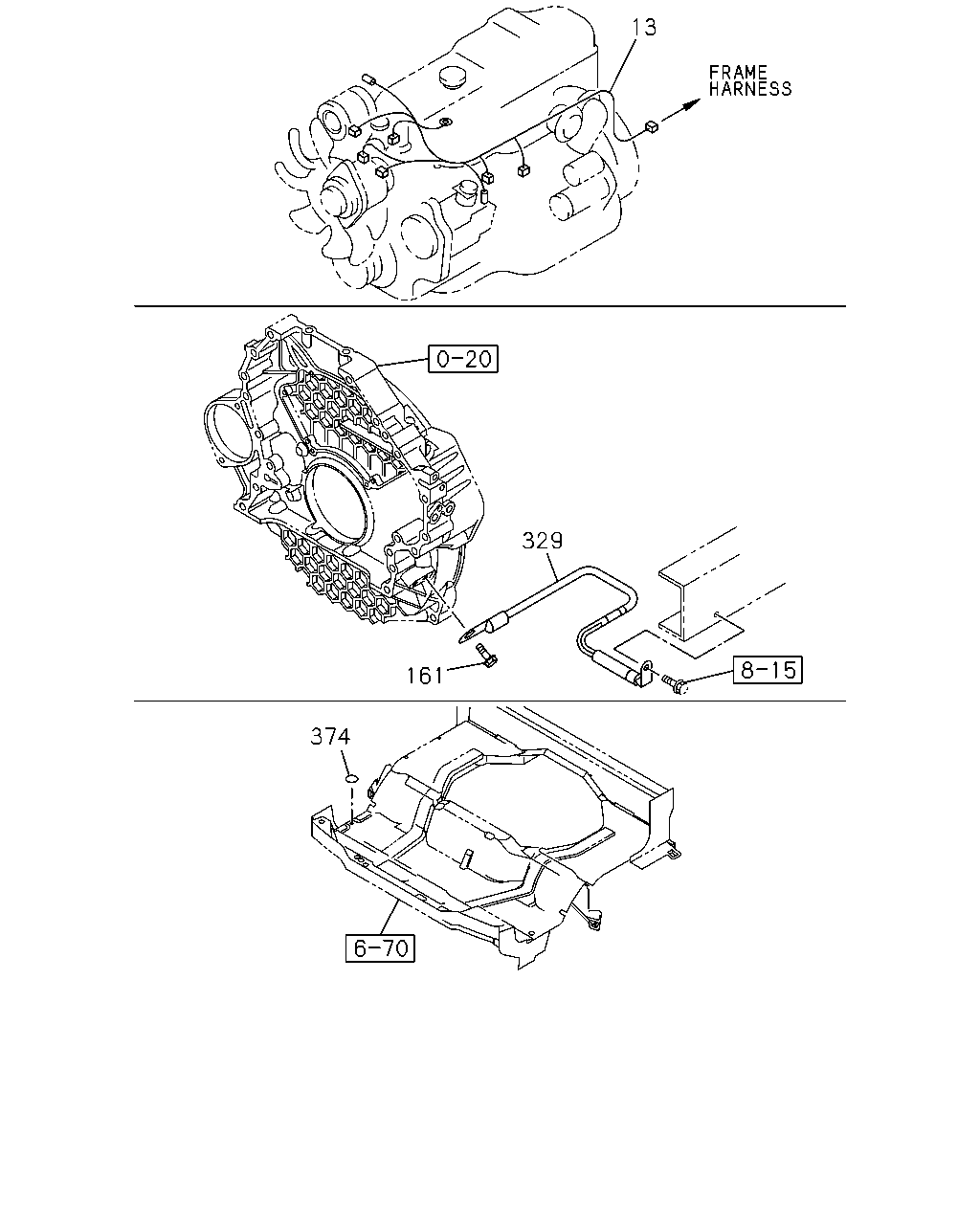

13
329
161
374
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
02.525 HARNESS; ENG
8-97356-988-1
01
1
0810-
161
02.559 BOLT; GROUND,HARNESS
02.343 M8X16 FLANGE
0-28050-816-0
01
1
0810-
329
02.480 CABLE; ENG TO FRAME
8-98123-064-0
01
1
0810-
374
02.530 PLUG; HARNESS CONNECTOR
16.545 OD=32 BLACK
8-98031-126-0
01
1
0810-

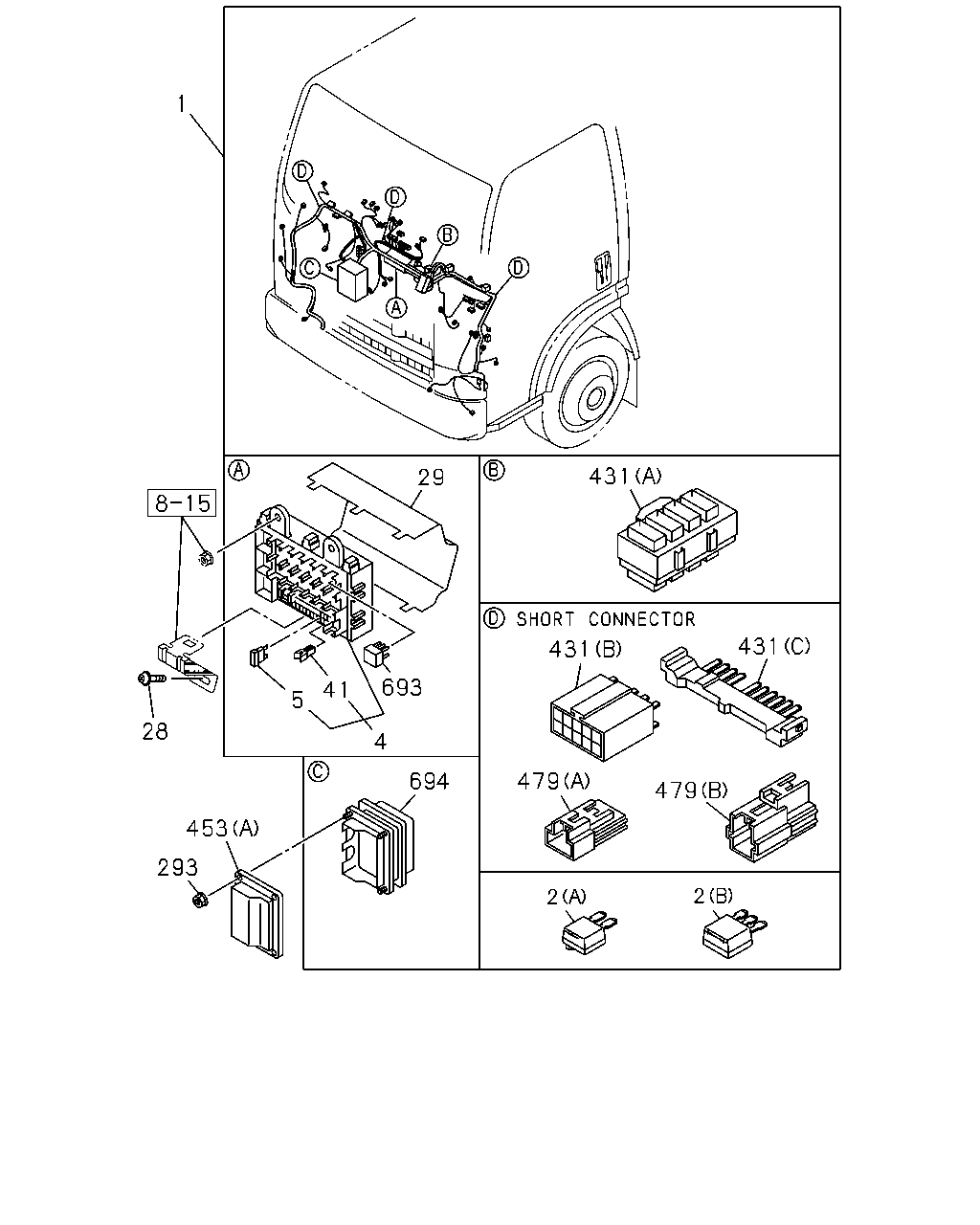

1
431
29
431
431
693
41
5
28
4
694
479
479
453
293
2
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.480 HARNESS; CAB
EXC. FAST GLOW SYSTEM<KM6>
8-98298-772-0
01
1
1504-
1
02.480 HARNESS; CAB
8-98106-622-4
01
1
0810-1207
1
02.480 HARNESS; CAB
8-98210-941-0
01
1
1208-1503
1
02.480 HARNESS; CAB
FAST GLOW SYSTEM<KM6>
8-98210-941-0
01
1
1504-
2
02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A
8-94422-639-1
AR
1
0810-
2
02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A
8-94422-640-1
AR
1
0810-
4
02.483 BOX ASM; FUSE,HARNESS
8-98067-619-1
01
1
0810-
5
02.485 FUSE; FACIA HARNESS
10A RED
8-98054-257-0
AR
1
0810-
5
02.485 FUSE; FACIA HARNESS
15A BLUE
8-98054-258-0
AR
1
0810-
5
02.485 FUSE; FACIA HARNESS
20A YELLOW
8-98054-259-0
AR
1
0810-
28
02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
0810-1101
28
02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET
8-98177-744-0
01
1
1102-1212
28
02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1301-
29
02.483 COVER; FUSE BOX
8-98056-968-0
01
1
0810-
41
08.821 PULLER; FUSE
8-98054-260-0
01
1
0810-
293
02.559 NUT
01.062 M6 FLANGE
0-91180-106-0
04
1
0810-
431
02.530 CONNECTOR; JOINT
(C) 10P BLUE
1-82699-598-0
01
1
0810-1003
431
02.530 CONNECTOR; JOINT
(B) 10P
8-97077-943-0
02
1
0810-1207
431
02.530 CONNECTOR; JOINT
(A)
8-98046-206-0
01
1
0810-
453
02.483 PROTECTOR; HARNESS
(C)
8-94417-716-0
02
1
0810-1101
453
02.483 PROTECTOR; HARNESS
(C)
8-94417-716-0
03
1
1102-
453
02.483 PROTECTOR; HARNESS
(B)
8-98031-620-1
01
1
0810-
453
02.483 PROTECTOR; HARNESS
(A)
8-98034-039-1
01
1
0810-
479
02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A)
8-98108-678-0
01
1
0810-0810
479
02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39) (A)
8-98108-678-0
01
1
0811-0811
479
02.530 CAP; CONNECTOR
(A)
8-98108-678-0
01
1
0812-
479
02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B)
8-98108-679-0
01
1
0810-0810
479
02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39) (B)
8-98108-679-0
01
1
0811-0811
479
02.530 CAP; CONNECTOR
(B)
8-98108-679-0
01
1
0812-
693
02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC
8-97173-035-1
AR
1
0810-
694
02.483 BOX ASM; CONNECTOR
8-98057-772-0
01
1
0810-

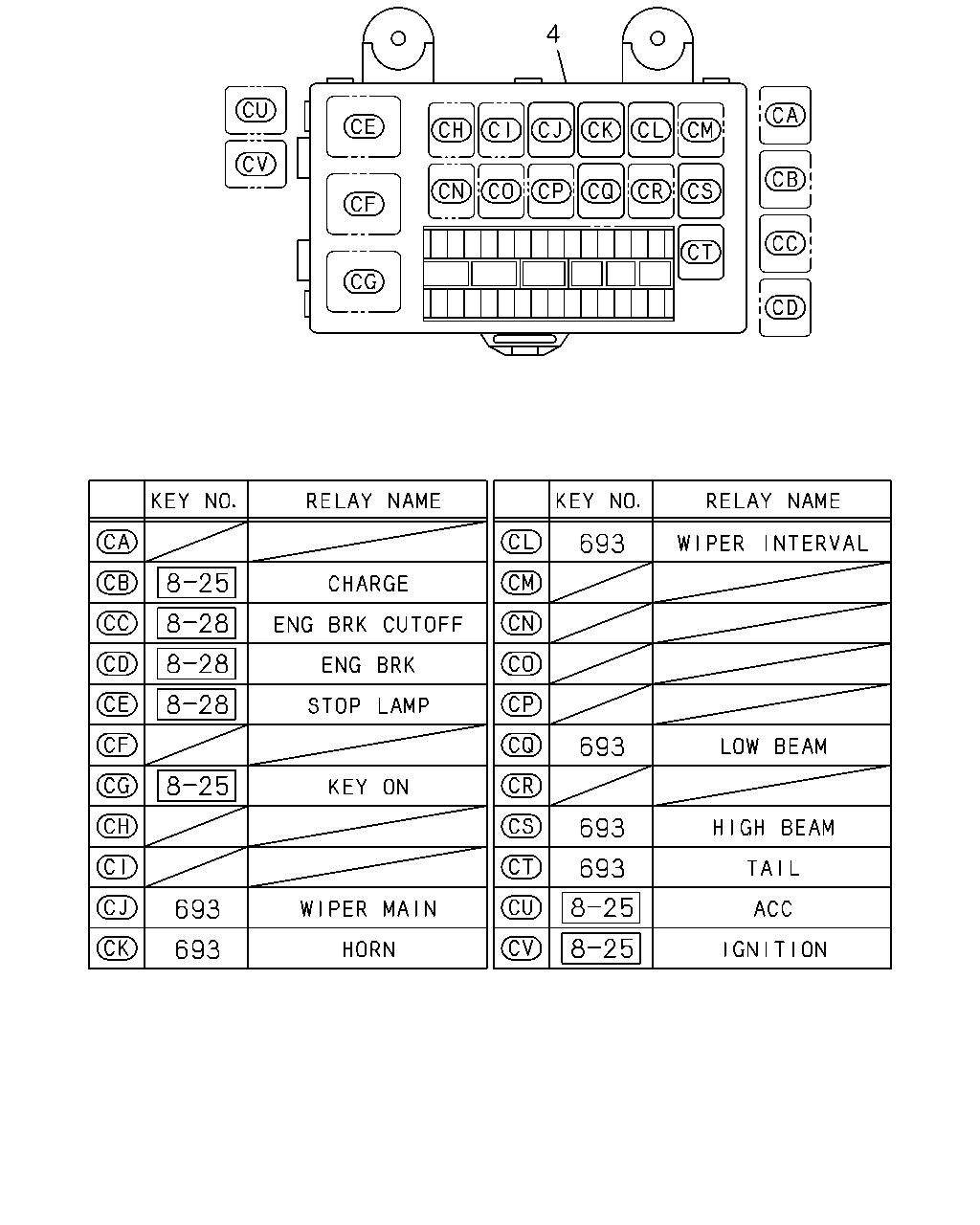

4
693
693
693
693
693
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
02.483 BOX ASM; FUSE,HARNESS
8-98067-619-1
01
1
0810-
693
02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC
8-97173-035-1
AR
1
0810-

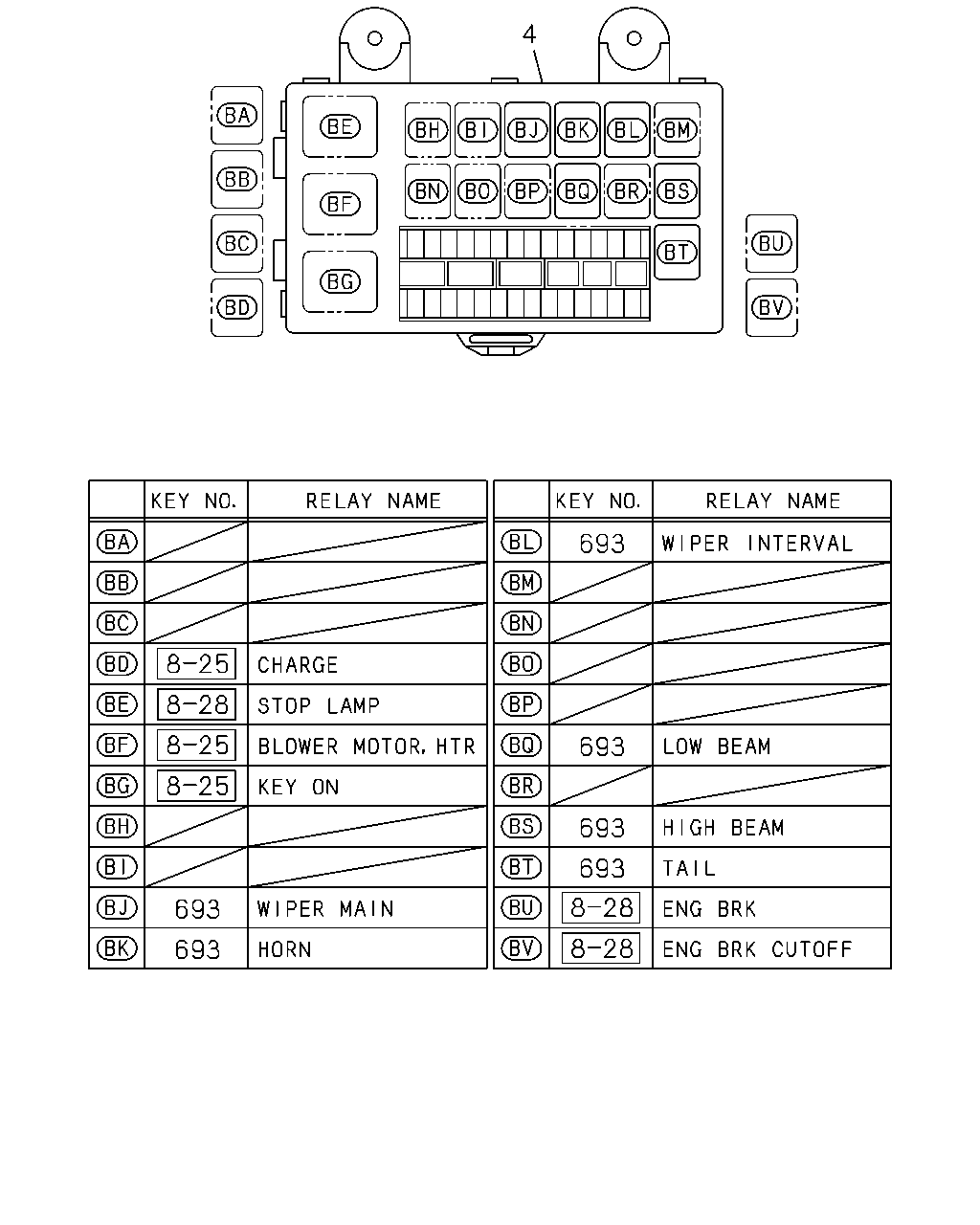

4
693
693
693
693
693
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
02.483 BOX ASM; FUSE,HARNESS
8-98067-619-1
01
1
0810-
693
02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC
8-97173-035-1
AR
1
0810-

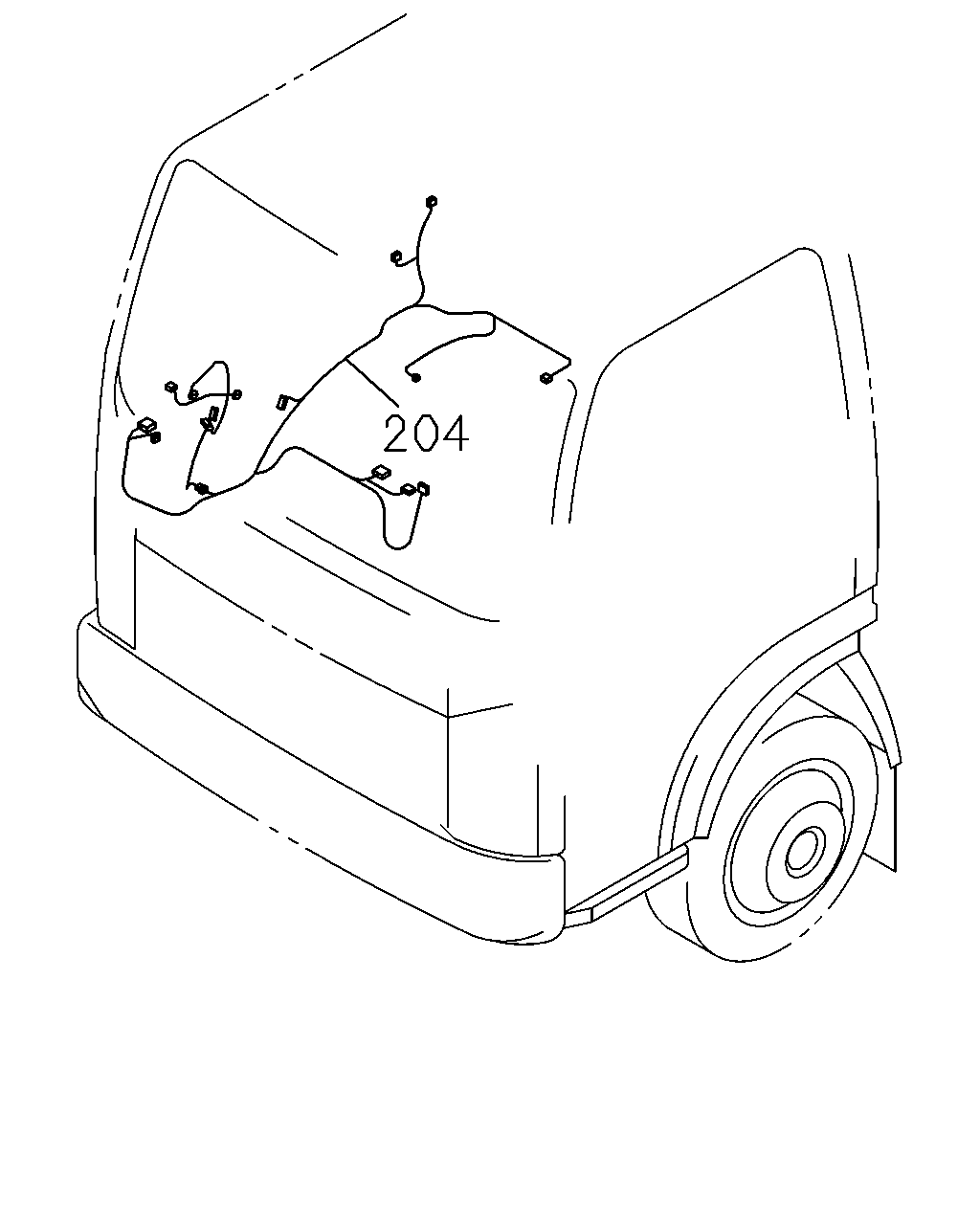

204
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
204
02.559 HARNESS; CABLE,FLOOR
8-98070-787-4
01
1
0810-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
