Isuzu WW
▶
TRUCKS
▶
FVM
▶
10780 - FVM(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-52 - OIL AND VACUUM PIPING; ENGINE
▶
0-52 — OIL AND VACUUM PIPING; ENGINE
(#7554) — 51 parça
Tümü
A - 6HE1 TC ENG
B - 6HH1 STD ENG
◀

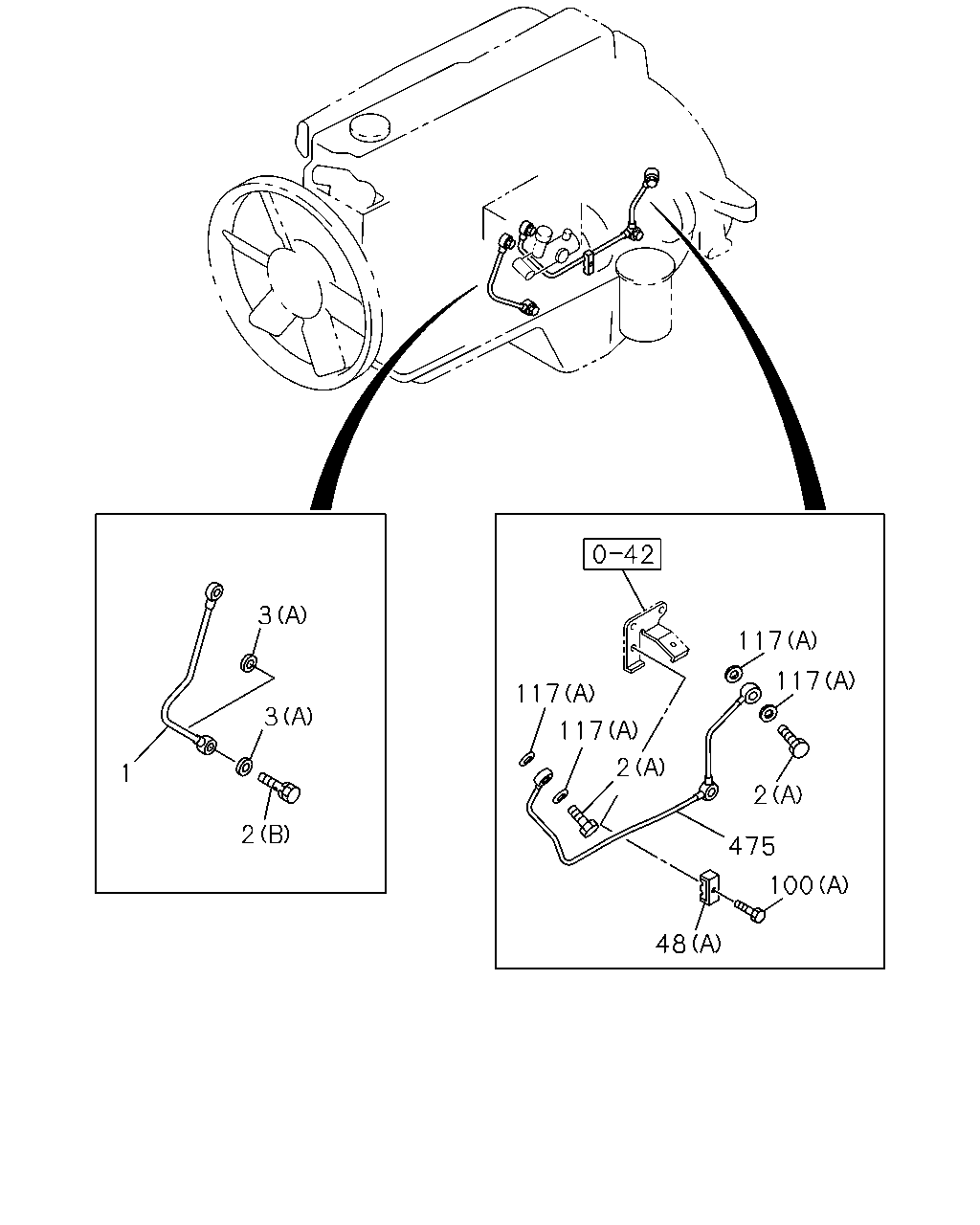

[052A] 6HE1;INJ AND AIR CMPR PIPE (16 parça)

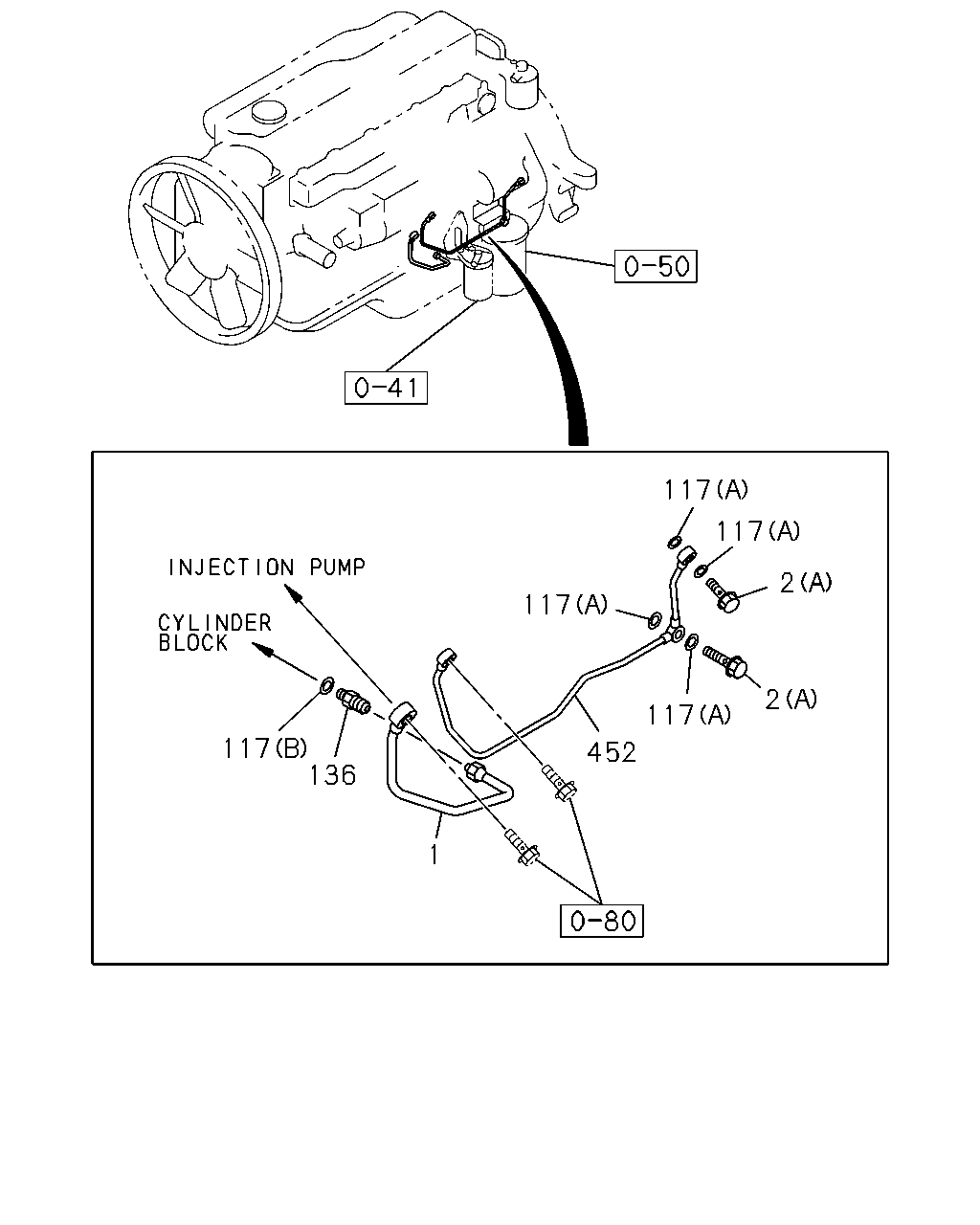

[052A] 6HH1 (10 parça)

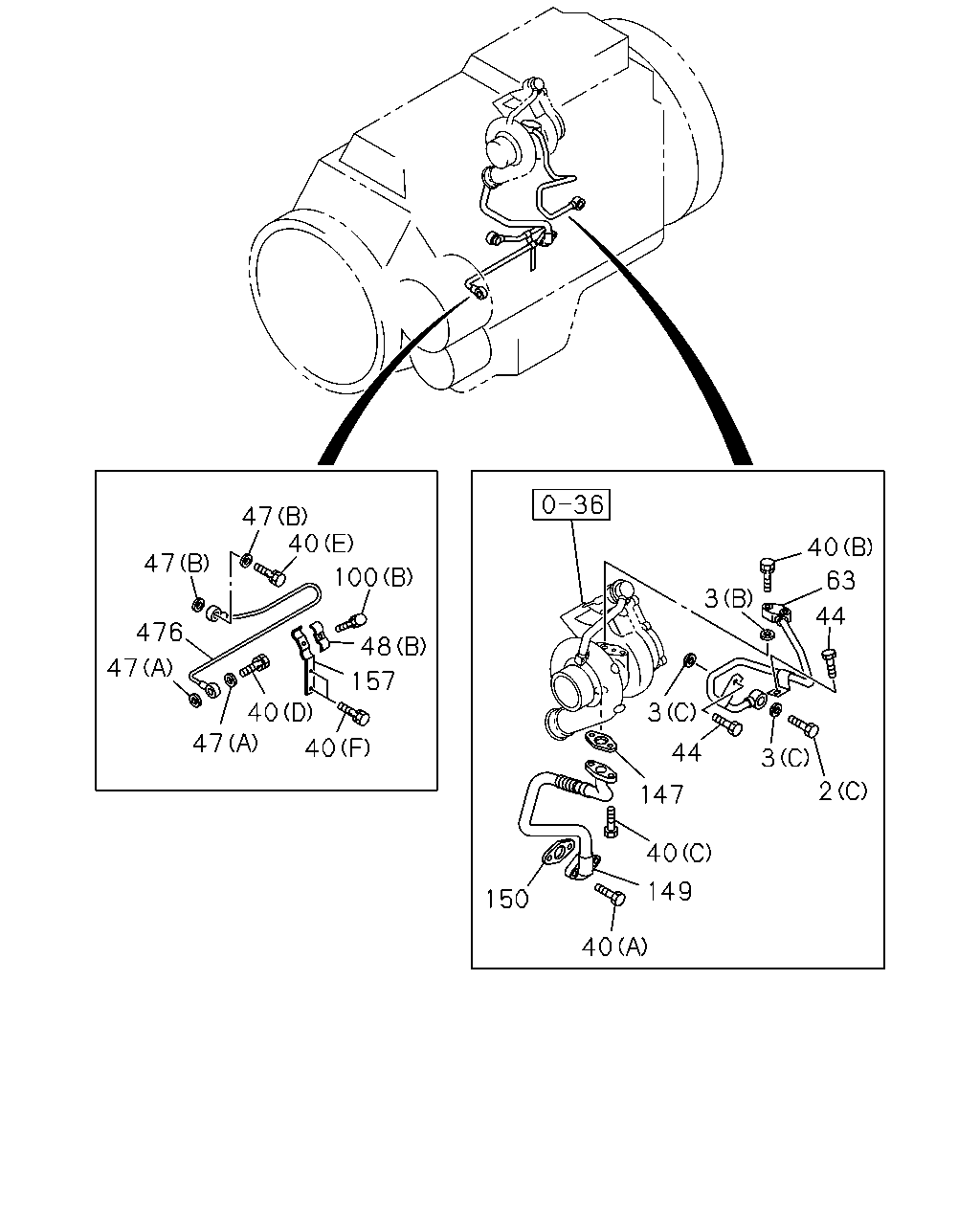

[052A] 6HE1;AIR CMPR AND TC PIPE (25 parça)
▶
3
117
117
117
3
117
2
1
2
2
475
100
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PIPE; OIL,INJ PUMP TO C/BL
8-94395-795-0
01
1
0101-
●
1
PIPE; OIL,INJ PUMP TO C/BL
8-94392-964-0
01
1
0101-
●
2
BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE
1-09675-077-0
01
1
0101-
●
2
BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE
1-09675-085-0
01
1
0101-
●
2
BOLT; EYE,OIL PIPE
M14X27 FLANGE
1-09675-086-0
02
1
0101-
●
2
BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE
1-09675-077-0
02
1
0101-
●
●
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3
1-09623-481-0
01
1
0101-
●
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2
1-09630-084-0
02
1
0101-
●
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2
1-09630-085-0
02
1
0101-
●
48
CLIP; OIL PIPE
(A)
1-09701-091-0
01
1
0101-
●
48
CLIP; OIL PIPE
(B)
8-94395-170-0
01
1
0101-
●
100
BOLT; CLIP
(B) M6X16 FLANGE
0-28080-616-0
01
1
0101-
●
100
BOLT; CLIP
(A) M6X22 FLANGE
0-28080-622-0
01
1
0101-
●
117
GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 THA
1-09630-083-0
04
1
0101-
●
●
117
GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2
1-09630-084-0
01
1
0101-
●
475
PIPE; OIL,OIL FILTER TO INJ PUMP
8-97600-567-1
01
1
0101-
●
117
117
2
117
2
117
452
117
136
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PIPE; OIL,INJ PUMP TO C/BL
8-94395-795-0
01
1
0101-
●
1
PIPE; OIL,INJ PUMP TO C/BL
8-94392-964-0
01
1
0101-
●
2
BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE
1-09675-077-0
01
1
0101-
●
2
BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE
1-09675-085-0
01
1
0101-
●
2
BOLT; EYE,OIL PIPE
M14X27 FLANGE
1-09675-086-0
02
1
0101-
●
2
BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE
1-09675-077-0
02
1
0101-
●
●
117
GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 THA
1-09630-083-0
04
1
0101-
●
●
117
GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2
1-09630-084-0
01
1
0101-
●
136
UNION
8-94392-422-0
01
1
0101-
●
452
PIPE; OIL,OIL FILTER TO AIR CMPR
8-97600-571-0
01
1
0101-
●
47
40
40
47
100
63
3
44
476
48
47
157
3
40
47
40
44
3
2
147
40
149
150
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE
1-09675-077-0
01
1
0101-
●
2
BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE
1-09675-085-0
01
1
0101-
●
2
BOLT; EYE,OIL PIPE
M14X27 FLANGE
1-09675-086-0
02
1
0101-
●
2
BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE
1-09675-077-0
02
1
0101-
●
●
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3
1-09623-481-0
01
1
0101-
●
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2
1-09630-084-0
02
1
0101-
●
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2
1-09630-085-0
02
1
0101-
●
40
BOLT; OIL PIPE
(B) M8X30 FLANGE
0-28080-830-0
02
1
0101-
●
40
BOLT; OIL PIPE
(A) M8X40 FLANGE
0-28080-840-0
02
1
0101-
●
40
BOLT; OIL PIPE
(F) M10X16 FLANGE
0-28181-016-0
02
1
0101-
●
40
BOLT; OIL PIPE
(C) M10X22 FLANGE
0-28181-022-0
02
1
0101-
●
44
BOLT; CLIP,OIL PIPE
M8X12 FLANGE
0-28080-812-0
01
1
0101-
●
44
BOLT; CLIP,OIL PIPE
M8X16 FLANGE
0-28080-816-0
01
1
0101-
●
47
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 THA
1-09630-083-0
02
1
0101-
●
47
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2
1-09630-085-0
02
1
0101-
●
48
CLIP; OIL PIPE
(A)
1-09701-091-0
01
1
0101-
●
48
CLIP; OIL PIPE
(B)
8-94395-170-0
01
1
0101-
●
63
PIPE; OIL,TURBOCHARGER FEED
8-94392-976-0
01
1
0101-
●
100
BOLT; CLIP
(B) M6X16 FLANGE
0-28080-616-0
01
1
0101-
●
100
BOLT; CLIP
(A) M6X22 FLANGE
0-28080-622-0
01
1
0101-
●
147
GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09637-058-1
01
1
0101-
●
149
PIPE; OIL RETURN,TURBOCHARGER
8-94392-977-0
01
1
0101-
●
150
GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30
8-94394-671-0
01
1
0101-
●
157
BRACKET; OIL PIPE
8-94395-168-0
01
1
0101-
●
476
PIPE; OIL,C/BL TO AIR CMPR
8-94394-940-1
01
1
0101-
●
