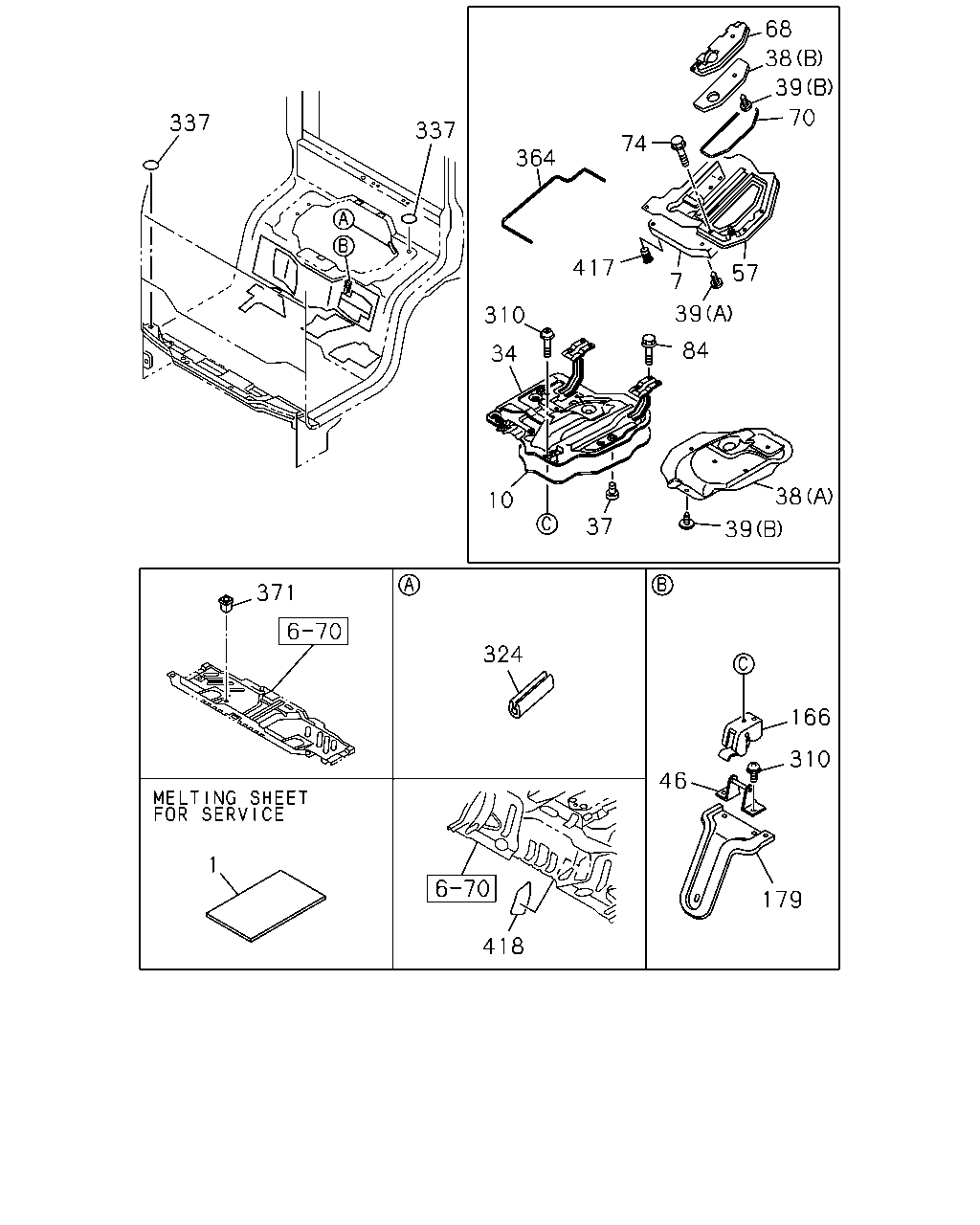

6-76 — FLOOR EQUIPMENT AND SEALING
(#75532) — 27 parça
68
38
39
70
337
337
74
364
417
57
7
39
310
84
34
38
10
37
39
371
324
166
310
46
1
179
418
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY
8-94262-093-0
AR
1
0810-
7
16.545 INSULATOR; SUPPORT COVER
8-97586-175-0
01
1
0810-0810
10
16.549 SEAL; ENG COVER
8-98029-377-0
01
1
0810-0810
34
16.549 COVER ASM; ENG,CAB FLOOR
8-97587-395-3
01
1
0810-
37
16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10
5-74917-001-2
02
1
0810-0810
38
16.549 INSULATOR; ENG COVER
(B)
8-97586-169-1
01
1
0810-0810
38
16.549 INSULATOR; ENG COVER
(A)
8-97586-182-1
01
1
0810-0810
39
16.549 CLIP; INSULATOR,COVER
(B) OD=30
8-94279-952-0
07
1
0810-0810
39
16.549 CLIP; INSULATOR,COVER
08.021 (A) ID=6.2 L=11.4
8-97808-623-0
05
1
0810-0810
46
16.549 HOOK ASM; ENG COVER
8-98040-145-0
02
1
0810-
57
16.549 COVER ASM; SUPPORT,CAB FLOOR
8-97587-400-3
01
1
0810-
68
16.549 COVER ASM; SUB,ENG COVER
8-98040-141-0
01
1
0810-
70
16.549 SEAL; ENG SUB COVER,CAB FLOOR
8-97853-050-1
01
1
0810-
74
16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE
0-28650-820-0
10
1
0810-
84
16.549 BOLT; ENG COVER HINGE
01.531 M8X20 FLANGE
0-28650-820-0
04
1
0810-
166
16.549 LOCK; ENG COVER
8-98040-152-0
02
1
0810-
179
16.549 REINFORCEMENT; COVER
8-98048-301-1
01
1
0810-
310
16.549 SCREW; ENG COVER HOOK
02.343 M6X16 FLANGE
0-28650-616-0
04
1
0811-
310
16.549 SCREW; ENG COVER HOOK
16.570 M6X16
0-38050-616-0
09
1
0810-0810
310
16.549 SCREW; ENG COVER HOOK
16.570 M6X16
0-38050-616-0
05
1
0811-
324
16.545 FINISHER; FLOOR PANEL
L=140
8-97892-742-0
03
1
0810-0810
337
16.545 SEAL; CLIP HOLE
OD=32 BLACK
8-98031-126-0
04
1
0810-
364
16.545 FINISHER; ENG COVER SIDE
L=1100
8-97892-744-0
01
1
0810-0810
371
16.549 GROMMET; LOCATION HOLE
16.547 14.5X14.5 BLACK
8-94279-714-0
02
1
0810-
417
16.549 NUT; POP
09.786 M6 POP NUT
8-98013-752-0
01
1
0810-
418
16.549 SEAL; PROTECTOR
8-98090-191-0
01
1
0810-0910
418
16.549 SEAL; PROTECTOR
8-98090-192-0
01
1
0810-0910
