Isuzu WW
▶
TRUCKS
▶
NPR
▶
51188 - NPR BUS(RHD)EURO1
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-70 - FLOOR PANEL
▶

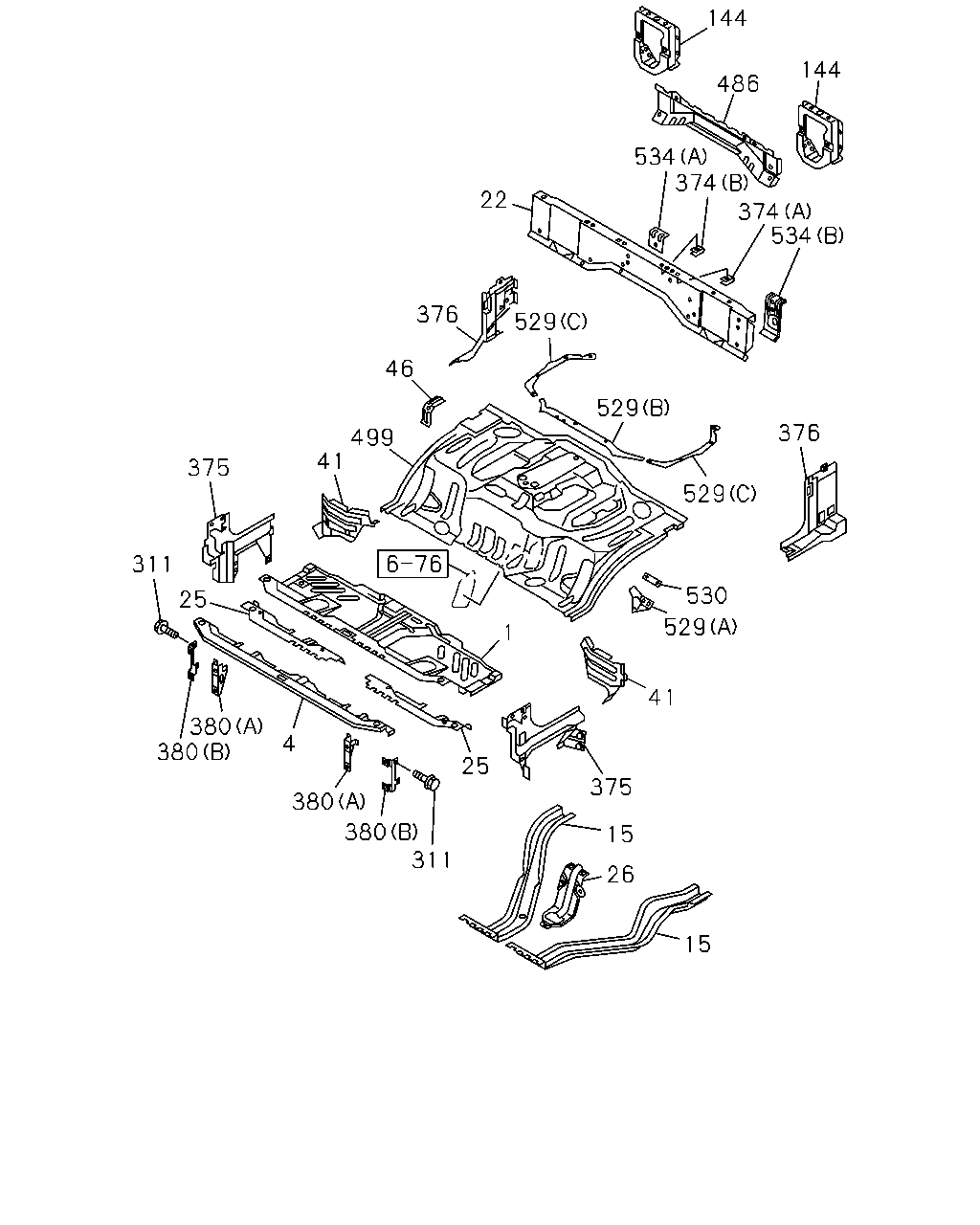

6-70 — FLOOR PANEL
(#75530) — 37 parça
◀
[670A] GROMMET (4 parça)
[670A] PANEL (33 parça)
▶
32
32
536
532
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
16.547 GROMMET; FLOOR PANEL,LOCATION HO
00.785 (A) OD=16.2
8-94492-493-0
02
1
0810-0810
32
16.547 GROMMET; FLOOR PANEL,LOCATION HO
(B) OD=12.1
8-97898-423-0
02
1
0810-0810
532
16.520 SEAL; CABLE
8-98042-432-1
01
1
0810-
536
16.549 PLUG; CABLE,PTO
04.008
8-98029-219-1
01
1
0810-
144
144
486
534
374
22
374
534
376
529
46
529
376
499
41
375
529
311
530
25
529
1
41
380
380
4
25
375
380
380
311
15
26
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.545 PANEL; FLOOR
8-98112-870-0
01
1
0810-
4
16.545 FRAME; FLOOR,FRT
8-98107-595-0
01
1
0810-
15
16.545 FRAME; UNDER
8-98059-497-1
01
1
0810-
15
16.545 FRAME; UNDER
8-98059-498-1
01
1
0810-
22
16.545 FRAME; FLOOR REAR
8-97587-394-4
01
1
0810-
25
16.545 REINFORCEMENT; FRAME FLOOR,FRT
8-97583-823-0
01
1
0810-
25
16.545 REINFORCEMENT; FRAME FLOOR,FRT
8-98107-587-0
01
1
0810-
26
16.545 PANEL; GEAR CONT REINF
8-97589-382-1
01
1
0810-
41
16.545 SUPPORT; STEP,RR
8-97583-880-1
01
1
0810-
41
16.545 SUPPORT; STEP,RR
8-97583-881-1
01
1
0810-
46
16.545 BRACKET; FRT SEAT,RR OUTER
8-97583-834-0
01
1
0810-
144
16.545 BRACKET; MTG,RR
8-98112-244-2
02
1
0810-
311
16.545 BOLT; BRKT
02.343 M6X16 FLANGE
0-28650-616-0
04
1
0810-
374
16.545 NUT; FLOOR
(B) M6
1-09984-110-0
02
1
0810-
374
16.545 NUT; FLOOR
(A) M8
1-09984-111-0
04
1
0810-
375
16.545 CLOSING; PILLAR
8-97583-882-3
01
1
0810-
375
16.545 CLOSING; PILLAR
8-97583-883-2
01
1
0810-
376
16.545 CLOSING; PILLAR,LWR
8-97583-888-2
01
1
0810-
376
16.545 CLOSING; PILLAR,LWR
8-97584-618-2
01
1
0810-
380
16.545 BRACKET; HEAD LAMP
(A)
8-97589-384-4
01
1
0810-
380
16.545 BRACKET; HEAD LAMP
(A)
8-97589-385-3
01
1
0810-
380
16.545 BRACKET; HEAD LAMP
(B)
8-98029-288-0
01
1
0810-
380
16.545 BRACKET; HEAD LAMP
(B)
8-98029-289-0
01
1
0810-
486
16.545 REINFORCEMENT; FRAME FLOOR,REAR
8-98030-614-2
01
1
0810-
499
16.545 PANEL; FLOOR,RR
8-97587-390-4
01
1
0810-1207
499
16.545 PANEL; FLOOR,RR
8-98205-116-0
01
1
1208-
529
16.545 RETAINER; FLOOR PANEL
(B)
8-97589-249-0
01
1
0810-
529
16.545 RETAINER; FLOOR PANEL
(C)
8-97589-467-1
01
1
0810-
529
16.545 RETAINER; FLOOR PANEL
(C)
8-97589-468-1
01
1
0810-
529
16.545 RETAINER; FLOOR PANEL
(A)
8-98030-358-0
01
1
0810-
530
16.565 BRACKET; COVER
8-97589-255-0
01
1
0810-
534
16.545 REINFORCEMENT; SEAT BACK
(B)
8-97583-851-3
01
1
0810-
534
16.545 REINFORCEMENT; SEAT BACK
(A)
8-98019-181-2
01
1
0810-
