Isuzu WW
▶
TRUCKS
▶
FVM
▶
10780 - FVM(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-50 - OIL COOLER AND OIL FILTER
▶
0-50 — OIL COOLER AND OIL FILTER
(#7552) — 55 parça
Tümü
A - 6HE1 TC ENG
B - 6HH1 STD ENG
◀

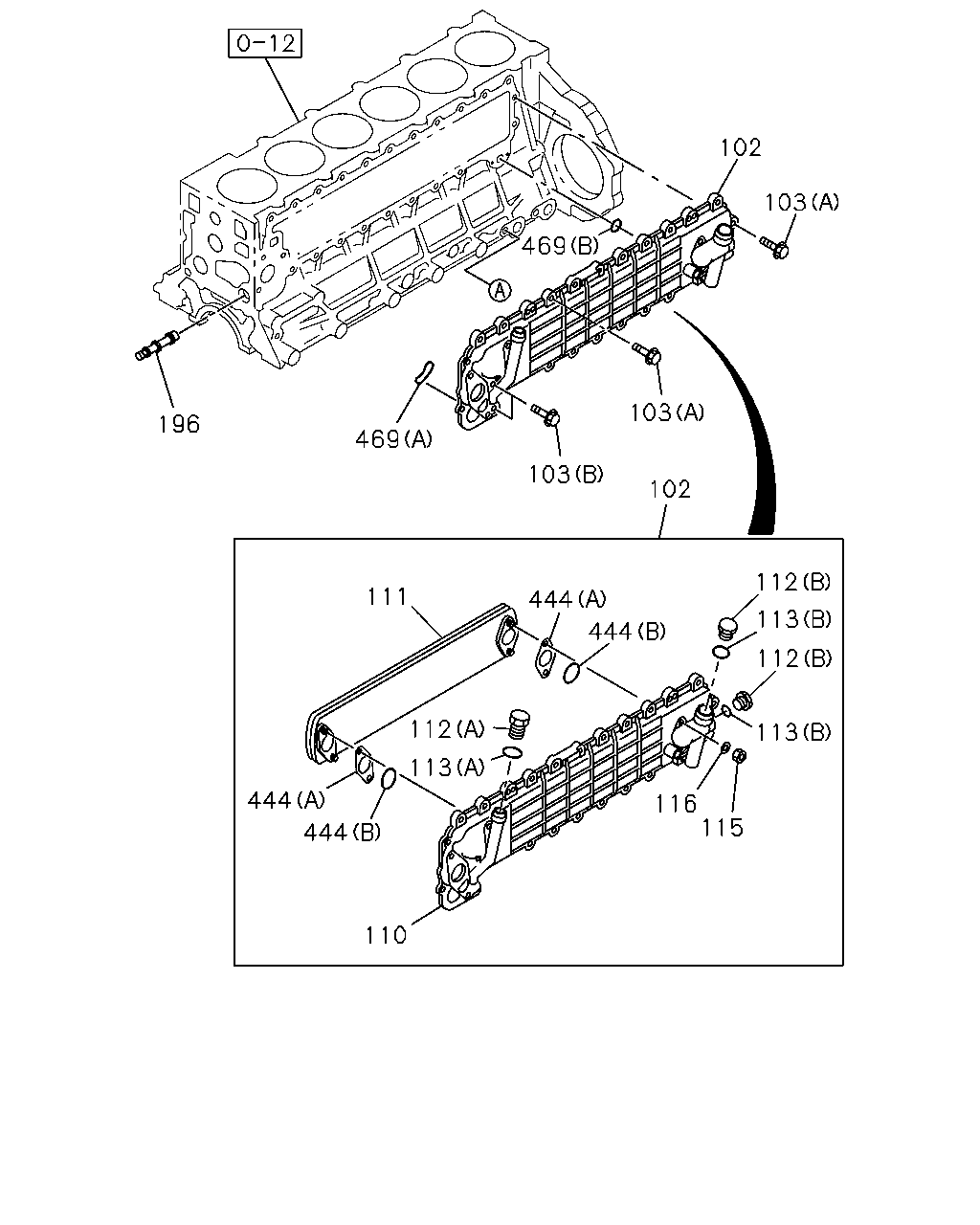

[050A] OIL COOLER;6HE1 (20 parça)
[050A] OIL FILTER (12 parça)

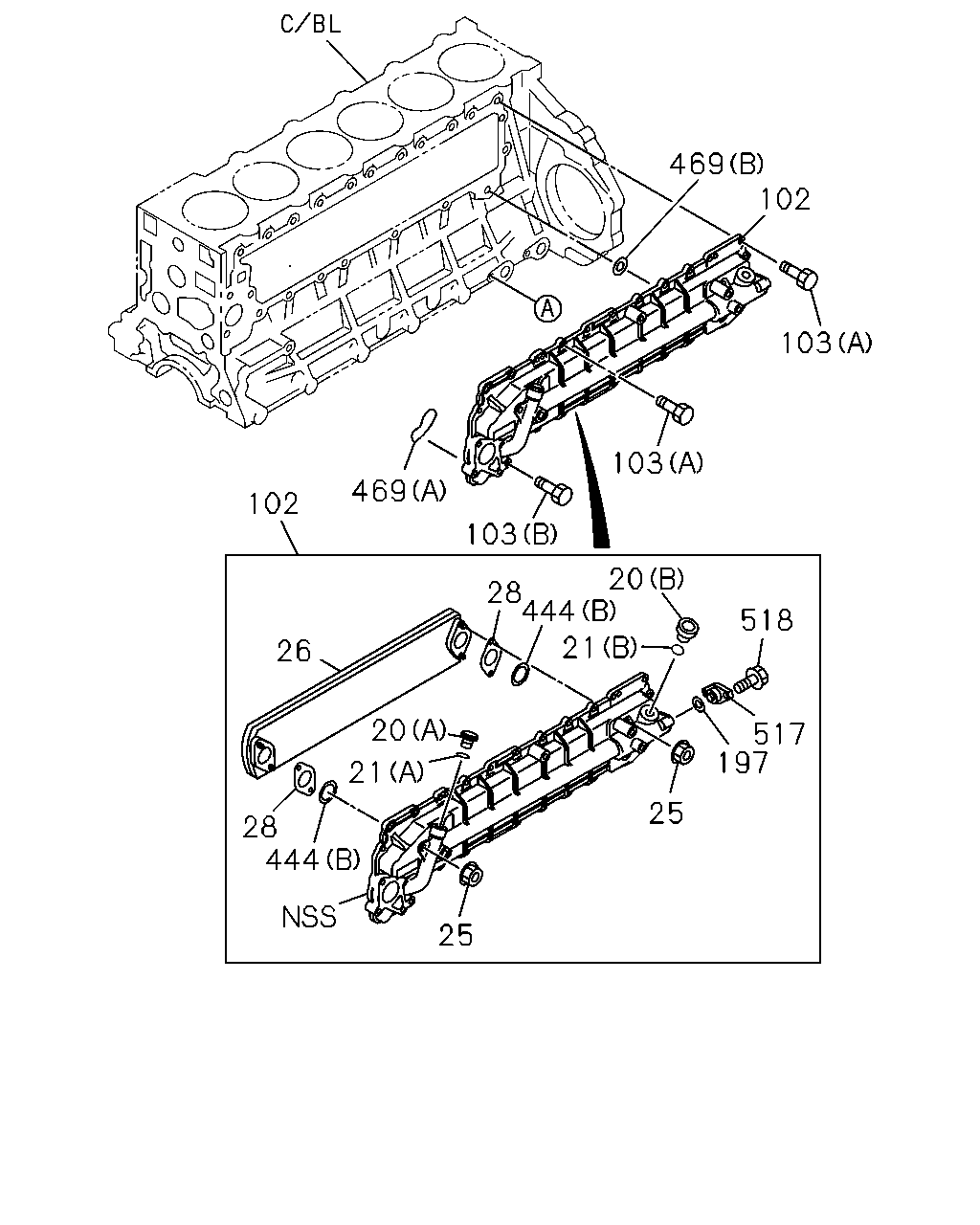

[050A] OIL COOLER;6HH1 (23 parça)
▶
102
469
103
103
196
469
103
102
112
111
444
444
113
112
112
113
113
444
444
116
115
110
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
102
COOLER ASM; OIL
8-94392-186-0
01
1
0101-
●
102
COOLER ASM; OIL
8-94392-230-0
01
1
0101-
●
103
BOLT; OIL COOLER
(A) M8X22 FLANGE
0-28080-822-0
25
1
0101-
●
103
BOLT; OIL COOLER
(B) M8X35 FLANGE
0-28080-835-0
02
1
0101-
●
103
BOLT; OIL COOLER
(A) M8X22 FLANGE
0-28080-822-0
24
1
0101-
●
103
BOLT; OIL COOLER
(B) M8X35 FLANGE
0-28080-835-0
03
1
0101-
●
110
BODY; CASE,OIL COOLER
8-94395-283-3
01
1
0101-
●
111
CORE; OIL COOLER
8-97601-880-0
01
1
0101-
●
112
PLUG; OIL COOLER CASE
(A)
8-94393-604-0
01
1
0101-
●
112
PLUG; OIL COOLER CASE
(B)
8-94396-753-0
02
1
0101-
●
113
GASKET; PLUG,OIL COOLER CASE
(A)
1-09623-499-0
01
1
0101-
●
113
GASKET; PLUG,OIL COOLER CASE
(B) M24
8-94396-755-0
02
1
0101-
●
115
NUT; ELEMENT
M10
9-09111-410-0
04
1
0101-
●
116
WASHER; PL,ELEMENT
ID=10.5
9-09164-510-0
04
1
0101-
●
196
THERMOSTAT; OIL COOLER
90?C
8-94394-815-2
01
1
0101-0111
●
196
THERMOSTAT; OIL COOLER
90?C
8-97600-935-0
01
1
0112-
●
444
GASKET; ELEMENT TO BODY
(A)
8-94394-930-0
02
1
0101-
●
444
GASKET; ELEMENT TO BODY
(B)
8-94396-810-0
02
1
0101-
●
●
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-94399-002-0
01
1
0101-
●
●
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7
8-94399-279-0
01
1
0101-
●
●
496
442
307
308
265
328
328
2
265
321
321
321
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
ELEMENT; OIL FILTER
8-94391-049-2
01
1
0101-
●
●
2
ELEMENT; OIL FILTER
BESTFIX
1-86750-303-0
01
1
0101-1011
●
●
2
ELEMENT; OIL FILTER
BESTFIX
1-86750-446-0
01
1
1012-
●
●
265
BODY; OIL FILTER
8-94391-016-4
01
1
0101-
●
●
307
VALVE; OVERFLOW
8-94395-700-0
01
1
0101-
●
●
308
GASKET; VLV,OVERFLOW
ID=15.8
1-09623-163-0
01
1
0101-
●
●
321
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8
8-94399-339-0
01
1
0101-
●
●
321
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1
8-94399-399-0
02
1
0101-
●
●
328
BOLT; OIL FILTER
(A) M10X30 FLANGE
0-28181-030-0
02
1
0101-
●
●
328
BOLT; OIL FILTER
(B) M10X90 FLANGE
0-28181-090-0
02
1
0101-
●
●
442
BRACKET; HARNESS,OIL FILTER
8-94392-781-0
01
1
0101-
●
496
FILTER ASM; OIL
8-94391-015-5
01
1
0101-
●
●
469
102
103
103
469
102
103
20
28
444
21
518
26
20
21
517
197
25
28
444
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
20
PLUG; COOLER BODY
(A)
8-94393-604-0
01
1
0101-
●
20
PLUG; COOLER BODY
(B)
8-94396-753-0
01
1
0101-
●
20
PLUG; COOLER BODY
8-97602-092-0
01
1
0105-
●
20
PLUG; COOLER BODY
8-97602-093-0
01
1
0105-
●
20
PLUG; COOLER BODY
8-97602-094-0
01
1
0105-
●
21
GASKET; PLUG
(A)
1-13219-253-0
01
1
0101-
●
21
GASKET; PLUG
(B) M24
8-94396-755-0
01
1
0101-
●
25
NUT; CORE TO BODY
M10 FLANGE
1-13219-324-0
04
1
0101-
●
26
CORE ASM; OIL COOLER
8-94391-738-0
01
1
0101-
●
28
GASKET; CORE TO BODY
8-94394-930-0
02
1
0101-
●
102
COOLER ASM; OIL
8-94392-186-0
01
1
0101-
●
102
COOLER ASM; OIL
8-94392-230-0
01
1
0101-
●
103
BOLT; OIL COOLER
(A) M8X22 FLANGE
0-28080-822-0
25
1
0101-
●
103
BOLT; OIL COOLER
(B) M8X35 FLANGE
0-28080-835-0
02
1
0101-
●
103
BOLT; OIL COOLER
(A) M8X22 FLANGE
0-28080-822-0
24
1
0101-
●
103
BOLT; OIL COOLER
(B) M8X35 FLANGE
0-28080-835-0
03
1
0101-
●
197
GASKET; THERMOSTAT
ID=25.7
8-94399-279-0
01
1
0101-
●
444
GASKET; ELEMENT TO BODY
(A)
8-94394-930-0
02
1
0101-
●
444
GASKET; ELEMENT TO BODY
(B)
8-94396-810-0
02
1
0101-
●
●
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-94399-002-0
01
1
0101-
●
●
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7
8-94399-279-0
01
1
0101-
●
●
517
PLUG; THERMOSTAT,OIL COOLER
8-94392-459-0
01
1
0101-0104
●
518
BOLT; PLUG,THERMOSTAT
M8X16 FLANGE
0-28080-816-0
02
1
0101-
●
