2 |

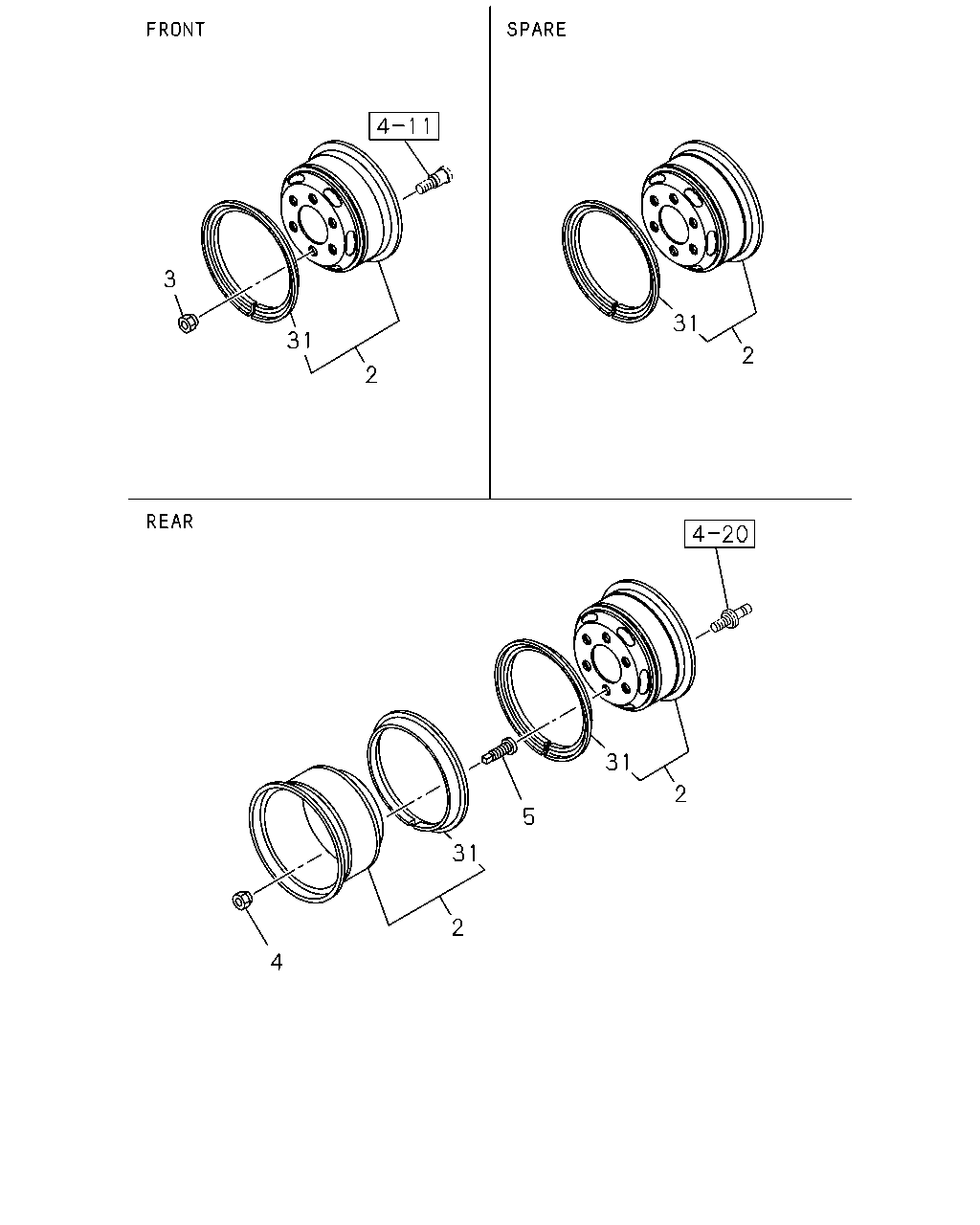

05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C)
,FRT&RR 7.5-16-12L 6GSX16-127
6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N
UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127
6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1
27 6-WHL/NUT DYNAMIC(97V)
SPARE
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
01 |
1 |
0810-0810 |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/
NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-
WHL/NUT(83V)
SPARE
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
01 |
1 |
0810- |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C)
,FRT&RR 7.5-16-12L 6GSX16-127
6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N
UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127
6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1
27 6-WHL/NUT DYNAMIC(97V)
FRONT,REAR
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
06 |
1 |
0810-0810 |
| |
2 |
05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/
NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-
WHL/NUT(83V)
FRONT,REAR
6.0GSX16 OFFSET=127 BLACK 6-HOLE
|
8-94438-670-4 |
06 |
1 |
0810- |
| |
3 |
05.813 NUT; WHEEL,FRT AXLE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C)
,FRT&RR 7.5-16-12L 6GSX16-127
6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N
UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127
6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1
27 6-WHL/NUT DYNAMIC(97V)
M20 RH THREAD
|
8-97359-807-0 |
06 |
1 |
0810-0810 |
| |
3 |
05.813 NUT; WHEEL,FRT AXLE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/
NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-
WHL/NUT(83V)
M20 RH THREAD
|
8-97359-807-0 |
06 |
1 |
0810- |
| |
3 |
05.813 NUT; WHEEL,FRT AXLE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C)
,FRT&RR 7.5-16-12L 6GSX16-127
6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N
UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127
6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1
27 6-WHL/NUT DYNAMIC(97V)
M20 LH THREAD
|
8-97359-808-0 |
06 |
1 |
0810-0810 |
| |
3 |
05.813 NUT; WHEEL,FRT AXLE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/
NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-
WHL/NUT(83V)
M20 LH THREAD
|
8-97359-808-0 |
06 |
1 |
0810- |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C)
,FRT&RR 7.5-16-12L 6GSX16-127
6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N
UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127
6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1
27 6-WHL/NUT DYNAMIC(97V)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0810-0810 |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/
NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-
WHL/NUT(83V)
M30 RH THREAD
|
8-97359-809-0 |
06 |
1 |
0810- |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C)
,FRT&RR 7.5-16-12L 6GSX16-127
6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N
UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127
6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1
27 6-WHL/NUT DYNAMIC(97V)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0810-0810 |
| |
4 |
05.813 NUT; WHEEL,RR AXLE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/
NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-
WHL/NUT(83V)
M30 LH THREAD
|
8-97359-810-0 |
06 |
1 |
0810- |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C)
,FRT&RR 7.5-16-12L 6GSX16-127
6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N
UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127
6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1
27 6-WHL/NUT DYNAMIC(97V)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
0810-0810 |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/
NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-
WHL/NUT(83V)
OUTER M30,INNER M20 RH THREAD
|
8-97359-805-0 |
06 |
1 |
0810- |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C)
,FRT&RR 7.5-16-12L 6GSX16-127
6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N
UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127
6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1
27 6-WHL/NUT DYNAMIC(97V)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
0810-0810 |
| |
5 |
05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/
NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-
WHL/NUT(83V)
OUTER M30,INNER M20 LH THREAD
|
8-97359-806-0 |
06 |
1 |
0810- |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C)
,FRT&RR 7.5-16-12L 6GSX16-127
6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N
UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127
6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1
27 6-WHL/NUT DYNAMIC(97V)
SPARE
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
01 |
1 |
0810-0810 |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/
NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-
WHL/NUT(83V)
SPARE
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
01 |
1 |
0810- |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C)
,FRT&RR 7.5-16-12L 6GSX16-127
6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127
6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N
UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127
6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1
27 6-WHL/NUT DYNAMIC(97V)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
06 |
1 |
0810-0810 |
| |
31 |
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/
NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127
6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-
WHL/NUT(83V)
FRONT,REAR
16X6.00GS STAMP, BLACK
|
8-94412-585-0 |
06 |
1 |
0810- |
