0-41 — FUEL FILTER AND BRACKET (#7550) — 12 parça

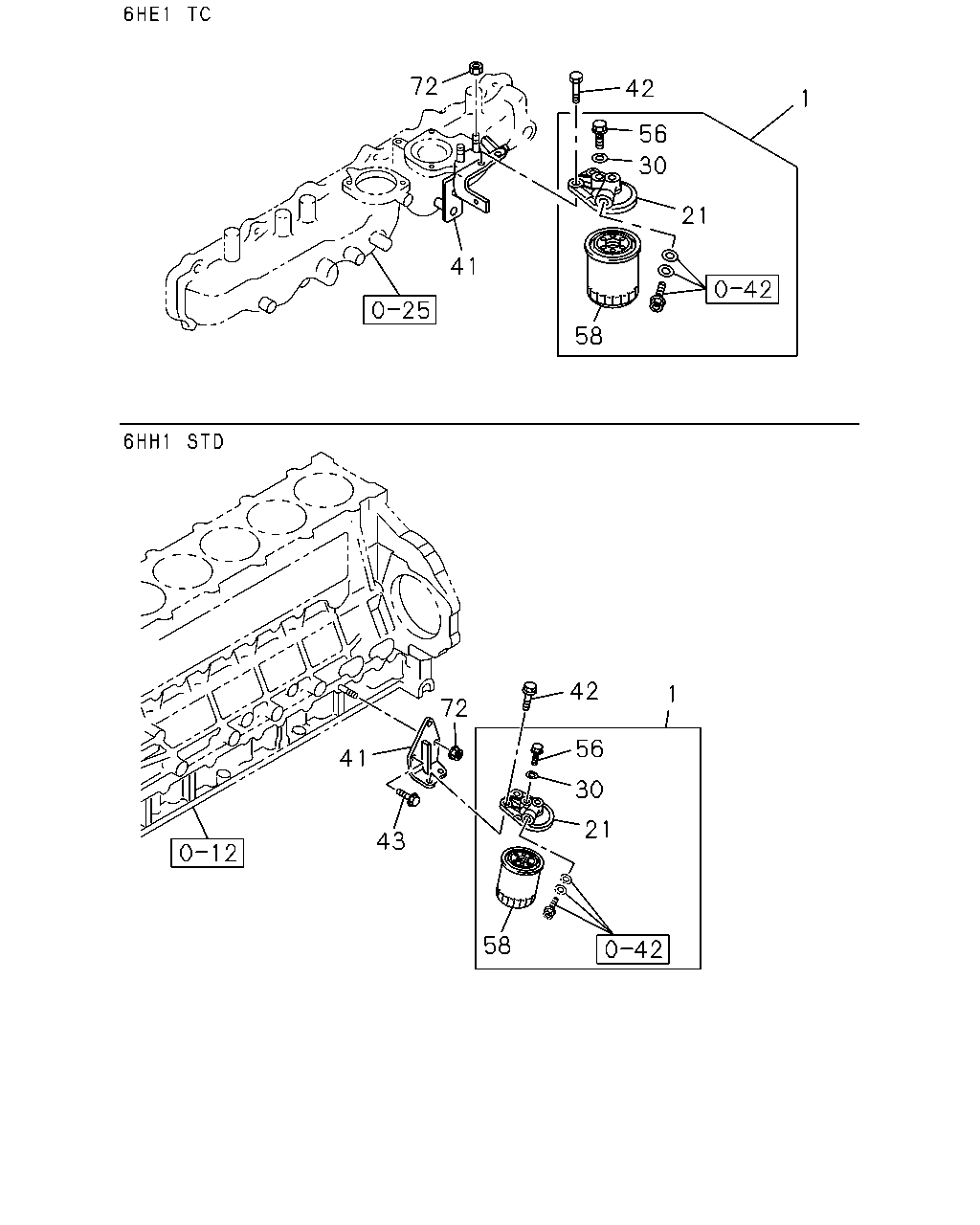

çizim 43675
72 42 1 56 30 21 41 58 42 1 72 56 41 30 21 43 58
BalonParca AdiParca NoAdetTipApplied Date A B
1 FILTER ASM; FUEL 1-13200-890-2 01 1 0101- ● ●
21 COVER; UPR,FUEL FILTER 1-13212-108-1 01 1 0101- ● ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 0101-0206 ● ●
41 BRACKET; FUEL FILTER 8-94395-066-1 01 1 0101-0108 ●
41 BRACKET; FUEL FILTER 8-94391-451-0 01 1 0109- ●
41 BRACKET; FUEL FILTER 8-94392-067-2 01 1 0101- ●
42 BOLT; FUEL FILTER
M10X35 FLANGE 		0-28681-035-0 02 1 0101- ● ●
43 BOLT; BRKT
M10X20 FLANGE 		0-28181-020-0 02 1 0101- ●
56 PLUG; FUEL FILTER
M14X9 		9-99202-314-0 01 1 0101-0206 ● ●
58 ELEMENT; FUEL FILTER 1-13240-079-1 01 1 0101- ● ●
72 NUT; BRKT,FUEL FILTER
M10 FLANGE 		0-91150-110-0 02 1 0101- ●
72 NUT; BRKT,FUEL FILTER
M8 FLANGE 		0-91150-208-0 01 1 0101- ●
