Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#755) — 198 parça

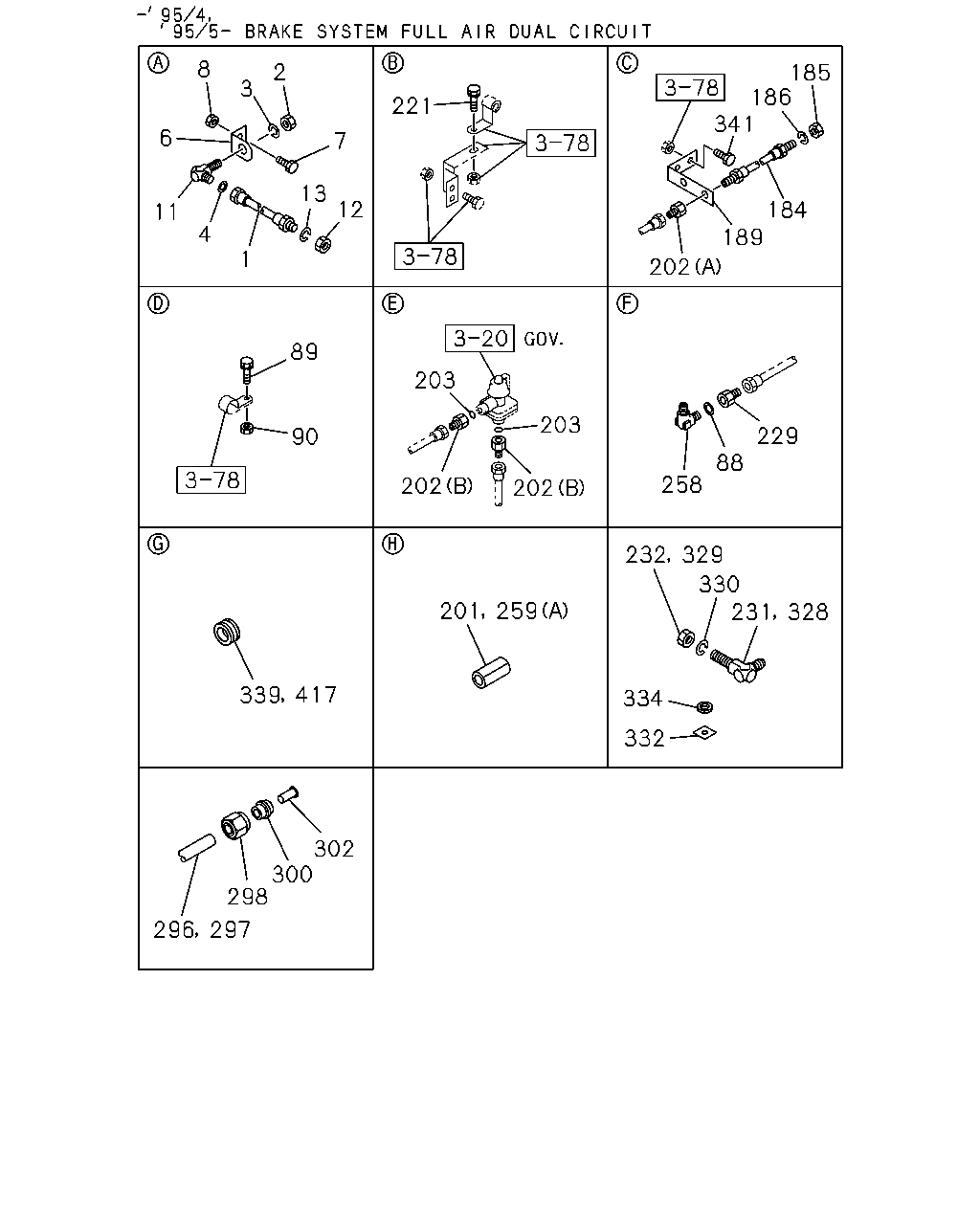

8 2 185 186 341 3 221 6 7 13 12 184 189 11 4 1 202 89 203 203 229 90 88 202 258 202 232 329 330 231 201 259 328 339 417 334 332 302 300 298 296 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=1030	0-17806-103-1	01	1	9204-9504
1	HOSE; FLEX,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09363-543-0	01	1	9505-
1	HOSE; FLEX,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1030	0-17806-103-1	01	1	9505-
2	NUT; FLEX HOSE,AIR TANK M20	9-99111-420-0	01	1	9204-9504
2	NUT; FLEX HOSE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22	9-09111-422-0	01	1	9505-
2	NUT; FLEX HOSE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20	9-99111-420-0	01	1	9505-
3	WASHER; LK,FLEX HOSE,AIR TANK ID=20.2	9-09150-520-0	01	1	9204-9504
3	WASHER; LK,FLEX HOSE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=20.2	9-09150-520-0	01	1	9505-
4	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	9204-9504
4	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	01	1	9505-
6	BRACKET; FLEX HOSE,AIR TANK	1-47476-057-1	01	1	9204-9504
6	BRACKET; FLEX HOSE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47476-783-1	01	1	9505-
6	BRACKET; FLEX HOSE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47476-057-1	01	1	9505-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28010-825-0	02	1	9204-9204
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28080-825-0	02	1	9205-9504
7	BOLT; BRKT,FLEX HOSE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	03	1	9505-
7	BOLT; BRKT,FLEX HOSE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	02	1	9505-
8	NUT; BRKT,FLEX HOSE,AIR TANK M8	9-09110-408-0	02	1	9204-9504
8	NUT; BRKT,FLEX HOSE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9505-
11	UNION; AIR PIPE	1-09654-202-1	01	1	9204-9504
11	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09654-202-1	01	1	9505-
12	NUT; UNION M22	9-09111-422-0	01	1	9204-9504
12	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22	9-09111-422-0	01	1	9505-
13	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9204-9312
88	GASKET; NYLON TUBE ID=14.2 OD=23.0	9-09572-014-0	01	1	9204-9504
88	GASKET; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14.2 OD=23.0	9-09572-014-0	01	1	9505-
89	BOLT; TUBE CLIP M8X25 FLANGE	0-28010-825-0	02	1	9204-9204
89	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	02	1	9205-9504
89	BOLT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	02	1	9505-
90	NUT; TUBE CLIP M8	9-09110-408-0	02	1	9204-9504
90	NUT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9505-
184	HOSE; FLEX,AIR GOV L=410	0-07030-410-0	01	1	9204-9504
184	HOSE; FLEX,AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09363-503-0	01	1	9505-
184	HOSE; FLEX,AIR GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=410	0-07030-410-0	01	1	9505-
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	9204-9305
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	02	1	9306-
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	9204-9305
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	02	1	9306-9312
189	BRACKET; FLEX HOSE	1-47465-193-0	01	1	9204-9504
189	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47465-193-0	01	1	9505-
201	SLEEVE; RUBBER,NYLON TUBE AIR DRYER<PS7> ID=29 OD=39 L=40	1-09337-013-0	01	1	9204-
202	ADAPTER (A)	1-09650-373-0	01	1	9204-9504
202	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09650-373-0	01	1	9505-
202	ADAPTER (B)	1-09660-550-0	02	1	9204-9504
202	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-09660-550-0	02	1	9505-
203	GASKET; ADAPTER,GOV ID=11 OD=18	9-09572-510-0	02	1	9204-9504
203	GASKET; ADAPTER,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	02	1	9505-
221	BOLT; BRKT M8X25 FLANGE	0-28010-825-0	01	1	9204-9204
221	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	9205-9504
221	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	01	1	9505-
229	ADAPTER; NYLON TUBE M14 & PT1/4	9-48319-149-0	01	1	9204-9504
229	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14 & PT1/4	9-48319-149-0	01	1	9505-
231	UNION; AIR PIPE	1-09654-180-3	01	1	9204-9504
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2>	1-09654-180-3	01	1	9505-
232	NUT; UNION,AIR PIPE M10 H=8	1-09400-029-0	02	1	9204-9504
232	NUT; UNION,AIR PIPE DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	02	1	9505-
258	CONNECTOR; NYLON TUBE 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9204-9504
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 17/32" PT1/4 ELBOW	1-09660-551-0	01	1	9505-
259	SLEEVE; RUBBER,NYLON TUBE (A) ID=29 OD=39 L=40	1-09337-013-0	01	1	9204-9204
259	SLEEVE; RUBBER,NYLON TUBE (A) ID=29 OD=39 L=40	1-09337-013-0	03	1	9205-9205
259	SLEEVE; RUBBER,NYLON TUBE (A) ID=29 OD=39 L=40	1-09337-013-0	04	1	9206-9504
259	SLEEVE; RUBBER,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=29 OD=39 L=40	1-09337-013-0	04	1	9505-
259	SLEEVE; RUBBER,NYLON TUBE (B) ID=10 OD=14 L=30	9-09956-682-0	01	1	9204-9504
259	SLEEVE; RUBBER,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=10 OD=14 L=30	9-09956-682-0	01	1	9505-
296	TUBE; NYLON YELLOW OD=3/8" L=30000	1-09368-250-0	AR	1	9204-9504
296	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) YELLOW OD=3/8" L=30000	1-09368-250-0	AR	1	9505-
297	TUBE; NYLON NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) L=670 SERVICED BY L=30000 OD=1/2"	1-09368-254-0	01	1	9204-9504
297	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) L=670 SERVICED BY L=30000 OD=1/2"	1-09368-254-0	01	1	9505-
298	NUT; SLEEVE OD=3/8"	1-09660-557-0	AR	1	9204-9504
298	NUT; SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3/8"	1-09660-557-0	AR	1	9505-
298	NUT; SLEEVE OD=1/2"	1-09660-558-0	AR	1	9204-9504
298	NUT; SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=1/2"	1-09660-558-0	AR	1	9505-
300	SLEEVE; TUBE ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9204-9504
300	SLEEVE; TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=9.75 OD=12.17 L=9.91	1-09666-060-0	AR	1	9505-
300	SLEEVE; TUBE ID=12.93 OD=15.85 L=10.92	1-09666-061-0	AR	1	9204-9504
300	SLEEVE; TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.93 OD=15.85 L=10.92	1-09666-061-0	AR	1	9505-
302	RING; INSERT OD=1/2"	1-09669-107-0	AR	1	9204-9504
302	RING; INSERT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=1/2"	1-09669-107-0	AR	1	9505-
302	RING; INSERT OD=3/8"	1-09669-108-0	AR	1	9204-9504
302	RING; INSERT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3/8"	1-09669-108-0	AR	1	9505-
328	UNION; AIR PIPE M10 ELBOW	1-09654-186-2	01	1	9204-
329	NUT; UNION,AIR PIPE M10	9-09110-410-0	01	1	9204-
330	WASHER; LK,UNION,AIR PIPE ID=10.2	9-09150-510-0	02	1	9204-9504
330	WASHER; LK,UNION,AIR PIPE DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	02	1	9505-
332	SEAL; PIPE UNION 25X25	8-94272-533-0	01	1	9204-9504
332	SEAL; PIPE UNION DUAL AIR GAUGE<UG2> 25X25	8-94272-533-0	01	1	9505-
334	SPACER; PIPE UNION ID=10.5 OD=22 T=4	1-09503-045-0	01	1	9204-9504
334	SPACER; PIPE UNION DUAL AIR GAUGE<UG2> ID=10.5 OD=22 T=4	1-09503-045-0	01	1	9505-
339	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	01	1	9204-9504
339	GROMMET; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=28 OD=35 T=25	1-09332-011-1	01	1	9505-
341	BOLT; BRKT M8X25 FLANGE	0-28010-825-0	02	1	9204-9204
341	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9205-9504
341	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	02	1	9505-
417	GROMMET; NYLON TUBE ID=28 OD=35 T=25	1-09332-011-1	02	1	9204-9504
417	GROMMET; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=28 OD=35 T=25	1-09332-011-1	02	1	9505-

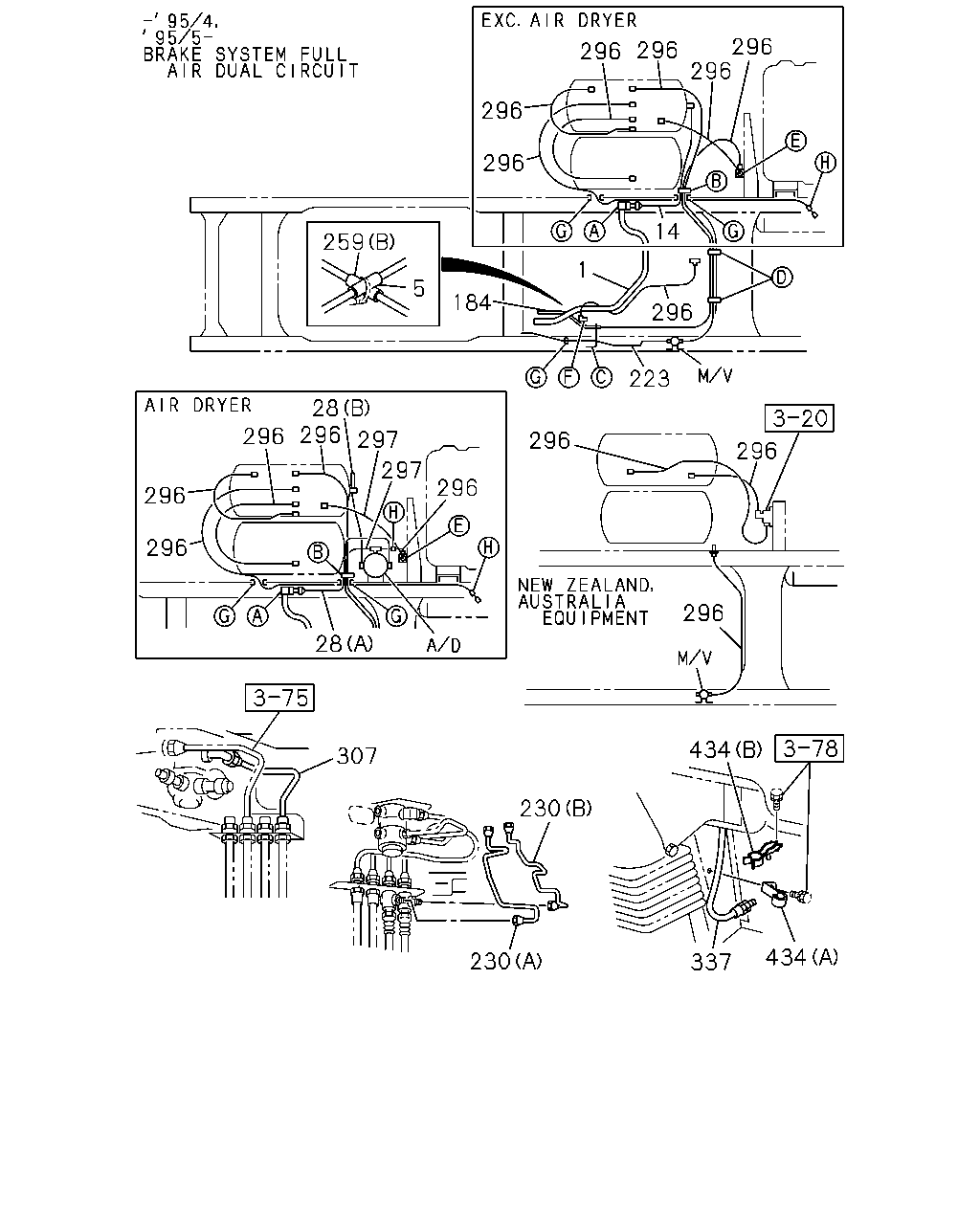

328 329 366 319 325 320 307 137 138 434 337

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	HOSE; FLEX,AIR PRESSURE GAGE EXC. DUAL AIR GAUGE<UG2> L=410	0-07020-410-0	01	1	9505-
138	NUT; FLEX HOSE,AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	01	1	9505-
307	PIPE; AIR,FLEX HOSE TO BRK VLV L=320	1-47446-700-0	01	1	9204-9212
307	PIPE; AIR,FLEX HOSE TO BRK VLV L=320	1-47497-108-0	01	1	9301-
319	NUT; FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9505-
320	WASHER; LK,FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9505-
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2> L=958	1-47447-893-1	01	1	9505-
328	UNION; AIR PIPE M10 ELBOW	1-09654-186-2	01	1	9204-
329	NUT; UNION,AIR PIPE M10	9-09110-410-0	01	1	9204-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=720	0-07210-720-0	02	1	9204-9504
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	02	1	9505-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	01	1	9505-
366	SEAL; AIR GAUGE HOLE EXC. DUAL AIR GAUGE<UG2> OD=36 WHITE	1-76778-007-0	01	1	9505-
434	CLIP (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9204-9504
434	CLIP DUAL AIR GAUGE<UG2> (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9505-
434	CLIP (B) ID=17	1-09987-105-1	01	1	9204-9402
434	CLIP EXC. DUAL AIR GAUGE<UG2> (A) ID=14	8-94157-443-0	01	1	9505-

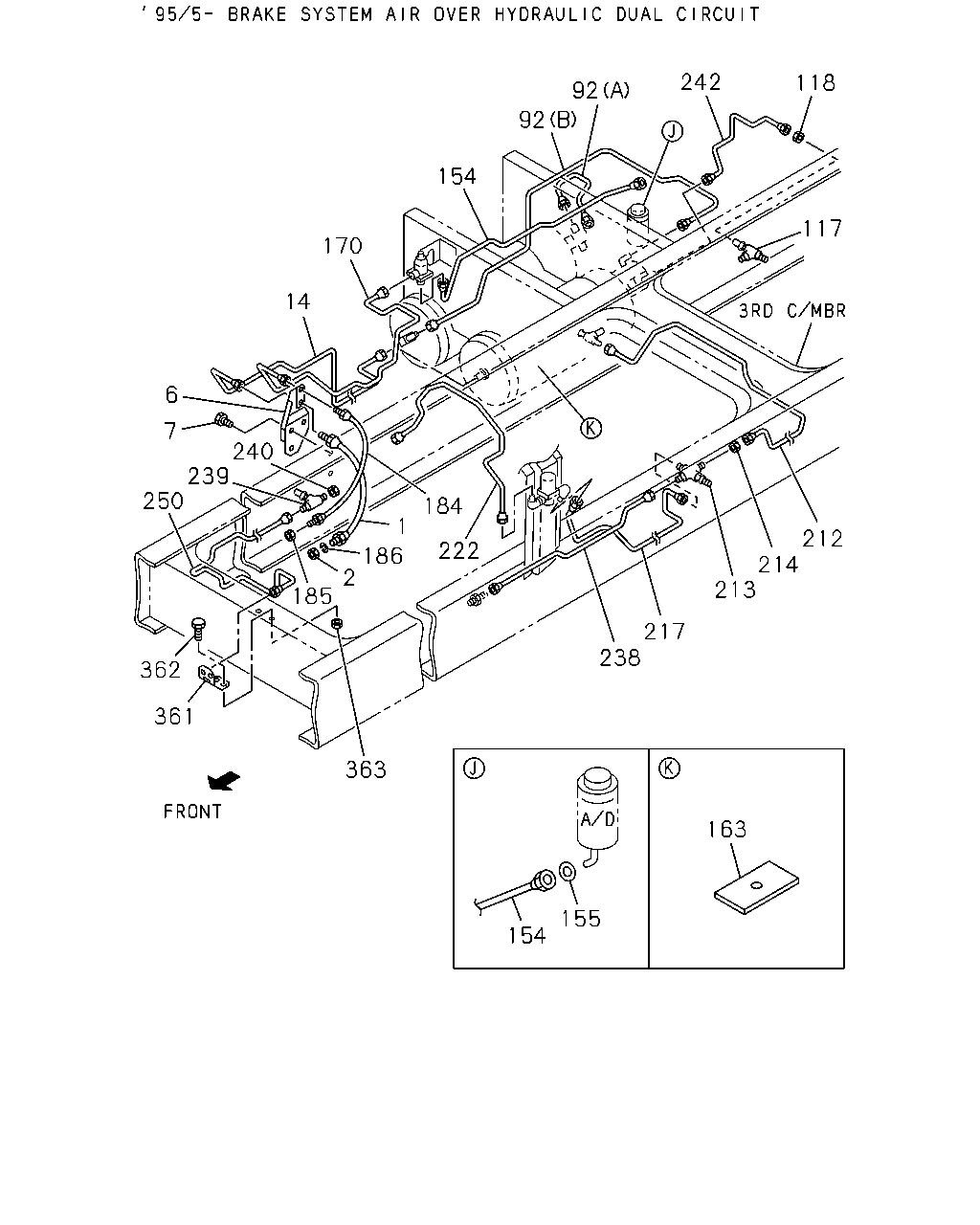

242 118 92 92 154 117 170 14 6 7 240 239 250 184 1 212 214 213 222 186 2 185 217 238 362 361 363 163 155 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=1030	0-17806-103-1	01	1	9204-9504
1	HOSE; FLEX,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09363-543-0	01	1	9505-
1	HOSE; FLEX,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1030	0-17806-103-1	01	1	9505-
2	NUT; FLEX HOSE,AIR TANK M20	9-99111-420-0	01	1	9204-9504
2	NUT; FLEX HOSE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22	9-09111-422-0	01	1	9505-
2	NUT; FLEX HOSE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20	9-99111-420-0	01	1	9505-
6	BRACKET; FLEX HOSE,AIR TANK	1-47476-057-1	01	1	9204-9504
6	BRACKET; FLEX HOSE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47476-783-1	01	1	9505-
6	BRACKET; FLEX HOSE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47476-057-1	01	1	9505-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28010-825-0	02	1	9204-9204
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28080-825-0	02	1	9205-9504
7	BOLT; BRKT,FLEX HOSE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28080-830-0	03	1	9505-
7	BOLT; BRKT,FLEX HOSE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	02	1	9505-
14	PIPE; AIR,FLEX HOSE TO AIR TANK EXC. AIR DRYER<PS7> L=1077	1-47491-980-0	01	1	9204-9504
14	PIPE; AIR,FLEX HOSE TO AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> L=1077	1-47491-980-0	01	1	9505-
14	PIPE; AIR,FLEX HOSE TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1764 SERVICED BY L=1800	1-49111-465-0	01	1	9505-
92	PIPE; AIR,AIR TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=534	1-47482-332-1	01	1	9505-
92	PIPE; AIR,AIR TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=1499 SERVICED BY L=1500	1-49111-463-0	01	1	9505-
117	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 ELBOW	9-09225-206-1	01	1	9505-
118	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09840-280-0	01	1	9505-
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49111-892-0	01	1	9505-
155	GASKET; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=11 OD=18	9-09572-510-0	02	1	9505-
163	BRACKET; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=50	1-47475-299-2	01	1	9505-
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49111-174-0	01	1	9505-
184	HOSE; FLEX,AIR GOV L=410	0-07030-410-0	01	1	9204-9504
184	HOSE; FLEX,AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09363-503-0	01	1	9505-
184	HOSE; FLEX,AIR GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=410	0-07030-410-0	01	1	9505-
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	9204-9305
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	02	1	9306-
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	9204-9305
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	02	1	9306-9312
212	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1384 SERVICED BY L=1500	1-47426-355-0	01	1	9505-
213	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-09228-306-1	01	1	9505-
214	NUT; UNION,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-99110-412-0	02	1	9505-
217	PIPE; VAC,UNION TO MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1135 SERVICED BY L=1200	1-47426-352-0	01	1	9505-
222	PIPE; AIR,MAG VLV TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1105 SERVICED BY L=1250	1-47434-389-0	01	1	9505-
238	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1055 SERVICED BY L=1100	1-47426-351-0	01	1	9505-
239	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 3WAY	1-09654-137-2	01	1	9505-
240	NUT; UNION,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12	9-99111-412-0	01	1	9505-
242	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=562 SERVICED BY L=600	1-47426-345-0	01	1	9505-
250	PIPE; AIR,UNION TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1367 SERVICED BY L=1370	1-47426-354-0	01	1	9505-
361	BRACKET; FLEX HOSE,AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47476-781-0	01	1	9505-
362	BOLT; BRKT,FLEX HOSE,AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	02	1	9505-
363	NUT; BRKT,FLEX HOSE,AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9505-

296 296 296 296 296 296 14 259 1 5 184 296 223 28 296 296 297 296 296 297 296 296 296 296 28 434 307 230 434 230 337

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=1030	0-17806-103-1	01	1	9204-9504
1	HOSE; FLEX,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09363-543-0	01	1	9505-
1	HOSE; FLEX,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1030	0-17806-103-1	01	1	9505-
5	SLEEVE; FLEX HOSE ID=23 OD=27 L=40	1-09337-015-0	01	1	9204-9504
5	SLEEVE; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=23 OD=27 L=40	1-09337-015-0	01	1	9505-
14	PIPE; AIR,FLEX HOSE TO AIR TANK EXC. AIR DRYER<PS7> L=1077	1-47491-980-0	01	1	9204-9504
14	PIPE; AIR,FLEX HOSE TO AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> L=1077	1-47491-980-0	01	1	9505-
14	PIPE; AIR,FLEX HOSE TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1764 SERVICED BY L=1800	1-49111-465-0	01	1	9505-
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (A) L=1076	1-47491-966-0	01	1	9204-9206
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (A) L=1052	1-47494-318-0	01	1	9207-9504
28	PIPE; AIR,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) L=1052	1-47494-318-0	01	1	9505-
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> (B) L=835	1-47491-973-0	01	1	9204-9206
28	PIPE; AIR,AIR DRYER (B) L=669	1-47494-319-0	01	1	9207-9504
28	PIPE; AIR,AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) L=669	1-47494-319-0	01	1	9505-
184	HOSE; FLEX,AIR GOV L=410	0-07030-410-0	01	1	9204-9504
184	HOSE; FLEX,AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09363-503-0	01	1	9505-
184	HOSE; FLEX,AIR GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=410	0-07030-410-0	01	1	9505-
223	PIPE; AIR,MAG VLV TO CONT CYL L=1021 SERVICED BY L=1100	1-47434-387-0	01	1	9204-9504
223	PIPE; AIR,MAG VLV TO CONT CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=1021 SERVICED BY L=1100	1-47434-387-0	01	1	9505-
230	PIPE; AIR,UNION TO UNION (A) L=669 SERVICED BY L=780	9-47416-730-0	01	1	9204-9504
230	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> (A) L=669 SERVICED BY L=780	9-47416-730-0	01	1	9505-
230	PIPE; AIR,UNION TO UNION (B) L=938 SERVICED BY L=1055	9-47416-731-0	01	1	9204-9504
230	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> (B) L=938 SERVICED BY L=1055	9-47416-731-0	01	1	9505-
259	SLEEVE; RUBBER,NYLON TUBE (A) ID=29 OD=39 L=40	1-09337-013-0	01	1	9204-9204
259	SLEEVE; RUBBER,NYLON TUBE (A) ID=29 OD=39 L=40	1-09337-013-0	03	1	9205-9205
259	SLEEVE; RUBBER,NYLON TUBE (A) ID=29 OD=39 L=40	1-09337-013-0	04	1	9206-9504
259	SLEEVE; RUBBER,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=29 OD=39 L=40	1-09337-013-0	04	1	9505-
259	SLEEVE; RUBBER,NYLON TUBE (B) ID=10 OD=14 L=30	9-09956-682-0	01	1	9204-9504
259	SLEEVE; RUBBER,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=10 OD=14 L=30	9-09956-682-0	01	1	9505-
296	TUBE; NYLON YELLOW OD=3/8" L=30000	1-09368-250-0	AR	1	9204-9504
296	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) YELLOW OD=3/8" L=30000	1-09368-250-0	AR	1	9505-
297	TUBE; NYLON NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) L=670 SERVICED BY L=30000 OD=1/2"	1-09368-254-0	01	1	9204-9504
297	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) L=670 SERVICED BY L=30000 OD=1/2"	1-09368-254-0	01	1	9505-
307	PIPE; AIR,FLEX HOSE TO BRK VLV L=320	1-47446-700-0	01	1	9204-9212
307	PIPE; AIR,FLEX HOSE TO BRK VLV L=320	1-47497-108-0	01	1	9301-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=720	0-07210-720-0	02	1	9204-9504
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	02	1	9505-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	01	1	9505-
434	CLIP (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9204-9504
434	CLIP DUAL AIR GAUGE<UG2> (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9505-
434	CLIP (B) ID=17	1-09987-105-1	01	1	9204-9402
434	CLIP EXC. DUAL AIR GAUGE<UG2> (A) ID=14	8-94157-443-0	01	1	9505-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
