Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#75497) — 194 parça

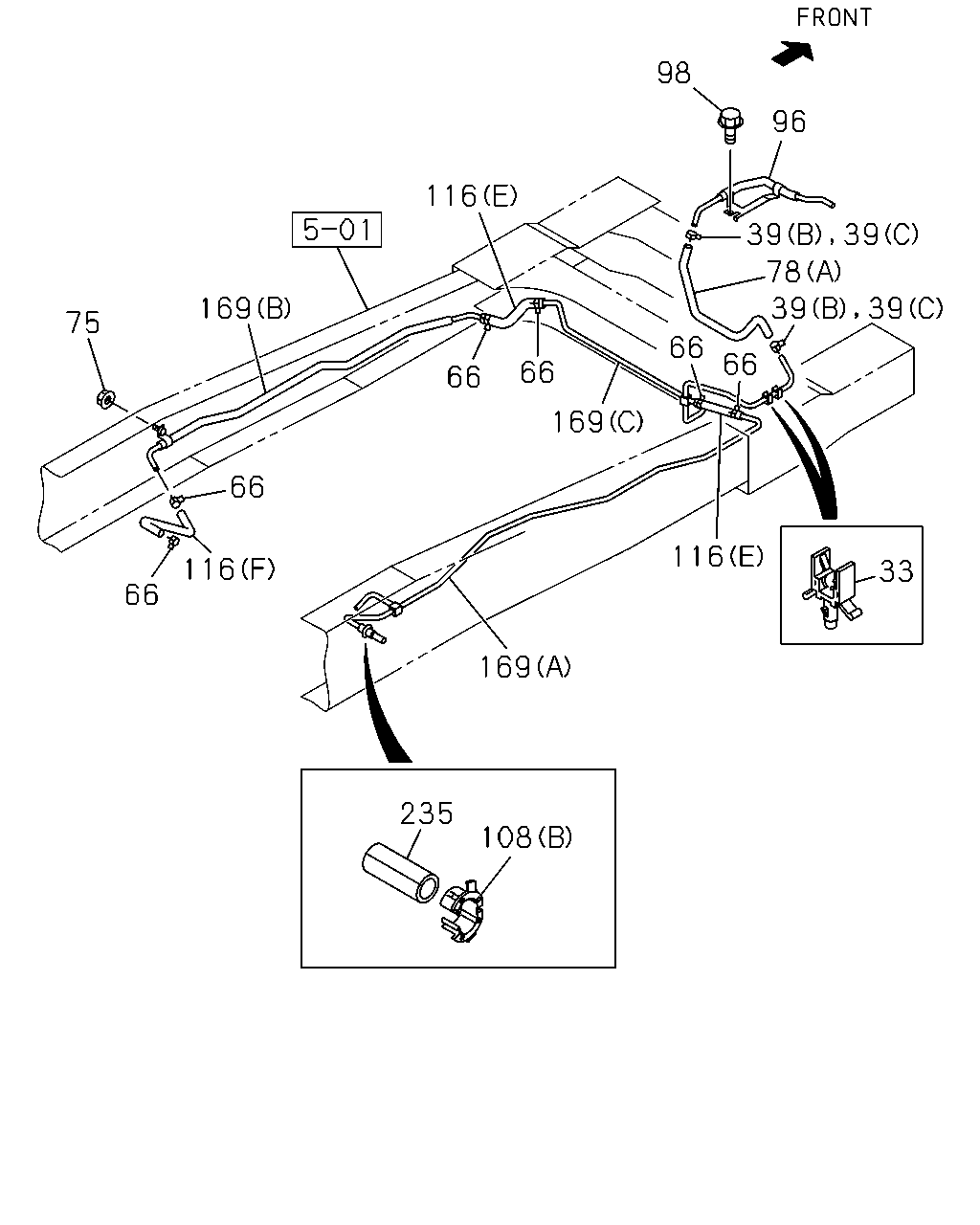

98 96 116 78 169 75 66 66 66 66 169 66 116 116 33 66 169 235 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	04.930 CLIP; VAC PIPE ID=10 H=40	8-94462-219-0	02	1	0810-
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	04	1	0902-0911
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	04	1	0912-
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	02	1	0810-0911
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	0912-
75	04.930 NUT; CLIP,VAC HOSE 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98034-104-4	01	1	0810-1103
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98189-106-0	01	1	1104-
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98080-833-1	01	1	0810-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98082-309-1	01	1	0810-0903
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98133-654-1	01	1	0904-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98046-550-0	01	1	0810-1205
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1206-
98	04.931 BOLT; VAC PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0810-
108	04.931 GROMMET; PIPE 02.343 (B) ID=17	8-94128-319-2	01	1	0810-
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0810-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0810-
116	04.931 HOSE; VAC,M/VAC (F)	8-98100-244-1	01	1	0810-1104
116	04.931 HOSE; VAC,M/VAC (F)	8-98189-220-0	01	1	1105-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0810-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0810-
169	04.930 PIPE; VAC,BOOSTER SIDE (C)	8-98041-053-4	01	1	0810-
169	04.930 PIPE; VAC,BOOSTER SIDE (B)	8-98100-234-2	01	1	0810-
169	04.930 PIPE; VAC,BOOSTER SIDE (A)	8-98101-041-1	01	1	0810-
235	04.931 RUBBER; SUPPORT,PIPE 03.162 OD=16.5 L=50	8-97214-235-0	01	1	0810-

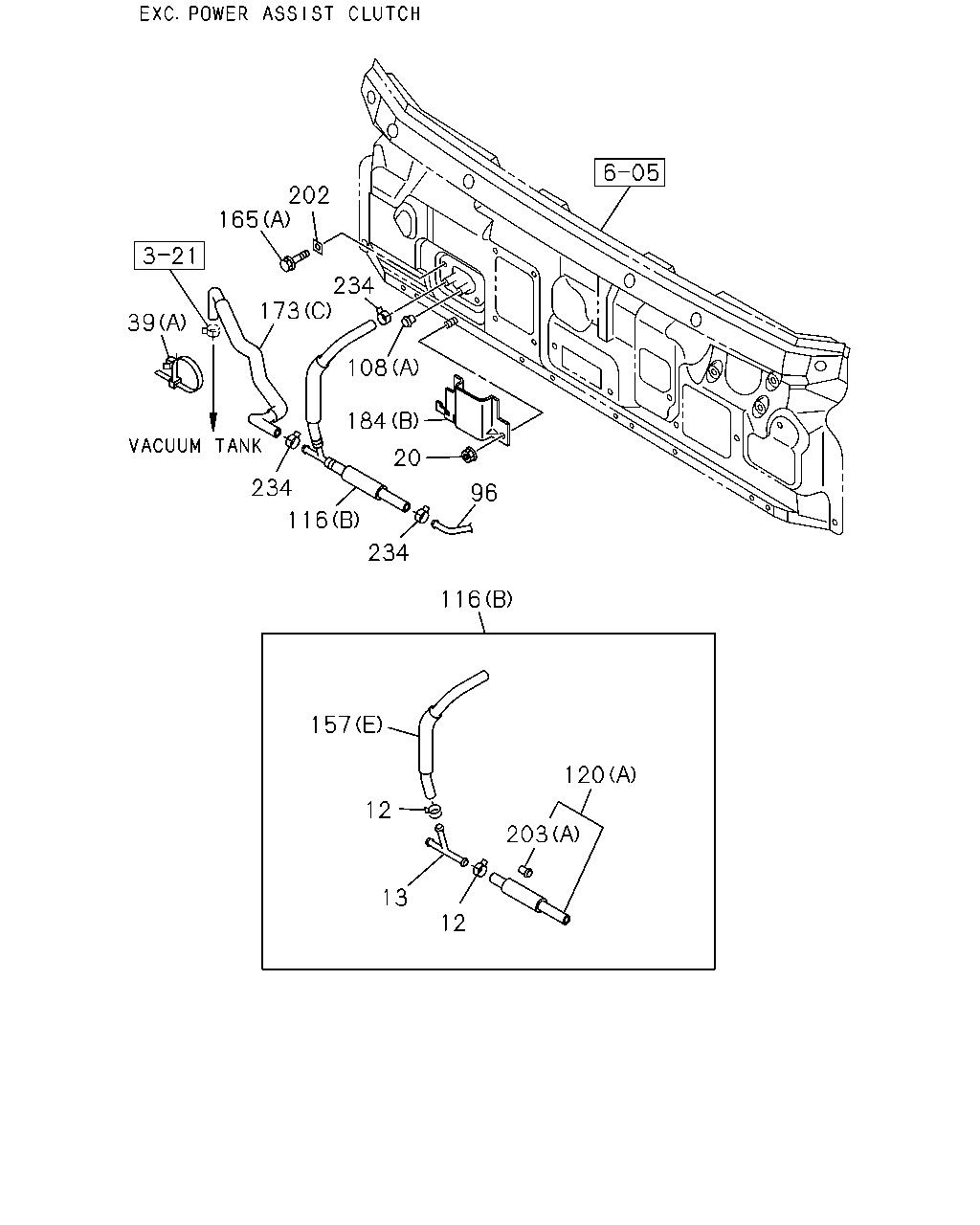

202 165 234 173 12 12 184 116 163 234 20 173 96 157 120 116 234 12 234 203 13 39 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	10	1	0810-
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	0810-
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	0810-
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0810-
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	0810-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0810-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0810-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98046-550-0	01	1	0810-1205
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1206-
116	04.931 HOSE; VAC,M/VAC (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0810-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0810-
116	04.931 HOSE; VAC,M/VAC (F)	8-98100-244-1	01	1	0810-1104
116	04.931 HOSE; VAC,M/VAC (F)	8-98189-220-0	01	1	1105-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0810-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0810-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	0810-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	0810-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	0810-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	0810-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	0810-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	0810-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	0810-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	0810-
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	0810-
163	04.681 JOINT; VAC HOSE POWER ASSIST CLUTCH(S2T) 03.163	8-97353-668-0	01	1	0810-
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0810-
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0810-
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	0810-
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	0810-
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	0810-
184	04.685 BRACKET; UNION FIX (D)	8-98255-548-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0810-1102
184	04.685 BRACKET; UNION FIX (A)	8-98183-462-1	01	1	1103-1311
184	04.685 BRACKET; UNION FIX (C)	8-98255-535-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	0810-
202	04.686 SEAL 08.845	8-97856-616-0	02	1	0810-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0810-
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0810-
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	0810-
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	0810-

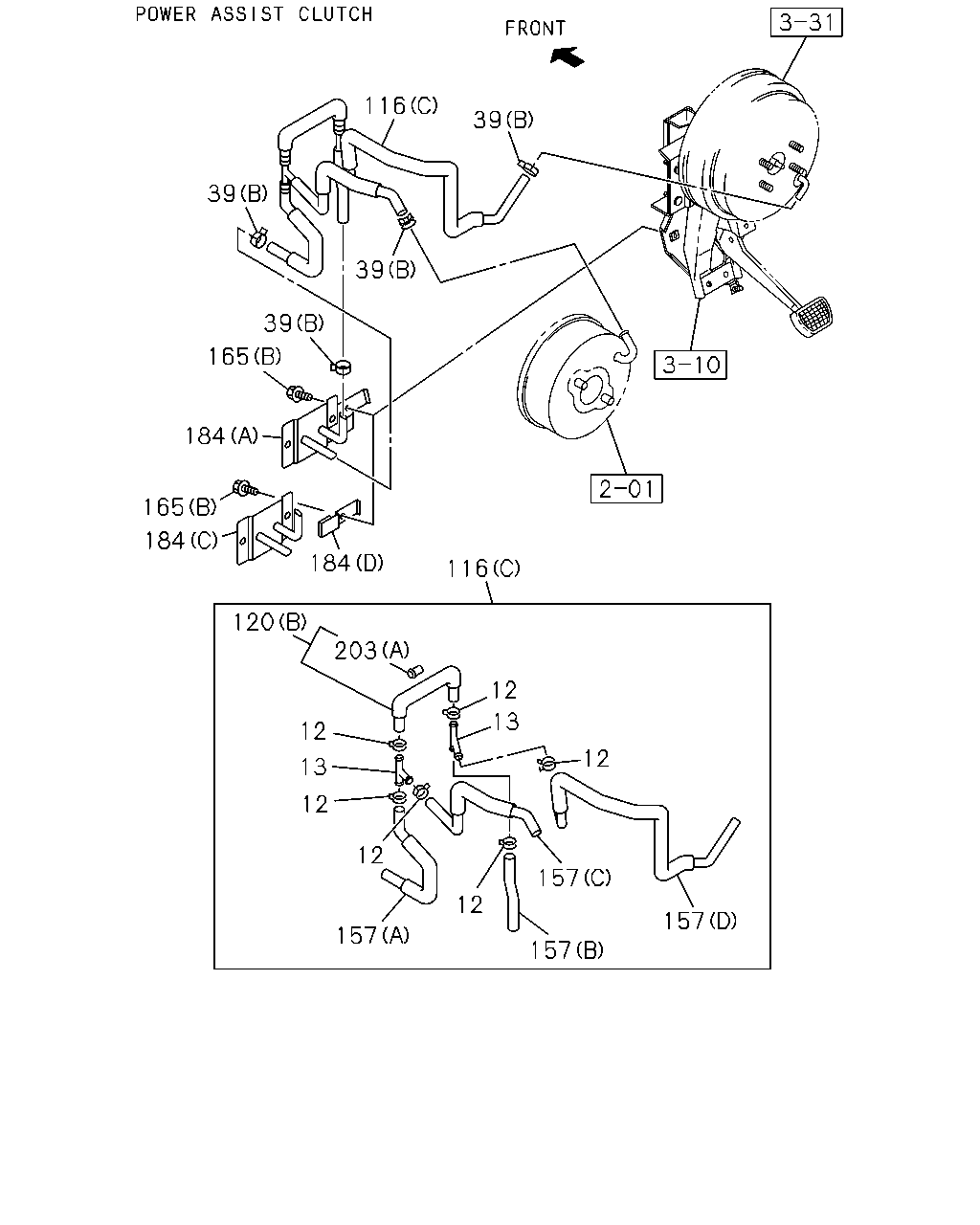

116 12 13 12 157 157 157 157 12 12 12 13 12 203 120 184 184 165 184 165 39 39 39 116 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	10	1	0810-
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	0810-
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	0810-
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0810-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0810-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0810-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
116	04.931 HOSE; VAC,M/VAC (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0810-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0810-
116	04.931 HOSE; VAC,M/VAC (F)	8-98100-244-1	01	1	0810-1104
116	04.931 HOSE; VAC,M/VAC (F)	8-98189-220-0	01	1	1105-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0810-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0810-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	0810-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	0810-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	0810-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	0810-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	0810-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	0810-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	0810-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	0810-
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	0810-
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0810-
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0810-
184	04.685 BRACKET; UNION FIX (D)	8-98255-548-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0810-1102
184	04.685 BRACKET; UNION FIX (A)	8-98183-462-1	01	1	1103-1311
184	04.685 BRACKET; UNION FIX (C)	8-98255-535-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	0810-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0810-
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0810-

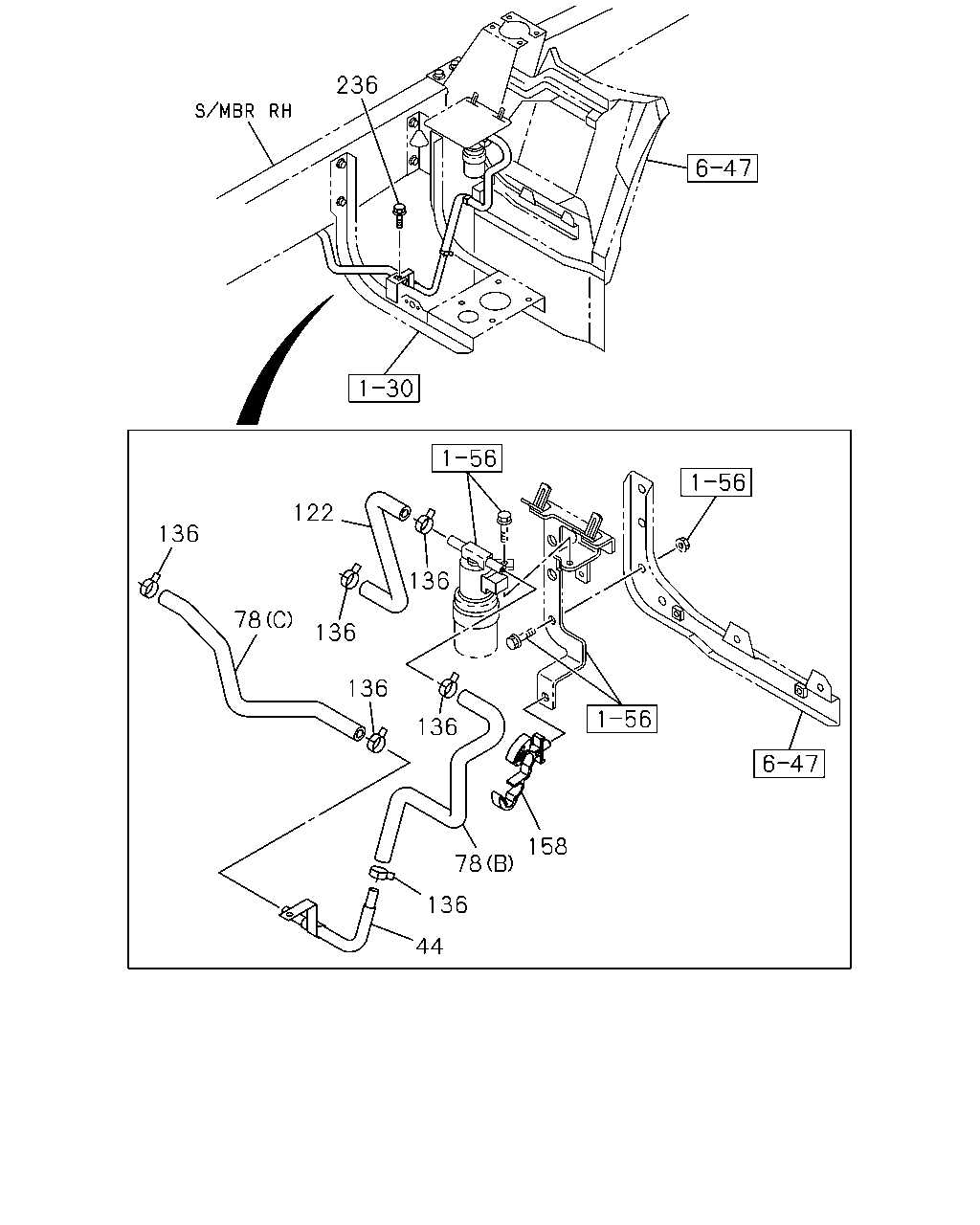

236 122 136 136 78 136 136 136 158 78 136 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	04.930 PIPE; VAC,MAG VLV	8-98034-281-1	01	1	0810-
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98034-104-4	01	1	0810-1103
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98189-106-0	01	1	1104-
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98080-833-1	01	1	0810-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98082-309-1	01	1	0810-0903
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98133-654-1	01	1	0904-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98034-103-2	01	1	0810-1103
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98189-104-0	01	1	1104-
136	04.681 CLIP; VAC HOSE 04.930 ID=16	8-94238-568-0	06	1	0810-0911
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	0912-
158	04.681 CLIP; HOSE 02.559 ID=14-20	8-97061-603-0	01	1	0810-
236	04.930 BOLT; PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0810-

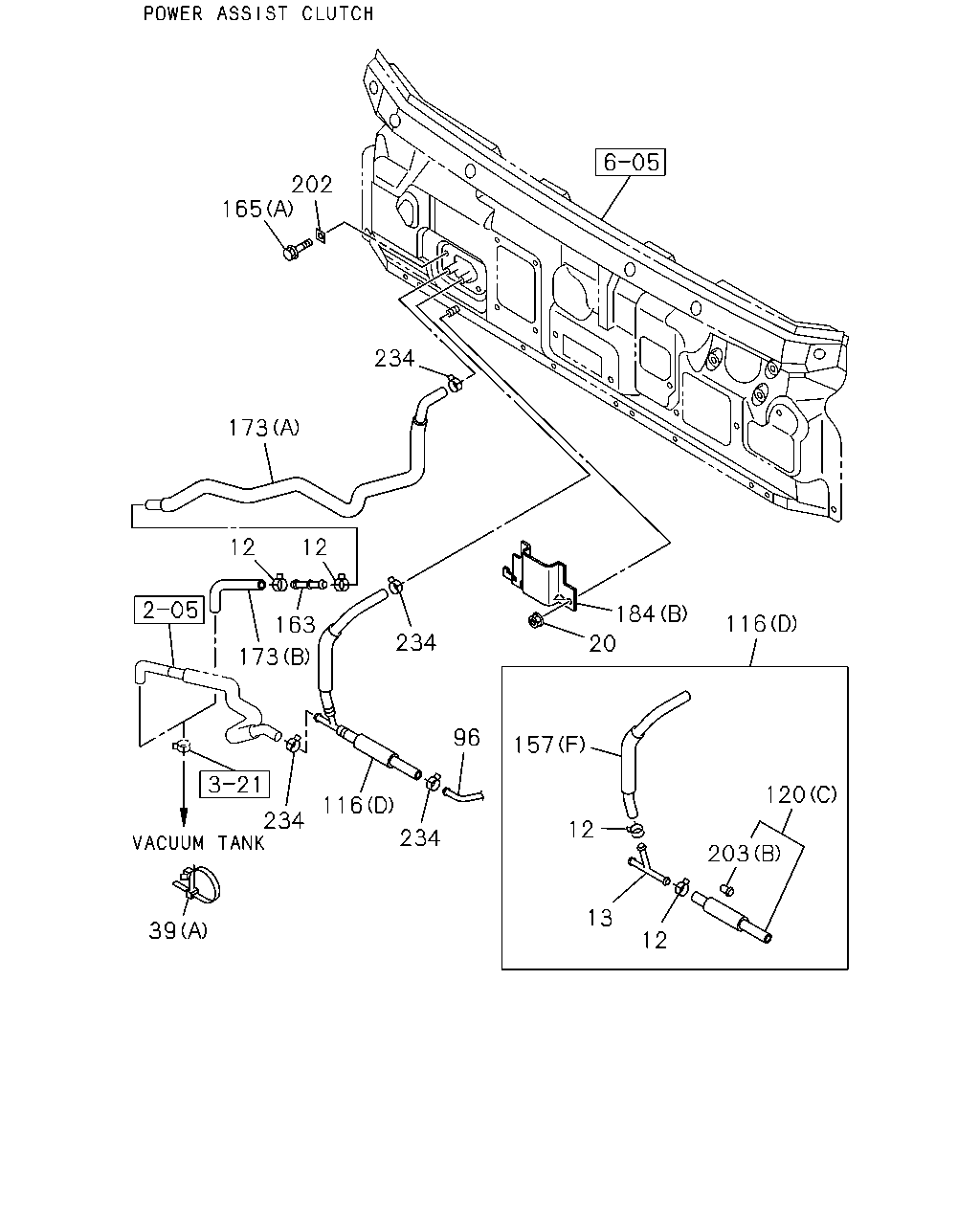

202 165 234 173 39 108 184 20 234 96 116 234 116 157 120 12 203 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	10	1	0810-
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	0810-
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	0810-
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0810-
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	0810-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0810-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0810-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98046-550-0	01	1	0810-1205
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1206-
108	04.931 GROMMET; PIPE 02.343 (B) ID=17	8-94128-319-2	01	1	0810-
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0810-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0810-
116	04.931 HOSE; VAC,M/VAC (F)	8-98100-244-1	01	1	0810-1104
116	04.931 HOSE; VAC,M/VAC (F)	8-98189-220-0	01	1	1105-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0810-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0810-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	0810-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	0810-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	0810-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	0810-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	0810-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	0810-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	0810-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	0810-
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	0810-
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0810-
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0810-
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	0810-
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	0810-
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	0810-
184	04.685 BRACKET; UNION FIX (D)	8-98255-548-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0810-1102
184	04.685 BRACKET; UNION FIX (A)	8-98183-462-1	01	1	1103-1311
184	04.685 BRACKET; UNION FIX (C)	8-98255-535-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	0810-
202	04.686 SEAL 08.845	8-97856-616-0	02	1	0810-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0810-
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0810-
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	0810-
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	0810-

39 116 165 39 184 165 184 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-1205
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0810-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0810-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
116	04.931 HOSE; VAC,M/VAC (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0810-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0810-
116	04.931 HOSE; VAC,M/VAC (F)	8-98100-244-1	01	1	0810-1104
116	04.931 HOSE; VAC,M/VAC (F)	8-98189-220-0	01	1	1105-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0810-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0810-
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0810-
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0810-
184	04.685 BRACKET; UNION FIX (D)	8-98255-548-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0810-1102
184	04.685 BRACKET; UNION FIX (A)	8-98183-462-1	01	1	1103-1311
184	04.685 BRACKET; UNION FIX (C)	8-98255-535-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	0810-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
