Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#7549) — 228 parça

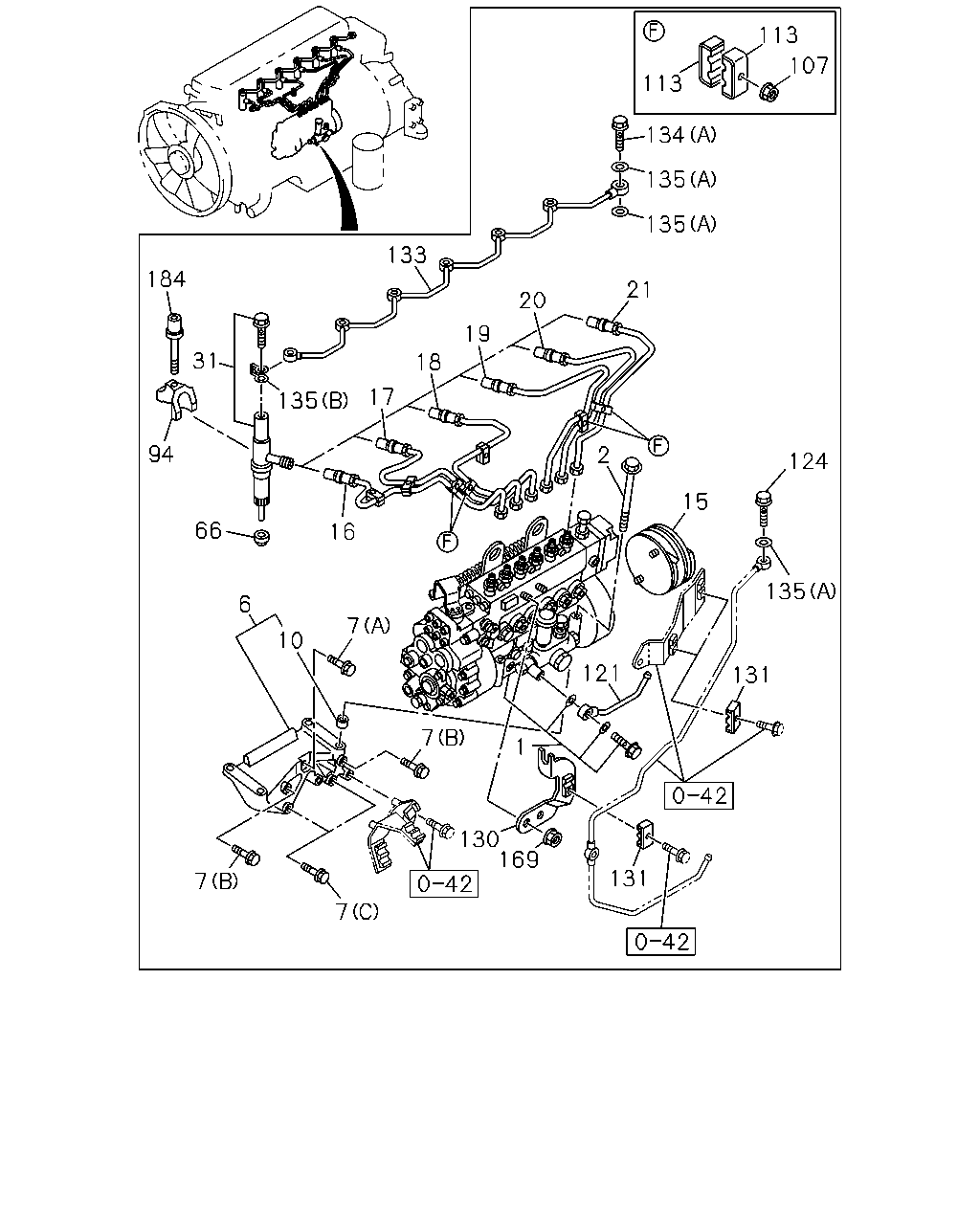

113 107 113 134 135 135 133 184 21 20 19 31 18 17 135 94 2 124 15 66 16 135 6 7 10 121 131 7 1 130 169 131 7 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94392-185-1	01	1	0101-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94392-231-7	01	1	0101-		●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28080-880-0	04	1	0101-	●	●
6	BRACKET; INJ PUMP TO C/BL	8-94395-540-1	01	1	0101-	●
6	BRACKET; INJ PUMP TO C/BL	8-94390-959-0	01	1	0101-		●
7	BOLT; INJ PUMP BRKT (A) M10X40 FLANGE	0-28181-040-0	03	1	0101-	●
7	BOLT; INJ PUMP BRKT (B) M10X80 FLANGE	0-28181-080-0	03	1	0101-	●
7	BOLT; INJ PUMP BRKT (A) M10X40 FLANGE	0-28181-040-0	01	1	0101-		●
7	BOLT; INJ PUMP BRKT (B) M10X75 FLANGE	8-94399-669-1	02	1	0101-		●
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE THA	8-94399-863-1	02	1	0101-		●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	0101-	●	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94396-483-1	01	1	0101-	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94392-050-0	01	1	0101-		●
16	PIPE; INJ NO.1	8-94394-223-1	01	1	0101-0108	●
16	PIPE; INJ NO.1	8-94391-422-0	01	1	0109-	●
16	PIPE; INJ NO.1	8-94392-519-0	01	1	0101-		●
17	PIPE; INJ NO.2	8-94394-224-1	01	1	0101-0108	●
17	PIPE; INJ NO.2	8-94391-423-0	01	1	0109-0109	●
17	PIPE; INJ NO.2	8-97602-329-0	01	1	0110-	●
17	PIPE; INJ NO.2	8-94392-520-0	01	1	0101-		●
18	PIPE; INJ NO.3	8-94390-830-0	01	1	0101-0108	●
18	PIPE; INJ NO.3	8-97602-257-0	01	1	0109-	●
18	PIPE; INJ NO.3	8-94392-521-0	01	1	0101-		●
19	PIPE; INJ NO.4	8-94394-226-1	01	1	0101-0108	●
19	PIPE; INJ NO.4	8-94391-425-0	01	1	0109-	●
19	PIPE; INJ NO.4	8-94392-522-1	01	1	0101-		●
20	PIPE; INJ NO.5	8-94394-227-1	01	1	0101-0108	●
20	PIPE; INJ NO.5	8-94391-426-0	01	1	0109-	●
20	PIPE; INJ NO.5	8-94392-523-0	01	1	0101-		●
21	PIPE; INJ NO.6	8-94394-228-1	01	1	0101-0108	●
21	PIPE; INJ NO.6	8-94391-427-0	01	1	0109-	●
21	PIPE; INJ NO.6	8-94392-524-0	01	1	0101-		●
31	NOZZLE ASM; INJ	8-94394-606-6	06	1	0101-	●
31	NOZZLE ASM; INJ	8-94392-233-2	06	1	0101-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94391-472-0	06	1	0101-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0101-		●
94	BRACKET; INJ NOZZLE	8-94390-988-0	06	1	0101-0407		●
94	BRACKET; INJ NOZZLE	8-97306-074-0	06	1	0408-		●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	05	1	0101-0108	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	06	1	0109-	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	04	1	0101-		●
113	CLIP; INJ PIPE (A)	8-94396-793-0	04	1	0101-0108	●
113	CLIP; INJ PIPE	1-09701-132-1	10	1	0109-	●
113	CLIP; INJ PIPE (B)	8-94397-444-0	05	1	0101-0108	●
113	CLIP; INJ PIPE	1-09701-132-1	08	1	0101-		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94395-043-2	01	1	0101-	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94390-864-3	01	1	0101-		●
124	BOLT; EYE LEAK OFF PIPE (B) M8X18 EYE BOLT	1-09675-037-1	05	1	0101-	●
124	BOLT; EYE LEAK OFF PIPE (A) M8X30 FLANGE	1-09675-039-1	01	1	0101-	●
124	BOLT; EYE LEAK OFF PIPE M10X21 FLANGE	8-94396-711-0	01	1	0101-		●
130	BRACKET; OVERFLOW TO LEAK OFF	8-94394-980-2	01	1	0101-	●
130	BRACKET; OVERFLOW TO LEAK OFF	8-94390-945-0	01	1	0101-		●
131	CLIP; OVERFLOW LEAK OFF	1-09701-091-0	01	1	0101-	●
131	CLIP; OVERFLOW LEAK OFF	1-09701-091-0	03	1	0101-		●
133	PIPE; INJ NOZZLE LEAK OFF	8-94390-071-0	01	1	0101-	●
133	PIPE; INJ NOZZLE LEAK OFF	8-94390-451-0	01	1	0101-		●
134	BOLT; JOINT,LEAK OFF PIPE (B) M8X18 EYE BOLT	1-09675-037-1	06	1	0101-		●
134	BOLT; JOINT,LEAK OFF PIPE (A) M10X21 FLANGE	8-94396-711-0	01	1	0101-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	13	1	0101-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 THA	1-09630-083-0	04	1	0101-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3	8-97600-925-0	06	1	0101-		●
169	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0101-	●	●
169	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0101-	●
184	BOLT; NOZZLE HOLDER	8-94390-989-1	06	1	0101-		●
272	NOZZLE KIT; INJ	1-15319-021-0	06	1	0101-		●

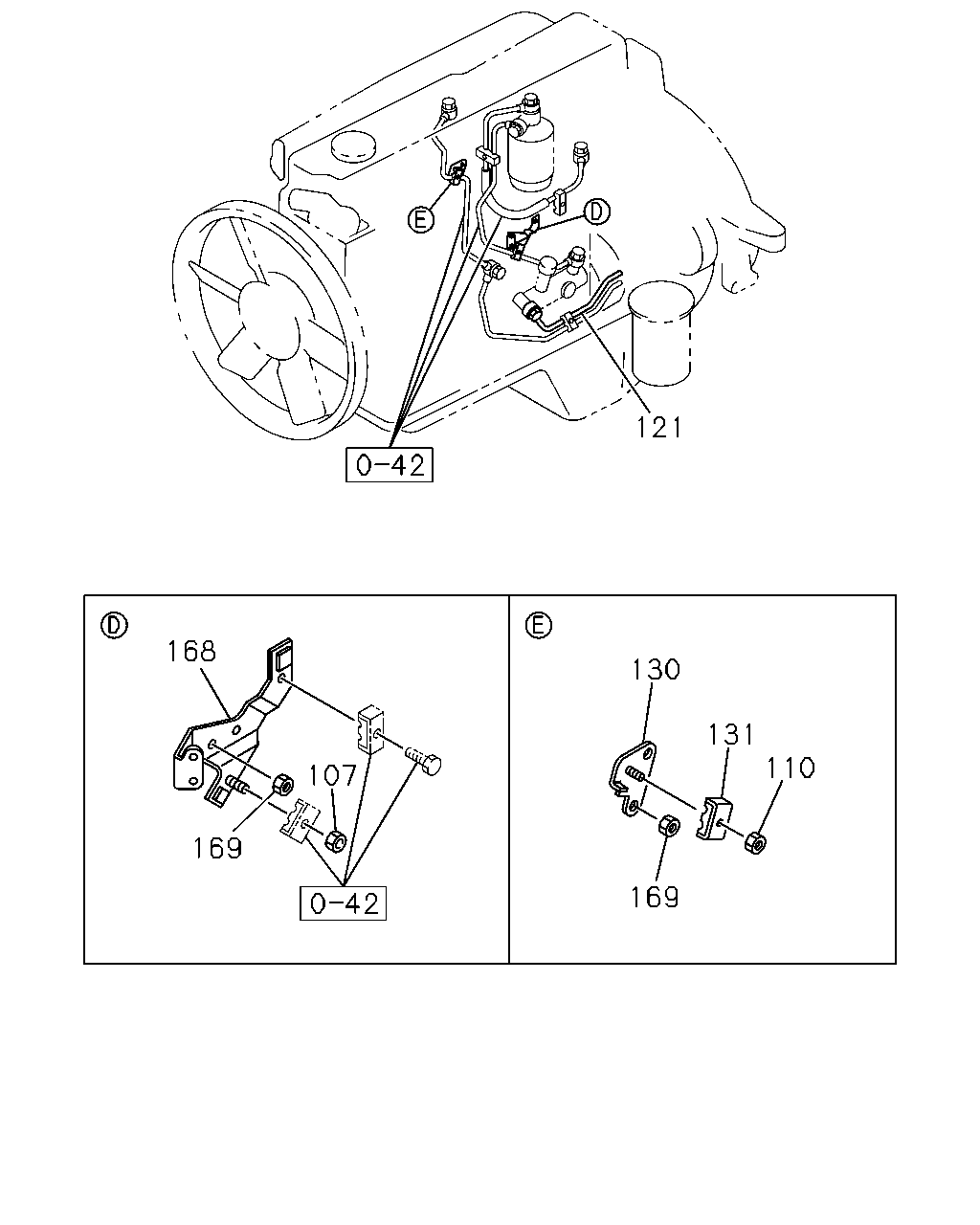

121 168 130 131 110 107 169 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	05	1	0101-0108	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	06	1	0109-	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	04	1	0101-		●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0101-	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94395-043-2	01	1	0101-	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94390-864-3	01	1	0101-		●
130	BRACKET; OVERFLOW TO LEAK OFF	8-94394-980-2	01	1	0101-	●
130	BRACKET; OVERFLOW TO LEAK OFF	8-94390-945-0	01	1	0101-		●
131	CLIP; OVERFLOW LEAK OFF	1-09701-091-0	01	1	0101-	●
131	CLIP; OVERFLOW LEAK OFF	1-09701-091-0	03	1	0101-		●
168	BRACKET; FUEL PIPE	8-94395-046-2	01	1	0101-	●
169	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0101-	●	●
169	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0101-	●
272	NOZZLE KIT; INJ	1-15319-021-0	06	1	0101-		●

31 134 32 135 34 145 140 42 44 43 47 45 138 140 43 52 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ	8-94394-606-6	06	1	0101-	●
31	NOZZLE ASM; INJ	8-94392-233-2	06	1	0101-		●
32	HOLDER ASM; NOZZLE	8-94395-197-1	06	1	0101-	●
32	HOLDER ASM; NOZZLE	8-94392-147-2	06	1	0101-		●
33	NOZZLE; INJ	8-94394-699-0	06	1	0101-	●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	0101-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	06	1	0101-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-145-0	06	1	0101-		●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	9-09561-112-0	06	1	0101-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	06	1	0101-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (A)	1-15342-002-0	06	1	0101-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B)	1-15342-003-0	06	1	0101-		●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	06	1	0101-	●
44	SPRING; NOZZLE,NOZZLE HOLDER	1-15343-005-0	06	1	0101-		●
45	ROD; PUSH,NOZZLE HOLDER	1-15349-129-0	06	1	0101-		●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	1-15349-157-0	06	1	0101-		●
134	BOLT; JOINT,LEAK OFF PIPE (B) M8X18 EYE BOLT	1-09675-037-1	06	1	0101-		●
134	BOLT; JOINT,LEAK OFF PIPE (A) M10X21 FLANGE	8-94396-711-0	01	1	0101-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	13	1	0101-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 THA	1-09630-083-0	04	1	0101-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3	8-97600-925-0	06	1	0101-		●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-006-0	06	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10 THA	8-97027-432-0	AR	1	0101-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20 THA	8-97027-433-0	AR	1	0101-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30 THA	8-97027-434-0	AR	1	0101-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40 THA	8-97027-435-0	AR	1	0101-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50 THA	8-97027-436-0	AR	1	0101-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52 THA	8-97027-437-0	AR	1	0101-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54 THA	8-97027-438-0	AR	1	0101-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56 THA	8-97027-439-0	AR	1	0101-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58 THA	8-97027-440-0	AR	1	0101-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.40	1-15349-112-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.50	1-15349-113-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.52	1-15349-114-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.54	1-15349-115-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.56	1-15349-116-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.58	1-15349-117-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.60	1-15349-118-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.70	1-15349-119-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.40	1-15349-120-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.50	1-15349-121-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.52	1-15349-122-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.54	1-15349-123-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.56	1-15349-124-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.58	1-15349-125-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.60	1-15349-126-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.70	1-15349-127-0	AR	1	0101-		●
145	GASKET; RET NUT	8-94128-915-0	06	1	0101-	●
145	GASKET; RET NUT ID=23.3	8-94173-412-0	06	1	0101-		●
272	NOZZLE KIT; INJ	1-15319-021-0	06	1	0101-		●

31 32 34 36 36 58 145 140 44 43 146 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ	8-94394-606-6	06	1	0101-	●
31	NOZZLE ASM; INJ	8-94392-233-2	06	1	0101-		●
32	HOLDER ASM; NOZZLE	8-94395-197-1	06	1	0101-	●
32	HOLDER ASM; NOZZLE	8-94392-147-2	06	1	0101-		●
33	NOZZLE; INJ	8-94394-699-0	06	1	0101-	●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	0101-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	06	1	0101-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-145-0	06	1	0101-		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	0101-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	06	1	0101-	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (A)	1-15342-002-0	06	1	0101-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER (B)	1-15342-003-0	06	1	0101-		●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	06	1	0101-	●
44	SPRING; NOZZLE,NOZZLE HOLDER	1-15343-005-0	06	1	0101-		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	12	1	0101-	●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	06	1	0101-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10 THA	8-97027-432-0	AR	1	0101-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20 THA	8-97027-433-0	AR	1	0101-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30 THA	8-97027-434-0	AR	1	0101-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40 THA	8-97027-435-0	AR	1	0101-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50 THA	8-97027-436-0	AR	1	0101-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52 THA	8-97027-437-0	AR	1	0101-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54 THA	8-97027-438-0	AR	1	0101-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56 THA	8-97027-439-0	AR	1	0101-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58 THA	8-97027-440-0	AR	1	0101-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.40	1-15349-112-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.50	1-15349-113-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.52	1-15349-114-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.54	1-15349-115-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.56	1-15349-116-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.58	1-15349-117-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.60	1-15349-118-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (A) T=0.70	1-15349-119-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.40	1-15349-120-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.50	1-15349-121-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.52	1-15349-122-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.54	1-15349-123-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.56	1-15349-124-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.58	1-15349-125-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.60	1-15349-126-0	AR	1	0101-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER (B) T=0.70	1-15349-127-0	AR	1	0101-		●
145	GASKET; RET NUT	8-94128-915-0	06	1	0101-	●
145	GASKET; RET NUT ID=23.3	8-94173-412-0	06	1	0101-		●
146	SPACER; NOZZLE	1-15339-095-0	06	1	0101-	●
272	NOZZLE KIT; INJ	1-15319-021-0	06	1	0101-		●

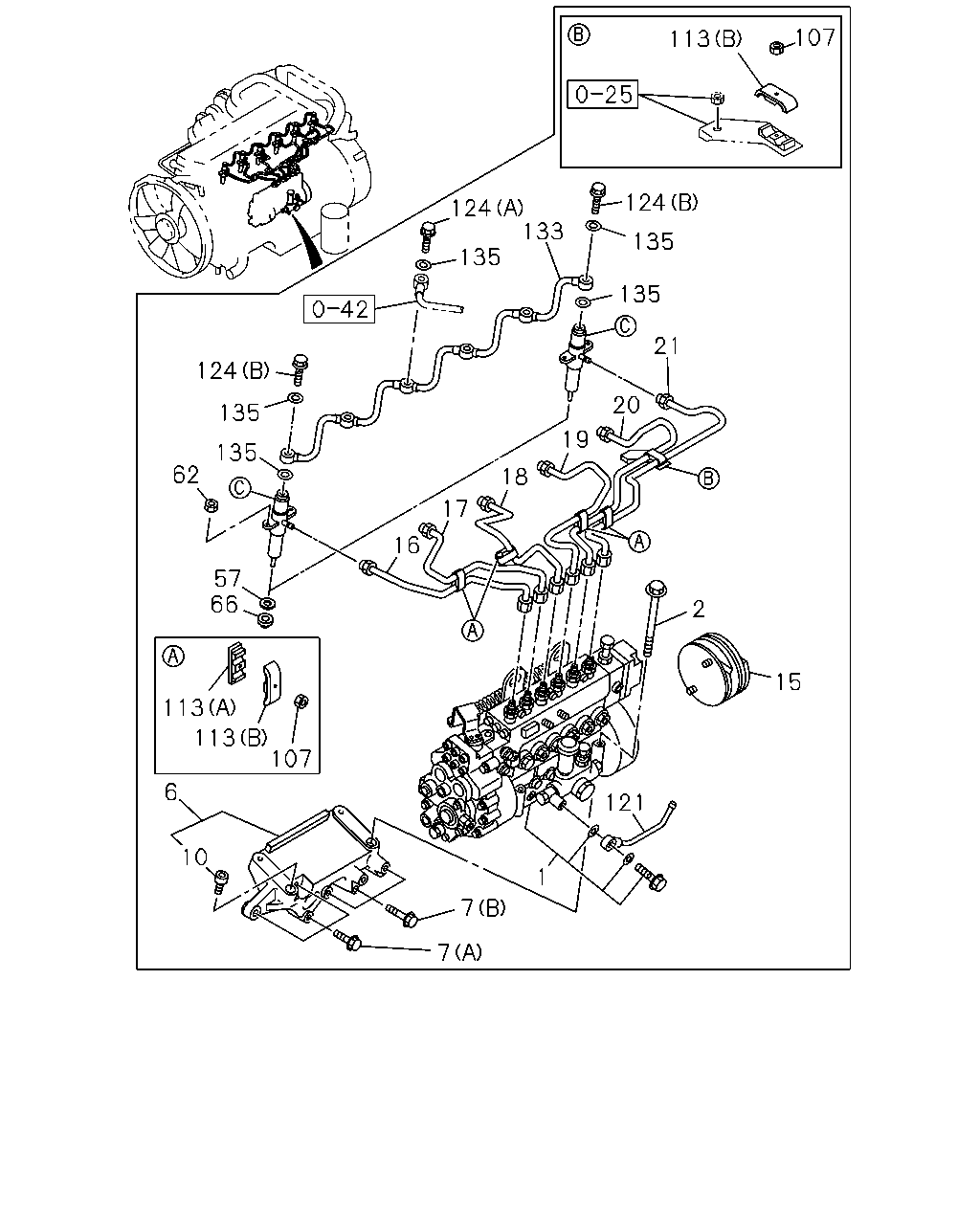

107 113 124 124 133 135 135 135 21 124 20 135 19 135 18 62 17 16 57 66 2 15 113 113 107 6 121 10 1 7 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94392-185-1	01	1	0101-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94392-231-7	01	1	0101-		●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28080-880-0	04	1	0101-	●	●
6	BRACKET; INJ PUMP TO C/BL	8-94395-540-1	01	1	0101-	●
6	BRACKET; INJ PUMP TO C/BL	8-94390-959-0	01	1	0101-		●
7	BOLT; INJ PUMP BRKT (A) M10X40 FLANGE	0-28181-040-0	03	1	0101-	●
7	BOLT; INJ PUMP BRKT (B) M10X80 FLANGE	0-28181-080-0	03	1	0101-	●
7	BOLT; INJ PUMP BRKT (A) M10X40 FLANGE	0-28181-040-0	01	1	0101-		●
7	BOLT; INJ PUMP BRKT (B) M10X75 FLANGE	8-94399-669-1	02	1	0101-		●
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE THA	8-94399-863-1	02	1	0101-		●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	0101-	●	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94396-483-1	01	1	0101-	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94392-050-0	01	1	0101-		●
16	PIPE; INJ NO.1	8-94394-223-1	01	1	0101-0108	●
16	PIPE; INJ NO.1	8-94391-422-0	01	1	0109-	●
16	PIPE; INJ NO.1	8-94392-519-0	01	1	0101-		●
17	PIPE; INJ NO.2	8-94394-224-1	01	1	0101-0108	●
17	PIPE; INJ NO.2	8-94391-423-0	01	1	0109-0109	●
17	PIPE; INJ NO.2	8-97602-329-0	01	1	0110-	●
17	PIPE; INJ NO.2	8-94392-520-0	01	1	0101-		●
18	PIPE; INJ NO.3	8-94390-830-0	01	1	0101-0108	●
18	PIPE; INJ NO.3	8-97602-257-0	01	1	0109-	●
18	PIPE; INJ NO.3	8-94392-521-0	01	1	0101-		●
19	PIPE; INJ NO.4	8-94394-226-1	01	1	0101-0108	●
19	PIPE; INJ NO.4	8-94391-425-0	01	1	0109-	●
19	PIPE; INJ NO.4	8-94392-522-1	01	1	0101-		●
20	PIPE; INJ NO.5	8-94394-227-1	01	1	0101-0108	●
20	PIPE; INJ NO.5	8-94391-426-0	01	1	0109-	●
20	PIPE; INJ NO.5	8-94392-523-0	01	1	0101-		●
21	PIPE; INJ NO.6	8-94394-228-1	01	1	0101-0108	●
21	PIPE; INJ NO.6	8-94391-427-0	01	1	0109-	●
21	PIPE; INJ NO.6	8-94392-524-0	01	1	0101-		●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	9-09563-215-0	06	1	0101-	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	0101-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94391-472-0	06	1	0101-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0101-		●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	05	1	0101-0108	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	06	1	0109-	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	04	1	0101-		●
113	CLIP; INJ PIPE (A)	8-94396-793-0	04	1	0101-0108	●
113	CLIP; INJ PIPE	1-09701-132-1	10	1	0109-	●
113	CLIP; INJ PIPE (B)	8-94397-444-0	05	1	0101-0108	●
113	CLIP; INJ PIPE	1-09701-132-1	08	1	0101-		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94395-043-2	01	1	0101-	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94390-864-3	01	1	0101-		●
124	BOLT; EYE LEAK OFF PIPE (B) M8X18 EYE BOLT	1-09675-037-1	05	1	0101-	●
124	BOLT; EYE LEAK OFF PIPE (A) M8X30 FLANGE	1-09675-039-1	01	1	0101-	●
124	BOLT; EYE LEAK OFF PIPE M10X21 FLANGE	8-94396-711-0	01	1	0101-		●
133	PIPE; INJ NOZZLE LEAK OFF	8-94390-071-0	01	1	0101-	●
133	PIPE; INJ NOZZLE LEAK OFF	8-94390-451-0	01	1	0101-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	13	1	0101-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 THA	1-09630-083-0	04	1	0101-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3	8-97600-925-0	06	1	0101-		●
272	NOZZLE KIT; INJ	1-15319-021-0	06	1	0101-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
