Isuzu WW
▶
TRUCKS
▶
NPR
▶
51188 - NPR BUS(RHD)EURO1
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

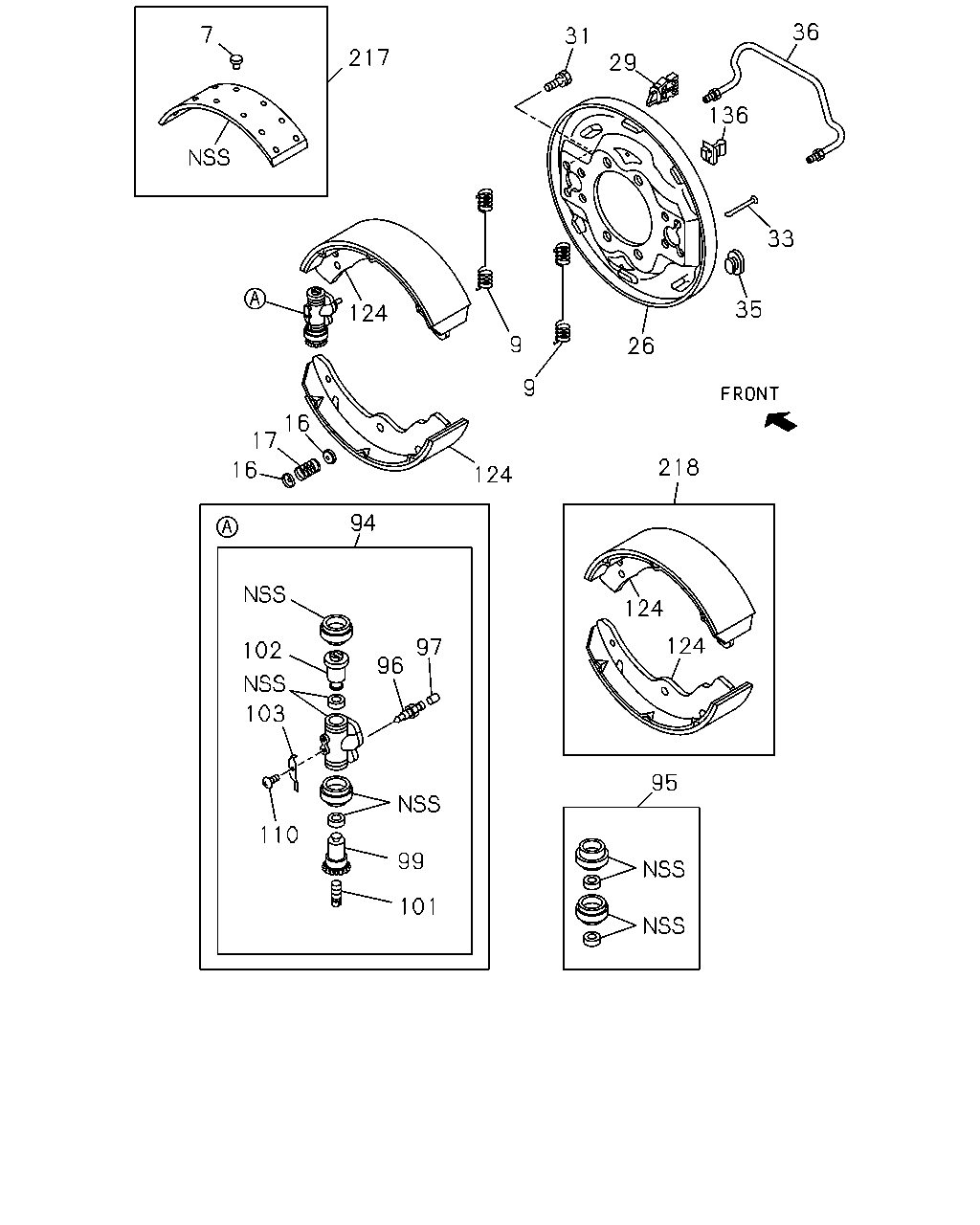

3-05 — REAR WHEEL BRAKE
(#75486) — 28 parça
36
7
31
217
29
136
33
35
124
9
26
9
16
17
218
16
124
94
124
124
97
102
96
103
95
110
99
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
05.019 RIVET; LINING,RR BRK
1-09732-029-0
48
1
0810-
9
05.026 SPRING; RETURN,BRK SHOE
8-97022-087-0
04
1
0810-
16
05.043 CUP; SHOE HOLDING
9-47165-096-0
08
1
0810-
17
04.043 SPRING; SHOE HOLD DOWN
05.043
5-09580-101-1
04
1
0810-
26
05.001 PLATE; BACK,RR BRK
8-97223-573-0
01
1
0810-
26
05.001 PLATE; BACK,RR BRK
8-97223-574-0
01
1
0810-
29
04.685 CLIP; PIPE,BRK
8-97022-086-0
02
1
0810-
31
04.665 BOLT; RR WHEEL CYL
8-97081-305-0
16
1
0810-
33
05.043 PIN; SHOE HOLD DOWN
8-97022-089-0
04
1
0810-
35
05.002 GROMMET; CHECK HOLE
8-97017-507-0
02
1
0810-
36
04.685 PIPE; OIL,RR BRK
8-97192-215-0
02
1
0810-
94
04.665 CYLINDER; WHEEL,RR BRK
FRONT
8-97139-822-0
01
1
0810-
94
04.665 CYLINDER; WHEEL,RR BRK
REAR
8-97139-824-0
01
1
0810-
94
04.665 CYLINDER; WHEEL,RR BRK
8-97139-825-0
02
1
0810-
95
04.665 CUP SET; RR WHEEL CYL
5-87831-598-0
02
1
0810-
96
04.666 SCREW; BLEEDER,RR BRK
8-98050-476-0
01
1
0810-
97
04.666 CAP; BLEEDER,RR WHEEL CYL
8-98050-479-0
01
1
0810-
99
04.668 PISTON; RR WHEEL CYL
8-94414-700-1
04
1
0810-
101
04.666 SCREW; ADJ,RR WHEEL CYL
8-94414-702-0
04
1
0810-
102
04.668 PISTON; REAR WHEEL CYL
D=30.16
8-94414-701-1
04
1
0810-0810
102
04.668 PISTON; REAR WHEEL CYL
8-97078-045-0
04
1
0811-
103
05.107 SPRING; LK,RR WHEEL CYL,ADJ
8-94128-486-0
04
1
0810-
110
05.107 SCREW; LOCK SPRING,RR WHEEL CYL
8-94128-727-0
04
1
0810-
124
05.017 SHOE ASM; BRK,RR
8-97201-061-0
04
1
0810-
136
05.002 GROMMET
8-97044-742-1
04
1
0810-
217
05.018 LINING KIT; RR BRK
5-87831-774-0
01
1
0810-
217
05.018 LINING KIT; RR BRK
BEST VALUE PARTS
5-87610-120-0
01
1
0810-
218
05.017 SHOE KIT; BRK,RR
5-87831-775-0
01
1
0810-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
