Isuzu WW
▶
TRUCKS
▶
NPR
▶
51188 - NPR BUS(RHD)EURO1
▶
2 - Clutch, Transmission, Trans Axle
▶
2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶

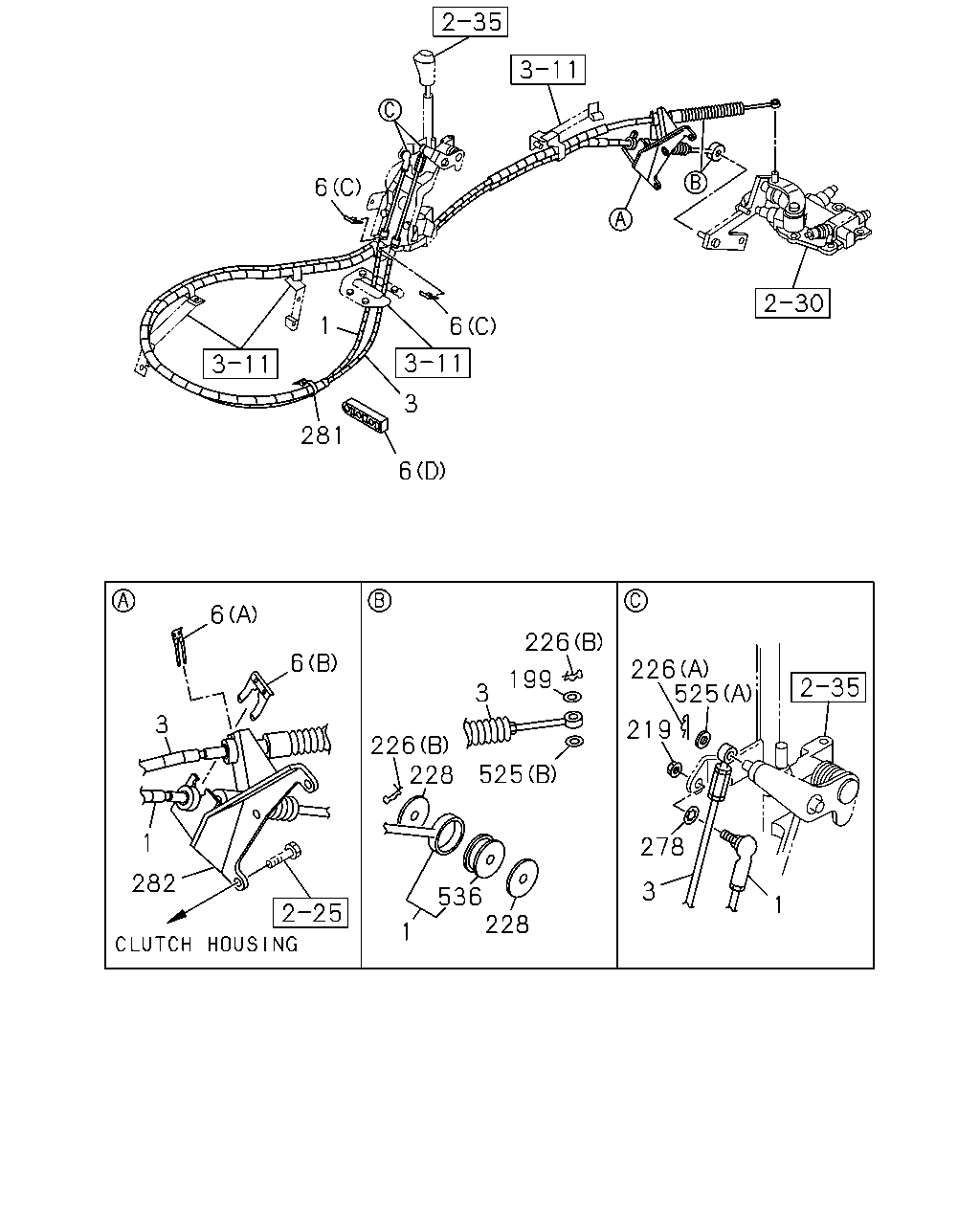

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#75484) — 23 parça
6
1
6
3
281
6
6
226
6
226
525
199
3
3
219
226
228
525
1
278
282
3
536
228
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.854 CABLE; SHIFT,TRANS CONT
FRONT WIDE TREAD<7GV> L=3115
8-98130-260-0
01
1
0906-0911
1
00.854 CABLE; SHIFT,TRANS CONT
FRONT WIDE TREAD<7GV> L=3115
8-98147-384-0
01
1
0912-
1
00.854 CABLE; SHIFT,TRANS CONT
L=3090
8-98025-436-3
01
1
0810-0905
1
00.854 CABLE; SHIFT,TRANS CONT
EXC. FRONT WIDE TREAD<7GV> L=3090
8-98025-436-3
01
1
0906-0911
1
00.854 CABLE; SHIFT,TRANS CONT
EXC. FRONT WIDE TREAD<7GV> L=3090
8-98146-856-0
01
1
0912-
3
00.852 CABLE; SELECT,TRANS CONT
FRONT WIDE TREAD<7GV>
8-98130-265-0
01
1
0906-
3
00.852 CABLE; SELECT,TRANS CONT
L=3202
8-98025-442-3
01
1
0810-0905
3
00.852 CABLE; SELECT,TRANS CONT
EXC. FRONT WIDE TREAD<7GV> L=3202
8-98025-442-3
01
1
0906-
6
04.047 CLIP; CABLE
00.854 (A) ID=22.2
1-09701-209-1
01
1
0810-
6
04.047 CLIP; CABLE
(C)
8-97011-448-0
02
1
0810-
6
04.047 CLIP; CABLE
04.008 (D)
8-97093-491-1
01
1
0810-
6
04.047 CLIP; CABLE
(B) ID=19.2
8-97211-011-0
01
1
0810-
199
04.012 WASHER; PL,SELECT
03.417 ID=8.4 OD=16
0-91610-508-0
01
1
0810-
219
04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0
8-94363-045-0
01
1
0810-
226
04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7
8-94111-137-0
01
1
0810-
226
04.047 PIN; SHIFT CABLE
(B) L=23
8-94170-378-0
02
1
0810-
228
04.047 WASHER; PL,SHIFT CABLE
ID=8.2 OD=40
8-97182-975-0
02
1
0810-
278
00.854 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT
0-91541-208-0
01
1
0810-
281
04.042 CLIP; BAND
03.162 L=140
5-09707-031-1
01
1
0810-
282
04.010 BRACKET; TRANS SIDE
8-98126-234-1
01
1
0810-
525
04.047 WASHER; SHIFT CABLE
06.056 (A) ID=8.4 OD=16
0-91614-508-0
01
1
0810-
525
04.047 WASHER; SHIFT CABLE
00.854 (B) ID=8.4 OD=14
5-09550-002-0
01
1
0810-
536
00.854 DAMPER; CABLE
8-98097-681-0
01
1
0810-
