2-25 — SPEEDOMETER DRIVEN GEAR (#75480) — 19 parça

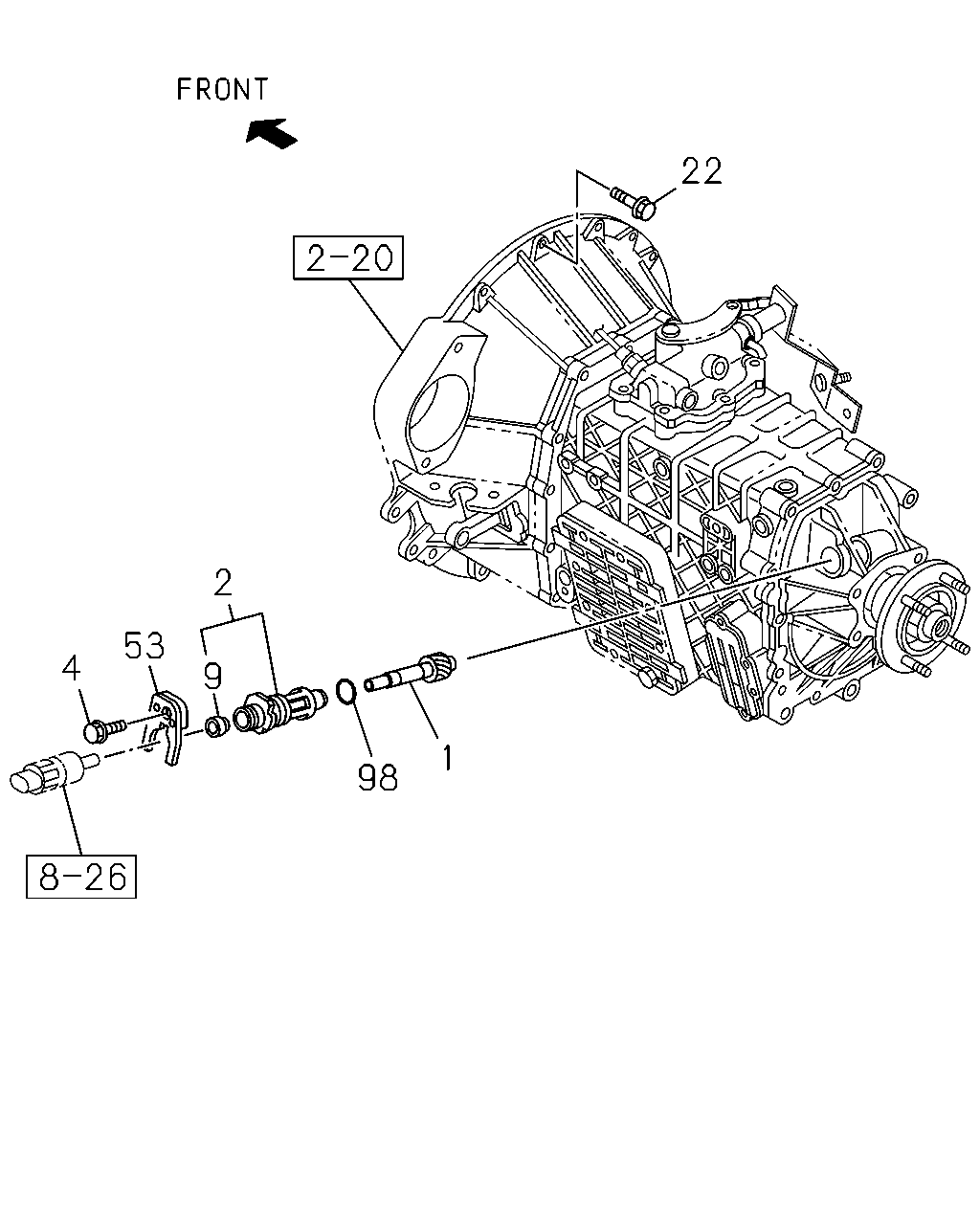

çizim 59902
22 2 53 4 9 1 98
BalonParca AdiParca NoAdetTipApplied Date
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/7(GV1) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) ,FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1 27 6-WHL/NUT DYNAMIC(97V) Z=14 		8-97253-561-1 01 1 0810-0810
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) Z=14 		8-97253-561-1 01 1 0810-0810
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/ NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6- WHL/NUT(83V) Z=14 		8-97253-561-1 01 1 0810-
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41) FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) ,FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUTDYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6 -WHL/NUT DYNAMIC(97V) Z=15 		8-97253-560-1 01 1 0810-0810
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/7(R42) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) ,FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1 27 6-WHL/NUT DYNAMIC(97V) Z=15 		8-97253-560-1 01 1 0810-0810
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/7(R42) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/ NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6- WHL/NUT(83V) Z=15 		8-97253-560-1 01 1 0810-
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) ,FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1 27 6-WHL/NUT DYNAMIC(97V) MARK "12,13,14,15" 		8-97253-125-0 01 1 0810-0810
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/ NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6- WHL/NUT(83V) MARK "12,13,14,15" 		8-97253-125-0 01 1 0810-
4 04.338 BOLT; RET,DRIVEN GEAR
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0810-
9 04.338 SEAL; OIL,DRIVEN GEAR
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) ,FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1 27 6-WHL/NUT DYNAMIC(97V) NOK 		8-97131-328-1 01 1 0810-0810
9 04.338 SEAL; OIL,DRIVEN GEAR
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/ NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6- WHL/NUT(83V) NOK 		8-97131-328-1 01 1 0810-
22 00.685 BOLT; TRANS CASE TO ENG
03.670 M10X35 FLANGE 		0-28151-035-0 03 1 0810-
22 00.685 BOLT; TRANS CASE TO ENG
00.683 M10X55 FLANGE 		8-97365-449-0 02 1 0810-
22 00.685 BOLT; TRANS CASE TO ENG
09.171 M10X30 FLANGE 		0-28151-030-0 02 1 0810-1506
22 00.685 BOLT; TRANS CASE TO ENG
09.171 M10X30 FLANGE 		0-28151-030-0 02 1 0810-1506
22 00.685 BOLT; TRANS CASE TO ENG
09.171 M10X30 FLANGE 		0-28151-030-0 04 1 1507-
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-98046-217-0 01 1 0810-
98 04.338 SEAL; OIL,BUSH
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C) ,FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/N UT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-1 27 6-WHL/NUT DYNAMIC(97V) 04.439 		9-09561-324-0 01 1 0810-0810
98 04.338 SEAL; OIL,BUSH
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/ NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6- WHL/NUT(83V) 04.439 		9-09561-324-0 01 1 0810-
