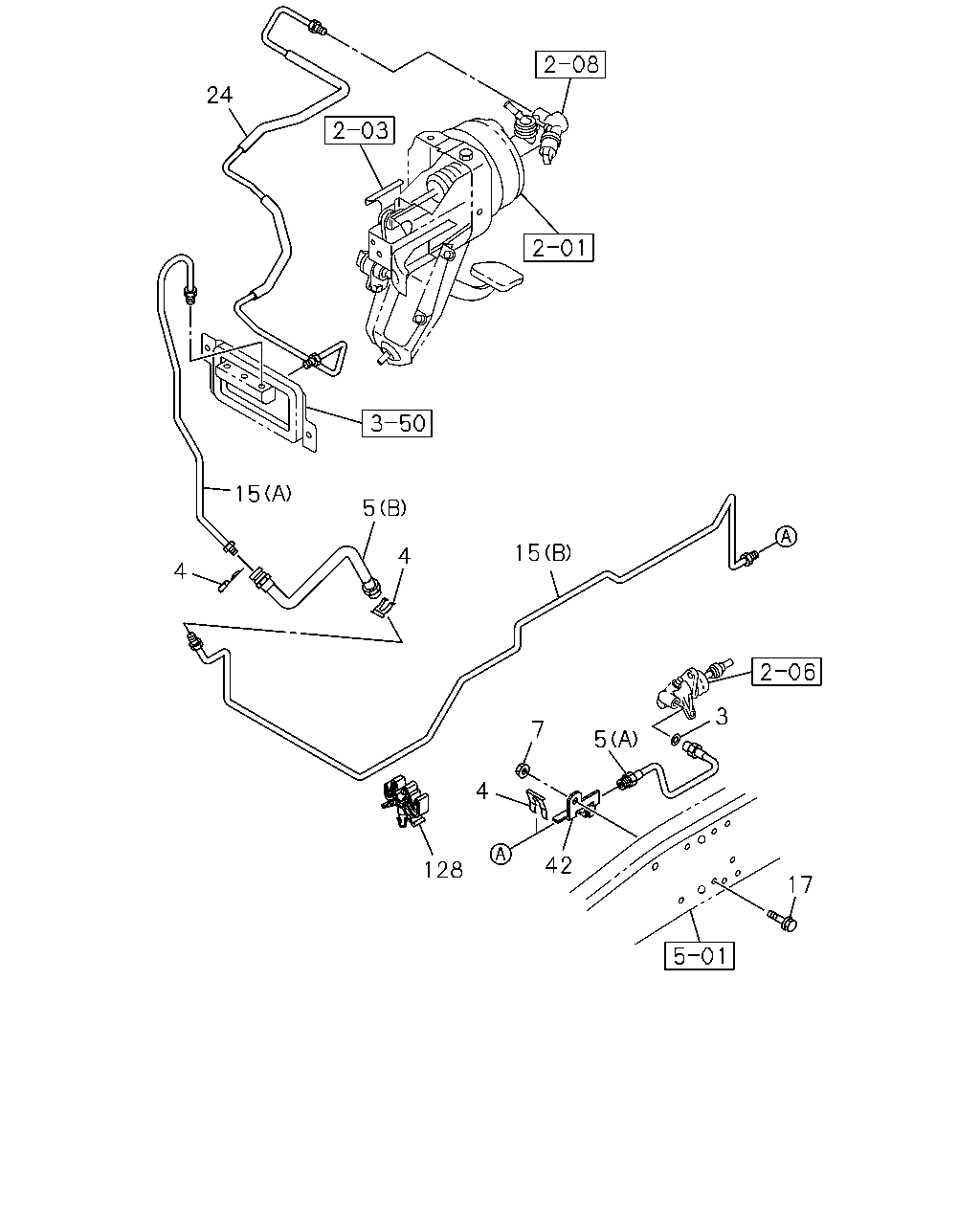

2-05 — CLUTCH PIPING (#75474) — 14 parça

24 15 5 15 4 4 3 7 5 4 42 128 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	00.785 GASKET; FLEX HOSE,CLU	9-09920-873-1	01	1	0810-
4	00.785 CLIP; FLEX HOSE,CLU CONT 04.681	8-97365-304-0	03	1	0810-
5	00.785 HOSE; FLEX,CLU PIPE (A)	8-97064-108-1	01	1	0810-
5	00.785 HOSE; FLEX,CLU PIPE (B)	8-98083-907-0	01	1	0810-
7	00.785 NUT; FLEX HOSE,CLU CONT 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-
15	00.785 PIPE; CLU,FLEX HOSE (A)	8-97389-643-0	01	1	0810-1401
15	00.785 PIPE; CLU,FLEX HOSE (A)	8-98250-269-0	01	1	1402-
15	00.785 PIPE; CLU,FLEX HOSE (B)	8-98100-236-0	01	1	0810-
17	00.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0810-
24	00.785 PIPE ASM; CLU,M/CYL TO UNION POWER ASSIST CLUTCH(S2T)	8-97389-356-1	01	1	0810-
24	00.785 PIPE ASM; CLU,M/CYL TO UNION EXC. POWER ASSIST CLUTCH(S2T)	8-98077-617-0	01	1	0810-
42	00.785 BRACKET; FLEX HOSE,CLU CONT	8-98102-893-0	01	1	0810-
128	00.785 CLIP; AIR PIPE 04.686 ID=12 & 6.35 & 4.76	8-97202-954-1	01	1	0810-

183

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	183	00.785 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T)	8-98121-942-0	01	1	0810-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
