0-37 — TURBOCHARGER (#7546) — 32 parça

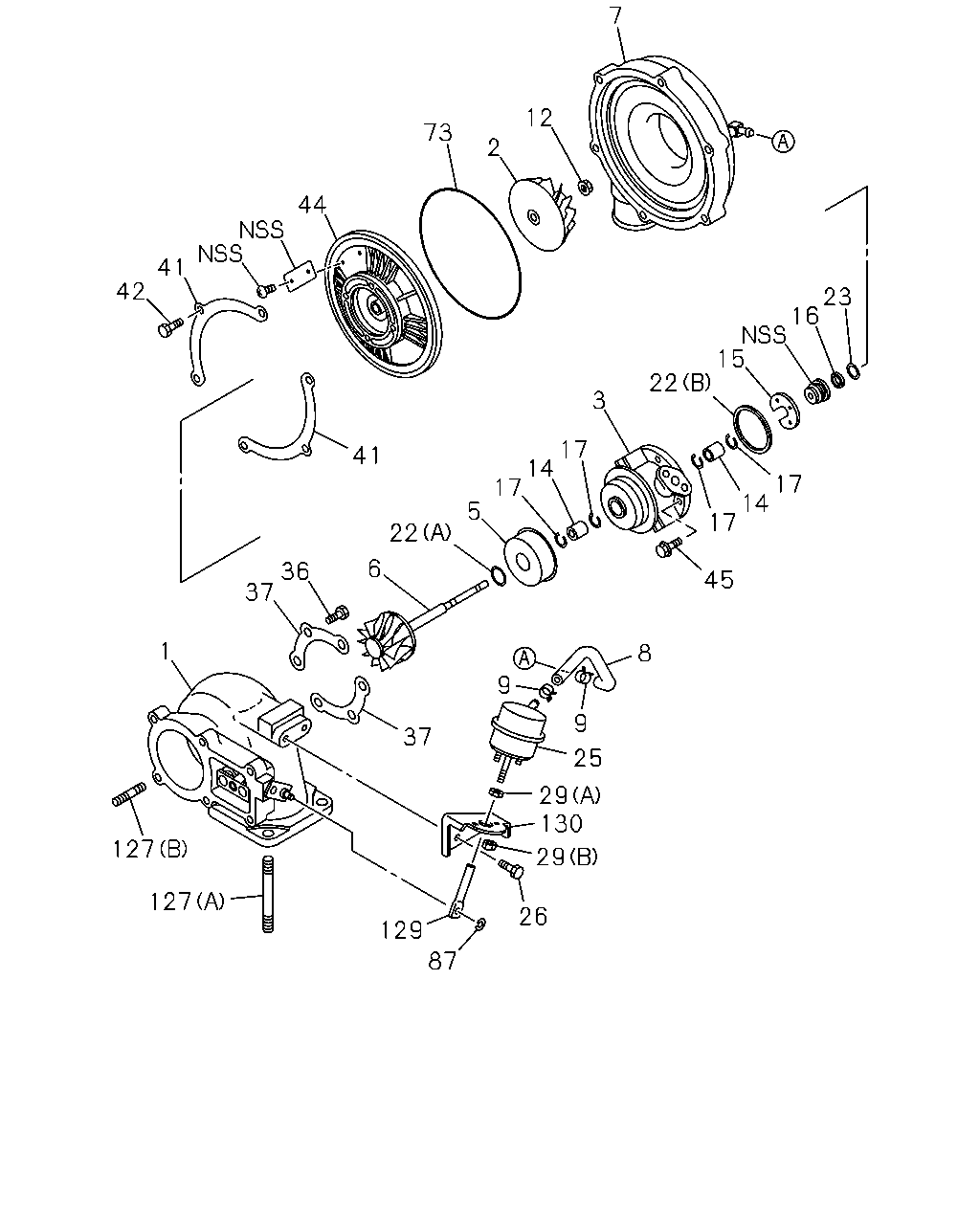

çizim 7600
7 12 73 2 44 41 42 23 16 15 22 3 17 14 17 41 17 14 17 5 22 6 36 37 45 1 8 9 9 37 25 29 130 127 29 127 26 129 87
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; TURBINE,TURBOCHARGER
ASM PART: A = 8-94390-650-0 		1-14415-103-0 01 1 -
2 IMPELLER; TURBOCHARGER
ASM PART: A = 8-94390-650-0 		1-14452-018-0 01 1 -
3 HOUSING; BRG,TURBOCHARGER
ASM PART: A = 8-94390-650-0 		1-14411-029-0 01 1 -
5 PROTECTOR; HEAT,TURBOCHARGER
ASM PART: A = 8-94390-650-0 		5-14429-003-0 01 1 -
6 SHAFT; TURBINE,TURBOCHARGER
ASM PART: A = 8-94390-650-0 		1-14451-038-0 01 1 -
7 HOUSING; BLOWER,TURBOCHARGER
ASM PART: A = 8-94390-650-0 		1-14414-100-0 01 1 -
8 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: A = 8-94390-650-0 		1-14419-145-0 01 1 -
9 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: A = 8-94390-650-0 		1-14419-134-0 02 1 -
12 NUT; LK,TURBINE SHAFT TO IMPELLER,TC
ASM PART: A = 8-94390-650-0 		1-14459-021-0 01 1 -
14 BEARING; JOURNAL,TURBOCHARGER
ASM PART: A = 8-94390-650-0 		1-14453-044-0 02 1 -
15 BEARING; THRUST,TURBOCHARGER
ASM PART: A = 8-94390-650-0 		1-14453-061-0 01 1 -
16 COLLAR; THRUST,TURBOCHARGER
ASM PART: A = 8-94390-650-0 		1-14459-019-0 01 1 -
17 RING; JOURNAL BRG,TURBOCHARGER
ASM PART: A = 8-94390-650-0 		1-14419-083-0 04 1 -
22 RING; SEAL,TURBINE SIDE,TURBOCHARGER
(A) ASM PART: A = 8-94390-650-0 		1-14419-102-0 01 1 -
22 RING; SEAL,TURBINE SIDE,TURBOCHARGER
(B) ASM PART: A = 8-94390-650-0 		1-14429-059-0 01 1 -
23 RING; SEAL,BLOWER SIDE,TURBOCHARGER
ASM PART: A = 8-94390-650-0 		5-14419-010-0 01 1 -
25 ACTUATOR; TURBOCHARGER
ASM PART: A = 8-94390-650-0 		1-14419-132-0 01 1 -
26 BOLT; WASTE GATE,ACTUATOR,TURBOCHARGER
ASM PART: A = 8-94390-650-0 		1-14419-104-0 02 1 -
29 NUT; WASTE GATE CONT,TURBOCHARGER
(A) ASM PART: A = 8-94390-650-0 		1-14419-136-0 01 1 -
29 NUT; WASTE GATE CONT,TURBOCHARGER
(B) ASM PART: A = 8-94390-650-0 		1-14419-139-0 02 1 -
36 BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE
ASM PART: A = 8-94390-650-0 		1-14419-104-0 06 1 -
37 PLATE; LK,TURBINE HSG,TURBOCHARGER
ASM PART: A = 8-94390-650-0 		1-14419-103-0 02 1 -
41 PLATE; LK,BLOWER HSG,TURBOCHARGER
ASM PART: A = 8-94390-650-0 		1-14419-093-0 02 1 -
42 BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER
ASM PART: A = 8-94390-650-0 		1-14419-105-0 06 1 -
44 PLATE; SEAL,TURBOCHARGER
ASM PART: A = 8-94390-650-0 		1-14459-053-0 01 1 -
45 SCREW; SEAL PLATE,TURBOCHARGER
ASM PART: A = 8-94390-650-0 		1-14419-143-0 04 1 -
73 GASKET; BRG HSG,TURBOCHARGER
ASM PART: A = 8-94390-650-0 		1-14459-037-0 01 1 -
87 RING; ACTUATOR,TURBOCHARGER
ASM PART: A = 8-94390-650-0 		1-14419-108-0 01 1 -
127 STUD; TURBOCHARGER
(A) ASM PART: A = 8-94390-650-0 		1-14419-137-0 02 1 -
127 STUD; TURBOCHARGER
(B) ASM PART: A = 8-94390-650-0 		1-14419-141-0 01 1 -
129 ROD END; TURBO
ASM PART: A = 8-94390-650-0 		1-14419-135-0 01 1 -
130 BRACKET; ACTUATOR,TURBO
ASM PART: A = 8-94390-650-0 		1-14419-140-0 01 1 -
