◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51188 - NPR BUS(RHD)EURO1 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#75452) — 13 parça

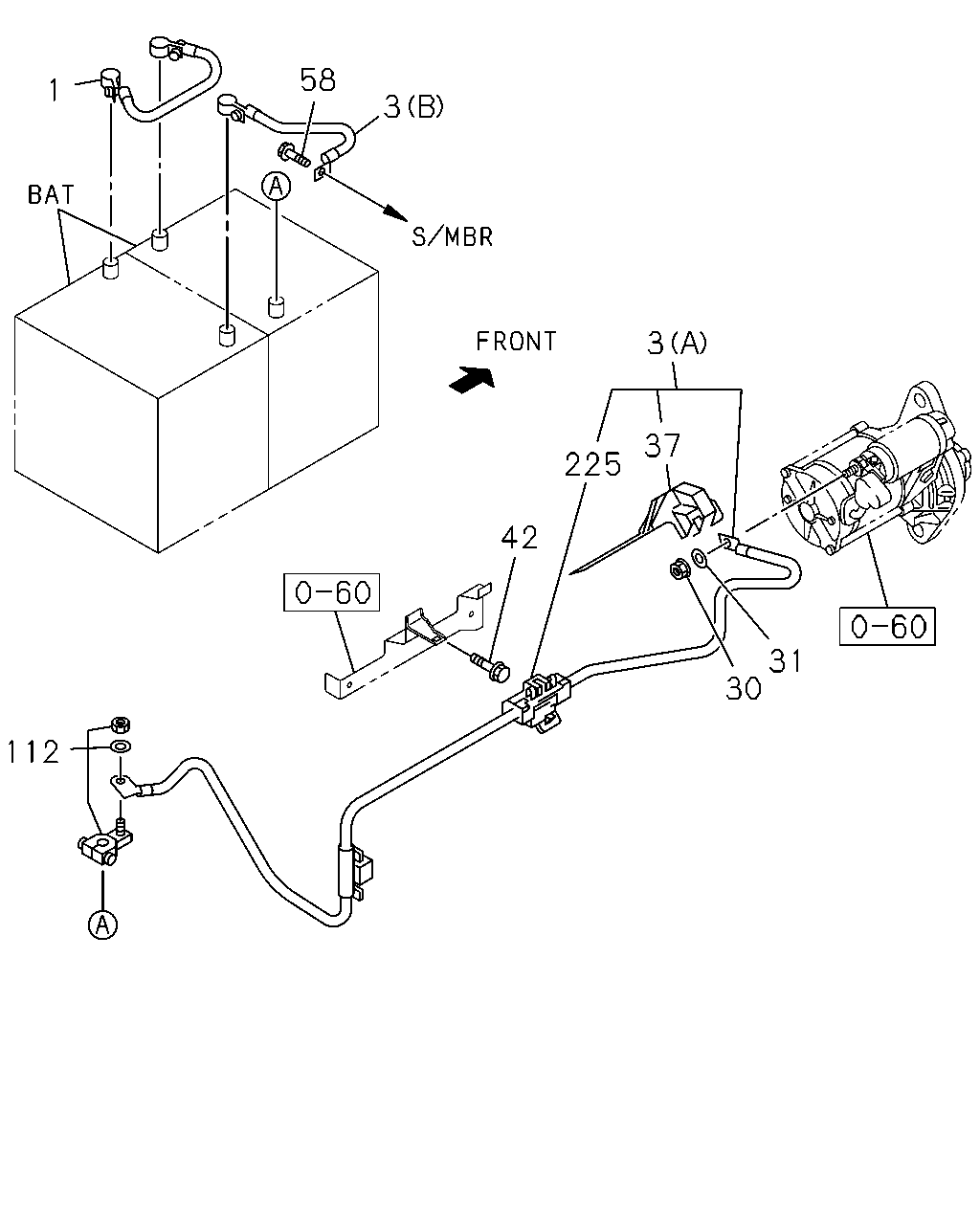

çizim 59798
58 1 3 3 37 225 42 31 30 112
BalonParca AdiParca NoAdetTipApplied Date
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 0810-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> (B) L=200 		8-98056-337-1 01 1 0810-
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> (A) 		8-98067-966-4 01 1 0810-1409
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> (A) 		8-98294-718-0 01 1 1410-
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0810-
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 0810-
37 02.343 CAP; TERMINAL,BATTERY CABLE
BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> 		8-98042-507-0 01 1 0810-
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 M6X16 FLANGE 		8-97329-599-0 01 1 0810-
58 02.343 BOLT; CABLE,BATTERY
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0810-1004
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005-
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0810-
225 02.343 BLOCK; TERMINAL
BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> 		8-98029-689-0 01 1 0810-1409
225 02.343 BLOCK; TERMINAL
BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> 		8-98294-524-0 01 1 1410-
