Isuzu WW
▶
TRUCKS
▶
NPR
▶
51188 - NPR BUS(RHD)EURO1
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶

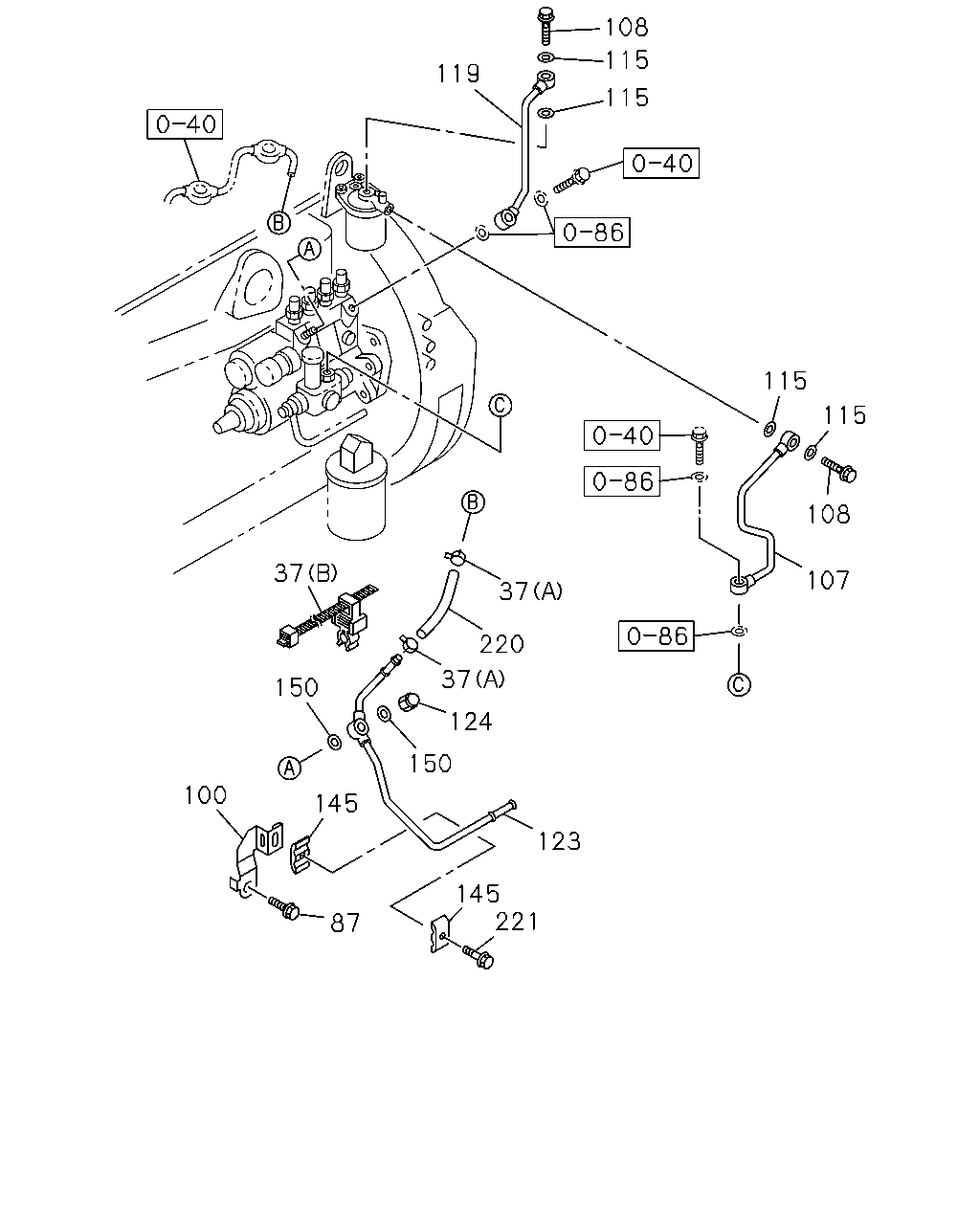

0-42 — FUEL PUMP AND PIPE
(#75445) — 16 parça
108
115
119
115
115
115
108
37
107
37
220
37
150
124
150
100
145
123
145
221
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
03.162 CLIP; FUEL HOSE
03.680 (B) L=350
8-97373-487-0
01
1
0811-
37
03.162 CLIP; FUEL HOSE
01.219 (A) ID=12
8-94238-610-0
02
1
0810-
87
03.162 BOLT; STAY,FUEL PIPE
02.343 M8X12 FLANGE
0-28050-812-0
01
1
0810-
100
03.162 CLIP; "B",FUEL PIPE
8-97108-315-0
01
1
0810-
107
03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL
8-97088-046-3
01
1
0810-
108
03.162 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
02
1
0810-
115
03.162 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.107 ID=14.2 OD=23.0
9-09572-014-0
04
1
0810-
119
03.163 PIPE; FUEL,FUEL FILTER TO INJ PU
8-97088-047-0
01
1
0810-
123
03.163 PIPE; FUEL,FUEL FILTER LEAK OFF
8-97118-894-1
01
1
0810-
124
03.162 NUT; CAP,FUEL PIPE
M14
1-09468-002-1
01
1
0810-
145
03.162 CLIP; FUEL PIPE
03.330 ID=6.1 & 9.6
8-97016-323-1
02
1
0810-
150
03.162 GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.107 ID=14.2 OD=23.0
9-09572-014-0
02
1
0810-
220
03.163 HOSE; FUEL
L=250 SERVICED BY L=3000
0-01256-300-0
01
1
0810-0810
220
03.163 HOSE; FUEL
L=270 SERVICED BY L=3000
0-01256-300-0
01
1
0811-1412
220
03.163 HOSE; FUEL
L=270 SERVICED BY L=3000
0-01856-300-0
01
1
1501-
221
03.163 BOLT; FUEL PIPE
00.685 M6X40 FLANGE
0-28650-640-0
01
1
0810-
