8-40 — HEATER SYSTEM (#75420) — 81 parça

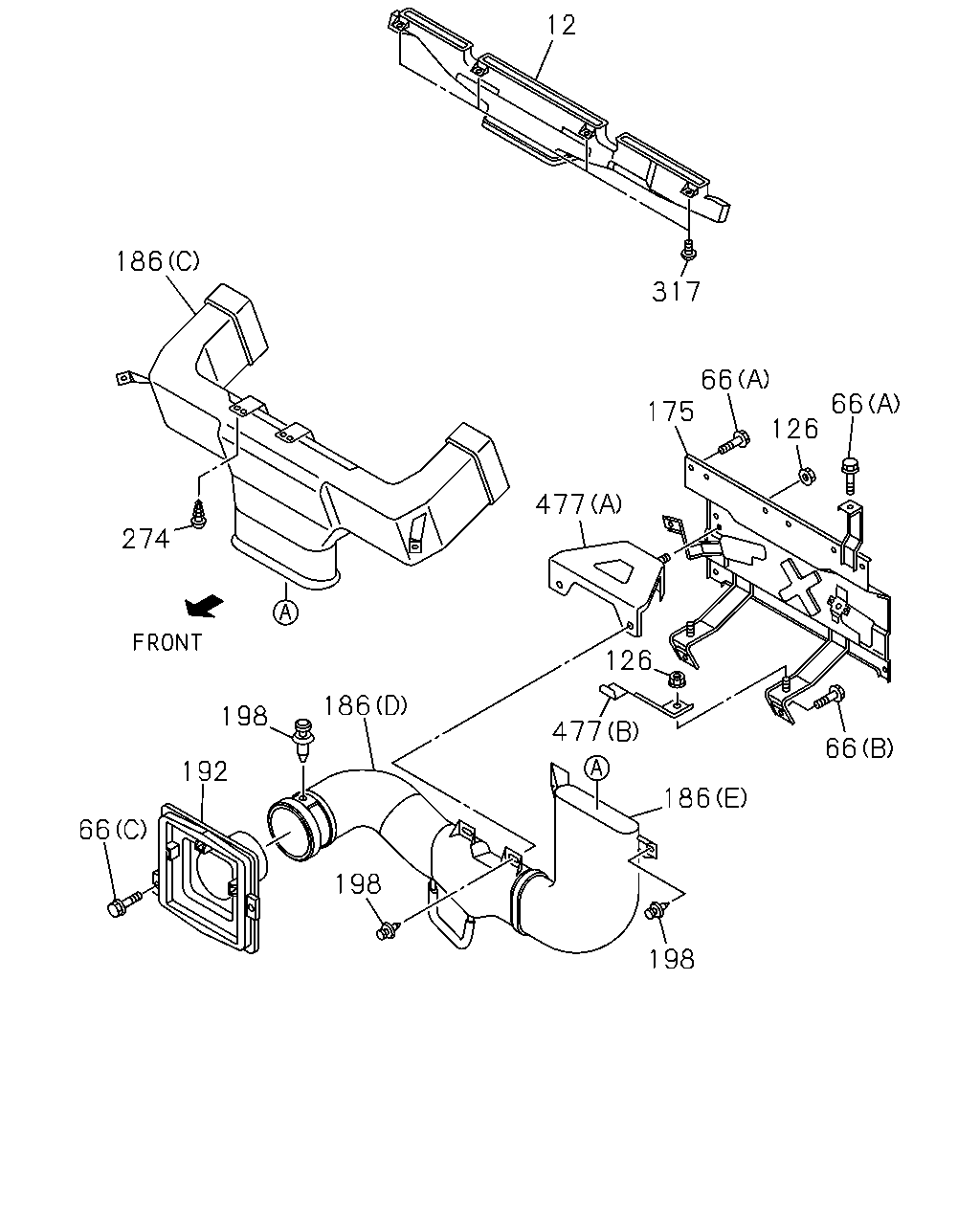

12 186 317 66 175 66 126 477 274 126 186 198 477 66 192 186 66 198 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	09.779 NOZZLE; DEFROSTER	8-98040-490-3	01	1	0810-
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	0810-0810
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39) 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	0811-0811
66	08.845 BOLT; DUCT 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	0812-
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.857 (C) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0810-0810
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39) 08.857 (C) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0811-0811
66	08.845 BOLT; DUCT 08.857 (C) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0812-
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0810-0810
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0811-0811
66	08.845 BOLT; DUCT (B) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	0812-
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 01.062 M6 FLANGE	0-91180-106-0	02	1	0810-0810
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39) 01.062 M6 FLANGE	0-91180-106-0	02	1	0811-0811
126	09.262 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	0812-1001
126	09.262 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	1002-
126	09.262 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	1002-
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-98091-543-5	01	1	0810-0810
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39)	8-98091-543-5	01	1	0811-0811
175	09.262 BRACKET; HTR DUCT	8-98091-543-5	01	1	0812-
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A)	8-98042-899-5	01	1	0810-0810
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B)	8-98042-900-4	01	1	0810-0810
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (C)	8-98054-362-0	01	1	0810-0810
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39) (C)	8-98054-362-0	01	1	0811-0811
186	09.786 DUCT; VENTILATOR (C)	8-98054-362-0	01	1	0812-
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (E)	8-98054-369-0	01	1	0810-0810
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39) (E)	8-98054-369-0	01	1	0811-0811
186	09.786 DUCT; VENTILATOR (E)	8-98054-369-0	01	1	0812-
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (D)	8-98054-378-2	01	1	0810-0810
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39) (D)	8-98054-378-2	01	1	0811-0811
186	09.786 DUCT; VENTILATOR (D)	8-98054-378-2	01	1	0812-
192	09.262 DUCT; RAM AIR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-98054-385-4	01	1	0810-0810
192	09.262 DUCT; RAM AIR EXC. FORGED AIR VENTILATION(C39)	8-98054-385-4	01	1	0811-0811
192	09.262 DUCT; RAM AIR	8-98054-385-4	01	1	0812-
198	09.787 CLIP; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 09.264	1-09987-144-0	05	1	0810-0810
198	09.787 CLIP; DUCT EXC. FORGED AIR VENTILATION(C39) 09.264	1-09987-144-0	05	1	0811-0811
198	09.787 CLIP; DUCT 09.264	1-09987-144-0	05	1	0812-
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0810-0810
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0811-0811
274	08.852 SCREW; VENT DUCT 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0812-1101
274	08.852 SCREW; VENT DUCT 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212
274	08.852 SCREW; VENT DUCT 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0810-0810
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0810-1101
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B)	8-98132-458-1	01	1	0810-0810
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39) (B)	8-98132-458-1	01	1	0811-0811
477	09.786 BRACKET; DUCT (B)	8-98132-458-1	01	1	0812-1005
477	09.786 BRACKET; DUCT (B)	8-98164-456-0	01	1	1006-
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A)	8-98091-304-0	01	1	0810-0810
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39) (A)	8-98091-304-0	01	1	0811-0811
477	09.786 BRACKET; DUCT (A)	8-98091-304-0	01	1	0812-

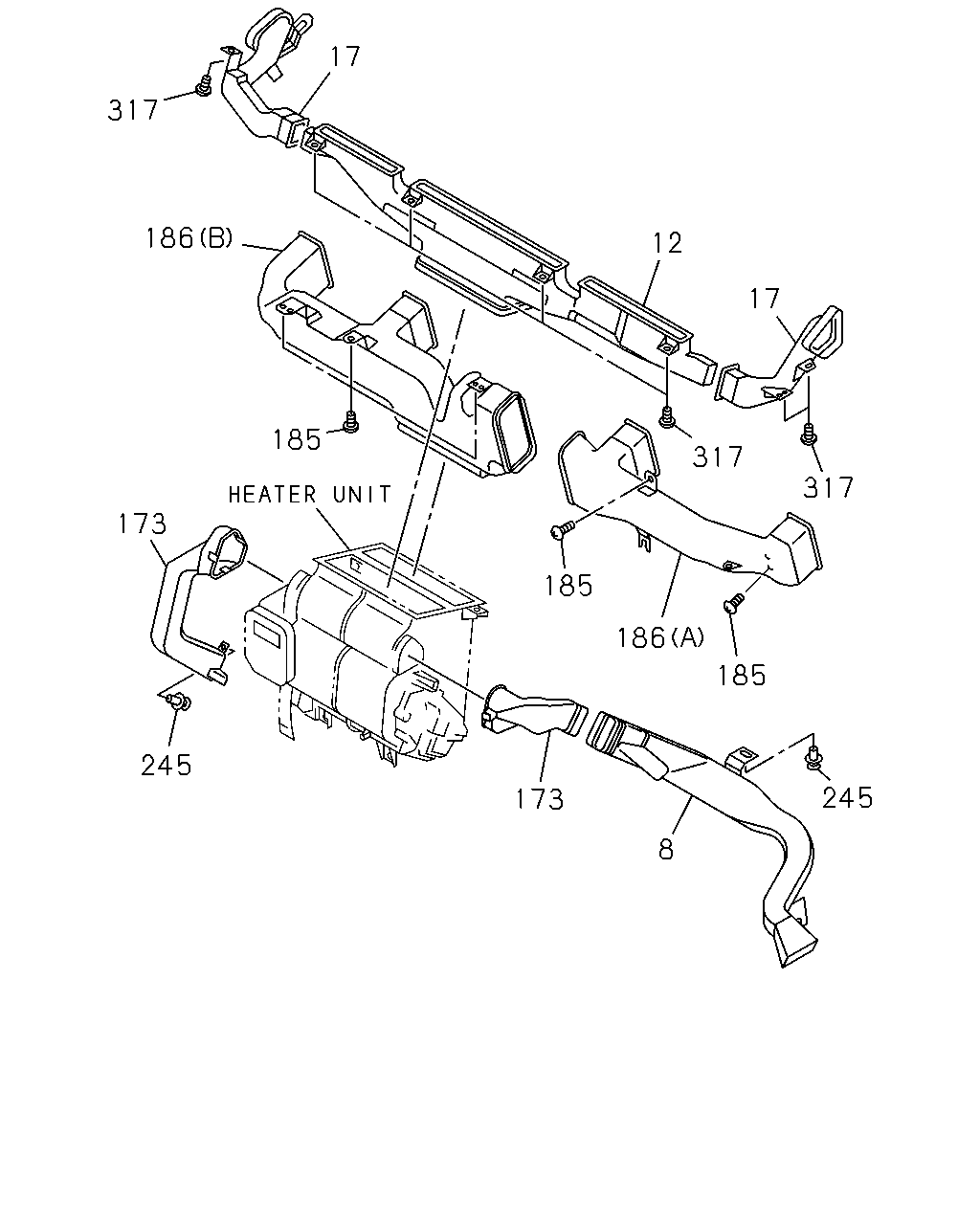

17 317 186 12 17 185 317 317 173 185 186 185 245 245 173 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	09.786 DUCT; HTR AIR,DRIVER FOOT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-97585-498-4	01	1	0810-0810
12	09.779 NOZZLE; DEFROSTER	8-98040-490-3	01	1	0810-
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-98040-497-1	01	1	0810-0810
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-98040-498-4	01	1	0810-0810
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-97585-494-3	01	1	0810-0810
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-97585-505-3	01	1	0810-0810
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	05	1	0810-0810
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A)	8-98042-899-5	01	1	0810-0810
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B)	8-98042-900-4	01	1	0810-0810
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (C)	8-98054-362-0	01	1	0810-0810
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39) (C)	8-98054-362-0	01	1	0811-0811
186	09.786 DUCT; VENTILATOR (C)	8-98054-362-0	01	1	0812-
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (E)	8-98054-369-0	01	1	0810-0810
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39) (E)	8-98054-369-0	01	1	0811-0811
186	09.786 DUCT; VENTILATOR (E)	8-98054-369-0	01	1	0812-
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (D)	8-98054-378-2	01	1	0810-0810
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39) (D)	8-98054-378-2	01	1	0811-0811
186	09.786 DUCT; VENTILATOR (D)	8-98054-378-2	01	1	0812-
245	09.786 CLIP; FOOT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 09.264	1-09987-144-0	03	1	0810-0810
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0810-0810
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0810-1101
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-

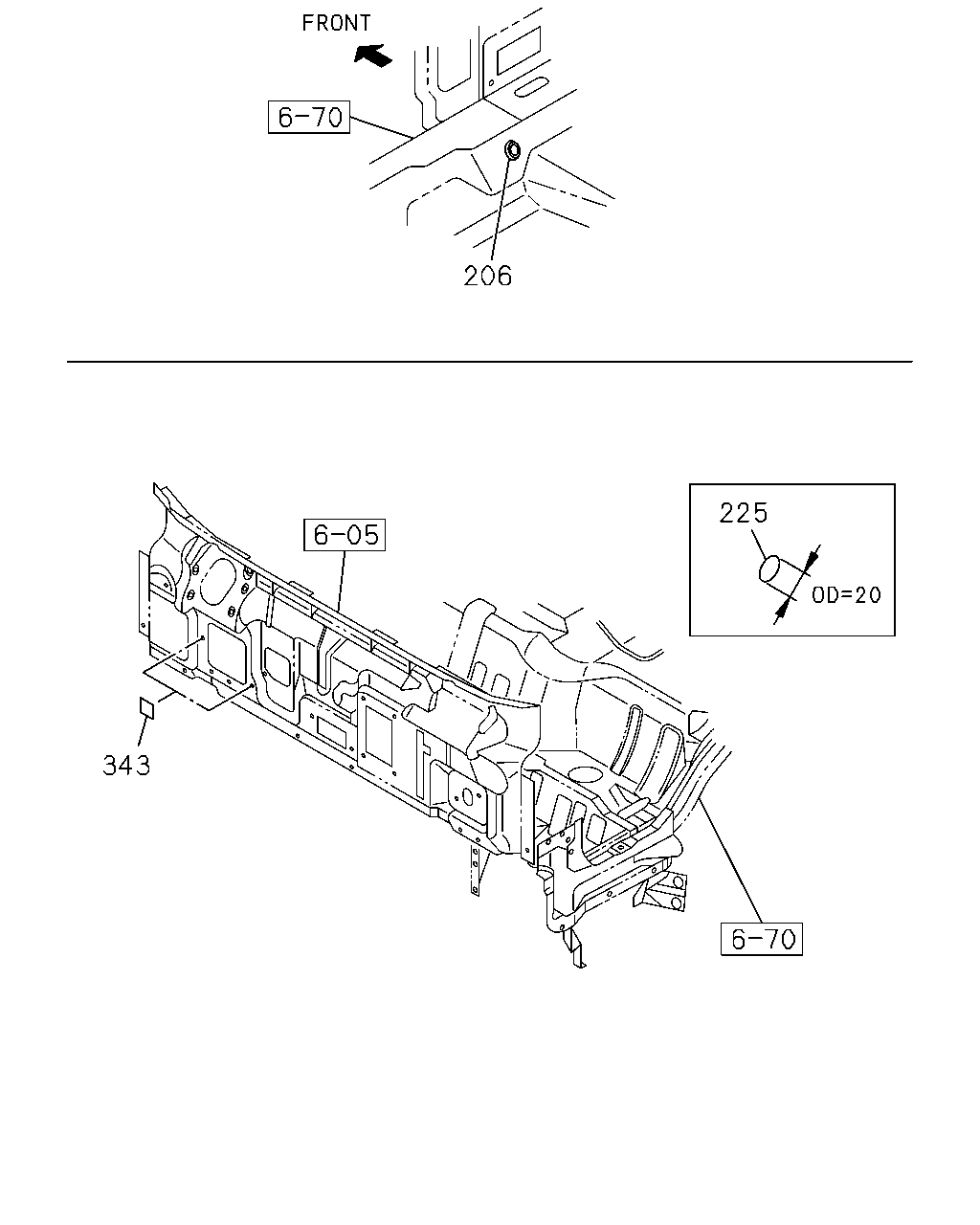

206 225 343

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
206	09.743 GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	0810-
225	08.845 SEAL; WATER EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0810-0810
225	08.845 SEAL; WATER EXC. FORGED AIR VENTILATION(C39) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0811-0811
225	08.845 SEAL; WATER 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0812-
343	08.845 SEAL; AIR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-97856-616-0	02	1	0810-0810
343	08.845 SEAL; AIR DUCT EXC. FORGED AIR VENTILATION(C39)	8-97856-616-0	02	1	0811-0811
343	08.845 SEAL; AIR DUCT	8-97856-616-0	02	1	0812-
