8-28 — CHASSIS ELECTRICAL (#75419) — 17 parça

42 376 540

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	09.766 BRACKET; RELAY INTERMITTENT WIPER<C13>	8-98094-199-0	01	1	0810-0810
376	03.342 BOLT; RELAY INTERMITTENT WIPER<C13> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0810-0810
540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98060-388-0	01	1	0810-0810

1 4 44 189 45 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.575 UNIT; FLASHER	1-83470-057-0	01	1	0810-
4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0810-1101
4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212
4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN(6KK)	8-98070-080-0	01	1	0810-
45	02.810 HORN; LOW NOTE	8-98022-023-0	01	1	0810-
189	02.812 BOLT; HORN 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0810-1004
189	02.812 BOLT; HORN DUAL HEAVY DUTY HORN(6KK) 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0810-1004
189	02.812 BOLT; HORN 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-
189	02.812 BOLT; HORN DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-

236

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	236	02.485 RELAY; FUEL PUMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0810-

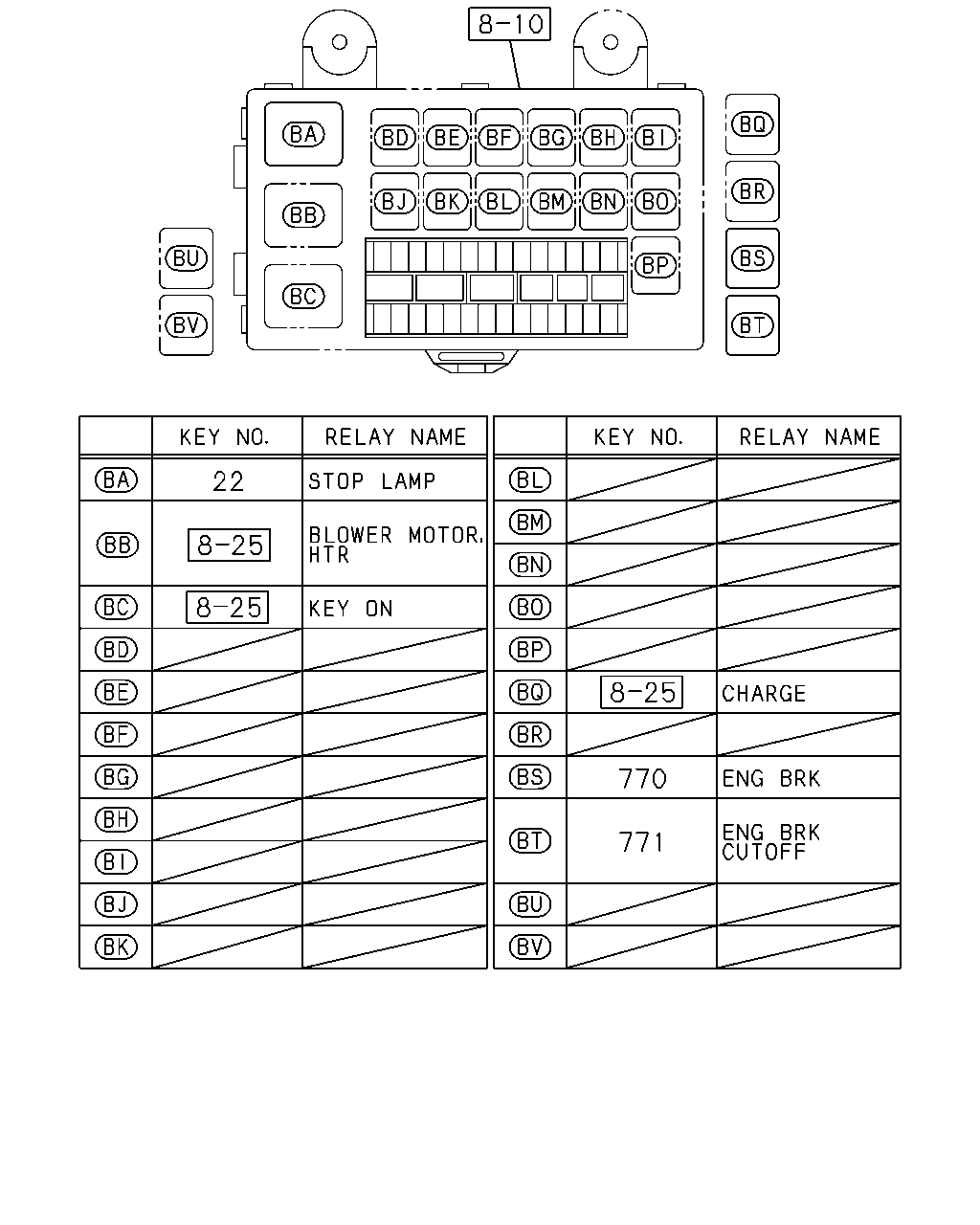

22 770 771

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0810-
770	02.510 RELAY; ENG BRK 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0810-
771	02.510 RELAY; ENG BRK CUTOFF 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0810-
