8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#75417) — 16 parça

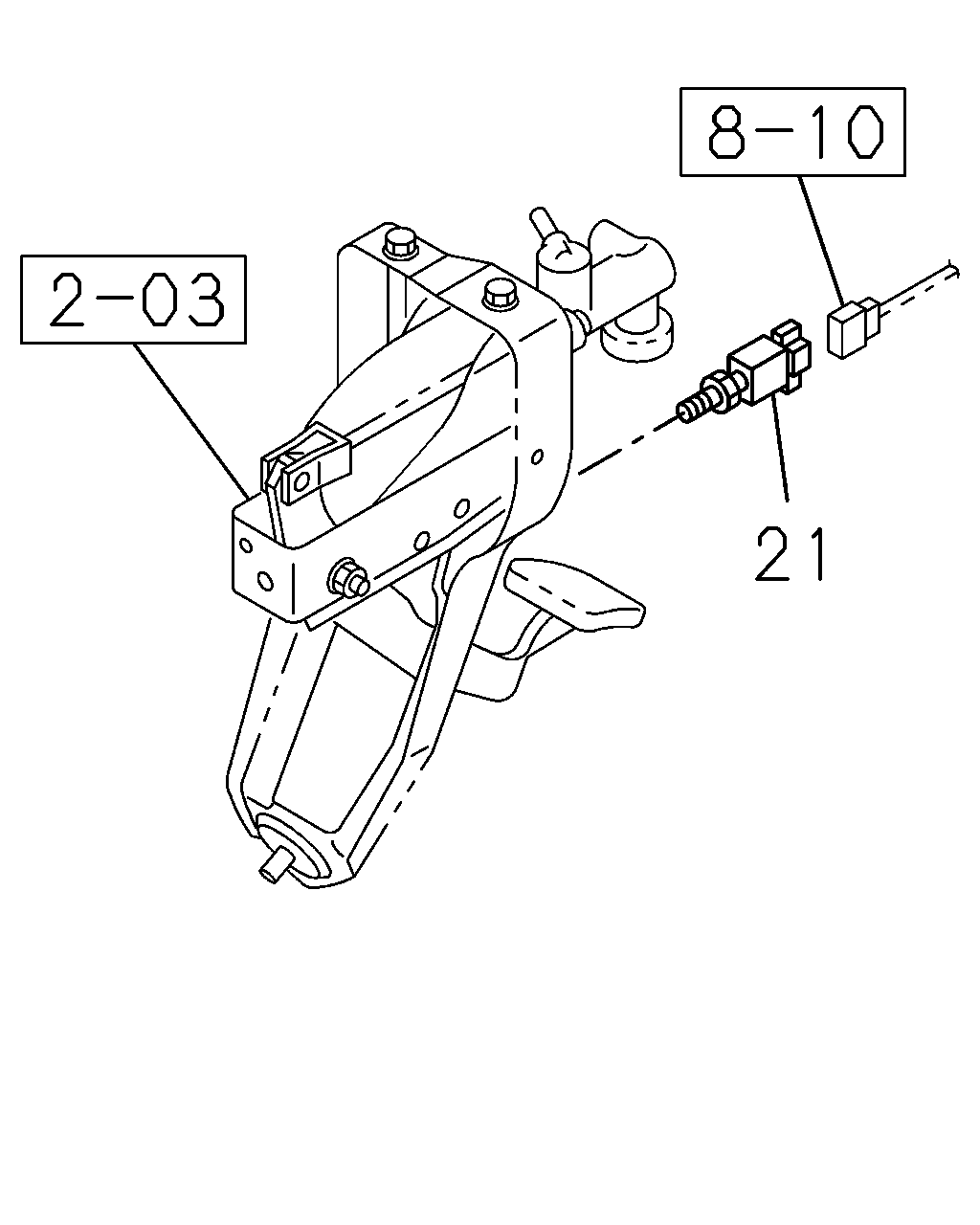

çizim 59362
21
BalonParca AdiParca NoAdetTipApplied Date
21 02.575 SWITCH; CLU 8-97358-248-0 01 1 0810-

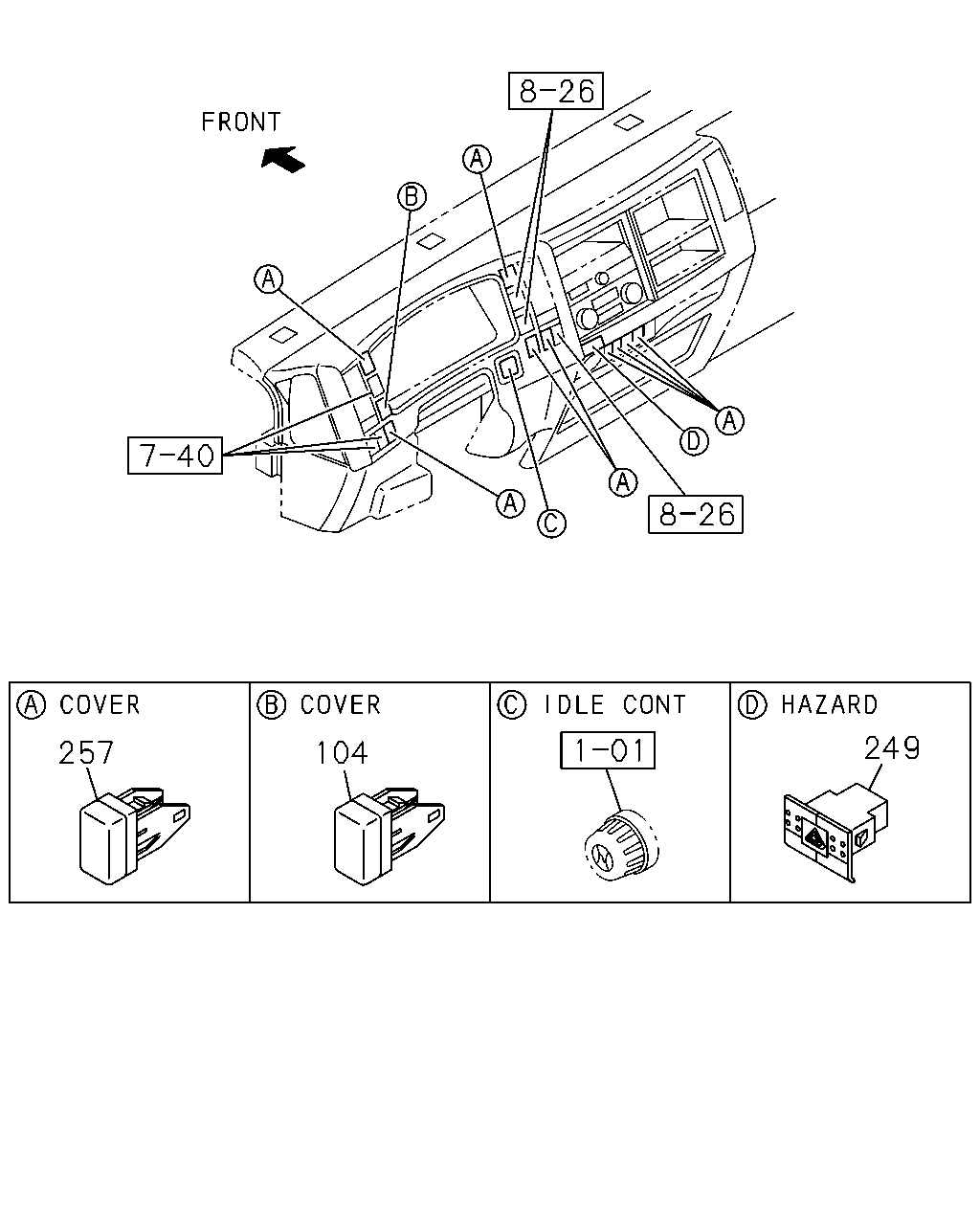

çizim 59757
249 257 104
BalonParca AdiParca NoAdetTipApplied Date
104 09.778 COVER; SW HOLE,FOG LAMP
16.081 		8-98025-954-1 01 1 0810-
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 0810-
257 16.081 COVER; HOLE,SW 8-98025-954-1 06 1 0810-
257 16.081 COVER; HOLE,SW 8-98025-954-1 01 1 0810-
257 16.081 COVER; HOLE,SW 8-98025-954-1 01 1 0810-
257 16.081 COVER; HOLE,SW 8-98025-954-1 01 1 0810-

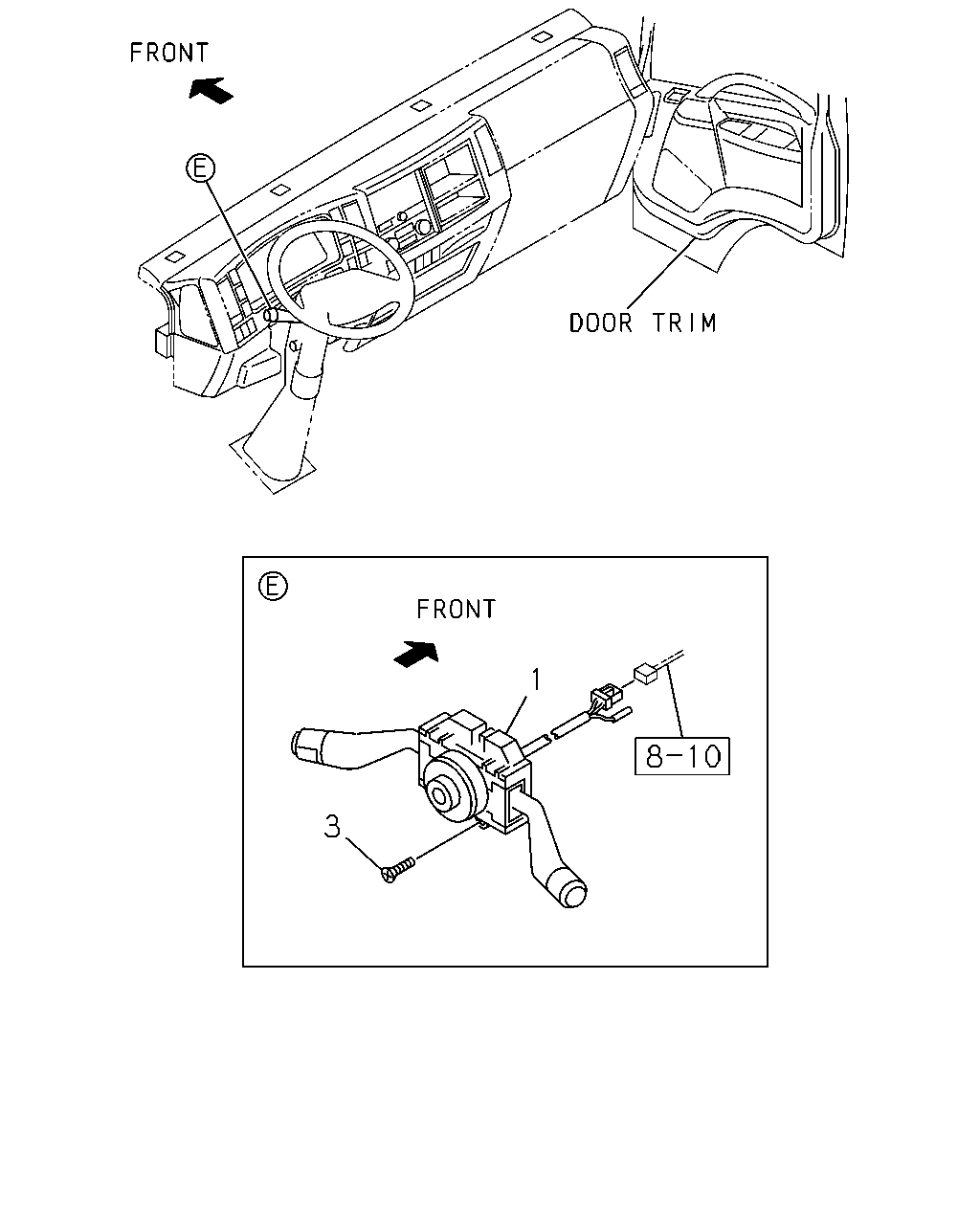

çizim 101393
1 3
BalonParca AdiParca NoAdetTipApplied Date
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-98114-334-0 01 1 0810-0810
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-98114-333-1 01 1 0810-0810
1 02.895 SWITCH; COMB 8-98114-333-1 01 1 0811-1310
1 02.895 SWITCH; COMB 8-98243-759-0 01 1 1311-
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0810-

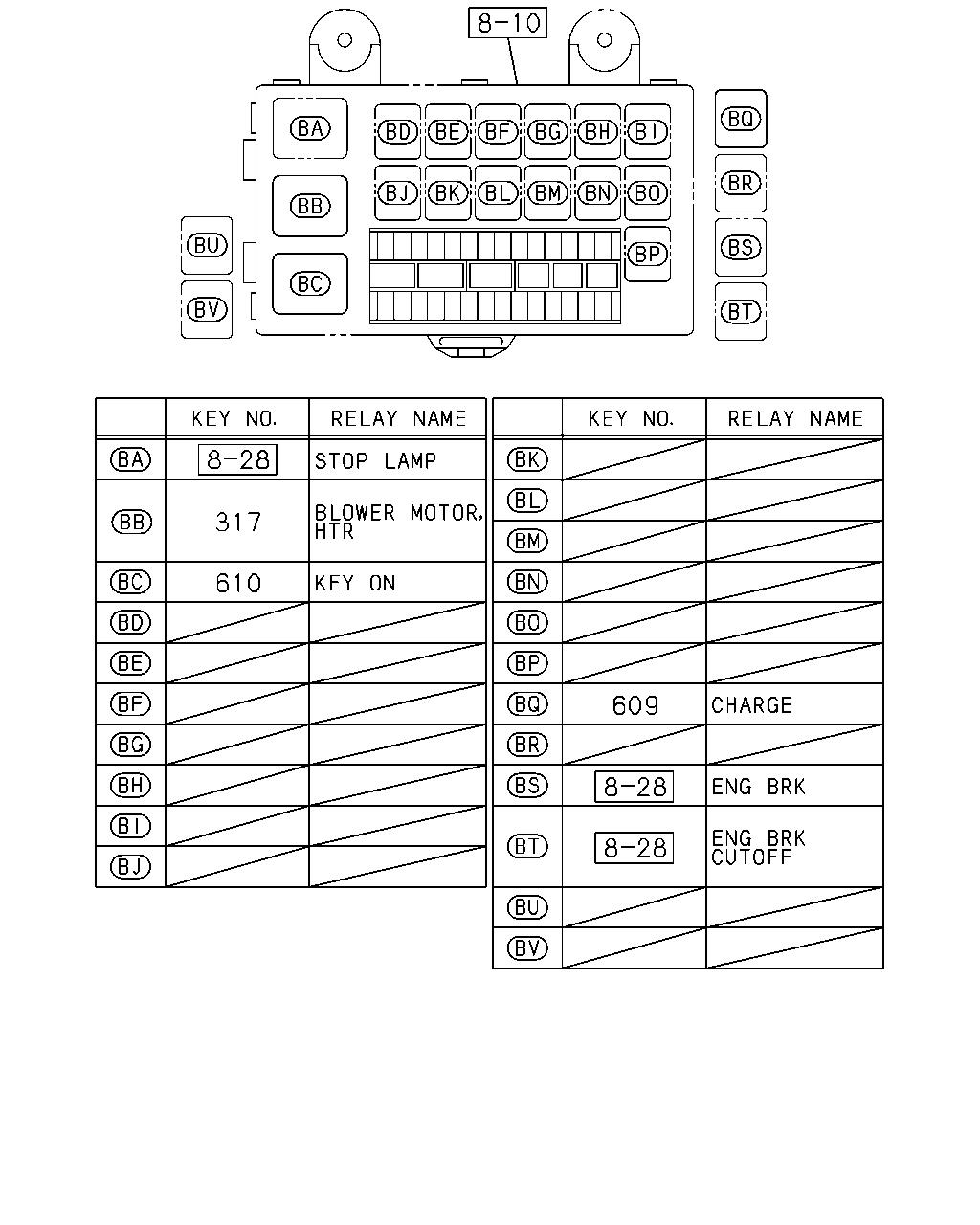

çizim 101430
317 610 609
BalonParca AdiParca NoAdetTipApplied Date
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0810-0810
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0811-0811
609 02.485 RELAY; CHARGE
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0810-
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0810-
